Vårt bästa alternativ till Intel NUC 11 - Recension av Beelink GTI 11 mini PC

Modern 11th gen Core i5-prestanda.

Beelink byter äntligen ut Celeron och CPU:er från äldre generationer mot de senaste 11:e generationens alternativ från Tiger Lake i sin nyaste minidator. Slutresultatet är ett system som kan mäta sig med Intels senaste NUC-modeller samtidigt som det kostar flera tusen kronor mindre.

Allen Ngo, 👁 Allen Ngo (översatt av DeepL / Ninh Duy), Published 12/25/2021 🇺🇸 🇳🇱 ...

Beelink har en hel serie minidatorer som riktar sig till köpare som är intresserade av Intel NUC-upplevelsen utan att behöva betala de höga Intel NUC-priserna. Den senaste modellen är GTI 11 som använder den senaste 11:e generationen Tiger Lake-U Core i5-1135G7-processorn med integrerad Iris Xe 80 EUs grafik. Denna detalj är anmärkningsvärd eftersom de flesta andra minidatorer från Beelink vanligtvis förlitar sig på äldre eller långsammare processorer för att hålla kostnaderna på mer överkomliga nivåer. GTI 11 är följaktligen en av de snabbaste och dyraste minidatorerna i Beelinks nuvarande sortiment.

Alternativ till GTI 11 är andra minidatorer som drivs av 11:e generationens Intel Core U-seriens CPU:er, t.ex Intel NUC11 Phantom Canyon, Beelink GMK NucBoc 2eller Zotac ZBox CI665 Nano

Fler recensioner av Beelink:

Beelink GTI 11

Processor

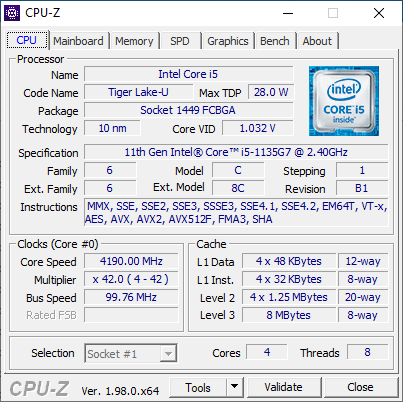

Intel Core i5-1135G7 4 x 2.4 - 4.2 GHz, 64 W PL2 / Short Burst, 28 W PL1 / Sustained, Tiger Lake-UP3

Grafikkort

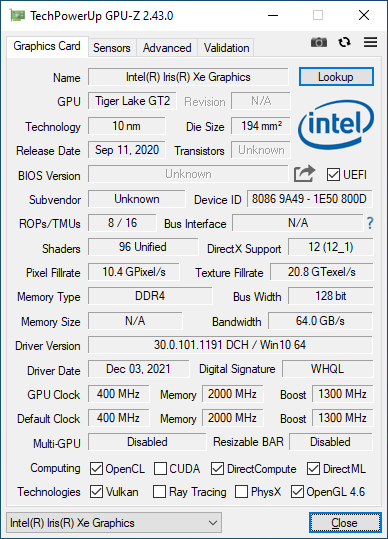

Intel Iris Xe Graphics G7 80EUs, Kärna: 1300 MHz, Minne: 2000 MHz, DDR4, 30.0.101.1191

Minne

16 GB

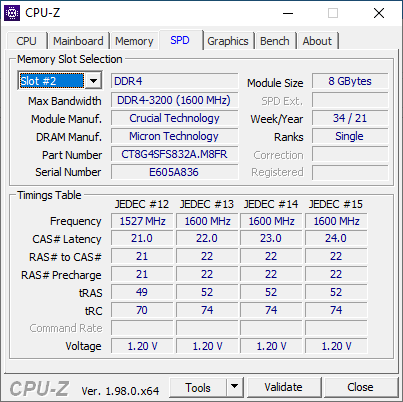

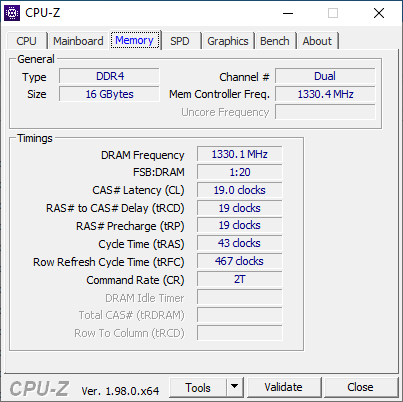

, DDR4-3200, Crucial, 15-15-15-35, Dual-Channel, 2x SODIMM

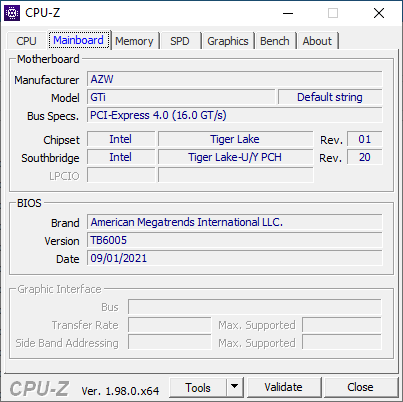

Moderkort

Intel Tiger Lake-UP3 PCH-LP

Hårddisk

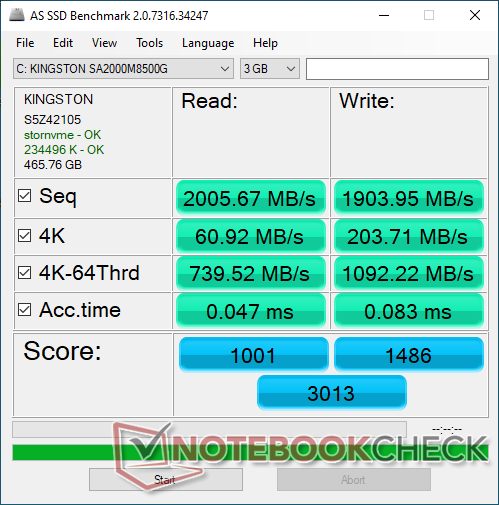

Kingston SA2000M8500G, 500 GB

Ljudkort

Intel Tiger Lake-U/Y PCH-LP - cAVS (Audio, Voice, Speech)

Anslutningar

6 USB 2.0, 5 USB 3.0, 1 USB 3.1 Gen2, 1 Thunderbolt, 1 HDMI, 2 DisplayPort, Ljudanslutningar: 3.5 mm combo, 1 Fingeravtrycksläsare

Nätverk

Intel Ethernet Controller I225-V (10/100/1000/2500MBit/s), Intel Wi-Fi 6 AX201 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/), Bluetooth 5.2

Storlek

höjd x bredd x djup (i mm) 39 x 168 x 120

Operativsystem

Microsoft Windows 10 Pro 64 Bit

Övrigt

2x HDMI cables, VESA mounting bracket, additional screws, 12 Månader Garanti

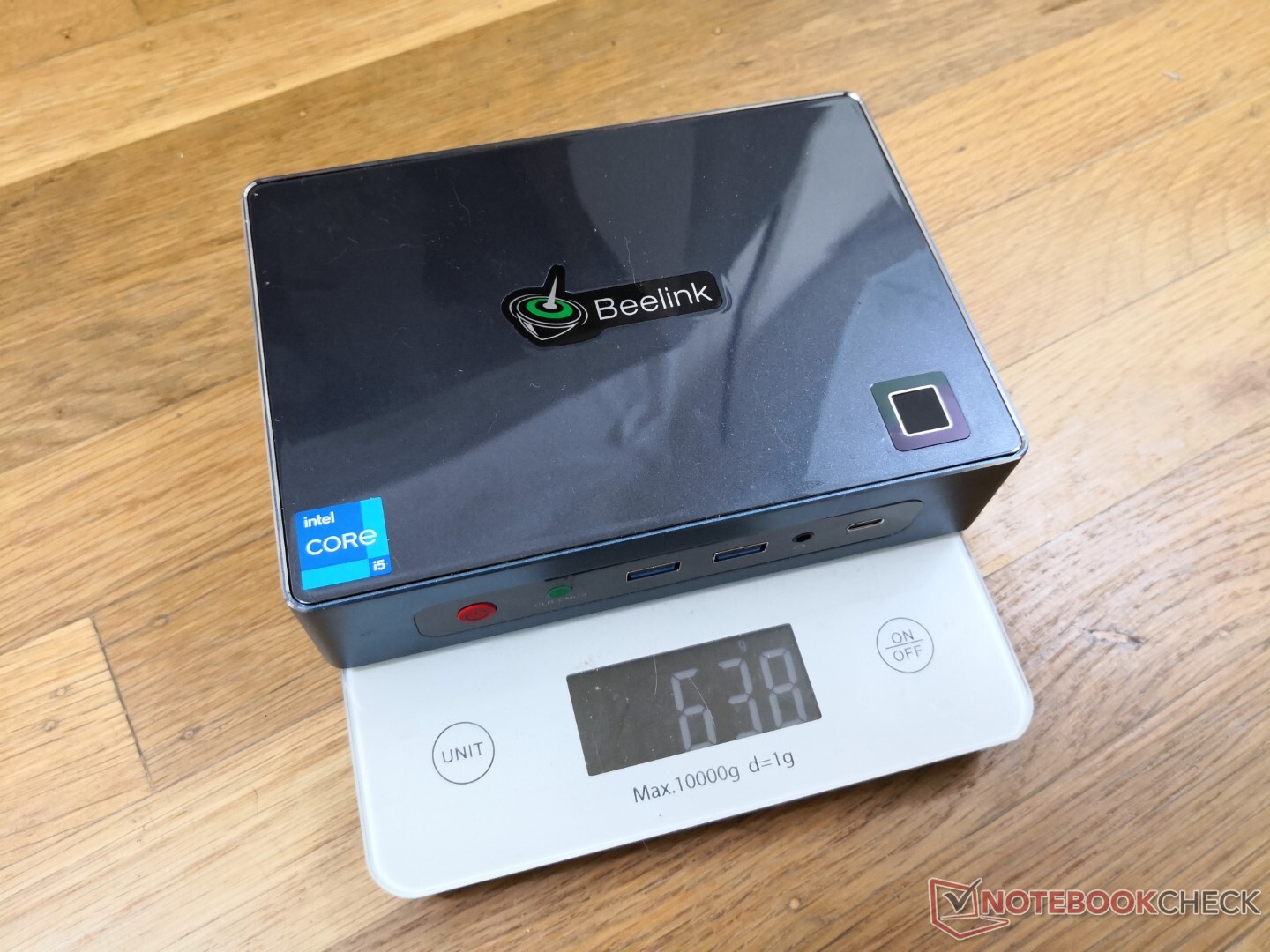

Vikt

638 g, Strömförsörjning: 216 g

Pris

700 USD

Länkar

Beelink hemsida

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

Testgrupp

Rating	Date	Model	Weight	Height	Size	Resolution
v ^(old)	12/2021	Beelink GTI 11 i5-1135G7, Iris Xe G7 80EUs	638 g	39 mm		x
v ^(old)	11/2021	Beelink SER3 R7 3750H, Vega 10	492 g	40 mm		x
v ^(old)		Intel NUC11TNKi5 i5-1135G7, Iris Xe G7 80EUs	504 g	37 mm		x
v ^(old)	02/2020	Intel NUC10i7FNH i7-10710U, UHD Graphics 620	697 g	51 mm	0.00"	0x0
v ^(old)		GMK NucBox 2 i5-8259U, Iris Plus Graphics 655	430 g	50 mm		x
v ^(old)	03/2018	Intel Hades Canyon NUC8i7HVK i7-8809G, Vega M GH	1.3 kg	39 mm		x

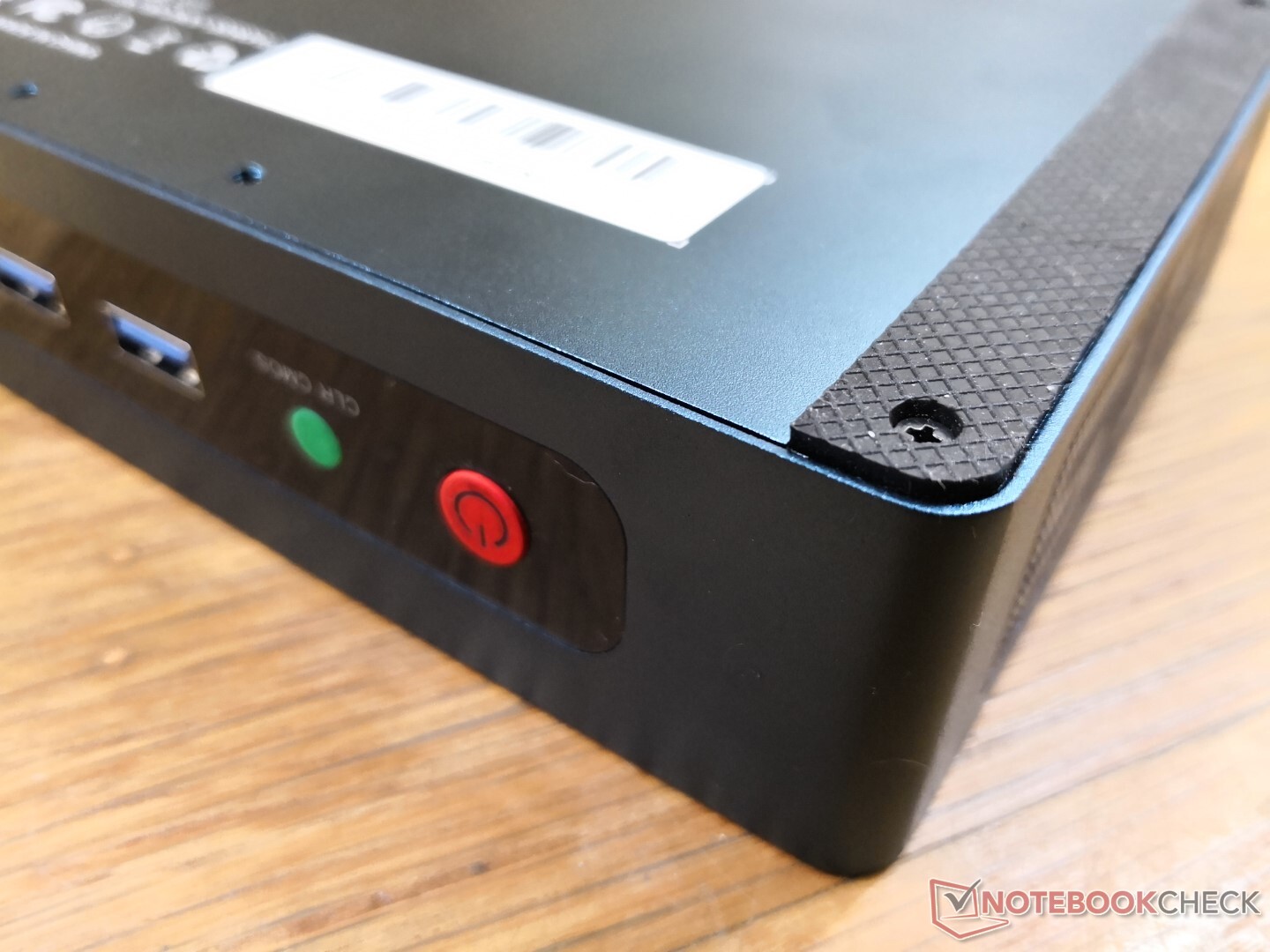

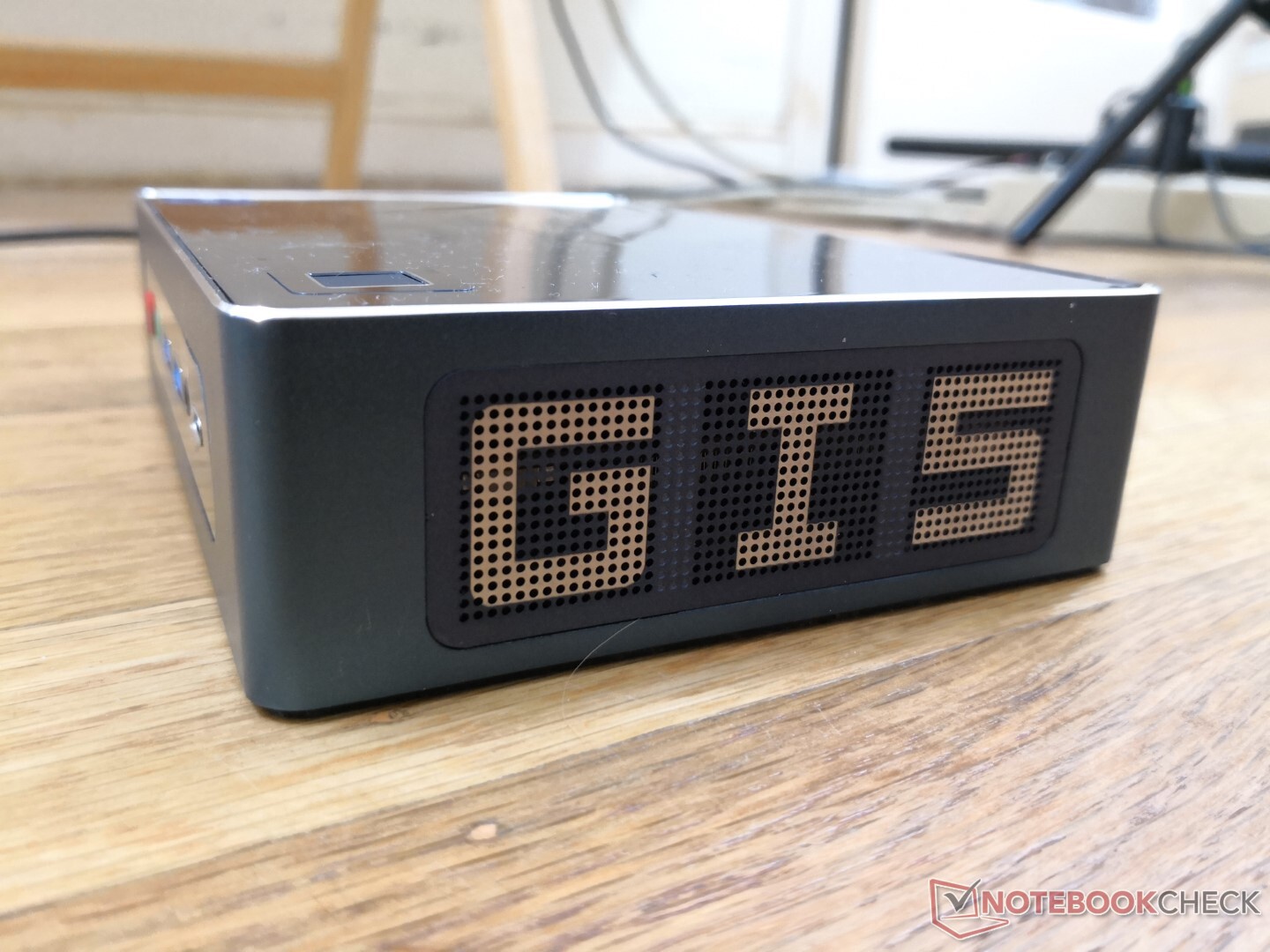

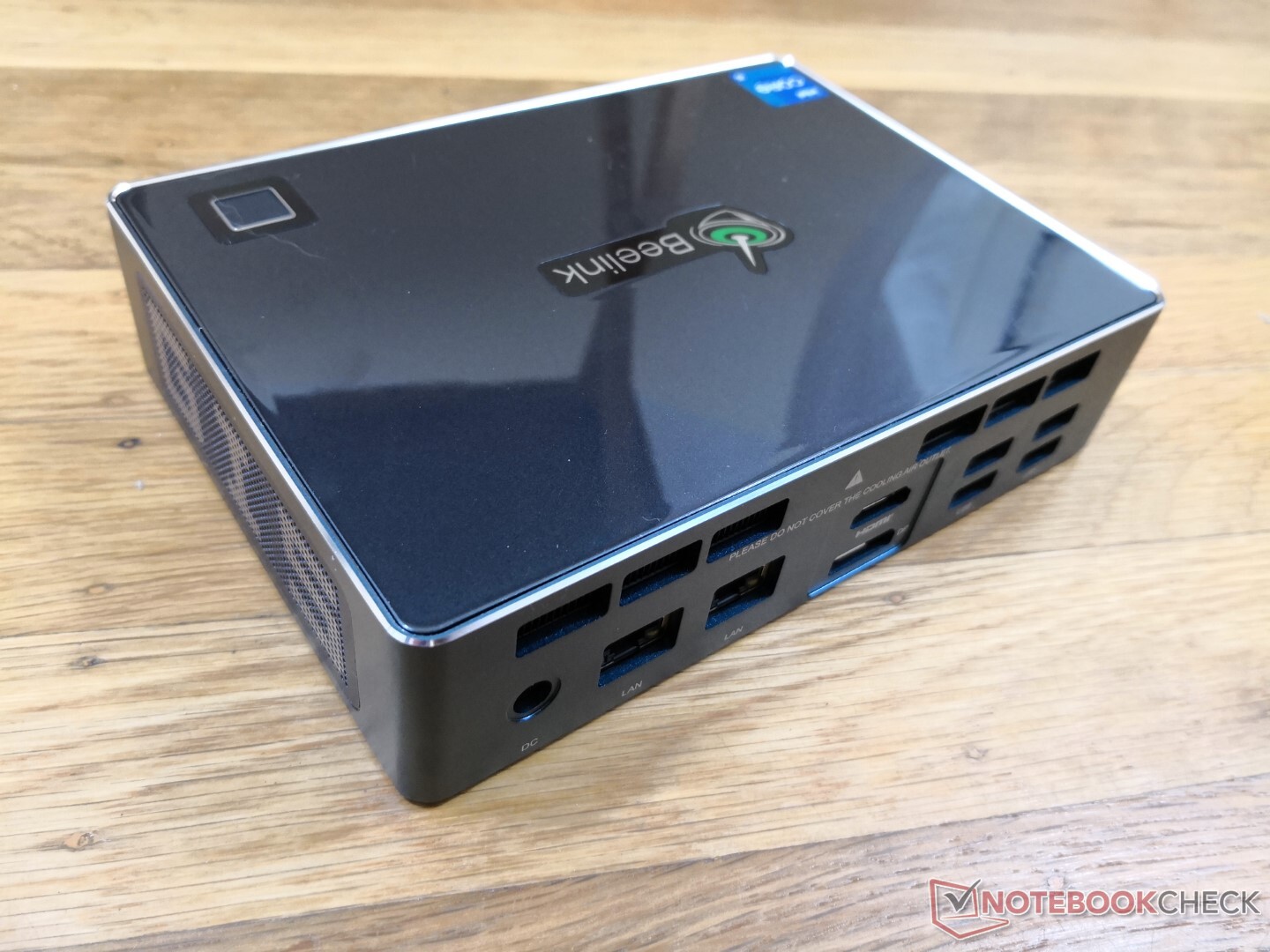

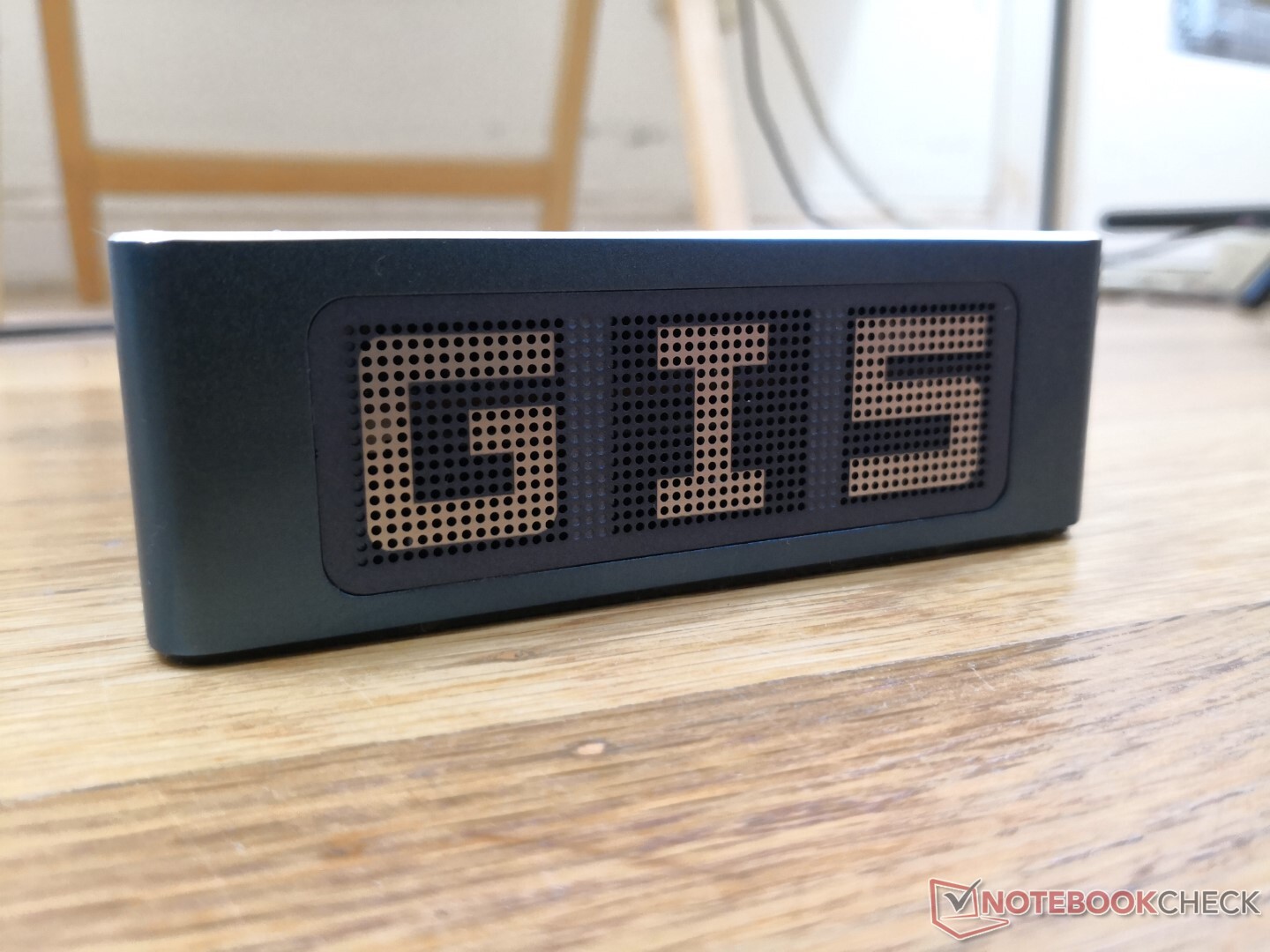

Hölje

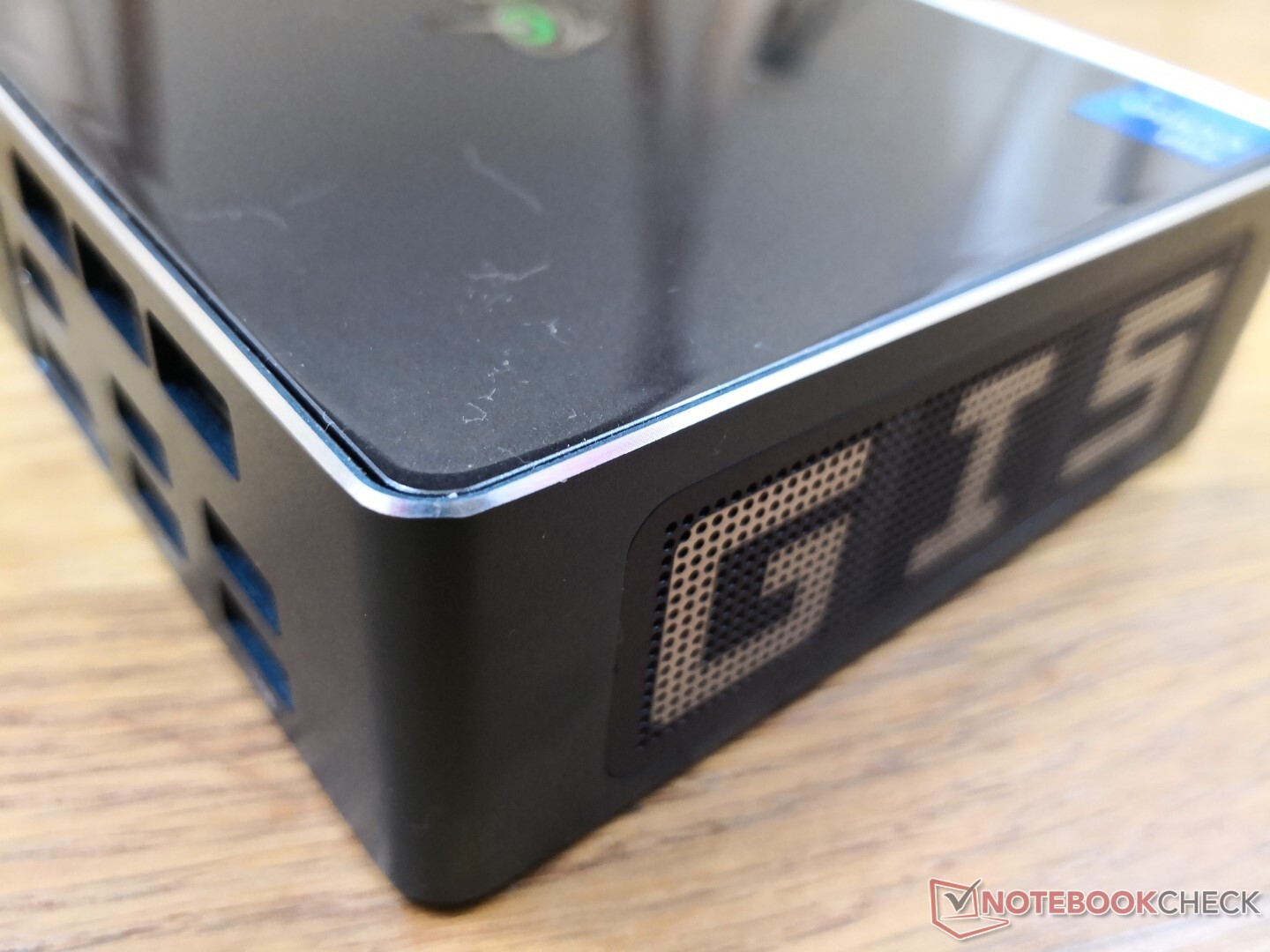

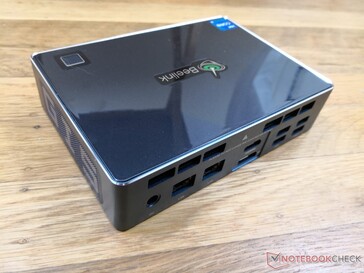

Skelettet är tillverkat av tunnare material och mindre metall än på en Intel NUC för att hålla nere både kostnader och vikt. Byggkvaliteten är fortfarande utmärkt och utan böjningar eller synligt svaga punkter. Vi gillar dock inte särskilt den glansiga plasttoppen eftersom den drar till sig både fingeravtryck och repor mycket snabbt

Enheten är större än en NUC10 men ändå märkbart lättare

Sidorna och den nedre panelen är av metall medan den övre är av plast

toppplasten och den glansiga panelen drar till sig damm, fingeravtryck och repor som aldrig förr

Gummifötter på undersidan av enheten. Inte hålen för VESA-monteringsadaptern

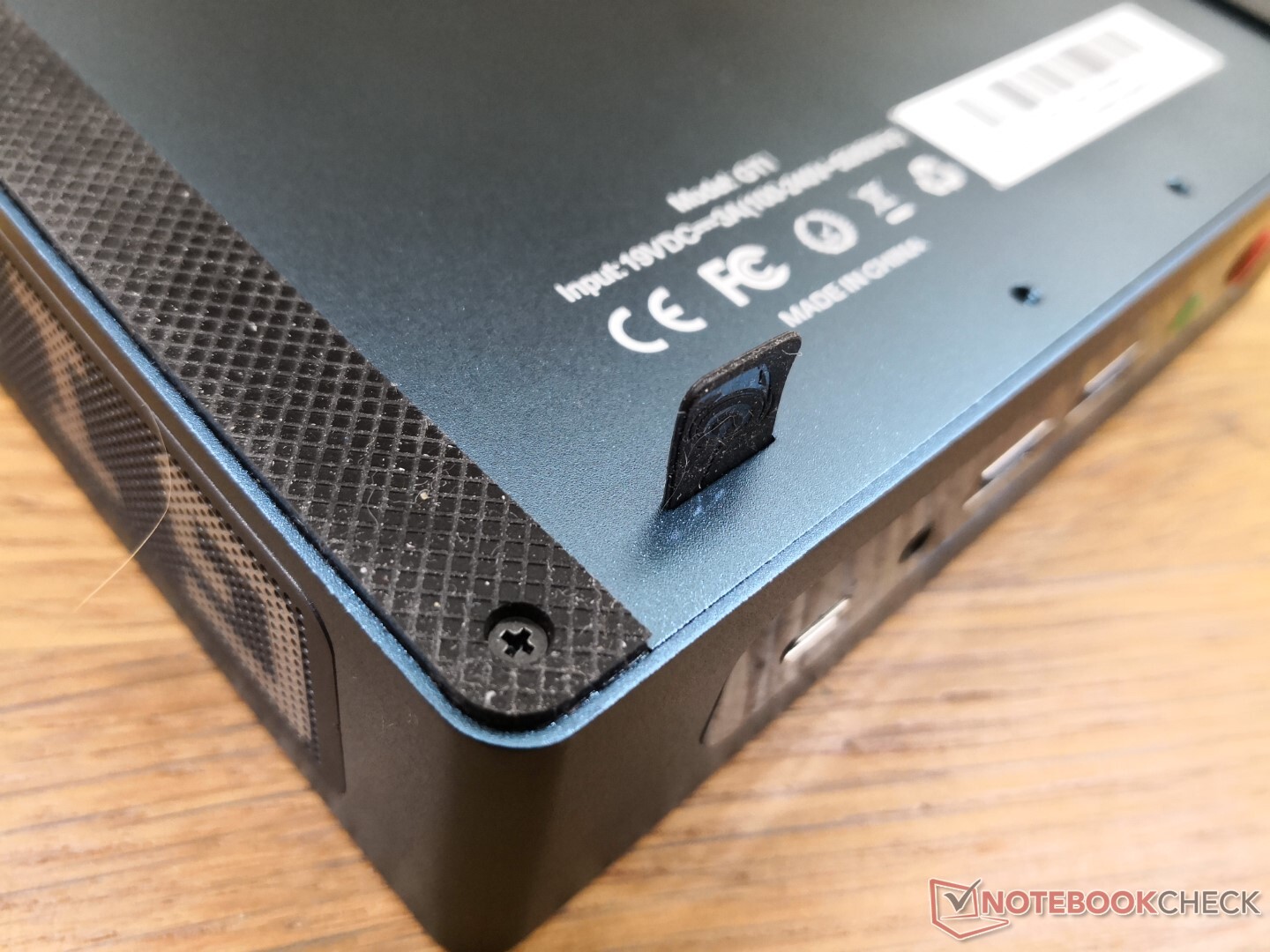

Bandet på enhetens undersida för att hjälpa till att dra ut bottenpanelen

Storleksjämförelse

Anslutningsmöjligheter

Det finns många portar att välja mellan, bland annat flera RJ-45-portar, flera HDMI-portar och sex USB-A-portar. USB-C-porten stöder även Thunderbolt 4-enheter även om tillverkaren inte annonserar det. Thunderbolt Control Center är förinstallerat och dess DxDiag-fil bekräftar också Thunderbolt-stödet.

Den enda USB-C-porten kan kännas begränsande och det finns inte heller någon mini-DisplayPort eller Kensingtonlås till skillnad från Intel NUC11TNKi5 Pro.

Särskilt anmärkningsvärt är att Beelink kan strömförsörjas via USB-C i stället för den proprietära nätadaptern. Vi testade detta med en 130 W USB-C-adapter från en Dell XPS 15 9500 som fungerade utan problem på vår Beelink-enhet.

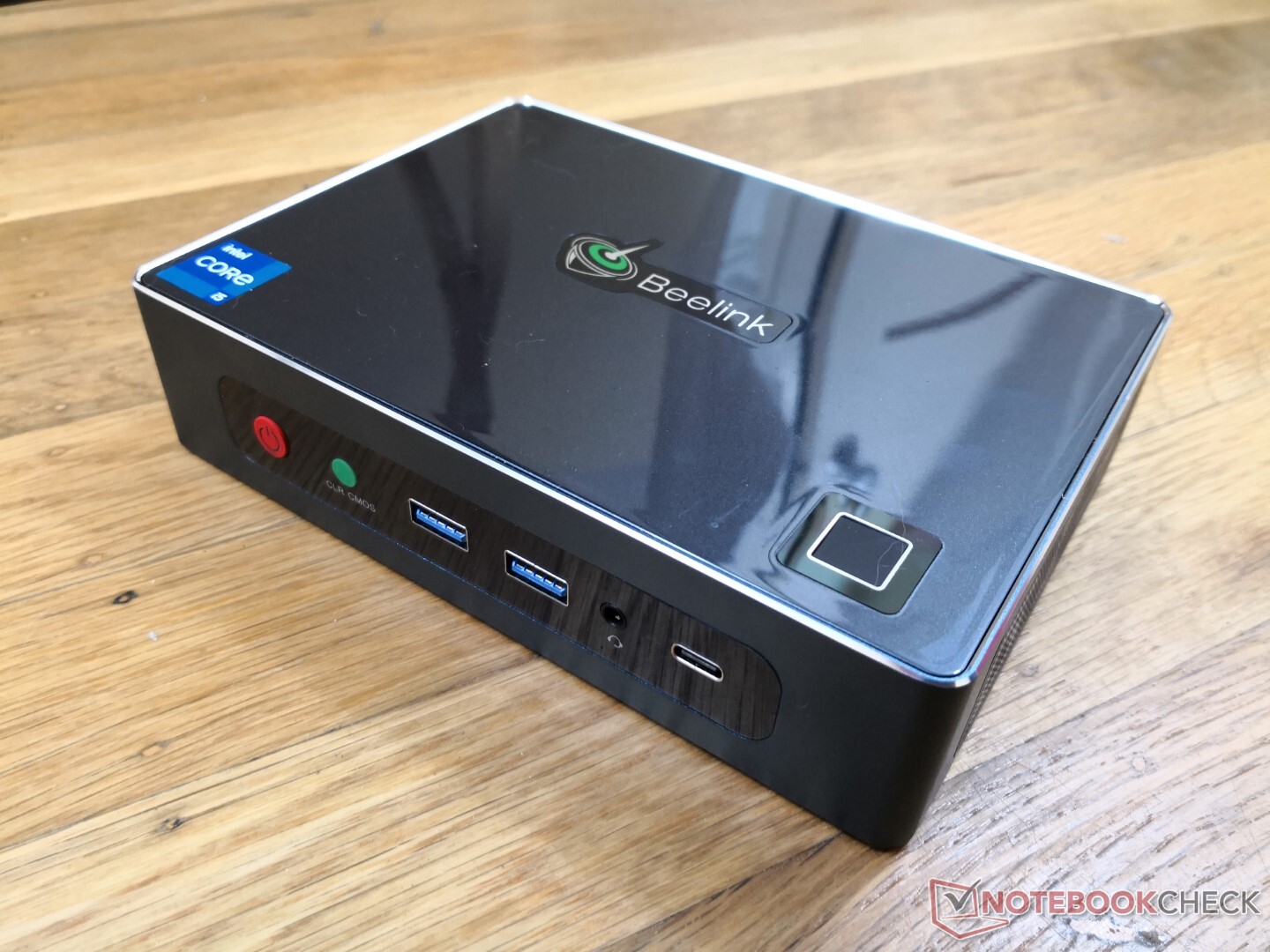

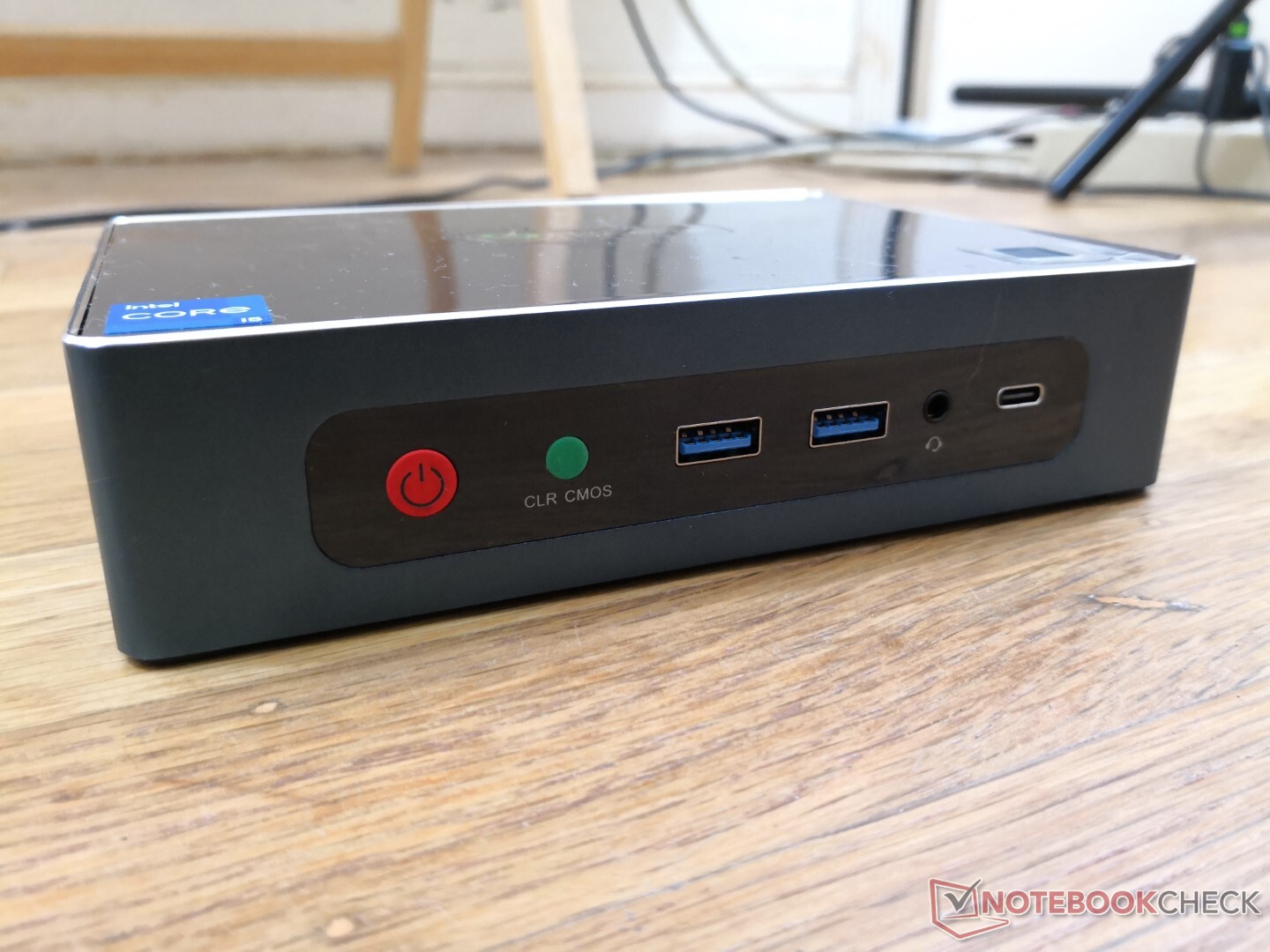

Framsida: USB-C med Thunderbolt 4 + DisplayPort + Power Delivery

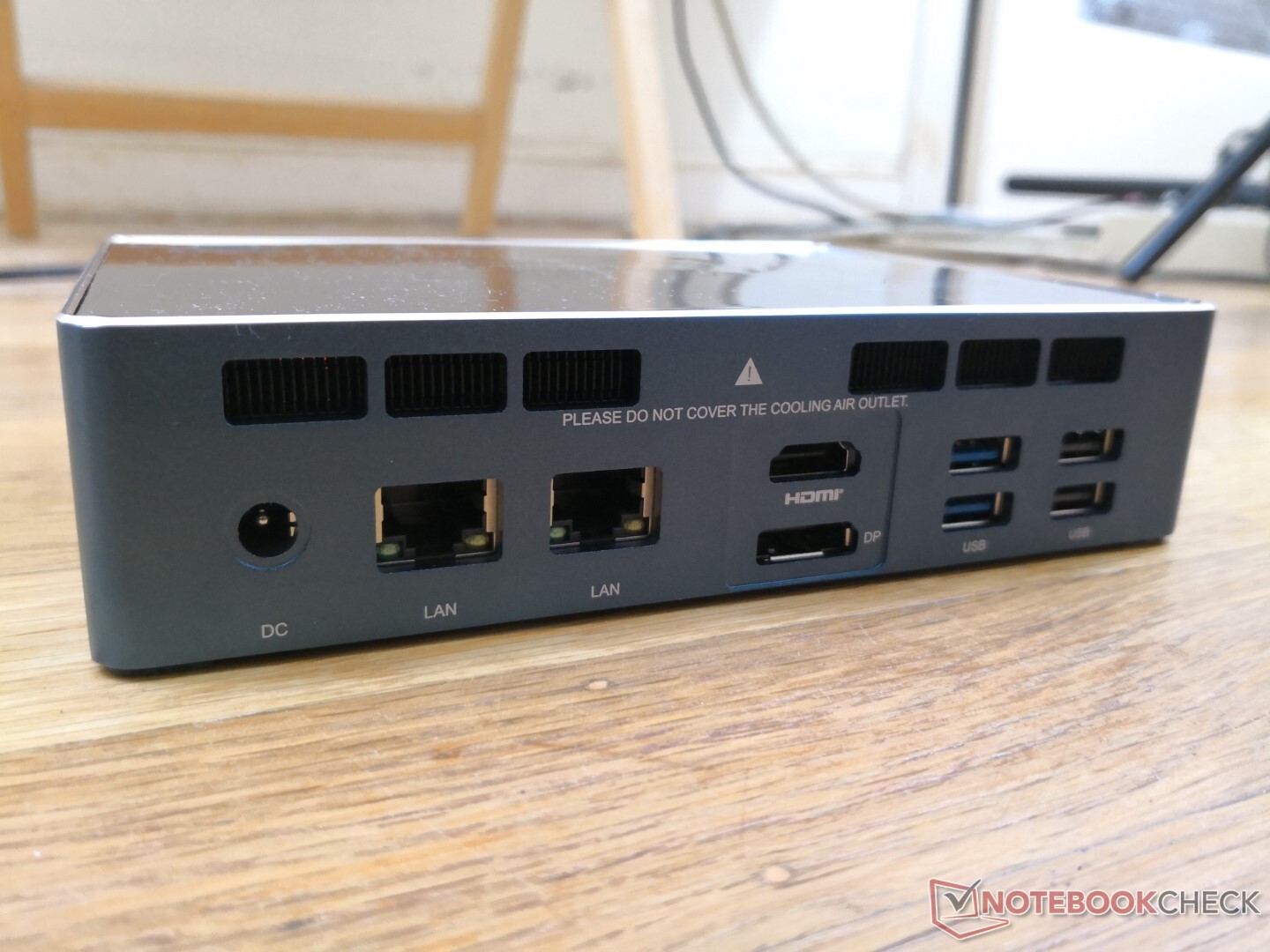

Bakåt: AC-adapter, 2x Gigabit RJ-45, HDMI 2.0, DisplayPort, 2x USB-A 3.0, 2x USB-A 2.0

Kommunikation

Inbyggda trådbundna och trådlösa kommunikationsmoduler, jämför testdata för nätverk med konkurrenter, tillgängliga alternativa lösningar (5G/LTE), oregelbundenheter (radiomottagning)?

Networking
iperf3 transmit AX12
Intel NUC11TNKi5 Intel Wi-Fi 6 AX201	1626 (1386^min - 1677^max) MBit/s +32%
Beelink GTI 11 Intel Wi-Fi 6 AX201	1228 (1149^min - 1287^max) MBit/s
GMK NucBox 2 Intel Dual Band Wireless-AC 7265	385 (299^min - 426^max) MBit/s -69%
Intel Hades Canyon NUC8i7HVK Intel Dual Band Wireless-AC 8265	376 MBit/s -69%
Beelink SER3 Intel Dual Band Wireless-AC 7265	359 (321^min - 383^max) MBit/s -71%
iperf3 receive AX12
Intel NUC11TNKi5 Intel Wi-Fi 6 AX201	1524 (1442^min - 1571^max) MBit/s +40%
Beelink GTI 11 Intel Wi-Fi 6 AX201	1086 (810^min - 1317^max) MBit/s
Beelink SER3 Intel Dual Band Wireless-AC 7265	641 (594^min - 665^max) MBit/s -41%
GMK NucBox 2 Intel Dual Band Wireless-AC 7265	625 (346^min - 678^max) MBit/s -42%
Intel Hades Canyon NUC8i7HVK Intel Dual Band Wireless-AC 8265	591 MBit/s -46%

Beelink GTI 11; iperf3 receive AX12; iperf 3.1.3: Ø1086 (810-1317)

Beelink GTI 11; iperf3 transmit AX12; iperf 3.1.3: Ø1228 (1149-1287)

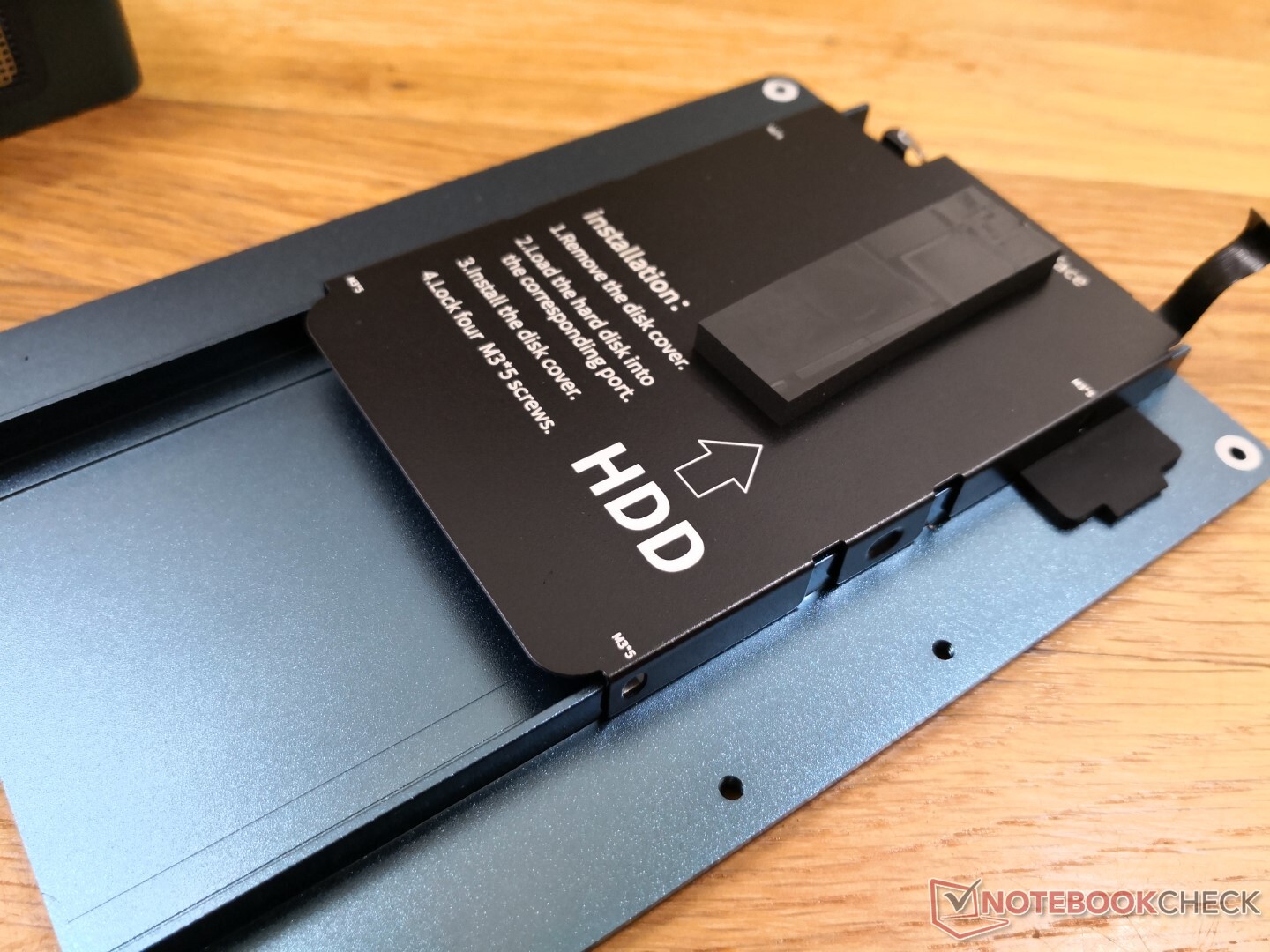

Underhåll

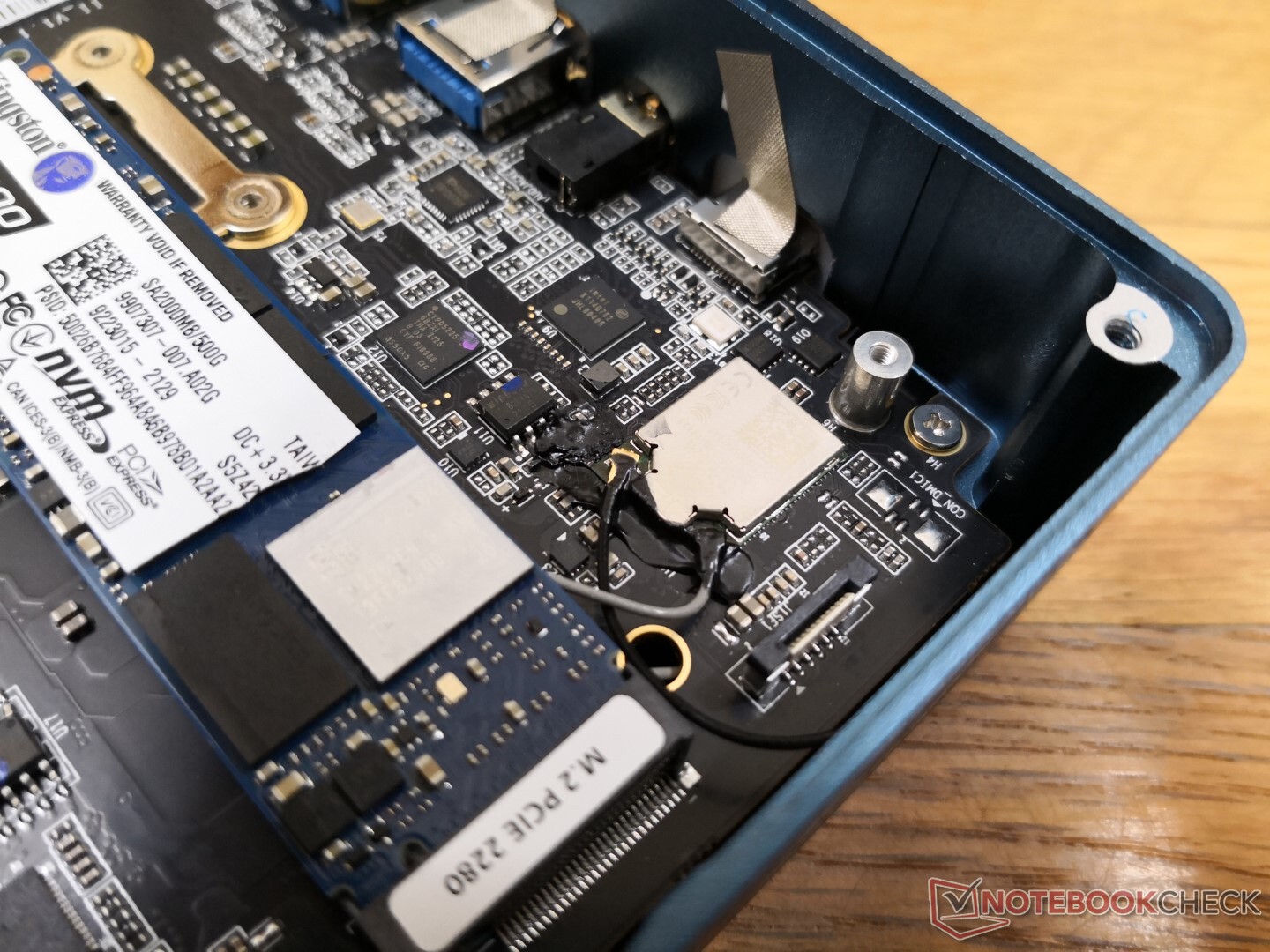

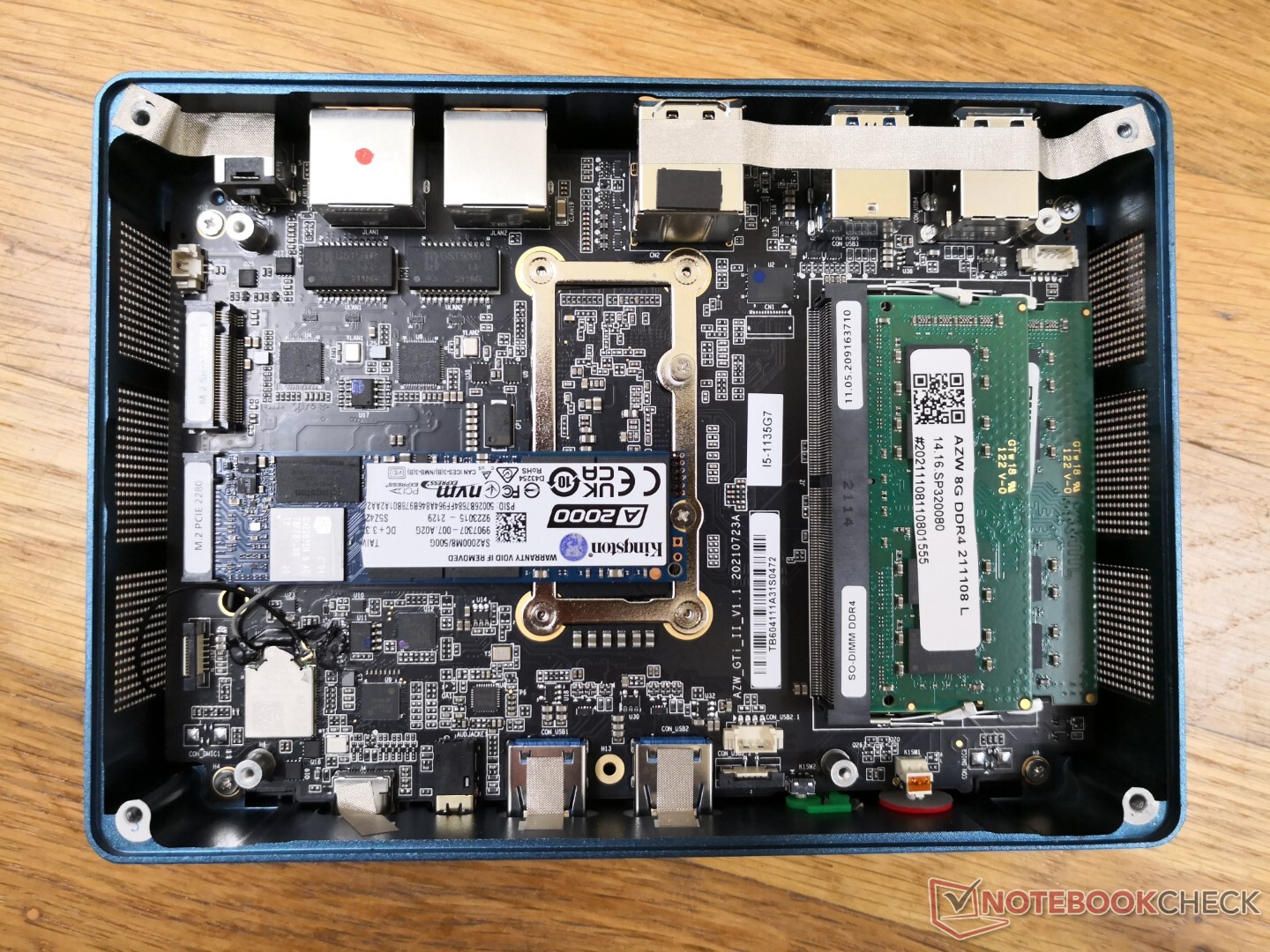

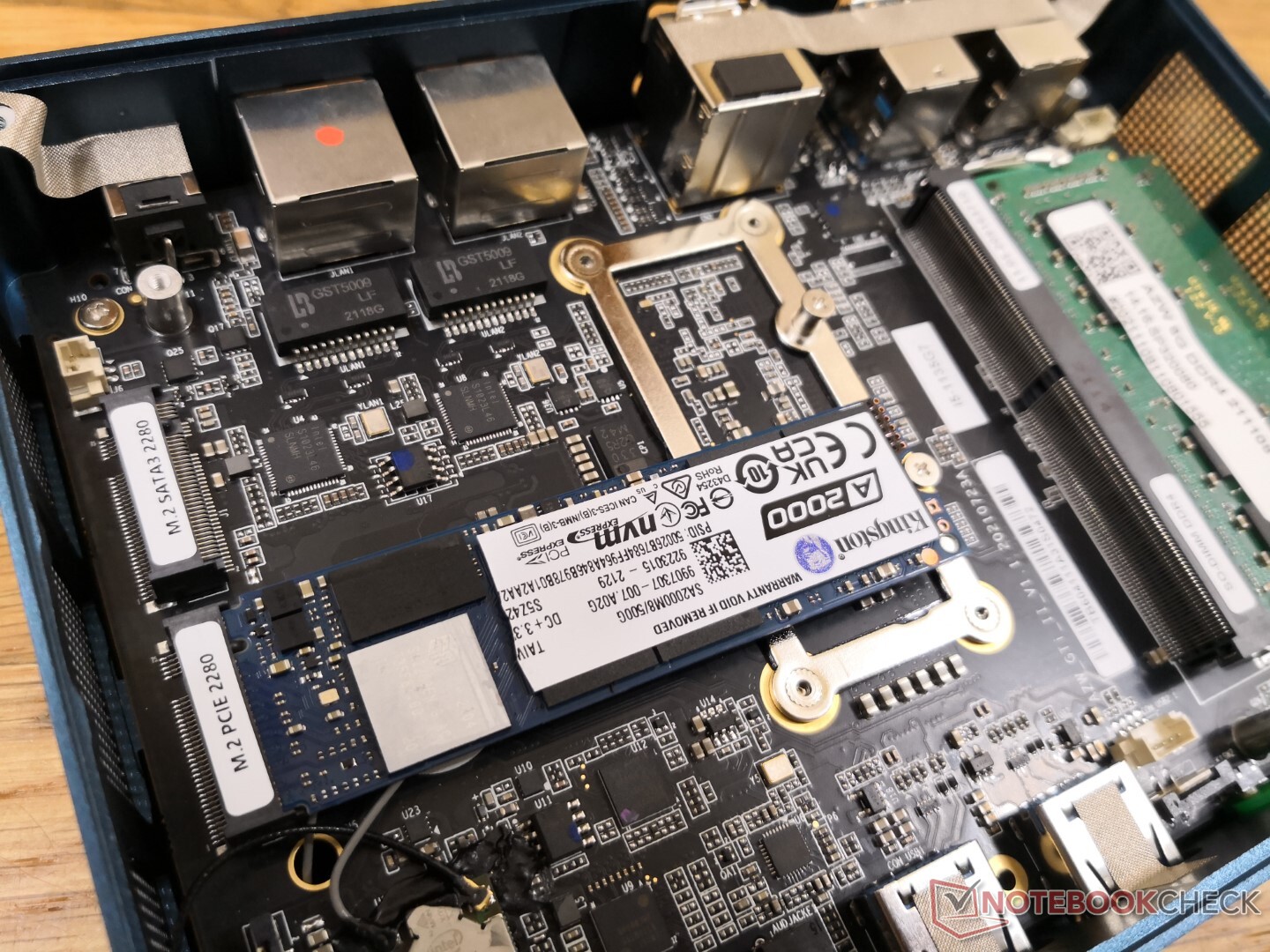

Bottenpanelen kan tas bort med en Philips-skruvmejsel. Användare måste vara försiktiga så att de även tar loss det band som förbinder bottenpanelen med moderkortet. Det finns direkt tillgång till båda SODIMM-platserna, båda M.2 2280-platserna och 2,5-tums SATA III-facket på bottenpanelen när den väl är borttagen.

Tillbehör och garanti

Som extrautrustning ingår två HDMI-kablar, extra skruvar och ett VESA 50/100 mm-fäste.

Den standardmässiga ettåriga begränsade garantin gäller. Att hävda garantin kan vara besvärligt för vissa användare eftersom leveransen sker utomlands.

Prestanda

Processor

Rå CPU-prestanda med flera trådar är 15 till 20 procent snabbare än den genomsnittliga datorn eller bärbara datorn med samma Core i5-1135G7 CPU. Till och med den äldre Kaby Lake-GCore i7-8809G Hades Canyon minidator släpar efter vår 11:e generationens Core i7 CPU. Den högre utrustningenCore i7-1165G7som inte finns i GTI 11, kan ge användarna upp till 25 procent högre prestanda för flera trådar jämfört med vår Core i5-1135G7

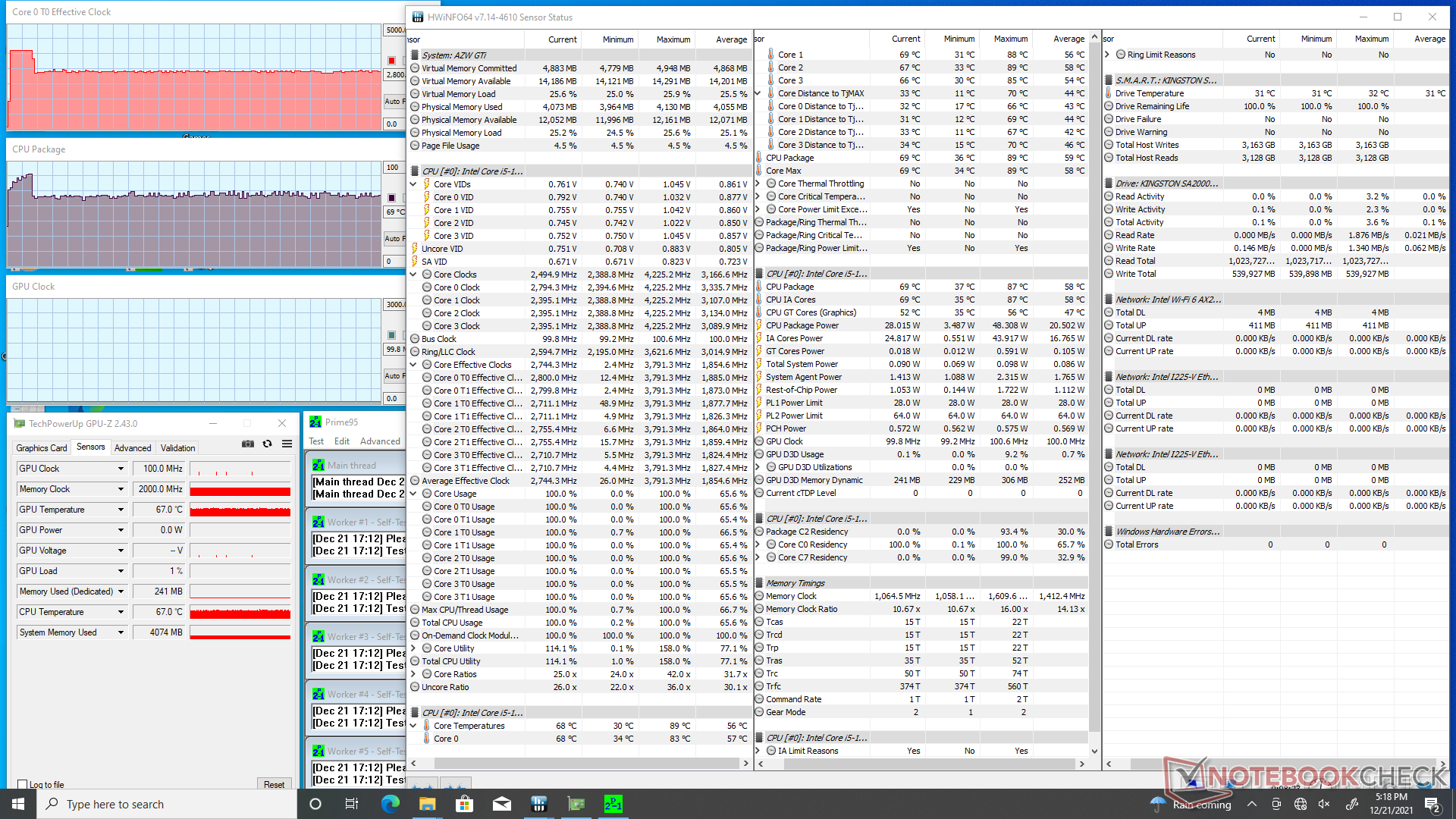

När CineBench R15 xT körs i en slinga sjunker den ursprungliga poängen på 915 poäng snabbt till ~840 poäng, vilket motsvarar en prestandadämpning på 8 procent på grund av den begränsade Turbo Boost-hållbarheten, vilket beskrivs i avsnittet om stresstest nedan.

Cinebench R15 Multi Loop

Beelink GTI 11 Intel Core i5-1135G7: Ø829 (822.06-915.5)

Intel NUC11TNKi5 Intel Core i5-1135G7: Ø789 (772.57-794.38)

Intel NUC11PAQi7 Intel Core i7-1165G7: Ø969 (962.77-985.76)

Asus Vivobook 15 K513EQ Intel Core i7-1165G7: Ø851 (831.5-866.44)

CPU Performance Rating: Percent
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

CPU Performance Rating
Intel NUC11PAQi7 ^-1! Intel Core i7-1165G7	79.3 pt
Lenovo Yoga 6 13ALC6 ^-2! AMD Ryzen 7 5700U	78.3 pt
Intel NUC10i7FNH ^-3! Intel Core i7-10710U	74.5 pt
Asus Vivobook 15 K513EQ ^-2! Intel Core i7-1165G7	71.8 pt
Beelink GTI 11 Intel Core i5-1135G7	70.3 pt
Lenovo Yoga 6 13 82ND0009US ^-2! AMD Ryzen 5 5500U	67.8 pt
Intel NUC11TNKi5 Intel Core i5-1135G7	67 pt
Intel Hades Canyon NUC8i7HVK ^-6! Intel Core i7-8809G	64.9 pt
Average Intel Core i5-1135G7	64 pt
Infinix INBook X1 Pro ^-2! Intel Core i7-1065G7	54.9 pt
Asus VivoBook S13 S333JA-DS51 Intel Core i5-1035G1	50.9 pt
GMK NucBox 2 Intel Core i5-8259U	48.2 pt
Beelink SER3 ^-2! AMD Ryzen 7 3750H	44.3 pt
Beelink GTR35 II-G-16512D00W64PRO-1T ^-2! AMD Ryzen 5 3550H	44.2 pt

Cinebench R23 / Multi Core
Lenovo Yoga 6 13ALC6 AMD Ryzen 7 5700U	7451 (6931.1^min - 7450.97^max) Points +33%
Intel NUC11PAQi7 Intel Core i7-1165G7	6862 Points +23%
Lenovo Yoga 6 13 82ND0009US AMD Ryzen 5 5500U	6348 (5673.44^min - 6347.79^max) Points +13%
Asus Vivobook 15 K513EQ Intel Core i7-1165G7	5609 (5443.41^min - 5609.45^max) Points 0%
Beelink GTI 11 Intel Core i5-1135G7	5597 (5425.4^min - 5596.59^max) Points
Intel NUC11TNKi5 Intel Core i5-1135G7	5098 (4930.91^min - 5098.17^max) Points -9%
Average Intel Core i5-1135G7 (2786 - 6136, n=55)	4724 Points -16%
Infinix INBook X1 Pro Intel Core i7-1065G7	4281 (3308.99^min - 4281.37^max) Points -24%
Asus VivoBook S13 S333JA-DS51 Intel Core i5-1035G1	4027 (3786.8^min - 4026.62^max) Points -28%
Beelink SER3 AMD Ryzen 7 3750H	3897 (3854.8^min - 3897.37^max) Points -30%
GMK NucBox 2 Intel Core i5-8259U	3728 (3687.99^min - 3727.55^max) Points -33%

Cinebench R23 / Single Core
Asus Vivobook 15 K513EQ Intel Core i7-1165G7	1480 Points +9%
Intel NUC11TNKi5 Intel Core i5-1135G7	1369 Points +1%
Beelink GTI 11 Intel Core i5-1135G7	1356 Points
Average Intel Core i5-1135G7 (1062 - 1373, n=53)	1322 Points -3%
Lenovo Yoga 6 13ALC6 AMD Ryzen 7 5700U	1256 Points -7%
Infinix INBook X1 Pro Intel Core i7-1065G7	1212 Points -11%
Lenovo Yoga 6 13 82ND0009US AMD Ryzen 5 5500U	1172 Points -14%
Asus VivoBook S13 S333JA-DS51 Intel Core i5-1035G1	1016 Points -25%
GMK NucBox 2 Intel Core i5-8259U	973 Points -28%
Beelink SER3 AMD Ryzen 7 3750H	971 Points -28%

Cinebench R20 / CPU (Multi Core)
Lenovo Yoga 6 13ALC6 AMD Ryzen 7 5700U	2913 Points +35%
Intel NUC11PAQi7 Intel Core i7-1165G7	2657 Points +23%
Lenovo Yoga 6 13 82ND0009US AMD Ryzen 5 5500U	2418 Points +12%
Intel NUC10i7FNH Intel Core i7-10710U	2303 Points +6%
Asus Vivobook 15 K513EQ Intel Core i7-1165G7	2182 Points +1%
Beelink GTI 11 Intel Core i5-1135G7	2163 Points
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G	2005 Points -7%
Intel NUC11TNKi5 Intel Core i5-1135G7	1974 Points -9%
Average Intel Core i5-1135G7 (979 - 2382, n=62)	1827 Points -16%
Infinix INBook X1 Pro Intel Core i7-1065G7	1640 Points -24%
Beelink GTR35 II-G-16512D00W64PRO-1T AMD Ryzen 5 3550H	1583 Points -27%
Asus VivoBook S13 S333JA-DS51 Intel Core i5-1035G1	1545 Points -29%
Beelink SER3 AMD Ryzen 7 3750H	1514 Points -30%
GMK NucBox 2 Intel Core i5-8259U	1432 Points -34%

Cinebench R20 / CPU (Single Core)
Intel NUC11PAQi7 Intel Core i7-1165G7	582 Points +12%
Asus Vivobook 15 K513EQ Intel Core i7-1165G7	565 Points +9%
Beelink GTI 11 Intel Core i5-1135G7	520 Points
Average Intel Core i5-1135G7 (375 - 527, n=62)	507 Points -2%
Intel NUC11TNKi5 Intel Core i5-1135G7	503 Points -3%
Lenovo Yoga 6 13ALC6 AMD Ryzen 7 5700U	489 Points -6%
Intel NUC10i7FNH Intel Core i7-10710U	480 Points -8%
Infinix INBook X1 Pro Intel Core i7-1065G7	463 Points -11%
Lenovo Yoga 6 13 82ND0009US AMD Ryzen 5 5500U	456 Points -12%
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G	404 Points -22%
GMK NucBox 2 Intel Core i5-8259U	382 Points -27%
Asus VivoBook S13 S333JA-DS51 Intel Core i5-1035G1	382 Points -27%
Beelink SER3 AMD Ryzen 7 3750H	377 Points -27%
Beelink GTR35 II-G-16512D00W64PRO-1T AMD Ryzen 5 3550H	347 Points -33%

Cinebench R15 / CPU Multi 64Bit
Lenovo Yoga 6 13ALC6 AMD Ryzen 7 5700U	1196 (1169.93^min - 1196.39^max) Points +31%
Intel NUC10i7FNH Intel Core i7-10710U	1067 Points +16%
Lenovo Yoga 6 13 82ND0009US AMD Ryzen 5 5500U	995 (551.99^min - 995.3^max) Points +9%
Intel NUC11PAQi7 Intel Core i7-1165G7	986 (962.77^min - 985.76^max) Points +8%
Beelink GTI 11 Intel Core i5-1135G7	916 (822.06^min - 915.5^max) Points
Asus Vivobook 15 K513EQ Intel Core i7-1165G7	866 (831.5^min - 866.44^max) Points -5%
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G	864 Points -6%
Intel NUC11TNKi5 Intel Core i5-1135G7	794 (772.57^min - 794.38^max) Points -13%
Average Intel Core i5-1135G7 (431 - 941, n=65)	792 Points -14%
Beelink SER3 AMD Ryzen 7 3750H	680 (670.93^min - 679.66^max) Points -26%
Beelink GTR35 II-G-16512D00W64PRO-1T AMD Ryzen 5 3550H	672 (494.25^min - 672.07^max) Points -27%
Infinix INBook X1 Pro Intel Core i7-1065G7	663 (525.18^min - 663.12^max) Points -28%
Asus VivoBook S13 S333JA-DS51 Intel Core i5-1035G1	644 (570.37^min - 644.28^max) Points -30%
GMK NucBox 2 Intel Core i5-8259U	615 (608.07^min - 614.94^max) Points -33%

Cinebench R15 / CPU Single 64Bit
Intel NUC11PAQi7 Intel Core i7-1165G7	230 Points +15%
Asus Vivobook 15 K513EQ Intel Core i7-1165G7	225 Points +13%
Intel NUC11TNKi5 Intel Core i5-1135G7	201 Points +1%
Beelink GTI 11 Intel Core i5-1135G7	200 Points
Average Intel Core i5-1135G7 (141.4 - 205, n=61)	194.4 Points -3%
Intel NUC10i7FNH Intel Core i7-10710U	194 Points -3%
Lenovo Yoga 6 13ALC6 AMD Ryzen 7 5700U	188 Points -6%
Infinix INBook X1 Pro Intel Core i7-1065G7	182 Points -9%
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G	178 Points -11%
Lenovo Yoga 6 13 82ND0009US AMD Ryzen 5 5500U	177 Points -11%
GMK NucBox 2 Intel Core i5-8259U	151 Points -24%
Beelink GTR35 II-G-16512D00W64PRO-1T AMD Ryzen 5 3550H	146 Points -27%
Beelink SER3 AMD Ryzen 7 3750H	146 Points -27%
Asus VivoBook S13 S333JA-DS51 Intel Core i5-1035G1	144 Points -28%

Blender / v2.79 BMW27 CPU
GMK NucBox 2 Intel Core i5-8259U	755 Seconds * -37%
Asus VivoBook S13 S333JA-DS51 Intel Core i5-1035G1	752 Seconds * -36%
Infinix INBook X1 Pro Intel Core i7-1065G7	710 Seconds * -29%
Beelink SER3 AMD Ryzen 7 3750H	672 Seconds * -22%
Beelink GTR35 II-G-16512D00W64PRO-1T AMD Ryzen 5 3550H	670 Seconds * -22%
Average Intel Core i5-1135G7 (499 - 1044, n=60)	662 Seconds * -20%
Intel NUC11TNKi5 Intel Core i5-1135G7	600 Seconds * -9%
Beelink GTI 11 Intel Core i5-1135G7	551 Seconds *
Asus Vivobook 15 K513EQ Intel Core i7-1165G7	542 Seconds * +2%
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G	537 Seconds * +3%
Lenovo Yoga 6 13 82ND0009US AMD Ryzen 5 5500U	469 Seconds * +15%
Intel NUC10i7FNH Intel Core i7-10710U	468.3 Seconds * +15%
Intel NUC11PAQi7 Intel Core i7-1165G7	468 Seconds * +15%
Lenovo Yoga 6 13ALC6 AMD Ryzen 7 5700U	374 Seconds * +32%

7-Zip 18.03 / 7z b 4
Lenovo Yoga 6 13ALC6 AMD Ryzen 7 5700U	39258 MIPS +59%
Lenovo Yoga 6 13 82ND0009US AMD Ryzen 5 5500U	33250 MIPS +35%
Intel NUC10i7FNH Intel Core i7-10710U	29948 MIPS +21%
Intel NUC11PAQi7 Intel Core i7-1165G7	27203 MIPS +10%
Asus Vivobook 15 K513EQ Intel Core i7-1165G7	25242 MIPS +2%
Beelink GTI 11 Intel Core i5-1135G7	24655 MIPS
Intel NUC11TNKi5 Intel Core i5-1135G7	23280 MIPS -6%
Average Intel Core i5-1135G7 (14745 - 24873, n=62)	21407 MIPS -13%
Infinix INBook X1 Pro Intel Core i7-1065G7	20740 MIPS -16%
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G	19347 MIPS -22%
GMK NucBox 2 Intel Core i5-8259U	18802 MIPS -24%
Asus VivoBook S13 S333JA-DS51 Intel Core i5-1035G1	18390 MIPS -25%
Beelink SER3 AMD Ryzen 7 3750H	17077 MIPS -31%
Beelink GTR35 II-G-16512D00W64PRO-1T AMD Ryzen 5 3550H	16683 MIPS -32%

7-Zip 18.03 / 7z b 4 -mmt1
Intel NUC11PAQi7 Intel Core i7-1165G7	5405 MIPS +11%
Asus Vivobook 15 K513EQ Intel Core i7-1165G7	5308 MIPS +9%
Beelink GTI 11 Intel Core i5-1135G7	4852 MIPS
Intel NUC11TNKi5 Intel Core i5-1135G7	4738 MIPS -2%
Intel NUC10i7FNH Intel Core i7-10710U	4727 MIPS -3%
Average Intel Core i5-1135G7 (3924 - 4921, n=62)	4674 MIPS -4%
Lenovo Yoga 6 13ALC6 AMD Ryzen 7 5700U	4567 MIPS -6%
Infinix INBook X1 Pro Intel Core i7-1065G7	4389 MIPS -10%
Lenovo Yoga 6 13 82ND0009US AMD Ryzen 5 5500U	4325 MIPS -11%
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G	4101 MIPS -15%
GMK NucBox 2 Intel Core i5-8259U	3951 MIPS -19%
Beelink SER3 AMD Ryzen 7 3750H	3752 MIPS -23%
Asus VivoBook S13 S333JA-DS51 Intel Core i5-1035G1	3739 MIPS -23%
Beelink GTR35 II-G-16512D00W64PRO-1T AMD Ryzen 5 3550H	3543 MIPS -27%

Geekbench 5.5 / Multi-Core
Intel NUC10i7FNH Intel Core i7-10710U	5839 Points +15%
Beelink GTI 11 Intel Core i5-1135G7	5059 Points
Intel NUC11PAQi7 Intel Core i7-1165G7	4975 Points -2%
Average Intel Core i5-1135G7 (3475 - 5472, n=58)	4663 Points -8%
Intel NUC11TNKi5 Intel Core i5-1135G7	4593 Points -9%
Asus VivoBook S13 S333JA-DS51 Intel Core i5-1035G1	4244 Points -16%
GMK NucBox 2 Intel Core i5-8259U	3359 Points -34%
Beelink GTR35 II-G-16512D00W64PRO-1T AMD Ryzen 5 3550H	3203 Points -37%

Geekbench 5.5 / Single-Core
Intel NUC11PAQi7 Intel Core i7-1165G7	1559 Points +10%
Beelink GTI 11 Intel Core i5-1135G7	1415 Points
Intel NUC11TNKi5 Intel Core i5-1135G7	1396 Points -1%
Average Intel Core i5-1135G7 (1147 - 1428, n=58)	1373 Points -3%
Intel NUC10i7FNH Intel Core i7-10710U	1229 Points -13%
Asus VivoBook S13 S333JA-DS51 Intel Core i5-1035G1	1142 Points -19%
GMK NucBox 2 Intel Core i5-8259U	984 Points -30%
Beelink GTR35 II-G-16512D00W64PRO-1T AMD Ryzen 5 3550H	903 Points -36%

HWBOT x265 Benchmark v2.2 / 4k Preset
Lenovo Yoga 6 13ALC6 AMD Ryzen 7 5700U	9.2 fps +32%
Intel NUC11PAQi7 Intel Core i7-1165G7	8.47 fps +21%
Intel NUC10i7FNH Intel Core i7-10710U	7.95 fps +14%
Lenovo Yoga 6 13 82ND0009US AMD Ryzen 5 5500U	7.59 fps +9%
Asus Vivobook 15 K513EQ Intel Core i7-1165G7	7.27 fps +4%
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G	7.1 fps +2%
Beelink GTI 11 Intel Core i5-1135G7	6.98 fps
Intel NUC11TNKi5 Intel Core i5-1135G7	6.63 fps -5%
Average Intel Core i5-1135G7 (3.57 - 7.6, n=57)	5.93 fps -15%
Infinix INBook X1 Pro Intel Core i7-1065G7	5.6 fps -20%
Asus VivoBook S13 S333JA-DS51 Intel Core i5-1035G1	5.48 fps -21%
GMK NucBox 2 Intel Core i5-8259U	5.37 fps -23%
Beelink SER3 AMD Ryzen 7 3750H	4.14 fps -41%
Beelink GTR35 II-G-16512D00W64PRO-1T AMD Ryzen 5 3550H	4.1 fps -41%

LibreOffice / 20 Documents To PDF
Beelink SER3 AMD Ryzen 7 3750H	86.5 s * -59%
Beelink GTR35 II-G-16512D00W64PRO-1T AMD Ryzen 5 3550H	74.9 s * -37%
Lenovo Yoga 6 13 82ND0009US AMD Ryzen 5 5500U	66.4 s * -22%
GMK NucBox 2 Intel Core i5-8259U	63.6 s * -17%
Lenovo Yoga 6 13ALC6 AMD Ryzen 7 5700U	61.6 s * -13%
Asus VivoBook S13 S333JA-DS51 Intel Core i5-1035G1	60 s * -10%
Infinix INBook X1 Pro Intel Core i7-1065G7	57 s * -5%
Beelink GTI 11 Intel Core i5-1135G7	54.5 s *
Average Intel Core i5-1135G7 (44.2 - 62.9, n=60)	52.8 s * +3%
Intel NUC11TNKi5 Intel Core i5-1135G7	51.3 s * +6%
Asus Vivobook 15 K513EQ Intel Core i7-1165G7	46.9 s * +14%
Intel NUC11PAQi7 Intel Core i7-1165G7	42.2 s * +23%

R Benchmark 2.5 / Overall mean
GMK NucBox 2 Intel Core i5-8259U	0.786 sec * -25%
Asus VivoBook S13 S333JA-DS51 Intel Core i5-1035G1	0.769 sec * -23%
Beelink GTR35 II-G-16512D00W64PRO-1T AMD Ryzen 5 3550H	0.737 sec * -18%
Beelink SER3 AMD Ryzen 7 3750H	0.723 sec * -15%
Infinix INBook X1 Pro Intel Core i7-1065G7	0.671 sec * -7%
Intel NUC10i7FNH Intel Core i7-10710U	0.649 sec * -4%
Average Intel Core i5-1135G7 (0.619 - 0.727, n=59)	0.642 sec * -2%
Lenovo Yoga 6 13 82ND0009US AMD Ryzen 5 5500U	0.636 sec * -1%
Beelink GTI 11 Intel Core i5-1135G7	0.627 sec *
Intel NUC11TNKi5 Intel Core i5-1135G7	0.622 sec * +1%
Lenovo Yoga 6 13ALC6 AMD Ryzen 7 5700U	0.587 sec * +6%
Asus Vivobook 15 K513EQ Intel Core i7-1165G7	0.563 sec * +10%
Intel NUC11PAQi7 Intel Core i7-1165G7	0.553 sec * +12%

* ... smaller is better

Cinebench R15 CPU Multi 64Bit

916 Points

Cinebench R15 OpenGL 64Bit

96.7 fps

Cinebench R15 Ref. Match 64Bit

97.8 %

Cinebench R15 CPU Single 64Bit

200 Points

Cinebench R20 CPU (Multi Core)

2163 Points

Cinebench R20 CPU (Single Core)

520 Points

Cinebench R23 Multi Core

5597 Points

Cinebench R23 Single Core

1356 Points

Hjälp

... jämför

Performance Rating
Beelink GTI 11 Intel Core i5-1135G7, Iris Xe G7 80EUs	97.8 pt
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	87.6 pt
Average Intel Core i5-1135G7	84 pt
GMK NucBox 2 Intel Core i5-8259U, Iris Plus Graphics 655	62.9 pt
Beelink SER3 AMD Ryzen 7 3750H, Vega 10	58.4 pt

AIDA64 / FP32 Ray-Trace
Beelink GTI 11 Intel Core i5-1135G7, Iris Xe G7 80EUs	7627 KRay/s
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	6699 KRay/s -12%
Average Intel Core i5-1135G7 (4313 - 7952, n=45)	6445 KRay/s -15%
GMK NucBox 2 Intel Core i5-8259U, Iris Plus Graphics 655	4840 KRay/s -37%
Beelink SER3 AMD Ryzen 7 3750H, Vega 10	3338 KRay/s -56%

AIDA64 / FPU Julia
Beelink GTI 11 Intel Core i5-1135G7, Iris Xe G7 80EUs	31613 Points
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	27861 Points -12%
Average Intel Core i5-1135G7 (19402 - 32283, n=45)	26975 Points -15%
GMK NucBox 2 Intel Core i5-8259U, Iris Plus Graphics 655	24481 Points -23%
Beelink SER3 AMD Ryzen 7 3750H, Vega 10	16912 Points -47%

AIDA64 / CPU SHA3
Beelink GTI 11 Intel Core i5-1135G7, Iris Xe G7 80EUs	2171 MB/s
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	1855 MB/s -15%
Average Intel Core i5-1135G7 (1316 - 2172, n=45)	1832 MB/s -16%
GMK NucBox 2 Intel Core i5-8259U, Iris Plus Graphics 655	1234 MB/s -43%
Beelink SER3 AMD Ryzen 7 3750H, Vega 10	897 MB/s -59%

AIDA64 / CPU Queen
Beelink GTI 11 Intel Core i5-1135G7, Iris Xe G7 80EUs	46657 Points
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	46536 Points 0%
Average Intel Core i5-1135G7 (39000 - 46951, n=45)	45742 Points -2%
Beelink SER3 AMD Ryzen 7 3750H, Vega 10	43632 Points -6%
GMK NucBox 2 Intel Core i5-8259U, Iris Plus Graphics 655	41340 Points -11%

AIDA64 / FPU SinJulia
Beelink SER3 AMD Ryzen 7 3750H, Vega 10	5639 Points +27%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	4444 Points 0%
Beelink GTI 11 Intel Core i5-1135G7, Iris Xe G7 80EUs	4442 Points
GMK NucBox 2 Intel Core i5-8259U, Iris Plus Graphics 655	4241 Points -5%
Average Intel Core i5-1135G7 (3497 - 4445, n=45)	4218 Points -5%

AIDA64 / FPU Mandel
Beelink GTI 11 Intel Core i5-1135G7, Iris Xe G7 80EUs	18635 Points
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	16937 Points -9%
Average Intel Core i5-1135G7 (12569 - 19635, n=45)	16302 Points -13%
GMK NucBox 2 Intel Core i5-8259U, Iris Plus Graphics 655	12377 Points -34%
Beelink SER3 AMD Ryzen 7 3750H, Vega 10	8846 Points -53%

AIDA64 / CPU AES
Beelink GTI 11 Intel Core i5-1135G7, Iris Xe G7 80EUs	67937 MB/s
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	66724 MB/s -2%
Average Intel Core i5-1135G7 (28988 - 67977, n=45)	58975 MB/s -13%
Beelink SER3 AMD Ryzen 7 3750H, Vega 10	28977 MB/s -57%
GMK NucBox 2 Intel Core i5-8259U, Iris Plus Graphics 655	16202 MB/s -76%

AIDA64 / CPU ZLib
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	373 MB/s +1%
Beelink GTI 11 Intel Core i5-1135G7, Iris Xe G7 80EUs	370 MB/s
Beelink SER3 AMD Ryzen 7 3750H, Vega 10	313 MB/s -15%
Average Intel Core i5-1135G7 (265 - 373, n=51)	289 MB/s -22%
GMK NucBox 2 Intel Core i5-8259U, Iris Plus Graphics 655	285 MB/s -23%

AIDA64 / FP64 Ray-Trace
Beelink GTI 11 Intel Core i5-1135G7, Iris Xe G7 80EUs	3864 KRay/s
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	3628 KRay/s -6%
Average Intel Core i5-1135G7 (2226 - 4291, n=45)	3424 KRay/s -11%
GMK NucBox 2 Intel Core i5-8259U, Iris Plus Graphics 655	2671 KRay/s -31%
Beelink SER3 AMD Ryzen 7 3750H, Vega 10	1758 KRay/s -55%

AIDA64 / CPU PhotoWorxx
Beelink GTI 11 Intel Core i5-1135G7, Iris Xe G7 80EUs	31708 MPixel/s
Average Intel Core i5-1135G7 (9004 - 45366, n=45)	23085 MPixel/s -27%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	16877 MPixel/s -47%
Beelink SER3 AMD Ryzen 7 3750H, Vega 10	10338 MPixel/s -67%
GMK NucBox 2 Intel Core i5-8259U, Iris Plus Graphics 655	10092 MPixel/s -68%

Systemets prestanda

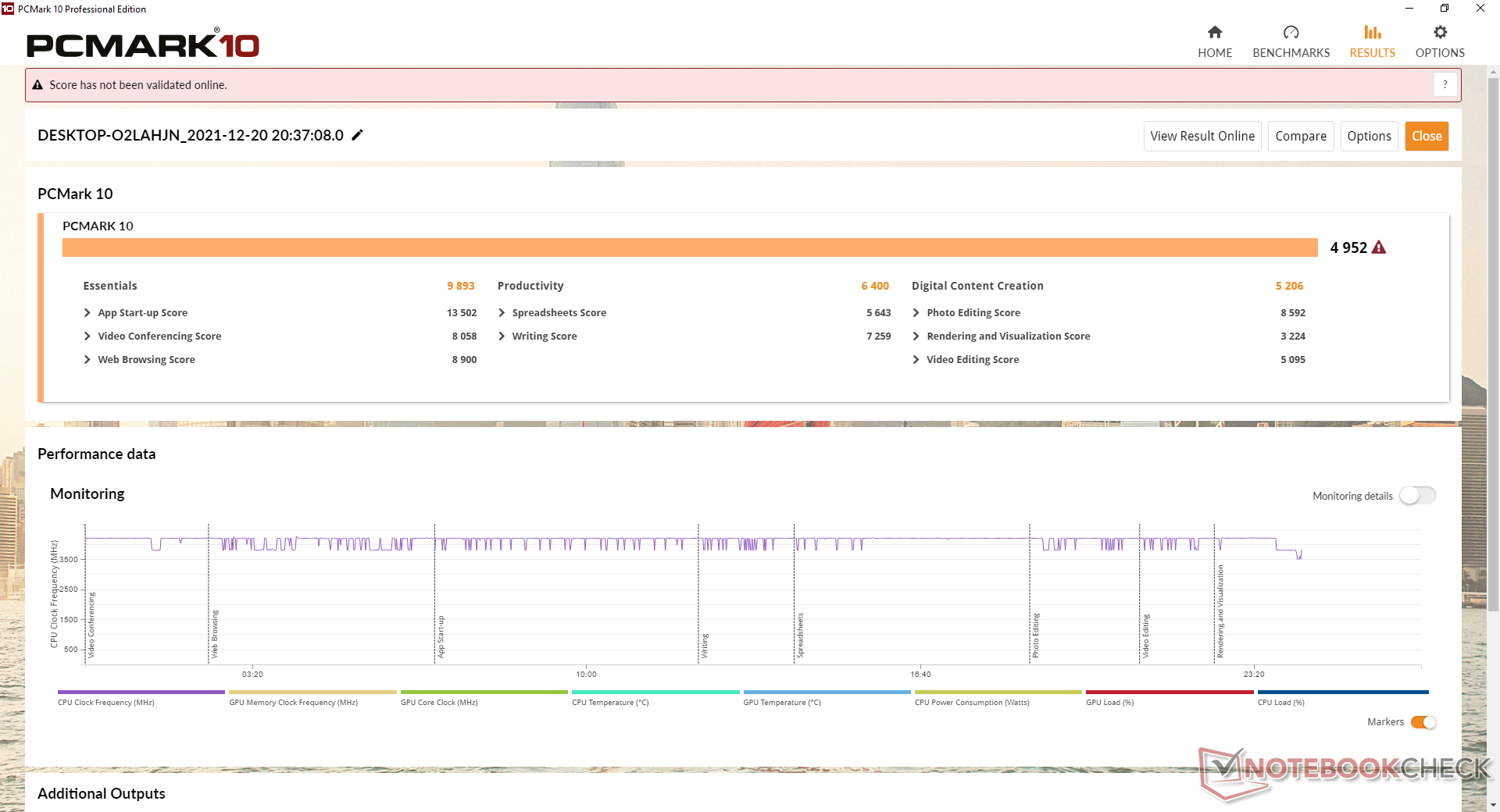

PCMark 10-resultaten är utmärkta och ligger konsekvent över alla Beelink-system som kom före vår GTI 11. Fördelarna med att använda en smalare och mer strömsnål 11:e generationens Intel-processor ger en smidigare användarupplevelse.

PCMark 10: Score | Essentials | Productivity | Digital Content Creation

PCMark 10 / Score
Intel Hades Canyon NUC8i7HVK Vega M GH, i7-8809G, Intel Optane 120 GB SSDPEK1W120GA	5301 Points +7%
Beelink GTI 11 Iris Xe G7 80EUs, i5-1135G7, Kingston SA2000M8500G	4952 Points
Average Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs (4026 - 4952, n=53)	4613 Points -7%
Intel NUC11TNKi5 Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S	4512 Points -9%
Intel NUC10i7FNH UHD Graphics 620, i7-10710U, Kingston RBUSNS8154P3256GJ1	4418 Points -11%
GMK NucBox 2 Iris Plus Graphics 655, i5-8259U, Netac S930E8/256GPN	4132 Points -17%
Beelink SER3 Vega 10, R7 3750H, GSemi AZW GSDFN512TS3F1OGCX	3818 Points -23%

PCMark 10 / Essentials
Beelink GTI 11 Iris Xe G7 80EUs, i5-1135G7, Kingston SA2000M8500G	9893 Points
Average Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs (8149 - 9917, n=53)	9310 Points -6%
Intel Hades Canyon NUC8i7HVK Vega M GH, i7-8809G, Intel Optane 120 GB SSDPEK1W120GA	9125 Points -8%
Intel NUC10i7FNH UHD Graphics 620, i7-10710U, Kingston RBUSNS8154P3256GJ1	9013 Points -9%
Intel NUC11TNKi5 Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S	9000 Points -9%
GMK NucBox 2 Iris Plus Graphics 655, i5-8259U, Netac S930E8/256GPN	8351 Points -16%
Beelink SER3 Vega 10, R7 3750H, GSemi AZW GSDFN512TS3F1OGCX	7408 Points -25%

PCMark 10 / Productivity
Intel Hades Canyon NUC8i7HVK Vega M GH, i7-8809G, Intel Optane 120 GB SSDPEK1W120GA	7915 Points +24%
Intel NUC10i7FNH UHD Graphics 620, i7-10710U, Kingston RBUSNS8154P3256GJ1	6876 Points +7%
Beelink GTI 11 Iris Xe G7 80EUs, i5-1135G7, Kingston SA2000M8500G	6400 Points
GMK NucBox 2 Iris Plus Graphics 655, i5-8259U, Netac S930E8/256GPN	6348 Points -1%
Average Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs (5040 - 6619, n=53)	6218 Points -3%
Intel NUC11TNKi5 Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S	6190 Points -3%
Beelink SER3 Vega 10, R7 3750H, GSemi AZW GSDFN512TS3F1OGCX	6066 Points -5%

PCMark 10 / Digital Content Creation
Intel Hades Canyon NUC8i7HVK Vega M GH, i7-8809G, Intel Optane 120 GB SSDPEK1W120GA	5598 Points +8%
Beelink GTI 11 Iris Xe G7 80EUs, i5-1135G7, Kingston SA2000M8500G	5206 Points
Average Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs (3548 - 5255, n=53)	4612 Points -11%
Intel NUC11TNKi5 Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S	4474 Points -14%
Intel NUC10i7FNH UHD Graphics 620, i7-10710U, Kingston RBUSNS8154P3256GJ1	3777 Points -27%
GMK NucBox 2 Iris Plus Graphics 655, i5-8259U, Netac S930E8/256GPN	3613 Points -31%
Beelink SER3 Vega 10, R7 3750H, GSemi AZW GSDFN512TS3F1OGCX	3363 Points -35%

PCMark 10 Score		4952 poäng
Hjälp

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
GMK NucBox 2 Intel Core i5-8259U, Iris Plus Graphics 655	48099 MB/s +17%
Beelink GTI 11 Intel Core i5-1135G7, Iris Xe G7 80EUs	40994 MB/s
Average Intel Core i5-1135G7 (17443 - 63889, n=45)	36640 MB/s -11%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	22895 MB/s -44%
Beelink SER3 AMD Ryzen 7 3750H, Vega 10	16249 MB/s -60%

AIDA64 / Memory Read
Beelink GTI 11 Intel Core i5-1135G7, Iris Xe G7 80EUs	46916 MB/s
Average Intel Core i5-1135G7 (19716 - 63705, n=45)	40897 MB/s -13%
GMK NucBox 2 Intel Core i5-8259U, Iris Plus Graphics 655	38017 MB/s -19%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	24947 MB/s -47%
Beelink SER3 AMD Ryzen 7 3750H, Vega 10	18268 MB/s -61%

AIDA64 / Memory Write
GMK NucBox 2 Intel Core i5-8259U, Iris Plus Graphics 655	51980 MB/s +12%
Beelink GTI 11 Intel Core i5-1135G7, Iris Xe G7 80EUs	46366 MB/s
Average Intel Core i5-1135G7 (18722 - 66778, n=45)	41742 MB/s -10%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	23454 MB/s -49%
Beelink SER3 AMD Ryzen 7 3750H, Vega 10	18455 MB/s -60%

AIDA64 / Memory Latency
Beelink SER3 AMD Ryzen 7 3750H, Vega 10	95.8 ns * -40%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	87.1 ns * -28%
Average Intel Core i5-1135G7 (68.3 - 107, n=51)	72.5 ns * -6%
Beelink GTI 11 Intel Core i5-1135G7, Iris Xe G7 80EUs	68.3 ns *
GMK NucBox 2 Intel Core i5-8259U, Iris Plus Graphics 655	55.6 ns * +19%

* ... smaller is better

DPC-latenstid

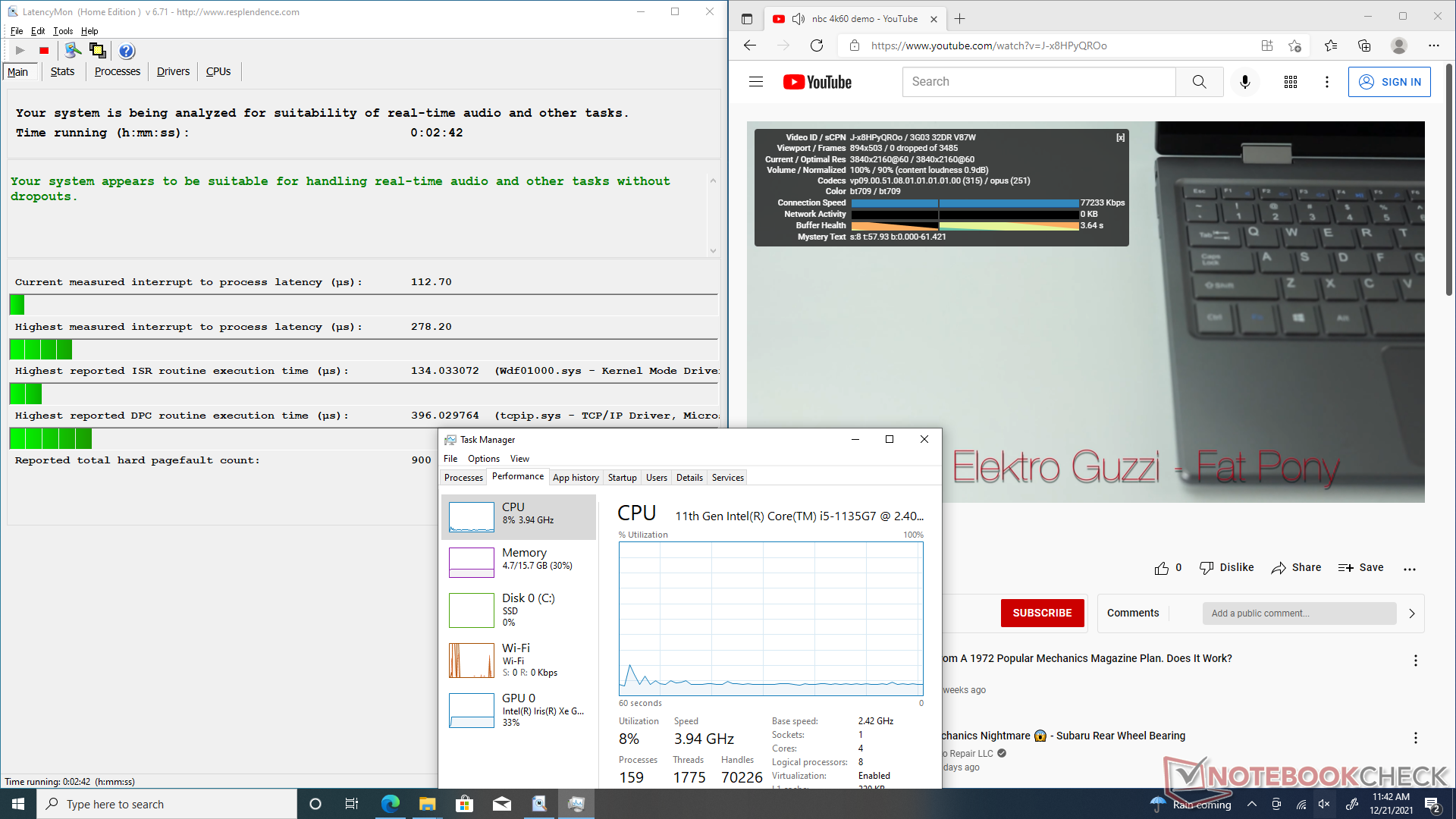

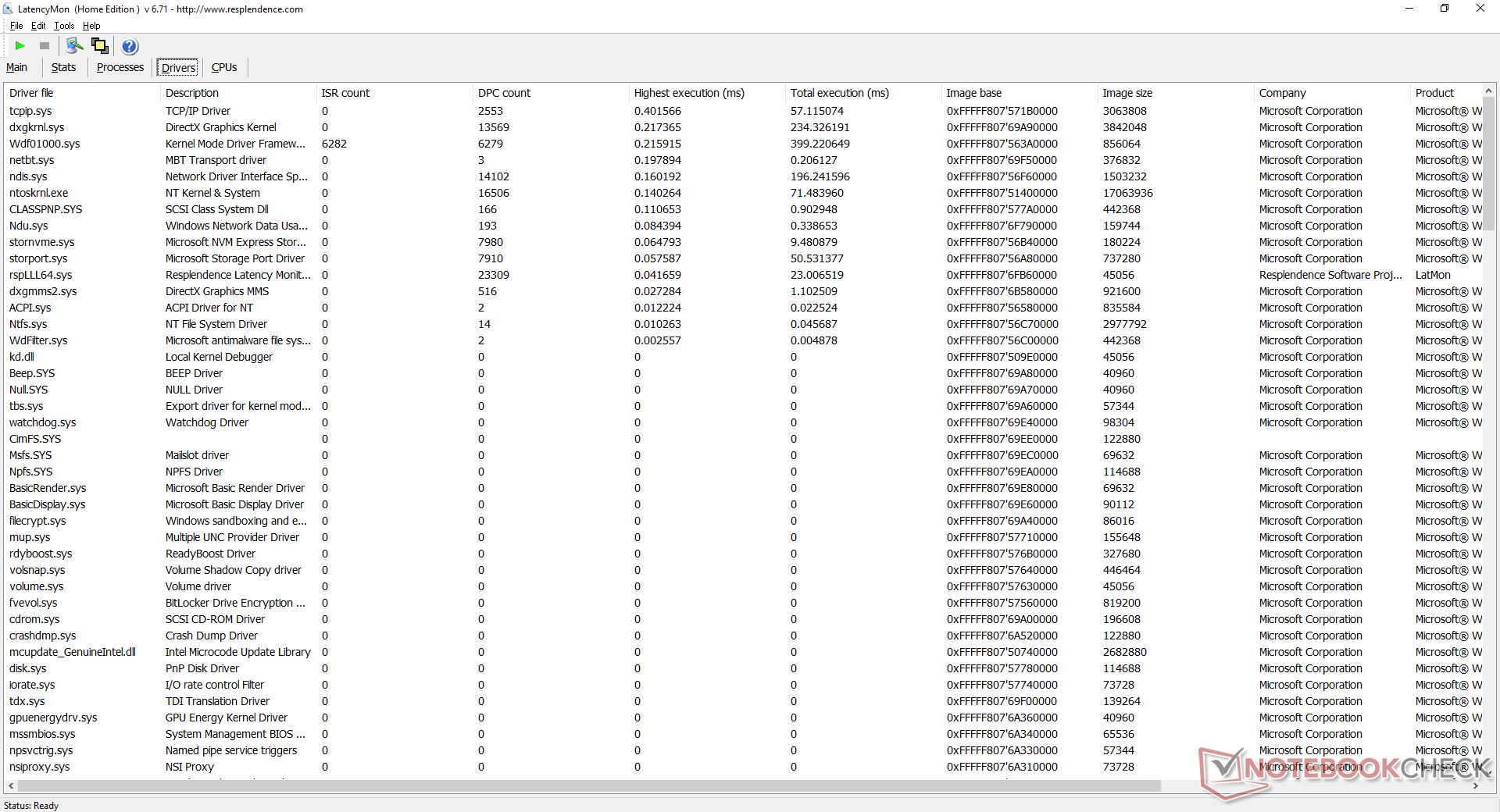

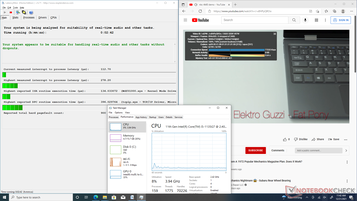

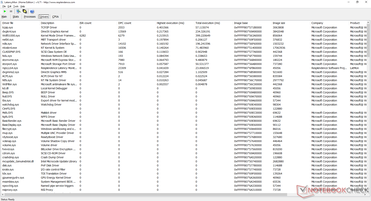

LatencyMon visar inga DPC-problem när flera webbläsarflikar öppnas på vår hemsida. Uppspelning av 4K-video vid 60 FPS går också smidigt och utan några tappade bilder.

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
GMK NucBox 2 Iris Plus Graphics 655, i5-8259U, Netac S930E8/256GPN	786 μs * -183%
Beelink SER3 Vega 10, R7 3750H, GSemi AZW GSDFN512TS3F1OGCX	697 μs * -151%
Intel NUC11TNKi5 Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S	525 μs * -89%
Beelink GTI 11 Iris Xe G7 80EUs, i5-1135G7, Kingston SA2000M8500G	278.2 μs *

* ... smaller is better

Lagringsenheter

Systemet har stöd för upp till tre interna hårddiskar (2x M.2 2280 + 1x 2,5-tums SATA III). Tänk på att den andra M.2-enheten måste vara en SATA III-enhet och inte en NVMe-enhet. 500 GB Kingston A2000 enheten i vår enhet är en PCIe3 M.2-enhet i mellanklass med sekventiell läs- och skrivhastighet på cirka 2000 till 2200 MB/s vardera. Hållbar prestanda är också utmärkt utan några termiska problem när DiskSpd körs i en loop.

Enheten levereras med en PCIe3-enhet i stället för PCIe4 sannolikt för att spara på kostnaderna. Användarna kan installera egna PCIe4-enheter om de så önskar.

2.5-tums SATA III-fack för tertiär lagringsexpansion

Primärt M.2 2280 PCIe4 x4-fack med tomt sekundärt M.2 SATA 2280-fack

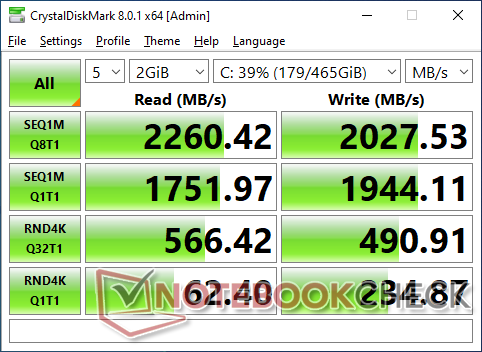

CrystalDiskMark 5.2 / 6

AS SSD

DiskSpd

Kingston SA2000M8500G

CDM 5/6 Read Seq Q32T1: 2235 MB/s

CDM 5/6 Write Seq Q32T1: 2055 MB/s

CDM 5/6 Read 4K Q32T1: 648 MB/s

CDM 5/6 Write 4K Q32T1: 495.3 MB/s

CDM 5 Read Seq: 1739 MB/s

CDM 5 Write Seq: 1942 MB/s

CDM 5/6 Read 4K: 66.1 MB/s

CDM 5/6 Write 4K: 231.2 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Beelink GTI 11 Kingston SA2000M8500G	88.2 pt
Intel Hades Canyon NUC8i7HVK ^-8! Intel Optane 120 GB SSDPEK1W120GA	74.2 pt
Beelink SER3 GSemi AZW GSDFN512TS3F1OGCX	61.6 pt
GMK NucBox 2 Netac S930E8/256GPN	55.9 pt
Intel NUC10i7FNH Kingston RBUSNS8154P3256GJ1	43.1 pt
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	24.2 pt

DiskSpd
seq read
GMK NucBox 2 Netac S930E8/256GPN	1566 (1557.38^min - 1565.96^max) MB/s +13%
Beelink GTI 11 Kingston SA2000M8500G	1392 (1389.99^min - 1391.88^max) MB/s
Beelink SER3 GSemi AZW GSDFN512TS3F1OGCX	1349 (1345.08^min - 1349.49^max) MB/s -3%
Intel NUC10i7FNH Kingston RBUSNS8154P3256GJ1	687 MB/s -51%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	509 (505.62^min - 509.19^max) MB/s -63%
seq write
Beelink GTI 11 Kingston SA2000M8500G	1810 (1639.55^min - 1810.32^max) MB/s
Beelink SER3 GSemi AZW GSDFN512TS3F1OGCX	1366 (1342.35^min - 1366.3^max) MB/s -25%
GMK NucBox 2 Netac S930E8/256GPN	1213 (454.38^min - 1213.29^max) MB/s -33%
Intel NUC10i7FNH Kingston RBUSNS8154P3256GJ1	858 MB/s -53%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	467 (462^min - 467.13^max) MB/s -74%
seq q8 t1 read
GMK NucBox 2 Netac S930E8/256GPN	2121 (1959.37^min - 2121.01^max) MB/s +25%
Beelink SER3 GSemi AZW GSDFN512TS3F1OGCX	1958 (1343.44^min - 1957.62^max) MB/s +15%
Beelink GTI 11 Kingston SA2000M8500G	1699 (1607.68^min - 1699.07^max) MB/s
Intel NUC10i7FNH Kingston RBUSNS8154P3256GJ1	1030 MB/s -39%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	561 (469.24^min - 560.5^max) MB/s -67%
seq q8 t1 write
Beelink GTI 11 Kingston SA2000M8500G	1873 (1713.16^min - 1872.55^max) MB/s
Beelink SER3 GSemi AZW GSDFN512TS3F1OGCX	1371 (1348.89^min - 1371.13^max) MB/s -27%
GMK NucBox 2 Netac S930E8/256GPN	1248 (414.41^min - 1248.45^max) MB/s -33%
Intel NUC10i7FNH Kingston RBUSNS8154P3256GJ1	980 MB/s -48%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	504 (500.38^min - 503.53^max) MB/s -73%
4k q1 t1 read
Beelink GTI 11 Kingston SA2000M8500G	66 (65.66^min - 66.02^max) MB/s
Beelink SER3 GSemi AZW GSDFN512TS3F1OGCX	40.2 (38.82^min - 40.17^max) MB/s -39%
GMK NucBox 2 Netac S930E8/256GPN	29.4 (21.8^min - 29.38^max) MB/s -55%
Intel NUC10i7FNH Kingston RBUSNS8154P3256GJ1	25.19 MB/s -62%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	21.6 (20.05^min - 21.62^max) MB/s -67%
4k q1 t1 write
Beelink GTI 11 Kingston SA2000M8500G	223 (200.71^min - 223.16^max) MB/s
GMK NucBox 2 Netac S930E8/256GPN	156 (133.05^min - 156.14^max) MB/s -30%
Beelink SER3 GSemi AZW GSDFN512TS3F1OGCX	116 (112.64^min - 116.46^max) MB/s -48%
Intel NUC10i7FNH Kingston RBUSNS8154P3256GJ1	61.1 MB/s -73%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	46.4 (45.57^min - 46.37^max) MB/s -79%
4k q32 t16 read
Beelink SER3 GSemi AZW GSDFN512TS3F1OGCX	826 (823.98^min - 826.07^max) MB/s +2%
Beelink GTI 11 Kingston SA2000M8500G	813 (810.85^min - 813.32^max) MB/s
GMK NucBox 2 Netac S930E8/256GPN	331 (329.92^min - 330.85^max) MB/s -59%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	285 (283.99^min - 284.61^max) MB/s -65%
Intel NUC10i7FNH Kingston RBUSNS8154P3256GJ1	251.1 MB/s -69%
4k q32 t16 write
Beelink GTI 11 Kingston SA2000M8500G	1089 (1047.09^min - 1088.53^max) MB/s
GMK NucBox 2 Netac S930E8/256GPN	739 (122.91^min - 738.54^max) MB/s -32%
Beelink SER3 GSemi AZW GSDFN512TS3F1OGCX	400 (389.86^min - 399.66^max) MB/s -63%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	330 (329.53^min - 329.95^max) MB/s -70%
Intel NUC10i7FNH Kingston RBUSNS8154P3256GJ1	257.7 MB/s -76%

AS SSD
Score Total
Intel Hades Canyon NUC8i7HVK Intel Optane 120 GB SSDPEK1W120GA	3023 Points 0%
Beelink GTI 11 Kingston SA2000M8500G	3013 Points
Beelink SER3 GSemi AZW GSDFN512TS3F1OGCX	2346 Points -22%
Intel NUC10i7FNH Kingston RBUSNS8154P3256GJ1	1944 Points -35%
GMK NucBox 2 Netac S930E8/256GPN	1497 Points -50%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	839 Points -72%
Score Read
Intel Hades Canyon NUC8i7HVK Intel Optane 120 GB SSDPEK1W120GA	1524 Points +52%
Beelink GTI 11 Kingston SA2000M8500G	1001 Points
Beelink SER3 GSemi AZW GSDFN512TS3F1OGCX	974 Points -3%
Intel NUC10i7FNH Kingston RBUSNS8154P3256GJ1	804 Points -20%
GMK NucBox 2 Netac S930E8/256GPN	615 Points -39%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	304 Points -70%
Score Write
Beelink GTI 11 Kingston SA2000M8500G	1486 Points
Beelink SER3 GSemi AZW GSDFN512TS3F1OGCX	866 Points -42%
Intel NUC10i7FNH Kingston RBUSNS8154P3256GJ1	762 Points -49%
Intel Hades Canyon NUC8i7HVK Intel Optane 120 GB SSDPEK1W120GA	714 Points -52%
GMK NucBox 2 Netac S930E8/256GPN	598 Points -60%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	375 Points -75%
Seq Read
GMK NucBox 2 Netac S930E8/256GPN	2069 MB/s +3%
Beelink GTI 11 Kingston SA2000M8500G	2006 MB/s
Beelink SER3 GSemi AZW GSDFN512TS3F1OGCX	1432 MB/s -29%
Intel Hades Canyon NUC8i7HVK Intel Optane 120 GB SSDPEK1W120GA	1379 MB/s -31%
Intel NUC10i7FNH Kingston RBUSNS8154P3256GJ1	1306 MB/s -35%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	527 MB/s -74%
Seq Write
Beelink GTI 11 Kingston SA2000M8500G	1904 MB/s
Beelink SER3 GSemi AZW GSDFN512TS3F1OGCX	1433 MB/s -25%
GMK NucBox 2 Netac S930E8/256GPN	1203 MB/s -37%
Intel NUC10i7FNH Kingston RBUSNS8154P3256GJ1	611 MB/s -68%
Intel Hades Canyon NUC8i7HVK Intel Optane 120 GB SSDPEK1W120GA	553 MB/s -71%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	469 MB/s -75%
4K Read
Intel Hades Canyon NUC8i7HVK Intel Optane 120 GB SSDPEK1W120GA	127.9 MB/s +110%
Beelink GTI 11 Kingston SA2000M8500G	60.9 MB/s
GMK NucBox 2 Netac S930E8/256GPN	41.66 MB/s -32%
Beelink SER3 GSemi AZW GSDFN512TS3F1OGCX	36.38 MB/s -40%
Intel NUC10i7FNH Kingston RBUSNS8154P3256GJ1	21.53 MB/s -65%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	20.41 MB/s -66%
4K Write
Beelink GTI 11 Kingston SA2000M8500G	203.7 MB/s
GMK NucBox 2 Netac S930E8/256GPN	136.9 MB/s -33%
Beelink SER3 GSemi AZW GSDFN512TS3F1OGCX	118.5 MB/s -42%
Intel Hades Canyon NUC8i7HVK Intel Optane 120 GB SSDPEK1W120GA	103.5 MB/s -49%
Intel NUC10i7FNH Kingston RBUSNS8154P3256GJ1	53.5 MB/s -74%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	42.52 MB/s -79%
4K-64 Read
Intel Hades Canyon NUC8i7HVK Intel Optane 120 GB SSDPEK1W120GA	1258 MB/s +70%
Beelink SER3 GSemi AZW GSDFN512TS3F1OGCX	795 MB/s +7%
Beelink GTI 11 Kingston SA2000M8500G	740 MB/s
Intel NUC10i7FNH Kingston RBUSNS8154P3256GJ1	652 MB/s -12%
GMK NucBox 2 Netac S930E8/256GPN	366.3 MB/s -50%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	231.4 MB/s -69%
4K-64 Write
Beelink GTI 11 Kingston SA2000M8500G	1092 MB/s
Intel NUC10i7FNH Kingston RBUSNS8154P3256GJ1	648 MB/s -41%
Beelink SER3 GSemi AZW GSDFN512TS3F1OGCX	604 MB/s -45%
Intel Hades Canyon NUC8i7HVK Intel Optane 120 GB SSDPEK1W120GA	556 MB/s -49%
GMK NucBox 2 Netac S930E8/256GPN	340.5 MB/s -69%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	285.3 MB/s -74%
Access Time Read
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	0.124 ms * -164%
Intel NUC10i7FNH Kingston RBUSNS8154P3256GJ1	0.114 ms * -143%
Beelink SER3 GSemi AZW GSDFN512TS3F1OGCX	0.07 ms * -49%
GMK NucBox 2 Netac S930E8/256GPN	0.064 ms * -36%
Beelink GTI 11 Kingston SA2000M8500G	0.047 ms *
Intel Hades Canyon NUC8i7HVK Intel Optane 120 GB SSDPEK1W120GA	0.025 ms * +47%
Access Time Write
Beelink SER3 GSemi AZW GSDFN512TS3F1OGCX	0.36 ms * -334%
GMK NucBox 2 Netac S930E8/256GPN	0.347 ms * -318%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	0.269 ms * -224%
Beelink GTI 11 Kingston SA2000M8500G	0.083 ms *
Intel NUC10i7FNH Kingston RBUSNS8154P3256GJ1	0.07 ms * +16%
Intel Hades Canyon NUC8i7HVK Intel Optane 120 GB SSDPEK1W120GA	0.033 ms * +60%

* ... smaller is better

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

Beelink GTI 11: Ø1656 (1490.24-1661.99)

GPU-prestanda

Grafikprestandan är mycket bra och är ungefär 13 procent snabbare än den genomsnittliga bärbara datorn eller PC:n med samma integrerade Iris Xe 80 EUs. GTI 11 levereras med dubbelkanals RAM-minne till skillnad från våra Intel NUC11TNKi5 som kommer med samma Core i5-1135G7 CPU men med endast enkelkanals RAM. Grafikprestandan är cirka 25 procent snabbare på vår Beelink, vilket främst beror på deras olika RAM-konfigurationer

Om du uppgraderar till en dator eller bärbar dator med Core i7-1165G7 i det högre segmentet och dess integrerade Iris Xe 96 EUs kommer att resultera i en prestandaförstärkning på upp till 25-35 procent beroende på modell.

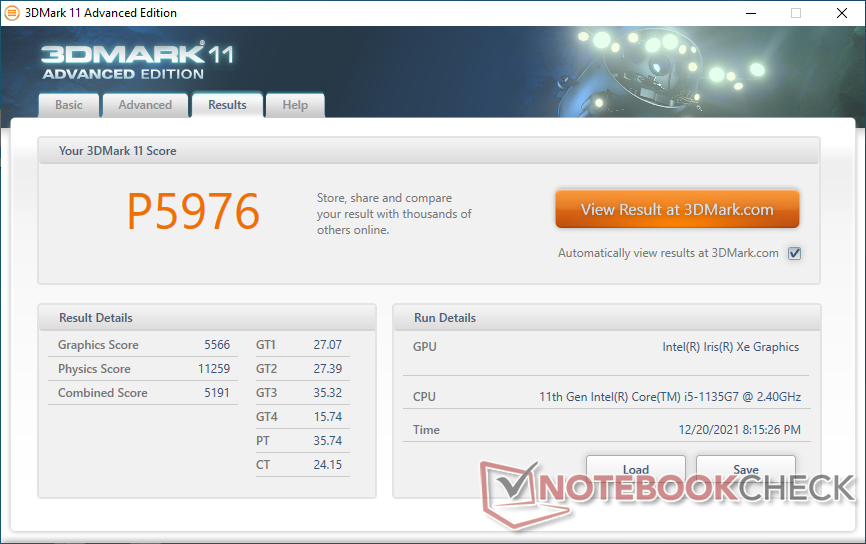

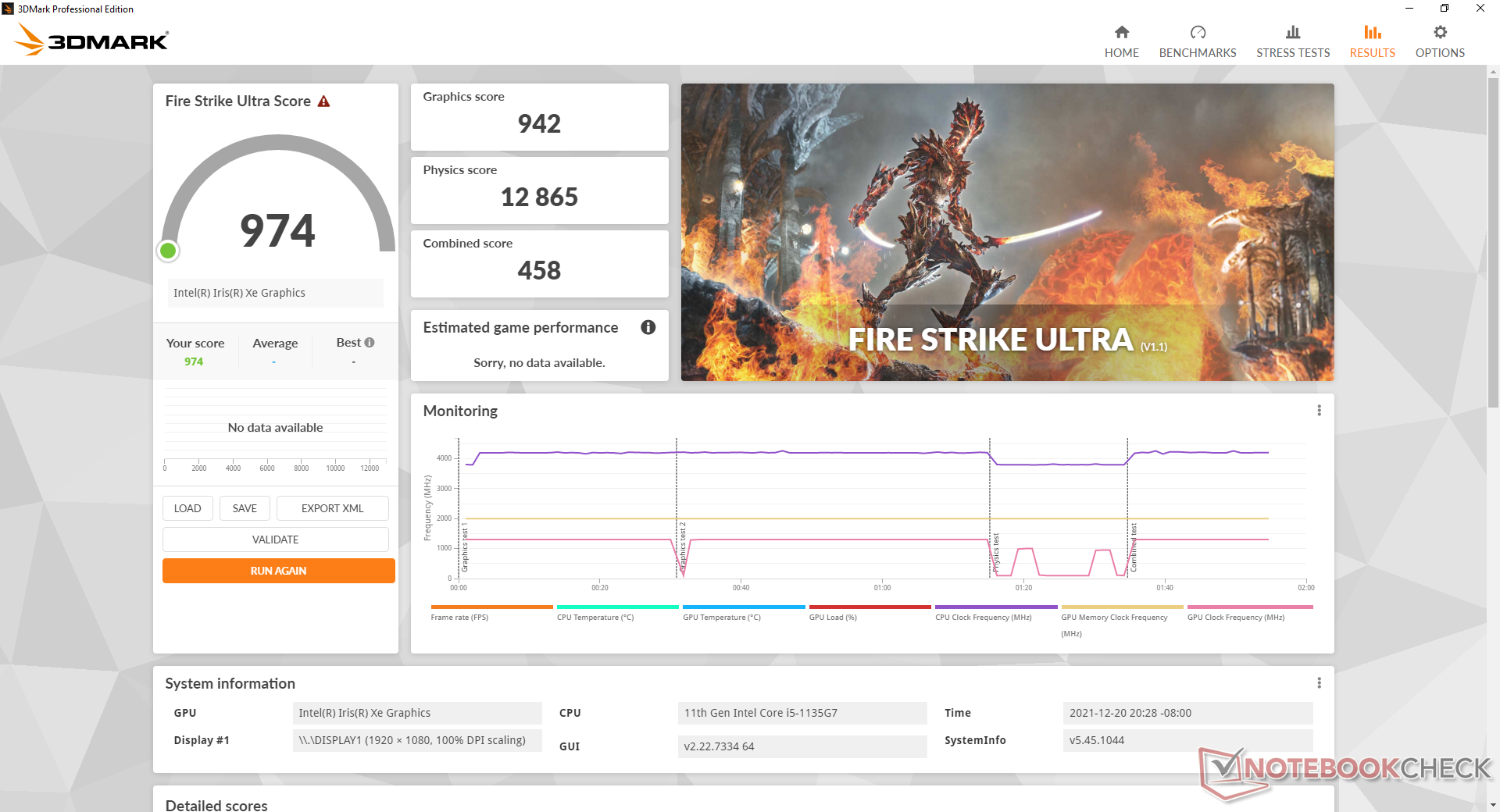

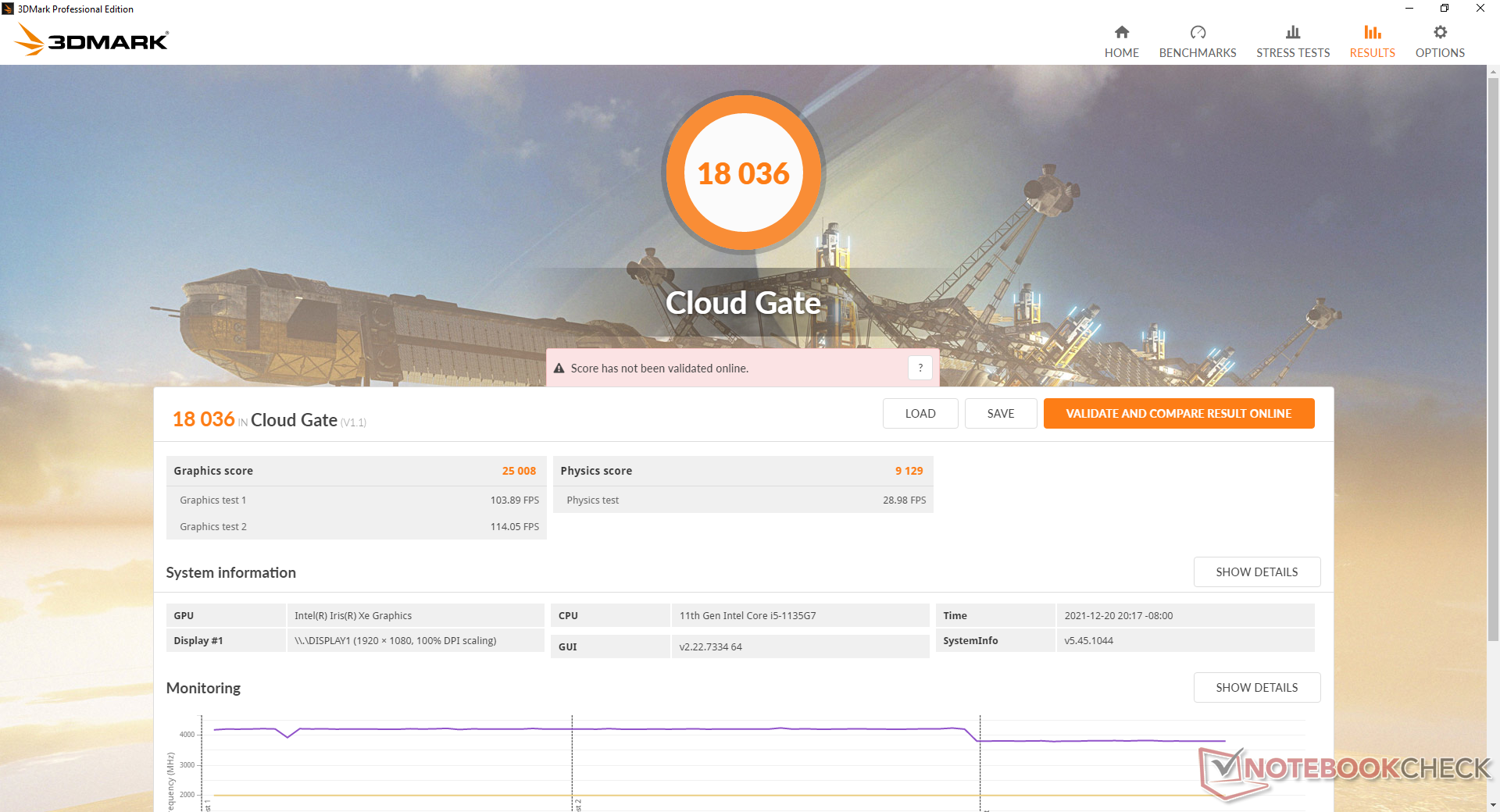

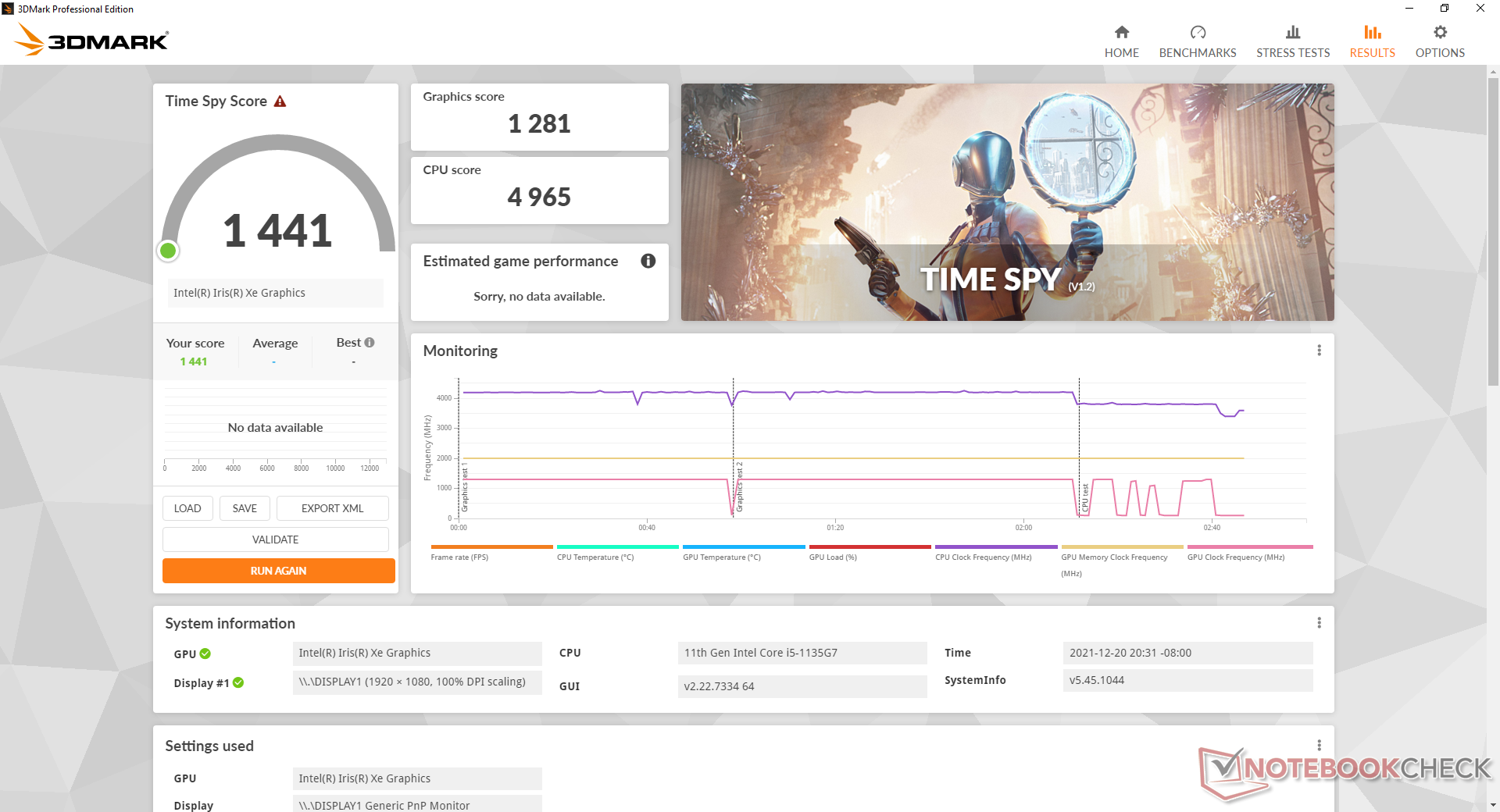

3DMark | 3DMark 11

3DMark

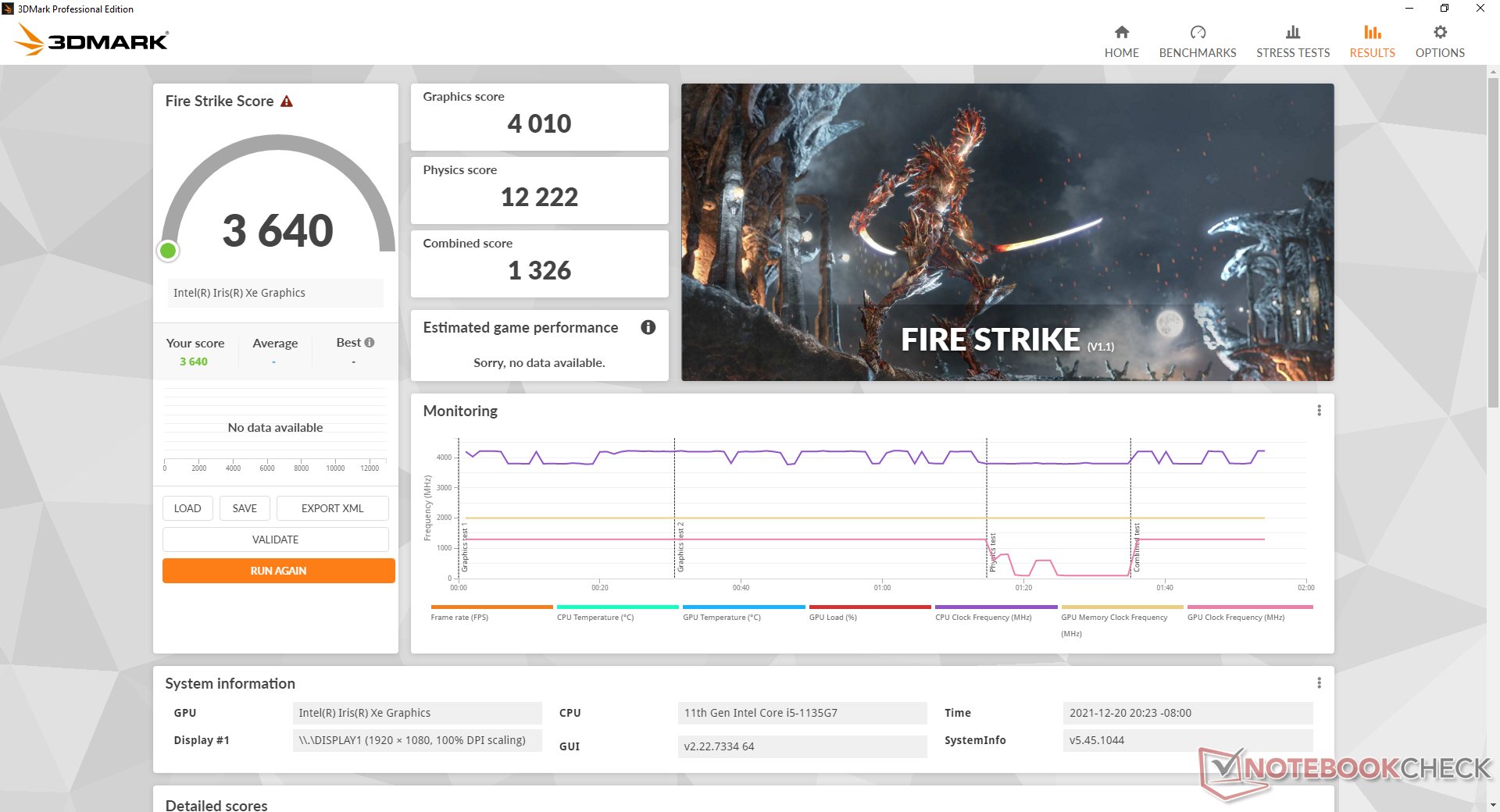

1920x1080 Fire Strike Graphics
Intel Hades Canyon NUC8i7HVK AMD Radeon RX Vega M GH, Intel Core i7-8809G	10248 Points +156%
Samsung Galaxy Book Pro 15 NP950XDB-KC5US Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	5410 Points +35%
Asus Vivobook 15 K513EQ NVIDIA GeForce MX350, Intel Core i7-1165G7	4496 Points +12%
Beelink GTI 11 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	4010 Points
Average Intel Iris Xe Graphics G7 80EUs (1560 - 5305, n=111)	3794 Points -5%
Intel NUC11PAQi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	3724 Points -7%
Lenovo Yoga 6 13ALC6 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700U	3572 Points -11%
Lenovo Yoga 6 13 82ND0009US AMD Radeon RX Vega 7, AMD Ryzen 5 5500U	3200 Points -20%
Intel NUC11TNKi5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	3152 Points -21%
Beelink GTR35 II-G-16512D00W64PRO-1T AMD Radeon RX Vega 8 (Ryzen 2000/3000), AMD Ryzen 5 3550H	2737 Points -32%
Infinix INBook X1 Pro Intel Iris Plus Graphics G7 (Ice Lake 64 EU), Intel Core i7-1065G7	2586 Points -36%
Beelink SER3 AMD Radeon RX Vega 10, AMD Ryzen 7 3750H	2027 Points -49%
GMK NucBox 2 Intel Iris Plus Graphics 655, Intel Core i5-8259U	1914 Points -52%
Asus VivoBook S13 S333JA-DS51 Intel UHD Graphics G1 (Ice Lake 32 EU), Intel Core i5-1035G1	1744 Points -57%
Intel NUC10i7FNH Intel UHD Graphics 620, Intel Core i7-10710U	1418 Points -65%
2560x1440 Time Spy Graphics
Intel Hades Canyon NUC8i7HVK AMD Radeon RX Vega M GH, Intel Core i7-8809G	2908 Points +127%
Samsung Galaxy Book Pro 15 NP950XDB-KC5US Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	1618 Points +26%
Asus Vivobook 15 K513EQ NVIDIA GeForce MX350, Intel Core i7-1165G7	1333 Points +4%
Beelink GTI 11 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	1281 Points
Average Intel Iris Xe Graphics G7 80EUs (561 - 1511, n=108)	1172 Points -9%
Intel NUC11PAQi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	1168 Points -9%
Lenovo Yoga 6 13ALC6 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700U	1112 Points -13%
Intel NUC11TNKi5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	1031 Points -20%
Lenovo Yoga 6 13 82ND0009US AMD Radeon RX Vega 7, AMD Ryzen 5 5500U	978 Points -24%
Infinix INBook X1 Pro Intel Iris Plus Graphics G7 (Ice Lake 64 EU), Intel Core i7-1065G7	851 Points -34%
Beelink SER3 AMD Radeon RX Vega 10, AMD Ryzen 7 3750H	609 Points -52%
GMK NucBox 2 Intel Iris Plus Graphics 655, Intel Core i5-8259U	594 Points -54%
Asus VivoBook S13 S333JA-DS51 Intel UHD Graphics G1 (Ice Lake 32 EU), Intel Core i5-1035G1	476 Points -63%
Intel NUC10i7FNH Intel UHD Graphics 620, Intel Core i7-10710U	443 Points -65%
2560x1440 Time Spy Score
Intel Hades Canyon NUC8i7HVK AMD Radeon RX Vega M GH, Intel Core i7-8809G	3096 Points +115%
Samsung Galaxy Book Pro 15 NP950XDB-KC5US Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	1793 Points +24%
Asus Vivobook 15 K513EQ NVIDIA GeForce MX350, Intel Core i7-1165G7	1497 Points +4%
Beelink GTI 11 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	1441 Points
Average Intel Iris Xe Graphics G7 80EUs (630 - 1731, n=108)	1317 Points -9%
Intel NUC11PAQi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	1316 Points -9%
Lenovo Yoga 6 13ALC6 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700U	1263 Points -12%
Intel NUC11TNKi5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	1161 Points -19%
Lenovo Yoga 6 13 82ND0009US AMD Radeon RX Vega 7, AMD Ryzen 5 5500U	1107 Points -23%
Infinix INBook X1 Pro Intel Iris Plus Graphics G7 (Ice Lake 64 EU), Intel Core i7-1065G7	963 Points -33%
Beelink SER3 AMD Radeon RX Vega 10, AMD Ryzen 7 3750H	690 Points -52%
GMK NucBox 2 Intel Iris Plus Graphics 655, Intel Core i5-8259U	676 Points -53%
Asus VivoBook S13 S333JA-DS51 Intel UHD Graphics G1 (Ice Lake 32 EU), Intel Core i5-1035G1	547 Points -62%
Intel NUC10i7FNH Intel UHD Graphics 620, Intel Core i7-10710U	512 Points -64%

3DMark 11 - 1280x720 Performance GPU
Intel Hades Canyon NUC8i7HVK AMD Radeon RX Vega M GH, Intel Core i7-8809G	14302 Points +157%
Samsung Galaxy Book Pro 15 NP950XDB-KC5US Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	6529 Points +17%
Asus Vivobook 15 K513EQ NVIDIA GeForce MX350, Intel Core i7-1165G7	6293 Points +13%
Intel NUC11PAQi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	6027 Points +8%
Lenovo Yoga 6 13ALC6 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700U	5693 Points +2%
Beelink GTI 11 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	5566 Points
Intel NUC11TNKi5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	5221 Points -6%
Lenovo Yoga 6 13 82ND0009US AMD Radeon RX Vega 7, AMD Ryzen 5 5500U	5220 Points -6%
Average Intel Iris Xe Graphics G7 80EUs (2246 - 6477, n=109)	5179 Points -7%
Infinix INBook X1 Pro Intel Iris Plus Graphics G7 (Ice Lake 64 EU), Intel Core i7-1065G7	4132 Points -26%
Beelink GTR35 II-G-16512D00W64PRO-1T AMD Radeon RX Vega 8 (Ryzen 2000/3000), AMD Ryzen 5 3550H	4040 Points -27%
Beelink SER3 AMD Radeon RX Vega 10, AMD Ryzen 7 3750H	3245 Points -42%
GMK NucBox 2 Intel Iris Plus Graphics 655, Intel Core i5-8259U	2947 Points -47%
Asus VivoBook S13 S333JA-DS51 Intel UHD Graphics G1 (Ice Lake 32 EU), Intel Core i5-1035G1	2421 Points -57%
Intel NUC10i7FNH Intel UHD Graphics 620, Intel Core i7-10710U	1983 Points -64%

3DMark | 3DMark 11

3DMark 11 Performance		5976 poäng
3DMark Cloud Gate Standard Score		18036 poäng
3DMark Fire Strike Score		3640 poäng
3DMark Time Spy Score		1441 poäng
Hjälp

... jämför

Final Fantasy XV Benchmark
1280x720 Lite Quality
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	81.8 fps +123%
Asus Vivobook 15 K513EQ Intel Core i7-1165G7, NVIDIA GeForce MX350	48.6 fps +32%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	36.7 fps
Lenovo Yoga 6 13ALC6 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	31.7 fps -14%
Average Intel Iris Xe Graphics G7 80EUs (8.32 - 45.6, n=104)	31.6 fps -14%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	30.3 fps -17%
Lenovo Yoga 6 13 82ND0009US AMD Ryzen 5 5500U, AMD Radeon RX Vega 7	29.7 fps -19%
Intel NUC11TNKi5 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	26.8 fps -27%
Beelink GTR35 II-G-16512D00W64PRO-1T AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	26.6 fps -28%
Infinix INBook X1 Pro Intel Core i7-1065G7, Intel Iris Plus Graphics G7 (Ice Lake 64 EU)	20.2 fps -45%
Beelink SER3 AMD Ryzen 7 3750H, AMD Radeon RX Vega 10	19 fps -48%
GMK NucBox 2 Intel Core i5-8259U, Intel Iris Plus Graphics 655	17.3 fps -53%
Asus VivoBook S13 S333JA-DS51 Intel Core i5-1035G1, Intel UHD Graphics G1 (Ice Lake 32 EU)	16.8 fps -54%
1920x1080 Standard Quality
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	41.2 fps +120%
Asus Vivobook 15 K513EQ Intel Core i7-1165G7, NVIDIA GeForce MX350	23 fps +23%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	18.7 fps
Average Intel Iris Xe Graphics G7 80EUs (4.47 - 25.1, n=97)	17.4 fps -7%
Lenovo Yoga 6 13ALC6 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	16.6 fps -11%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	15.6 fps -17%
Lenovo Yoga 6 13 82ND0009US AMD Ryzen 5 5500U, AMD Radeon RX Vega 7	15.2 fps -19%
Intel NUC11TNKi5 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	13.7 fps -27%
Beelink GTR35 II-G-16512D00W64PRO-1T AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	13.6 fps -27%
Infinix INBook X1 Pro Intel Core i7-1065G7, Intel Iris Plus Graphics G7 (Ice Lake 64 EU)	10.9 fps -42%
Beelink SER3 AMD Ryzen 7 3750H, AMD Radeon RX Vega 10	9.98 fps -47%
GMK NucBox 2 Intel Core i5-8259U, Intel Iris Plus Graphics 655	9.07 fps -51%
Asus VivoBook S13 S333JA-DS51 Intel Core i5-1035G1, Intel UHD Graphics G1 (Ice Lake 32 EU)	8.32 fps -56%
1920x1080 High Quality
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	20.4 fps +51%
Asus Vivobook 15 K513EQ Intel Core i7-1165G7, NVIDIA GeForce MX350	14.5 fps +7%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	13.5 fps
Average Intel Iris Xe Graphics G7 80EUs (4.01 - 22, n=88)	13 fps -4%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	12.7 fps -6%
Lenovo Yoga 6 13ALC6 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	11.2 fps -17%
Intel NUC11TNKi5 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	10.5 fps -22%
Lenovo Yoga 6 13 82ND0009US AMD Ryzen 5 5500U, AMD Radeon RX Vega 7	9.83 fps -27%
Beelink GTR35 II-G-16512D00W64PRO-1T AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	8.26 fps -39%
Infinix INBook X1 Pro Intel Core i7-1065G7, Intel Iris Plus Graphics G7 (Ice Lake 64 EU)	7.58 fps -44%
Beelink SER3 AMD Ryzen 7 3750H, AMD Radeon RX Vega 10	6.8 fps -50%
GMK NucBox 2 Intel Core i5-8259U, Intel Iris Plus Graphics 655	6.04 fps -55%
Asus VivoBook S13 S333JA-DS51 Intel Core i5-1035G1, Intel UHD Graphics G1 (Ice Lake 32 EU)	5.81 fps -57%

The Witcher 3
1024x768 Low Graphics & Postprocessing
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	165.5 (148^min) fps +115%
Asus Vivobook 15 K513EQ Intel Core i7-1165G7, NVIDIA GeForce MX350	86 (81^min) fps +12%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	77.1 (44^min) fps
Lenovo Yoga 6 13ALC6 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	70.7 (62^min) fps -8%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	70.3 (63^min) fps -9%
Lenovo Yoga 6 13 82ND0009US AMD Ryzen 5 5500U, AMD Radeon RX Vega 7	66.9 (61^min) fps -13%
Average Intel Iris Xe Graphics G7 80EUs (30.2 - 97.4, n=101)	65.4 fps -15%
Intel NUC11TNKi5 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	59.8 (53^min) fps -22%
Infinix INBook X1 Pro Intel Core i7-1065G7, Intel Iris Plus Graphics G7 (Ice Lake 64 EU)	54.3 (18^min) fps -30%
Beelink GTR35 II-G-16512D00W64PRO-1T AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	46 fps -40%
Beelink SER3 AMD Ryzen 7 3750H, AMD Radeon RX Vega 10	35.7 (28^min) fps -54%
1366x768 Medium Graphics & Postprocessing
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	105.1 (100^min) fps +126%
Asus Vivobook 15 K513EQ Intel Core i7-1165G7, NVIDIA GeForce MX350	48.6 (46^min) fps +4%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	46.6 (41^min) fps
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	43.7 (40^min) fps -6%
Average Intel Iris Xe Graphics G7 80EUs (21.8 - 56.9, n=103)	41.9 fps -10%
Infinix INBook X1 Pro Intel Core i7-1065G7, Intel Iris Plus Graphics G7 (Ice Lake 64 EU)	34.8 (32^min) fps -25%
Beelink GTR35 II-G-16512D00W64PRO-1T AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	29 fps -38%
Lenovo Yoga 6 13ALC6 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	23.3 (21^min) fps -50%
Beelink SER3 AMD Ryzen 7 3750H, AMD Radeon RX Vega 10	22.9 (21^min) fps -51%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	59.7 (56^min) fps +158%
Asus Vivobook 15 K513EQ Intel Core i7-1165G7, NVIDIA GeForce MX350	29.9 (27^min) fps +29%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	23.1 (19^min) fps
Average Intel Iris Xe Graphics G7 80EUs (9.3 - 33.5, n=101)	21.6 fps -6%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	20.7 (18^min) fps -10%
Lenovo Yoga 6 13 82ND0009US AMD Ryzen 5 5500U, AMD Radeon RX Vega 7	20.4 (18^min) fps -12%
Infinix INBook X1 Pro Intel Core i7-1065G7, Intel Iris Plus Graphics G7 (Ice Lake 64 EU)	18.2 (14^min) fps -21%
Beelink GTR35 II-G-16512D00W64PRO-1T AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	13 fps -44%
Beelink SER3 AMD Ryzen 7 3750H, AMD Radeon RX Vega 10	12.2 (11^min) fps -47%
1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	34.3 (32^min) fps +198%
Asus Vivobook 15 K513EQ Intel Core i7-1165G7, NVIDIA GeForce MX350	16.7 (14^min) fps +45%
Lenovo Yoga 6 13ALC6 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	15.2 (14^min) fps +32%
Lenovo Yoga 6 13 82ND0009US AMD Ryzen 5 5500U, AMD Radeon RX Vega 7	13.6 (11^min) fps +18%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	11.5 (10^min) fps
Average Intel Iris Xe Graphics G7 80EUs (6.26 - 28, n=91)	11.2 fps -3%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	10.3 (9^min) fps -10%
Infinix INBook X1 Pro Intel Core i7-1065G7, Intel Iris Plus Graphics G7 (Ice Lake 64 EU)	9.4 (5^min) fps -18%
Beelink GTR35 II-G-16512D00W64PRO-1T AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	9 fps -22%
Beelink SER3 AMD Ryzen 7 3750H, AMD Radeon RX Vega 10	8 (7^min) fps -30%

Far Cry 5
1280x720 Low Preset AA:T
Asus Vivobook 15 K513EQ Intel Core i7-1165G7, NVIDIA GeForce MX350	59 (49^min) fps +26%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	47 (39^min) fps
Lenovo Yoga 6 13ALC6 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	39 (33^min) fps -17%
Average Intel Iris Xe Graphics G7 80EUs (14 - 63, n=50)	38.8 fps -17%
Beelink SER3 AMD Ryzen 7 3750H, AMD Radeon RX Vega 10	23 (20^min) fps -51%
1920x1080 Low Preset AA:T
Asus Vivobook 15 K513EQ Intel Core i7-1165G7, NVIDIA GeForce MX350	32 (29^min) fps +23%
Average Intel Iris Xe Graphics G7 80EUs (15 - 35, n=13)	26.2 fps +1%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	26 (23^min) fps
Lenovo Yoga 6 13ALC6 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	21 (18^min) fps -19%
Beelink SER3 AMD Ryzen 7 3750H, AMD Radeon RX Vega 10	13 (11^min) fps -50%
1920x1080 Medium Preset AA:T
Asus Vivobook 15 K513EQ Intel Core i7-1165G7, NVIDIA GeForce MX350	26 (22^min) fps +13%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	23 (21^min) fps
Average Intel Iris Xe Graphics G7 80EUs (9 - 31, n=47)	20.1 fps -13%
Lenovo Yoga 6 13ALC6 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	18 (14^min) fps -22%
Beelink SER3 AMD Ryzen 7 3750H, AMD Radeon RX Vega 10	12 (10^min) fps -48%
1920x1080 High Preset AA:T
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	51 (43^min) fps +132%
Asus Vivobook 15 K513EQ Intel Core i7-1165G7, NVIDIA GeForce MX350	23 (19^min) fps +5%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	22 (19^min) fps
Average Intel Iris Xe Graphics G7 80EUs (8 - 29, n=39)	19.1 fps -13%
Lenovo Yoga 6 13ALC6 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	17 (15^min) fps -23%
Beelink SER3 AMD Ryzen 7 3750H, AMD Radeon RX Vega 10	11 (10^min) fps -50%
1920x1080 Ultra Preset AA:T
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	47 (41^min) fps +124%
Asus Vivobook 15 K513EQ Intel Core i7-1165G7, NVIDIA GeForce MX350	22 (16^min) fps +5%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	21 (19^min) fps
Average Intel Iris Xe Graphics G7 80EUs (8 - 27, n=29)	17.6 fps -16%
Lenovo Yoga 6 13ALC6 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	16 (14^min) fps -24%
Beelink SER3 AMD Ryzen 7 3750H, AMD Radeon RX Vega 10	10 (9^min) fps -52%

GTA V
1024x768 Lowest Settings possible
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	165 (1.676^min, 100^P1) fps +74%
Asus Vivobook 15 K513EQ Intel Core i7-1165G7, NVIDIA GeForce MX350	141 (8.38^min, 83.3^P1) fps +48%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	95.1 (21.9^min, 55.6^P1) fps
Lenovo Yoga 6 13ALC6 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	88.7 (15.2^min, 50^P1) fps -7%
Lenovo Yoga 6 13 82ND0009US AMD Ryzen 5 5500U, AMD Radeon RX Vega 7	85.6 (7.6^min, 52.6^P1) fps -10%
Average Intel Iris Xe Graphics G7 80EUs (36.5 - 144.6, n=81)	83.1 fps -13%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	67.6 (16.5^min, 47.6^P1) fps -29%
Beelink SER3 AMD Ryzen 7 3750H, AMD Radeon RX Vega 10	51.8 (15.8^min, 35.7^P1) fps -46%
1920x1080 Lowest Settings possible
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	165 (4.25^min, 111^P1) fps +152%
Asus Vivobook 15 K513EQ Intel Core i7-1165G7, NVIDIA GeForce MX350	86.9 (24^min, 34.5^P1) fps +33%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	65.4 (20.4^min, 45.5^P1) fps
Average Intel Iris Xe Graphics G7 80EUs (21.5 - 98.1, n=66)	61.9 fps -5%
Lenovo Yoga 6 13ALC6 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	56 (7.44^min, 40^P1) fps -14%
Lenovo Yoga 6 13 82ND0009US AMD Ryzen 5 5500U, AMD Radeon RX Vega 7	53.5 (8.28^min, 35.7^P1) fps -18%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	40.7 (12.8^min, 27.8^P1) fps -38%
Beelink SER3 AMD Ryzen 7 3750H, AMD Radeon RX Vega 10	30.3 (12.2^min, 21.7^P1) fps -54%
1366x768 Normal/Off AF:4x
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	158 (4.71^min, 100^P1) fps +99%
Asus Vivobook 15 K513EQ Intel Core i7-1165G7, NVIDIA GeForce MX350	115 (5.06^min, 55.6^P1) fps +45%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	79.5 (21.5^min, 50^P1) fps
Average Intel Iris Xe Graphics G7 80EUs (28.9 - 133.8, n=84)	70.6 fps -11%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	52.5 (13.6^min, 37^P1) fps -34%
Beelink SER3 AMD Ryzen 7 3750H, AMD Radeon RX Vega 10	46.3 (17^min, 30.3^P1) fps -42%
1920x1080 Normal/Off AF:4x
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	157 (3.27^min, 100^P1) fps +177%
Asus Vivobook 15 K513EQ Intel Core i7-1165G7, NVIDIA GeForce MX350	69 (23.7^min, 33.3^P1) fps +22%
Lenovo Yoga 6 13ALC6 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	57.4 (7.36^min, 38.5^P1) fps +1%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	56.6 (16.5^min, 38.5^P1) fps
Average Intel Iris Xe Graphics G7 80EUs (18.8 - 97.2, n=66)	55.9 fps -1%
Lenovo Yoga 6 13 82ND0009US AMD Ryzen 5 5500U, AMD Radeon RX Vega 7	53.2 (6.41^min, 33.3^P1) fps -6%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	35.3 (13.8^min, 23.8^P1) fps -38%
Beelink SER3 AMD Ryzen 7 3750H, AMD Radeon RX Vega 10	32.1 (10.7^min, 22.7^P1) fps -43%
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	81.2 (1.964^min, 62.5^P1) fps +285%
Asus Vivobook 15 K513EQ Intel Core i7-1165G7, NVIDIA GeForce MX350	45.8 (0.907^min, 20.8^P1) fps +117%
Lenovo Yoga 6 13ALC6 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	24.5 (3.65^min, 17.5^P1) fps +16%
Lenovo Yoga 6 13 82ND0009US AMD Ryzen 5 5500U, AMD Radeon RX Vega 7	21.9 (3.79^min, 15.2^P1) fps +4%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	21.1 (8.42^min, 14.9^P1) fps
Average Intel Iris Xe Graphics G7 80EUs (7.81 - 32, n=83)	18.3 fps -13%
Beelink SER3 AMD Ryzen 7 3750H, AMD Radeon RX Vega 10	13.2 (6.31^min, 9.52^P1) fps -37%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	12.6 (5.49^min, 8.93^P1) fps -40%
1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	39.4 (1.843^min, 27^P1) fps +382%
Asus Vivobook 15 K513EQ Intel Core i7-1165G7, NVIDIA GeForce MX350	23.7 (1.708^min, 15.2^P1) fps +190%
Lenovo Yoga 6 13ALC6 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	9.82 (2.64^min, 6.8^P1) fps +20%
Lenovo Yoga 6 13 82ND0009US AMD Ryzen 5 5500U, AMD Radeon RX Vega 7	8.98 (1.074^min, 6.33^P1) fps +10%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	8.17 (3.68^min, 5.03^P1) fps
Average Intel Iris Xe Graphics G7 80EUs (3.07 - 11.6, n=70)	7.86 fps -4%
Beelink SER3 AMD Ryzen 7 3750H, AMD Radeon RX Vega 10	6.76 (1.83^min, 3.56^P1) fps -17%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	5.72 (2.43^min, 3.77^P1) fps -30%

X-Plane 11.11
1280x720 low (fps_test=1)
Asus Vivobook 15 K513EQ Intel Core i7-1165G7, NVIDIA GeForce MX350	66.7 fps +178%
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	61.8 fps +158%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	42.3 fps +76%
Lenovo Yoga 6 13ALC6 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	38.2 fps +59%
Intel NUC11TNKi5 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	37.1 fps +55%
Lenovo Yoga 6 13 82ND0009US AMD Ryzen 5 5500U, AMD Radeon RX Vega 7	36.9 fps +54%
Average Intel Iris Xe Graphics G7 80EUs (9.12 - 74.4, n=109)	36.4 fps +52%
Asus VivoBook S13 S333JA-DS51 Intel Core i5-1035G1, Intel UHD Graphics G1 (Ice Lake 32 EU)	32.9 fps +37%
Beelink GTR35 II-G-16512D00W64PRO-1T AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	32.5 fps +35%
GMK NucBox 2 Intel Core i5-8259U, Intel Iris Plus Graphics 655	25.3 fps +5%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	24 fps
Beelink SER3 AMD Ryzen 7 3750H, AMD Radeon RX Vega 10	23.8 fps -1%
Infinix INBook X1 Pro Intel Core i7-1065G7, Intel Iris Plus Graphics G7 (Ice Lake 64 EU)	16.4 fps -32%
Intel NUC10i7FNH Intel Core i7-10710U, Intel UHD Graphics 620	11.6 fps -52%
1920x1080 med (fps_test=2)
Asus Vivobook 15 K513EQ Intel Core i7-1165G7, NVIDIA GeForce MX350	62.7 fps +193%
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	52.8 fps +147%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	32.7 fps +53%
Lenovo Yoga 6 13ALC6 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	30.8 fps +44%
Lenovo Yoga 6 13 82ND0009US AMD Ryzen 5 5500U, AMD Radeon RX Vega 7	28.7 fps +34%
Average Intel Iris Xe Graphics G7 80EUs (6.45 - 40.5, n=110)	28.6 fps +34%
Intel NUC11TNKi5 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	27.3 fps +28%
Beelink GTR35 II-G-16512D00W64PRO-1T AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	25.3 fps +18%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	21.4 fps
Beelink SER3 AMD Ryzen 7 3750H, AMD Radeon RX Vega 10	18.5 fps -14%
GMK NucBox 2 Intel Core i5-8259U, Intel Iris Plus Graphics 655	18 fps -16%
Infinix INBook X1 Pro Intel Core i7-1065G7, Intel Iris Plus Graphics G7 (Ice Lake 64 EU)	16.3 fps -24%
Asus VivoBook S13 S333JA-DS51 Intel Core i5-1035G1, Intel UHD Graphics G1 (Ice Lake 32 EU)	15.3 fps -29%
Intel NUC10i7FNH Intel Core i7-10710U, Intel UHD Graphics 620	13.5 fps -37%
1920x1080 high (fps_test=3)
Asus Vivobook 15 K513EQ Intel Core i7-1165G7, NVIDIA GeForce MX350	53.9 fps +146%
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	45.5 fps +108%
Intel NUC11TNKi5 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	29.1 fps +33%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	28.8 fps +32%
Lenovo Yoga 6 13ALC6 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	27 fps +23%
Average Intel Iris Xe Graphics G7 80EUs (5.55 - 36.3, n=108)	25.8 fps +18%
Lenovo Yoga 6 13 82ND0009US AMD Ryzen 5 5500U, AMD Radeon RX Vega 7	25 fps +14%
Beelink GTR35 II-G-16512D00W64PRO-1T AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	22.8 fps +4%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	21.9 fps
Beelink SER3 AMD Ryzen 7 3750H, AMD Radeon RX Vega 10	16.7 fps -24%
GMK NucBox 2 Intel Core i5-8259U, Intel Iris Plus Graphics 655	15.9 fps -27%
Infinix INBook X1 Pro Intel Core i7-1065G7, Intel Iris Plus Graphics G7 (Ice Lake 64 EU)	15.3 fps -30%
Asus VivoBook S13 S333JA-DS51 Intel Core i5-1035G1, Intel UHD Graphics G1 (Ice Lake 32 EU)	14.4 fps -34%
Intel NUC10i7FNH Intel Core i7-10710U, Intel UHD Graphics 620	11 fps -50%

Strange Brigade
1280x720 lowest AF:1
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	210 (146^min, 184^P1) fps +175%
Asus Vivobook 15 K513EQ Intel Core i7-1165G7, NVIDIA GeForce MX350	92.7 (72^min, 76.8^P1) fps +21%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	76.5 (17.1^min, 23^P1) fps
Lenovo Yoga 6 13ALC6 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	74.1 (52.5^min, 62.9^P1) fps -3%
Lenovo Yoga 6 13 82ND0009US AMD Ryzen 5 5500U, AMD Radeon RX Vega 7	72.8 (38.5^min, 61.9^P1) fps -5%
Average Intel Iris Xe Graphics G7 80EUs (22.7 - 98.7, n=81)	67.4 fps -12%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	66.2 (14^min, 22.8^P1) fps -13%
Beelink SER3 AMD Ryzen 7 3750H, AMD Radeon RX Vega 10	37.9 (30.4^min, 31.9^P1) fps -50%
1920x1080 medium AA:medium AF:4
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	85.3 (73.4^min, 74.4^P1) fps +177%
Asus Vivobook 15 K513EQ Intel Core i7-1165G7, NVIDIA GeForce MX350	32.3 (27.7^min, 28.5^P1) fps +5%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	30.8 (9.7^min, 16.6^P1) fps
Lenovo Yoga 6 13ALC6 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	28.9 (20.7^min, 25.2^P1) fps -6%
Average Intel Iris Xe Graphics G7 80EUs (6 - 48.8, n=83)	28.1 fps -9%
Lenovo Yoga 6 13 82ND0009US AMD Ryzen 5 5500U, AMD Radeon RX Vega 7	27.4 (15.7^min, 23.7^P1) fps -11%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	23.8 (5.4^min, 6.17^P1) fps -23%
Beelink SER3 AMD Ryzen 7 3750H, AMD Radeon RX Vega 10	15.1 (11.9^min, 13.1^P1) fps -51%
1920x1080 high AA:high AF:8
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	68 (51.7^min, 52.9^P1) fps +170%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	25.2 (5.1^min, 8.82^P1) fps
Asus Vivobook 15 K513EQ Intel Core i7-1165G7, NVIDIA GeForce MX350	25 (20.5^min, 21.4^P1) fps -1%
Lenovo Yoga 6 13ALC6 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	24.3 (17^min, 18.8^P1) fps -4%
Average Intel Iris Xe Graphics G7 80EUs (11.4 - 32.3, n=80)	22.8 fps -10%
Lenovo Yoga 6 13 82ND0009US AMD Ryzen 5 5500U, AMD Radeon RX Vega 7	22.5 (12.7^min, 16.7^P1) fps -11%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	20.1 (5^min, 5.19^P1) fps -20%
Beelink SER3 AMD Ryzen 7 3750H, AMD Radeon RX Vega 10	12.6 (9.9^min, 10.2^P1) fps -50%
1920x1080 ultra AA:ultra AF:16
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	56.6 (42.9^min, 44.5^P1) fps +180%
Lenovo Yoga 6 13 82ND0009US AMD Ryzen 5 5500U, AMD Radeon RX Vega 7	20.7 (5^min, 14.9^P1) fps +2%
Lenovo Yoga 6 13ALC6 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	20.7 (13.6^min, 15.6^P1) fps +2%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	20.2 (5^min, 5^P1) fps
Average Intel Iris Xe Graphics G7 80EUs (13.6 - 26.2, n=56)	19.8 fps -2%
Asus Vivobook 15 K513EQ Intel Core i7-1165G7, NVIDIA GeForce MX350	18.8 (14.8^min, 15.1^P1) fps -7%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	16.9 (5^min, 5^P1) fps -16%
Beelink SER3 AMD Ryzen 7 3750H, AMD Radeon RX Vega 10	10.9 (8.1^min, 8.84^P1) fps -46%

Dota 2 Reborn
1280x720 min (0/3) fastest
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	127 (103.6^min) fps +3%
Asus Vivobook 15 K513EQ Intel Core i7-1165G7, NVIDIA GeForce MX350	126 (109.8^min) fps +2%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	123 (107.9^min) fps
GMK NucBox 2 Intel Core i5-8259U, Intel Iris Plus Graphics 655	98 (79.8^min) fps -20%
Lenovo Yoga 6 13 82ND0009US AMD Ryzen 5 5500U, AMD Radeon RX Vega 7	97.7 (84.1^min) fps -21%
Infinix INBook X1 Pro Intel Core i7-1065G7, Intel Iris Plus Graphics G7 (Ice Lake 64 EU)	96.6 (85.3^min) fps -21%
Lenovo Yoga 6 13ALC6 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	93.7 (82^min) fps -24%
Average Intel Iris Xe Graphics G7 80EUs (14.8 - 140.3, n=109)	91.3 fps -26%
Beelink GTR35 II-G-16512D00W64PRO-1T AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	84.7 (68.4^min) fps -31%
Asus VivoBook S13 S333JA-DS51 Intel Core i5-1035G1, Intel UHD Graphics G1 (Ice Lake 32 EU)	84.1 (72.5^min) fps -32%
Intel NUC10i7FNH Intel Core i7-10710U, Intel UHD Graphics 620	81.3 (71.9^min) fps -34%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	78.8 (48.8^min) fps -36%
Intel NUC11TNKi5 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	73.8 (47.9^min) fps -40%
Beelink SER3 AMD Ryzen 7 3750H, AMD Radeon RX Vega 10	67.4 (57.5^min) fps -45%
1366x768 med (1/3)
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	119 (95.8^min) fps +47%
Asus Vivobook 15 K513EQ Intel Core i7-1165G7, NVIDIA GeForce MX350	119 (102.7^min) fps +47%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	81 (68.5^min) fps
Lenovo Yoga 6 13 82ND0009US AMD Ryzen 5 5500U, AMD Radeon RX Vega 7	75 (62.3^min) fps -7%
Lenovo Yoga 6 13ALC6 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	73.7 (59.2^min) fps -9%
Average Intel Iris Xe Graphics G7 80EUs (10.9 - 119.5, n=109)	67.8 fps -16%
Beelink GTR35 II-G-16512D00W64PRO-1T AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	66.9 (51.3^min) fps -17%
GMK NucBox 2 Intel Core i5-8259U, Intel Iris Plus Graphics 655	66 (54.7^min) fps -19%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	61.8 (46.8^min) fps -24%
Intel NUC11TNKi5 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	56 (40.8^min) fps -31%
Infinix INBook X1 Pro Intel Core i7-1065G7, Intel Iris Plus Graphics G7 (Ice Lake 64 EU)	56 (42.7^min) fps -31%
Intel NUC10i7FNH Intel Core i7-10710U, Intel UHD Graphics 620	52.5 (48^min) fps -35%
Beelink SER3 AMD Ryzen 7 3750H, AMD Radeon RX Vega 10	52 (42.4^min) fps -36%
Asus VivoBook S13 S333JA-DS51 Intel Core i5-1035G1, Intel UHD Graphics G1 (Ice Lake 32 EU)	49 (37.7^min) fps -40%
1920x1080 high (2/3)
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	108 (87.1^min) fps +117%
Asus Vivobook 15 K513EQ Intel Core i7-1165G7, NVIDIA GeForce MX350	80.4 (66.9^min) fps +62%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	49.7 (44.3^min) fps
Lenovo Yoga 6 13ALC6 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	45.7 (40.4^min) fps -8%
Lenovo Yoga 6 13 82ND0009US AMD Ryzen 5 5500U, AMD Radeon RX Vega 7	44.4 (39.1^min) fps -11%
Average Intel Iris Xe Graphics G7 80EUs (10.4 - 70.9, n=109)	42.8 fps -14%
Beelink GTR35 II-G-16512D00W64PRO-1T AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	41.9 (38.6^min) fps -16%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	37.7 (26.8^min) fps -24%
Intel NUC11TNKi5 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	34.2 (20^min) fps -31%
Infinix INBook X1 Pro Intel Core i7-1065G7, Intel Iris Plus Graphics G7 (Ice Lake 64 EU)	32.1 (25.5^min) fps -35%
GMK NucBox 2 Intel Core i5-8259U, Intel Iris Plus Graphics 655	31.9 (29.3^min) fps -36%
Beelink SER3 AMD Ryzen 7 3750H, AMD Radeon RX Vega 10	30.1 (27.5^min) fps -39%
Asus VivoBook S13 S333JA-DS51 Intel Core i5-1035G1, Intel UHD Graphics G1 (Ice Lake 32 EU)	25.7 (20.7^min) fps -48%
Intel NUC10i7FNH Intel Core i7-10710U, Intel UHD Graphics 620	22.4 (21^min) fps -55%
1920x1080 ultra (3/3) best looking
Intel Hades Canyon NUC8i7HVK Intel Core i7-8809G, AMD Radeon RX Vega M GH	94.6 (82.1^min) fps +100%
Asus Vivobook 15 K513EQ Intel Core i7-1165G7, NVIDIA GeForce MX350	73.4 (61.5^min) fps +56%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	47.2 (41.2^min) fps
Lenovo Yoga 6 13ALC6 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	43.4 (38.6^min) fps -8%
Lenovo Yoga 6 13 82ND0009US AMD Ryzen 5 5500U, AMD Radeon RX Vega 7	41.6 (36.4^min) fps -12%
Average Intel Iris Xe Graphics G7 80EUs (7.8 - 66.1, n=110)	39.4 fps -17%
Beelink GTR35 II-G-16512D00W64PRO-1T AMD Ryzen 5 3550H, AMD Radeon RX Vega 8 (Ryzen 2000/3000)	39.2 (36.2^min) fps -17%
Intel NUC11PAQi7 Intel Core i7-1165G7, Intel Iris Xe Graphics G7 96EUs	35 (25.8^min) fps -26%
Intel NUC11TNKi5 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	31.4 (18.2^min) fps -33%
Beelink SER3 AMD Ryzen 7 3750H, AMD Radeon RX Vega 10	28.3 (25.9^min) fps -40%
Infinix INBook X1 Pro Intel Core i7-1065G7, Intel Iris Plus Graphics G7 (Ice Lake 64 EU)	28.1 (23.3^min) fps -40%
GMK NucBox 2 Intel Core i5-8259U, Intel Iris Plus Graphics 655	27.7 (25.5^min) fps -41%
Asus VivoBook S13 S333JA-DS51 Intel Core i5-1035G1, Intel UHD Graphics G1 (Ice Lake 32 EU)	23.8 (19.4^min) fps -50%
Intel NUC10i7FNH Intel Core i7-10710U, Intel UHD Graphics 620	19.9 (18.7^min) fps -58%

Witcher 3 FPS Chart

Beelink GTI 11: Ø75.8 (63-82)

	låg	med.	hög	ultra
GTA V (2015)	95.1	79.5	21.1	8.17
The Witcher 3 (2015)	77.1	46.6	23.1	11.5
Dota 2 Reborn (2015)	123	81	49.7	47.2
Final Fantasy XV Benchmark (2018)	36.7	18.7	13.5
X-Plane 11.11 (2018)	24	21.4	21.9
Far Cry 5 (2018)	47	23	22	21
Strange Brigade (2018)	76.5	30.8	25.2	20.2

Utsläpp

Systembrus

Fläktljudet är kanske den värsta aspekten av GTI 11. De två interna fläktarna pulserar ofta och märkbart mellan 28,4 dB(A) och 37,7 dB(A), även när du bara sitter på tomgång på skrivbordet eller surfar på webben. Fläktens beteende skulle inte heller förändras när man ställer in systemet i energisparläge.

Om man kör högre belastningar som spel kommer fläktljudet att ligga mellan 44 dB(A) och 56 dB(A), vilket är mycket högre än vad vi har registrerat på de flesta andra minidatorer, inklusive Intel NUC-serien. Vår enhet skulle också drabbas av ett litet elektroniskt brus eller spolningsvisslan och därför är den aldrig riktigt tyst.

Profil för fläktljud (vit: Bakgrund, röd: Blå: 3DMark 06, Orange: Witcher 3, Grön: Prime95 stress)

Ljudnivå

Låg belastning		28.4 / 32 / 37.7 dB(A)
Hög belastning		44.2 / 56 dB(A)

	30 dB tyst 40 dB(A) hörbar 50 dB(A) högt ljud
min: , med: , max: Earthworks M23R, Arta (15 cm avstånd) environment noise: 25.7 dB(A)

	Beelink GTI 11 Iris Xe G7 80EUs, i5-1135G7, Kingston SA2000M8500G	Beelink SER3 Vega 10, R7 3750H, GSemi AZW GSDFN512TS3F1OGCX	Intel NUC11TNKi5 Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S	GMK NucBox 2 Iris Plus Graphics 655, i5-8259U, Netac S930E8/256GPN	Intel Hades Canyon NUC8i7HVK Vega M GH, i7-8809G, Intel Optane 120 GB SSDPEK1W120GA
Noise		19%	3%	20%	8%
off / environment *	25.7	23.4 9%	24.8 4%	25.6 -0%	28.7 -12%
Idle Minimum *	28.4	23.4 18%	35.6 -25%	25.7 10%	29 -2%
Idle Average *	32	23.4 27%	35.6 -11%	25.7 20%	29 9%
Idle Maximum *	37.7	29.4 22%	35.6 6%	25.7 32%	29 23%
Load Average *	44.2	35.2 20%	36.2 18%	35.3 20%	36 19%
Witcher 3 ultra *	44.5	37.2 16%	38 15%		42 6%
Load Maximum *	56	43.3 23%	47.6 15%	35.1 37%	49.4 12%

* ... smaller is better

Temperatur

AC-adaptern kan nå 55 C när den körs med hög belastning i över en timme

Yttemperaturer är inget problem på GTI 11. Faktum är att skillnaderna mellan tomgångsbelastning och spelbelastning är ganska små, vilket våra temperaturkartor nedan visar. Kall luft kommer in från de två sidor av chassit som ligger längst ifrån varandra och varm luft kommer in från baksidan. Föremål kan placeras ovanpå enheten utan att hindra luftflödet, men en vertikal orientering kan påverka fläktljudet eller temperaturen.

Stresstest

När Prime95 körs för att stressa CPU:n ökar klockfrekvensen till 3,8 GHz under de första 20 sekunderna tills kärnan når en temperatur på 89 C. Klockfrekvensen sjunker sedan till 2,8 GHz för att hålla en svalare kärntemperatur på 70 C. CPU-paketets effekt sjunker också från maximalt 48 W till mer stabila 28 W.

Kärnans temperatur och GPU:s klockfrekvens stabiliseras vid 64 C respektive 1 300 MHz när man kör Witcher 3 för att representera höga belastningar. Resultaten är mycket lika dem vi registrerade på den konkurrerande NUC11TNKi5 när båda systemen utsätts för liknande förhållanden.

	CPU-klocka (GHz)	GPU-klocka (MHz)	GenomsnittligCPU-temperatur (°C)
Systemets tomgång	----	----	39
Prime95 Stress	2.8	----	70
Prime95 + FurMark Stress	2.4	100 - 600	68
Witcher 3 Stress	1.6	1300	64

Energiförvaltning

Effektförbrukning

Den totala energiförbrukningen är högre än förväntat. Intel NUC11TNKi5 med exakt samma CPU skulle till exempel kräva flera watt mindre under alla testade förhållanden jämfört med vår Beelink-enhet. Den snabbare CPU- och GPU-prestandan hos Beelink jämfört med en genomsnittlig dator med samma Core i5-1135G7-CPU är sannolikt ansvarig för den högre strömförbrukningen

Vi kan mäta ett tillfälligt maximalt uttag på 104 W från den små-medelstora (~9,8 x 5 x 3,4 cm) 57 W (19 V, 3A) nätadaptern när vi kör Prime95. Denna topp varar i ungefär 20 sekunder innan den slutligen sjunker och stabiliseras på 56 W, vilket visas i våra grafer nedan.

Strömförbrukning när du kör Witcher 3 på Ultra-inställningar

Prime95-stress inleddes vid 10s-märket. Observera att spiken till 84 W varar i ungefär 20 sekunder, vilket är när Turbo Boost-klockfrekvensen är som högst

Prime95+FurMark stress inleddes vid 10s märket. Förbrukningen steg till så mycket som 104 W innan den sjönk till 54 W

Strömförbrukning

Av/Standby	1.2 / 4.5 Watt
Låg belastning	15.2 / 16 / 16 Watt
Hög belastning	48.6 / 104.3 Watt


Förklaring: min: , med: , max: Metrahit Energy

	Beelink GTI 11 i5-1135G7, Iris Xe G7 80EUs, Kingston SA2000M8500G, , x,	Beelink SER3 R7 3750H, Vega 10, GSemi AZW GSDFN512TS3F1OGCX, , x,	Intel NUC11TNKi5 i5-1135G7, Iris Xe G7 80EUs, Transcend M.2 SSD 430S TS512GMTS430S, , x,	Intel NUC10i7FNH i7-10710U, UHD Graphics 620, Kingston RBUSNS8154P3256GJ1, , 0x0, 0"	GMK NucBox 2 i5-8259U, Iris Plus Graphics 655, Netac S930E8/256GPN, , x,	Intel Hades Canyon NUC8i7HVK i7-8809G, Vega M GH, Intel Optane 120 GB SSDPEK1W120GA, , x,
Power Consumption		45%	22%	33%	45%	-45%
Idle Minimum *	15.2	7 54%	11.5 24%		6.1 60%	15.5 -2%
Idle Average *	16	9.1 43%	12.4 22%	8.4 47%	6.8 57%	16.2 -1%
Idle Maximum *	16	9.7 39%	12.9 19%		7.3 54%	16.5 -3%
Load Average *	48.6	29.5 39%	40.7 16%		46.3 5%	83.4 -72%
Witcher 3 ultra *	53.8	32.5 40%	43.9 18%			121.7 -126%
Load Maximum *	104.3	48.7 53%	73.5 30%	86 18%	50.7 51%	173.5 -66%

* ... smaller is better

Power Consumption Witcher 3 / Stresstest

Beelink GTI 11; Witcher 3 ultra: Ø53.8 (52-56.5)

Beelink GTI 11; 1280x720 Prime95 28.10 and Furmark 1.25: Ø56.1 (50.8-104)

Power Consumption external Monitor

Beelink GTI 11; Prime95 V2810 Stress (external Monitor): Ø56.8 (50.4-84.5)

Beelink GTI 11; Cinebench R15 Multi (external Monitor): Ø58.4 (47.8-61.5)

Beelink GTI 11; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø50.4 (44.6-52)

För

+ upp till tre interna enheter

+ stöd för Thunderbolt 4

+ relativt billig

+ lätt att serva

+ låg vikt

Emot

- den blanka ovansidan i plast är känslig för repor och fingeravtryck

- har varken SD-kortläsare, mini DisplayPort eller Kensington-lås

- de interna fläktarna pulserar ofta

- endast en USB-C-port

Omdöme - Som en Intel NUC, men till ett mer rimligt pris

I granskning: Beelink GTI 11. Testenhet tillhandahållen av Beelink

Beelink GTI 11 är mycket övertygande. För 600-700 USD får användaren hela paketet med RAM, lagringsutrymme och Windows 10 Pro medan en Intel NUC 11 med samma CPU skulle kosta nästan 600 dollar som ett barebones-kit. Du skulle alltså spendera nästan 800 dollar på en Intel NUC bara för att matcha specifikationerna i Beelink. Det faktum att den kan stödja Thunderbolt 4-tillbehör, Wi-Fi 6 och upp till tre interna SSD-diskar innebär att användare inte behöver ge upp många viktiga funktioner när de byter till Beelink.

Den största nackdelen att hålla i minnet är GTI 11:s dåliga beteende när det gäller fläktljud. Fläktens varvtal ändras ofta och märkbart utan någon som helst anledning. Räkna med att systemet totalt sett är högre ljudnivå jämfört med de flesta Intel NUC-modeller.

Pris och tillgänglighet

Amazon säljer just nu vår exakta konfiguration av GTI 11 för 699 USD. Försäljning kan sänka priset med 40 dollar eller mer. Användare kan också köpa från Banggood för 609 dollar.

Price comparison

Editor of the original article: Allen Ngo - Lead Editor U.S. - 5252 articles published on Notebookcheck since 2011

contact me via: @AllenNgoNBC

Translator: Ninh Ngoc Duy - Editorial Assistant - 473355 articles published on Notebookcheck since 2008

contact me via: Facebook

Please share our article, every link counts!

> Bärbara datorer, laptops - tester och nyheter > Tester > Vårt bästa alternativ till Intel NUC 11 - Recension av Beelink GTI 11 mini PC

Allen Ngo, 2021-12-25 (Update: 2022-01- 2)

Testgrupp

Hölje

Storleksjämförelse

Anslutningsmöjligheter

Kommunikation

Underhåll

Tillbehör och garanti

Prestanda

Processor

Cinebench R15 Multi Loop

Systemets prestanda

DPC-latenstid

Lagringsenheter

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

GPU-prestanda

Witcher 3 FPS Chart

Utsläpp

Systembrus

Temperatur

Stresstest

Energiförvaltning

Effektförbrukning

Power Consumption Witcher 3 / Stresstest

Power Consumption external Monitor

För

Emot

Omdöme - Som en Intel NUC, men till ett mer rimligt pris

Pris och tillgänglighet

More articles related to this device

Price comparison
