Name: GMK NucBox M6
Brand: GMK

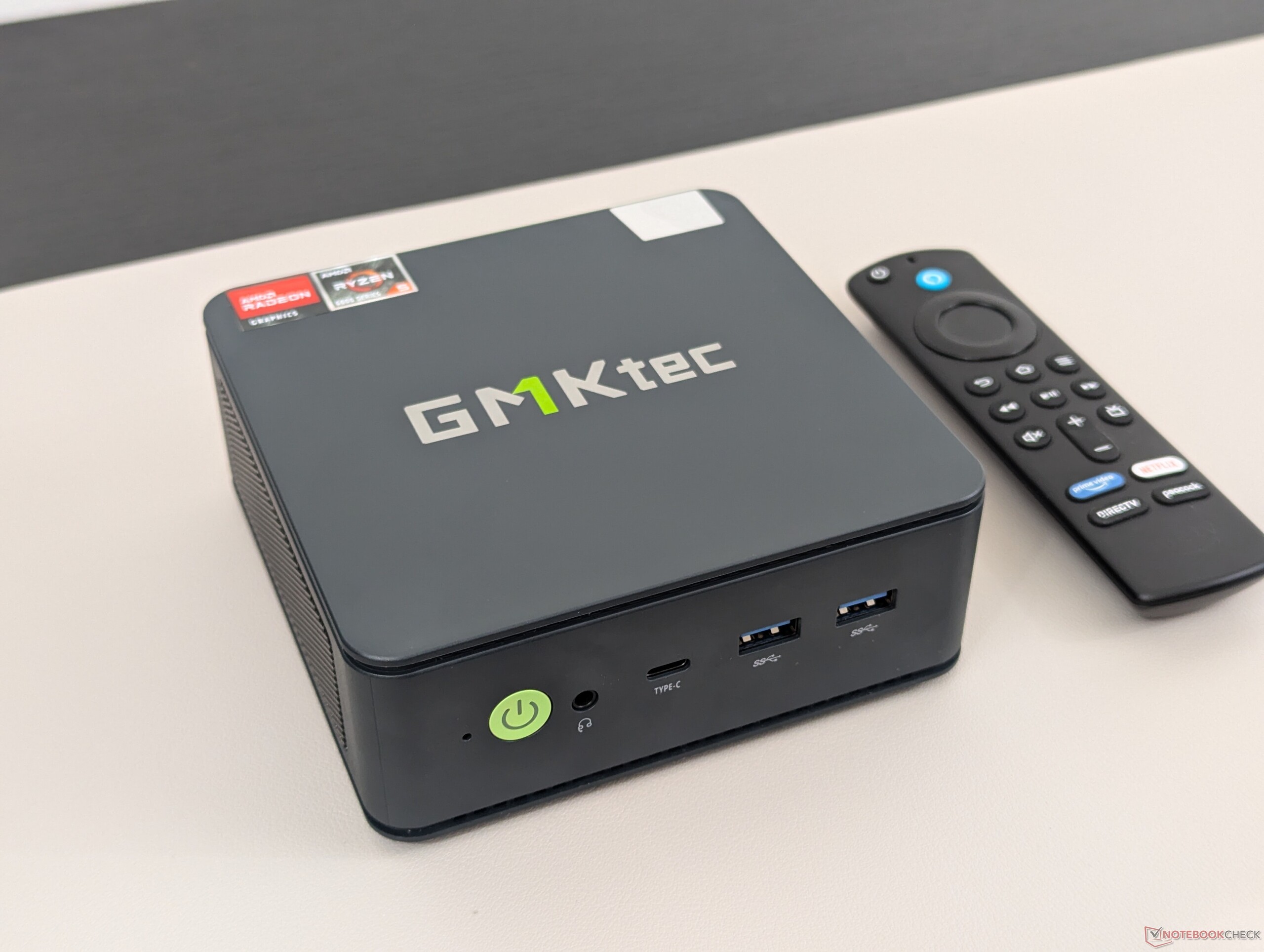

NucBox M6 är den snabbare versionen av NucBox M5. GMK har bytt ut U-serien Ryzen 7 5700U i M5 mot den nyare H-serien Ryzen 5 6600H i M6. Chassidesign och fysiska funktioner är i övrigt oförändrade och vi rekommenderar därför att du kollar in vår recension av M5 för att lära dig mer om serien.

Vår recensionskonfiguration säljs för $300 komplett med 16 GB RAM, 512 GB SSD och Windows 11 Pro. Startpriset kan vara ännu lägre på bara $ 230 för ett barebones-kit. Alla SKU:er kommer med samma svarta färgalternativ och Ryzen 5 6600H-processor.

Konkurrenter till NucBox M6 inkluderar andra prisvärda mini-pc:er som Beelink SER5, Maxtang MTN-FP750eller Geekom Mini IT12.

Fler recensioner av GMK:

Information: Vi har nyligen uppdaterat vårt betygssystem och resultaten från version 8 är inte jämförbara med resultaten från version 7. Ytterligare information om detta finns här tillgänglig.

Obs: Vi har nyligen uppdaterat vårt betygssystem och resultaten från version 8 är inte jämförbara med resultaten från version 7. Mer information finns tillgänglig här .

Fodral - Välbekant plastdesign

Storleksjämförelse

Anslutningsmöjligheter

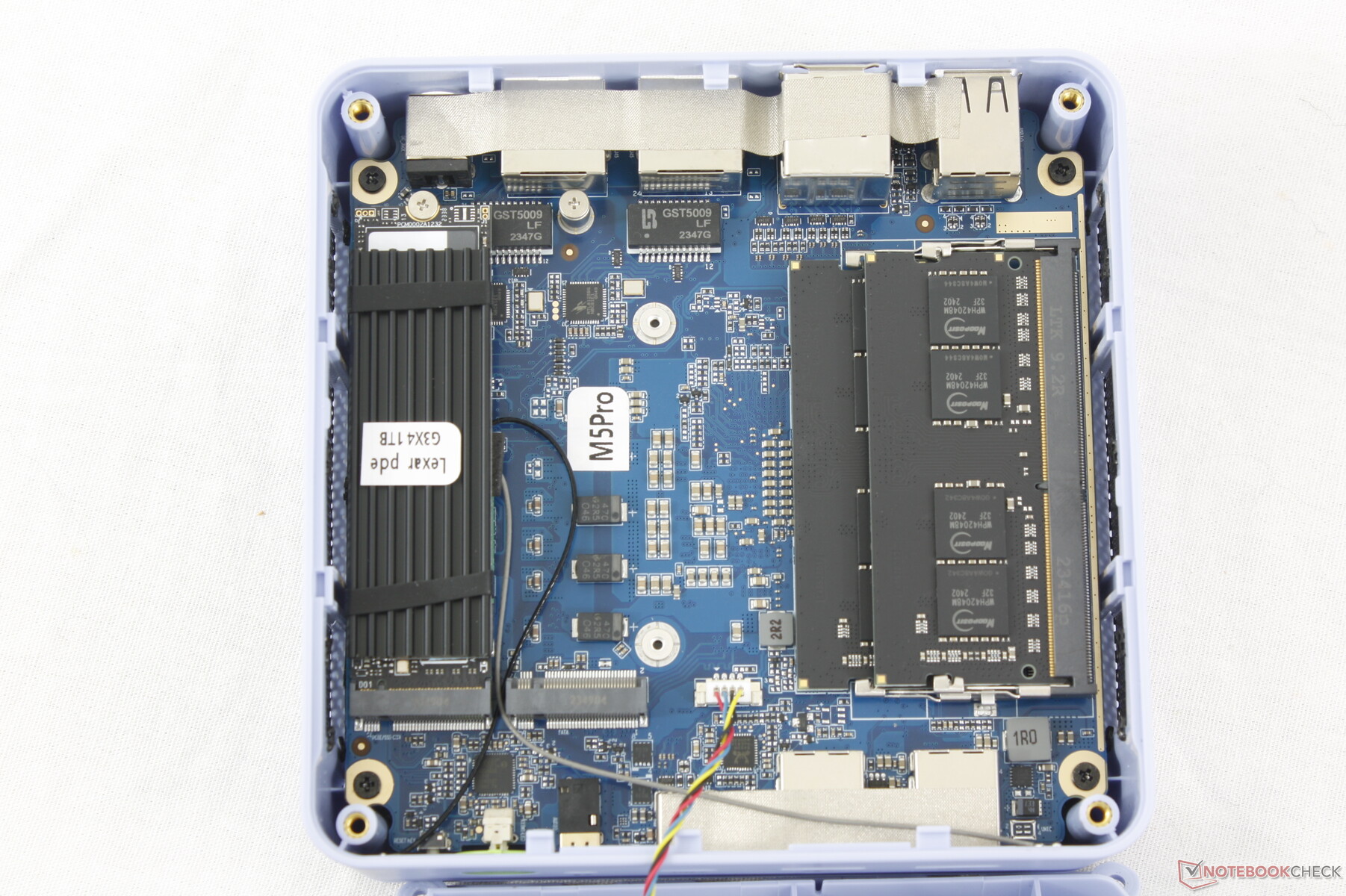

Portalternativen är identiska med NucBox M5, men det är viktigt att notera att M6 inte har stöd för USB4, trots tillverkarens marknadsföring. Enhetshanteraren listar endast USB 3.2-stöd och inget USB4. Power Delivery och DisplayPort via USB-C stöds lyckligtvis fortfarande.

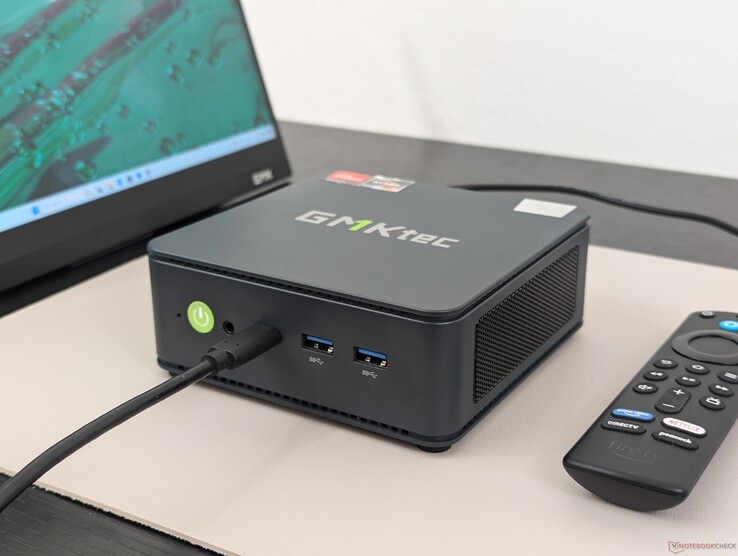

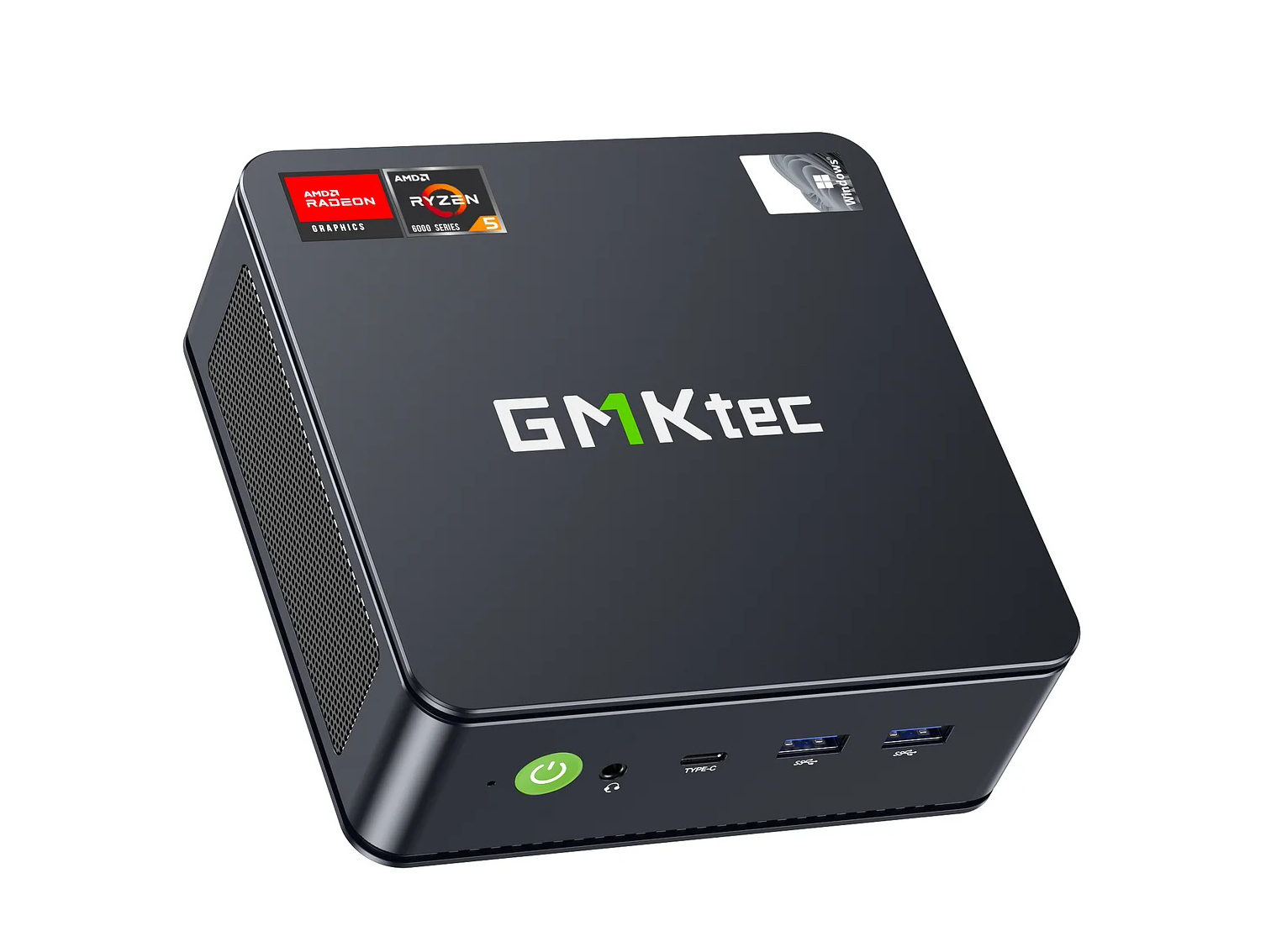

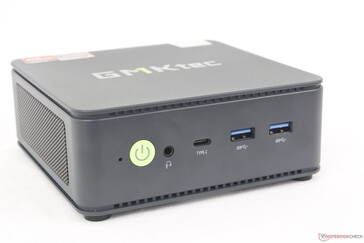

Framsida: Strömknapp, 3,5 mm headset, USB-C 3.2 med Power Delivery + DisplayPort, 2x USB-A 3.2 Gen. 2

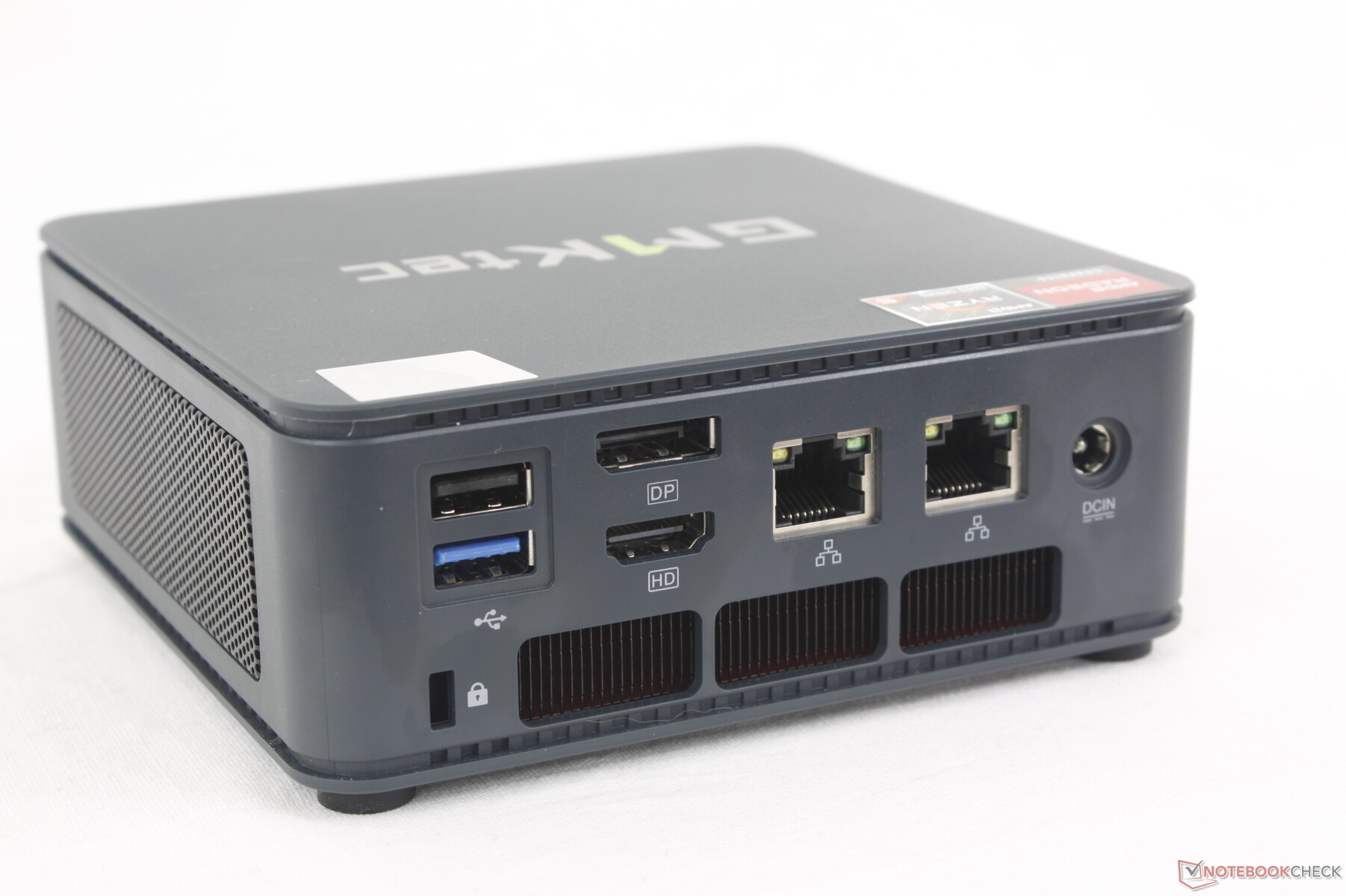

Baksida: 2x USB-A 2.0, DisplayPort (4K144), HDMI 2.0 (4K60), 2x RJ-45 (2,5 Gbps), AC-adapter, Kensingtonlås

Kommunikation

Våra WiFi-tester visar att prestanda är snabbare på Wi-Fi 6 än på Wi-Fi 6E, även efter flera försök. Hastigheterna för Wi-Fi 6E är onormalt långsamma, vilket tyder på möjliga antennproblem med MediaTek MT7922-modulen i vår testenhet.

Networking
iperf3 transmit AXE11000
GMK NucBox M6 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1531 (1372^min - 1639^max) MBit/s
BOSGAME M1 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1470 (1310^min - 1625^max) MBit/s -4%
GMK NucBox M5 MediaTek RZ616	1335 (782^min - 1633^max) MBit/s -13%
Beelink SER5 Intel Wi-Fi 6 AX200	1278 (649^min - 1345^max) MBit/s -17%
Intel NUC 13 Pro Kit NUC13ANK Intel Wi-Fi 6E AX211	833 (805^min - 866^max) MBit/s -46%
GMK NucBox K6 MediaTek RZ616	634 (574^min - 685^max) MBit/s -59%
iperf3 receive AXE11000
BOSGAME M1 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1479 (1255^min - 1539^max) MBit/s +2%
GMK NucBox M6 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1449 (1247^min - 1560^max) MBit/s
Beelink SER5 Intel Wi-Fi 6 AX200	1411 (1230^min - 1580^max) MBit/s -3%
GMK NucBox M5 MediaTek RZ616	1264 (1077^min - 1480^max) MBit/s -13%
GMK NucBox K6 MediaTek RZ616	1222 (1074^min - 1368^max) MBit/s -16%
Intel NUC 13 Pro Kit NUC13ANK Intel Wi-Fi 6E AX211	939 (921^min - 952^max) MBit/s -35%
iperf3 transmit AXE11000 6GHz
Intel NUC 13 Pro Kit NUC13ANK Intel Wi-Fi 6E AX211	1445 (736^min - 1476^max) MBit/s +267%
GMK NucBox M5 MediaTek RZ616	1437 (695^min - 1546^max) MBit/s +265%
BOSGAME M1 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1324 (1090^min - 1580^max) MBit/s +236%
GMK NucBox K6 MediaTek RZ616	432 (212^min - 471^max) MBit/s +10%
GMK NucBox M6 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	394 (359^min - 432^max) MBit/s
iperf3 receive AXE11000 6GHz
Intel NUC 13 Pro Kit NUC13ANK Intel Wi-Fi 6E AX211	1668 (1467^min - 1725^max) MBit/s +144%
GMK NucBox M5 MediaTek RZ616	1347 (1315^min - 1439^max) MBit/s +97%
BOSGAME M1 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1321 (1233^min - 1393^max) MBit/s +93%
GMK NucBox K6 MediaTek RZ616	984 (937^min - 1048^max) MBit/s +44%
GMK NucBox M6 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	684 (650^min - 718^max) MBit/s

GMK NucBox M6; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø394 (359-432)

GMK NucBox M6; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø684 (650-718)

GMK NucBox M6; iperf3 transmit AXE11000; iperf 3.1.3: Ø1531 (1372-1639)

GMK NucBox M6; iperf3 receive AXE11000; iperf 3.1.3: Ø1449 (1247-1560)

Underhåll

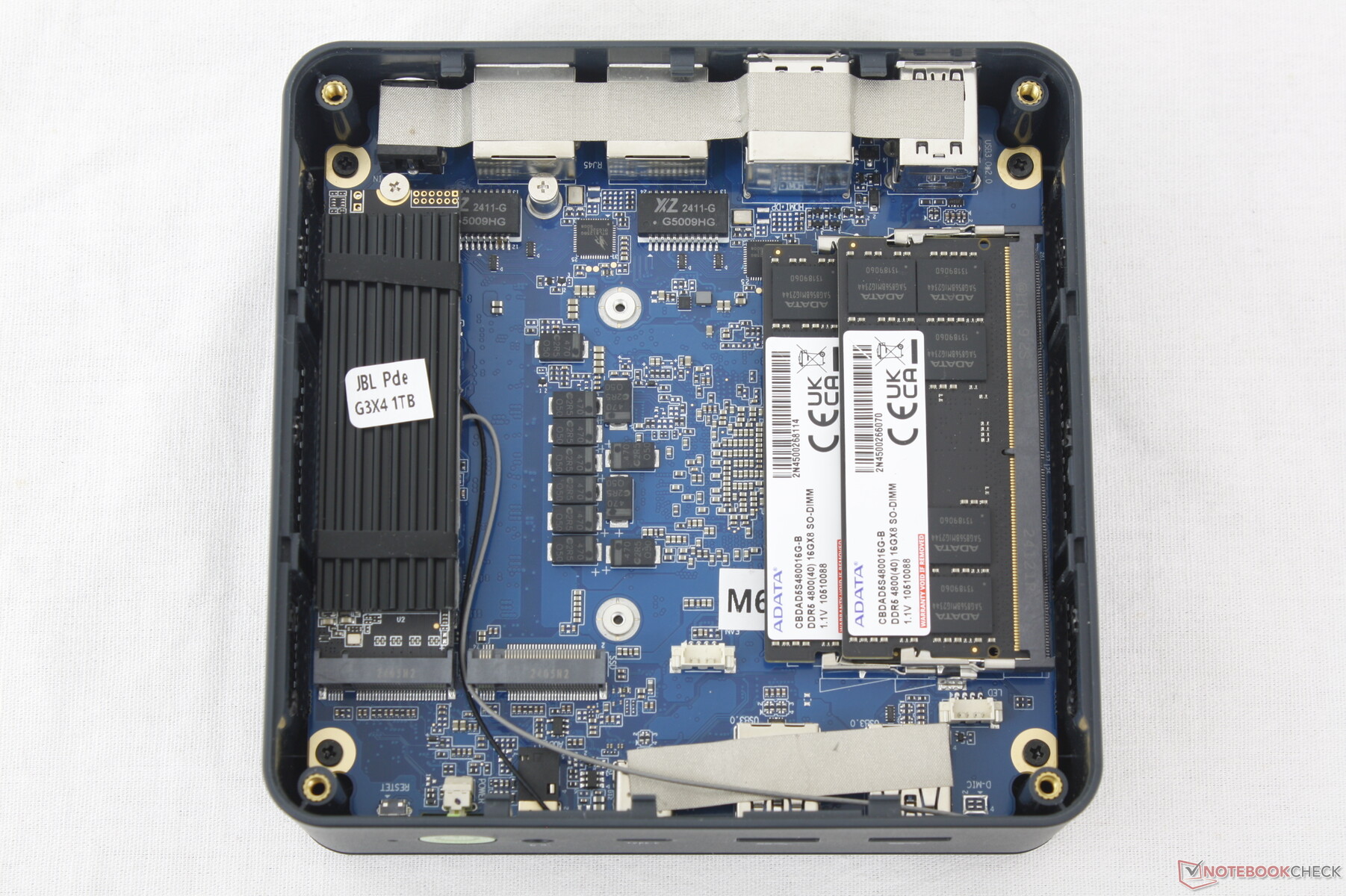

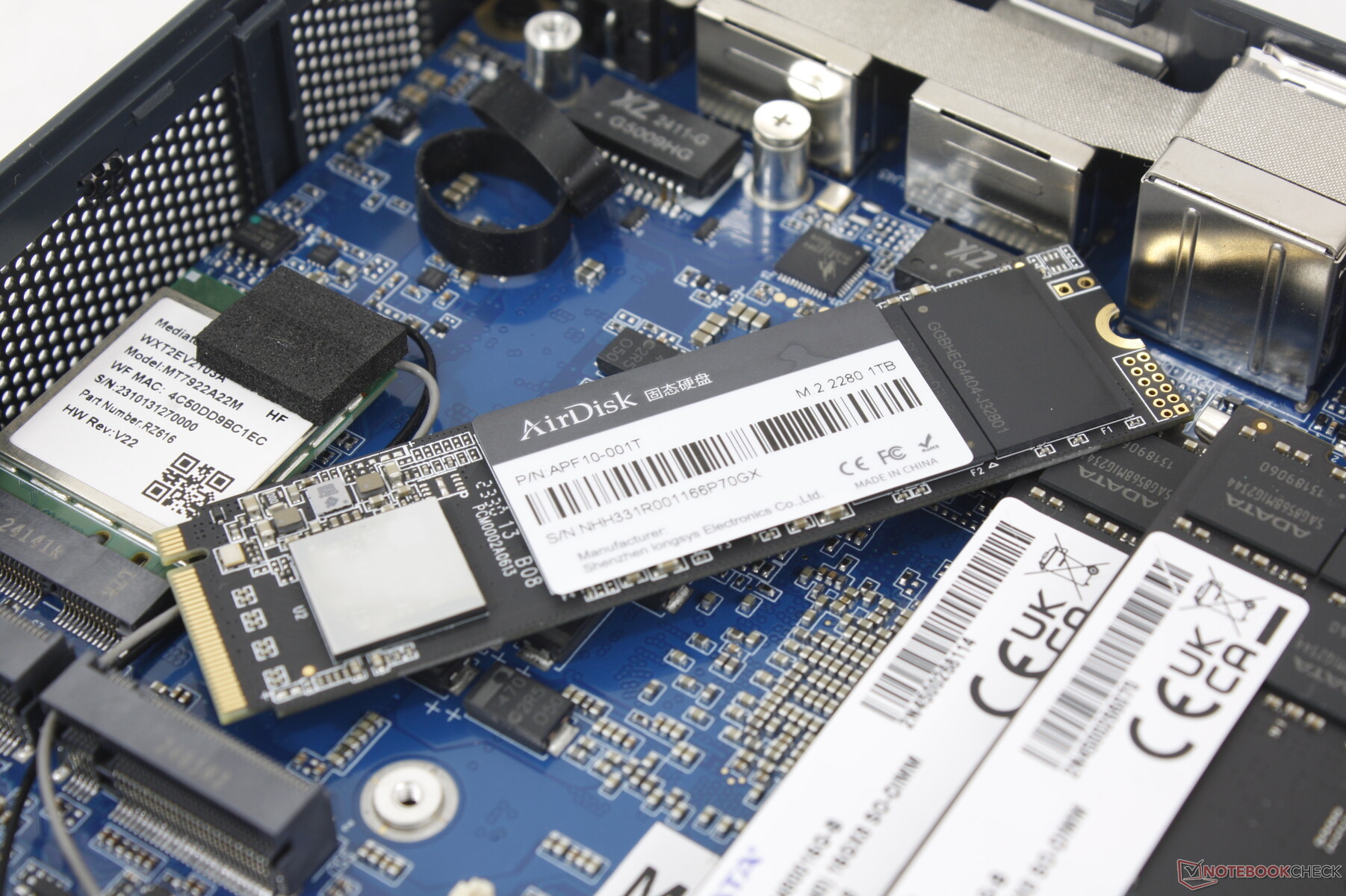

Den övre panelen kräver endast en stjärnskruvmejsel för att avlägsnas för enkel service.

Tillbehör och garanti

I förpackningen ingår ett löstagbart VESA-fäste och en HDMI-kabel utöver de vanliga manualerna och nätadaptern. Observera att USB-C-växelströmsadaptrar från tredje part också kan användas om de uppfyller minidatorns strömkrav.

Den vanliga ettåriga begränsade tillverkargarantin gäller om den köps i USA.

Prestanda - Bra CPU för priset

Testförhållanden

Vi ställde in Windows i prestandaläge innan vi körde nedanstående benchmarks.

Processor

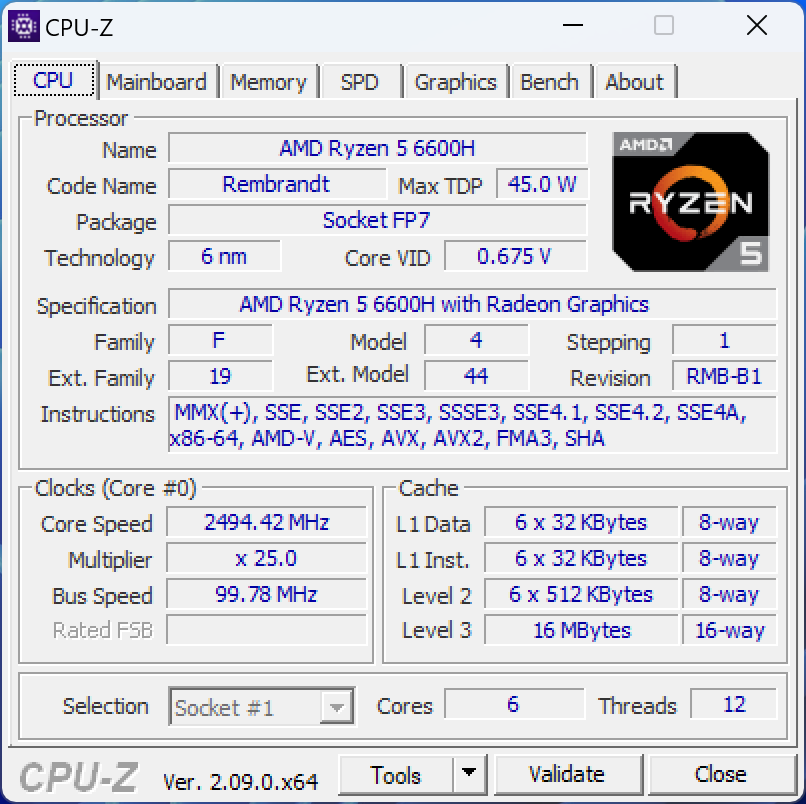

För en mellanklassprocessor från 2022 är Ryzen 5 6600H fortfarande ett bra slag med multi-thread-resultat mellan de konkurrerande Core i5-12450H och Core i5-12500H. Användare som inte kan bestämma sig mellan NucBox M5 eller M6 kommer att upptäcka att Ryzen 5 6600H är snabbare än Ryzen 7 5700U med cirka 60 procent.

Cinebench R15 Multi Loop

GMK NucBox M6 AMD Ryzen 5 6600H: Ø1720 (1708.16-1737.02)

GMK NucBox M5 AMD Ryzen 7 5700U: Ø1108 (1041.59-1129.53)

GMK NucBox K6 AMD Ryzen 7 7840HS: Ø2520 (2510.2-2537.27)

BOSGAME M1 AMD Ryzen 7 7840HS: Ø2554 (2501.09-2597.23)

Beelink SER5 AMD Ryzen 5 5560U: Ø1274 (1263.74-1280.29)

Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P: Ø1825 (1794.93-2181.38)

CPU Performance Rating: Percent
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 6.3: Multi-Core | Single-Core
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

CPU Performance Rating
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	85.7 pt
Aoostar GEM12 AMD Ryzen 7 8845HS	84.8 pt
BOSGAME M1 AMD Ryzen 7 7840HS	84.3 pt
Acemagic F2A Intel Core Ultra 7 155H	83.3 pt
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	75.5 pt
Geekom GT13 Pro Intel Core i9-13900H	75.2 pt
Intel NUC 13 Pro Kit NUC13ANK ^-2! Intel Core i7-1360P	72.9 pt
Geekom XT12 Pro Intel Core i9-12900H	70.9 pt
Aorus 15 YE5-54DEB34SH Intel Core i5-12500H	70.5 pt
Aoostar GEM10 AMD Ryzen 7 6800H	67.5 pt
GMK NucBox M6 AMD Ryzen 5 6600H	63 pt
Maxtang MTN-FP750 AMD Ryzen 7 7735HS	62.5 pt
Average AMD Ryzen 5 6600H	60.8 pt
Geekom Mini IT12 Intel Core i5-12450H	58.7 pt
Acemagic AD15 Intel Core i5-11500B	56.7 pt
GMK NucBox M5 AMD Ryzen 7 5700U	44.9 pt
Intel NUC11TNKi5 ^-2! Intel Core i5-1135G7	39.2 pt

Cinebench R23 / Multi Core
Acemagic F2A Intel Core Ultra 7 155H	18497 Points +78%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	18016 Points +73%
Aoostar GEM12 AMD Ryzen 7 8845HS	16130 Points +55%
BOSGAME M1 AMD Ryzen 7 7840HS	16123 (15200.9^min - 16122.9^max) Points +55%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	14573 Points +40%
Aorus 15 YE5-54DEB34SH Intel Core i5-12500H	13451 Points +29%
Aoostar GEM10 AMD Ryzen 7 6800H	13117 Points +26%
Geekom GT13 Pro Intel Core i9-13900H	13015 Points +25%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	12637 Points +21%
Maxtang MTN-FP750 AMD Ryzen 7 7735HS	11072 Points +6%
Geekom XT12 Pro Intel Core i9-12900H	11036 Points +6%
Average AMD Ryzen 5 6600H (10226 - 10717, n=3)	10454 Points 0%
GMK NucBox M6 AMD Ryzen 5 6600H	10418 (10142.8^min - 10418^max) Points
Geekom Mini IT12 Intel Core i5-12450H	8511 Points -18%
Acemagic AD15 Intel Core i5-11500B	8318 Points -20%
GMK NucBox M5 AMD Ryzen 7 5700U	6649 (6519.7^min - 6648.75^max) Points -36%
Intel NUC11TNKi5 Intel Core i5-1135G7	5098 (4930.91^min - 5098.17^max) Points -51%

Cinebench R23 / Single Core
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	1909 Points +28%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	1851 Points +25%
Geekom XT12 Pro Intel Core i9-12900H	1824 Points +23%
Aoostar GEM12 AMD Ryzen 7 8845HS	1783 Points +20%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	1780 Points +20%
Acemagic F2A Intel Core Ultra 7 155H	1771 Points +19%
BOSGAME M1 AMD Ryzen 7 7840HS	1718 Points +16%
Geekom GT13 Pro Intel Core i9-13900H	1715 Points +15%
Aorus 15 YE5-54DEB34SH Intel Core i5-12500H	1696 Points +14%
Geekom Mini IT12 Intel Core i5-12450H	1663 Points +12%
Maxtang MTN-FP750 AMD Ryzen 7 7735HS	1543 Points +4%
Aoostar GEM10 AMD Ryzen 7 6800H	1542 Points +4%
GMK NucBox M6 AMD Ryzen 5 6600H	1486 Points
Acemagic AD15 Intel Core i5-11500B	1484 Points 0%
Average AMD Ryzen 5 6600H (1458 - 1486, n=3)	1467 Points -1%
Intel NUC11TNKi5 Intel Core i5-1135G7	1369 Points -8%
GMK NucBox M5 AMD Ryzen 7 5700U	1267 Points -15%

Cinebench R20 / CPU (Multi Core)
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	7196 Points +75%
Acemagic F2A Intel Core Ultra 7 155H	7188 Points +75%
BOSGAME M1 AMD Ryzen 7 7840HS	6349 Points +55%
Aoostar GEM12 AMD Ryzen 7 8845HS	6346 Points +55%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	5633 Points +37%
Aoostar GEM10 AMD Ryzen 7 6800H	5216 Points +27%
Aorus 15 YE5-54DEB34SH Intel Core i5-12500H	5054 Points +23%
Geekom GT13 Pro Intel Core i9-13900H	5013 Points +22%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	4887 Points +19%
Maxtang MTN-FP750 AMD Ryzen 7 7735HS	4339 Points +6%
Geekom XT12 Pro Intel Core i9-12900H	4294 Points +5%
GMK NucBox M6 AMD Ryzen 5 6600H	4106 Points
Average AMD Ryzen 5 6600H (3965 - 4141, n=3)	4071 Points -1%
Geekom Mini IT12 Intel Core i5-12450H	3270 Points -20%
Acemagic AD15 Intel Core i5-11500B	3236 Points -21%
GMK NucBox M5 AMD Ryzen 7 5700U	2580 Points -37%
Intel NUC11TNKi5 Intel Core i5-1135G7	1974 Points -52%

Cinebench R20 / CPU (Single Core)
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	736 Points +26%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	715 Points +22%
Geekom XT12 Pro Intel Core i9-12900H	701 Points +20%
Aoostar GEM12 AMD Ryzen 7 8845HS	691 Points +18%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	685 Points +17%
BOSGAME M1 AMD Ryzen 7 7840HS	682 Points +17%
Acemagic F2A Intel Core Ultra 7 155H	679 Points +16%
Geekom GT13 Pro Intel Core i9-13900H	659 Points +13%
Aorus 15 YE5-54DEB34SH Intel Core i5-12500H	653 Points +12%
Geekom Mini IT12 Intel Core i5-12450H	642 Points +10%
Maxtang MTN-FP750 AMD Ryzen 7 7735HS	604 Points +3%
Aoostar GEM10 AMD Ryzen 7 6800H	598 Points +2%
GMK NucBox M6 AMD Ryzen 5 6600H	584 Points
Average AMD Ryzen 5 6600H (564 - 584, n=3)	574 Points -2%
Acemagic AD15 Intel Core i5-11500B	566 Points -3%
Intel NUC11TNKi5 Intel Core i5-1135G7	503 Points -14%
GMK NucBox M5 AMD Ryzen 7 5700U	495 Points -15%

Cinebench R15 / CPU Multi 64Bit
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	2746 Points +58%
Acemagic F2A Intel Core Ultra 7 155H	2738 Points +58%
BOSGAME M1 AMD Ryzen 7 7840HS	2597 (2501.09^min - 2597.23^max) Points +50%
Aoostar GEM12 AMD Ryzen 7 8845HS	2537 Points +46%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	2405 Points +38%
Aorus 15 YE5-54DEB34SH Intel Core i5-12500H	2283 (1991.44^min - 2282.84^max) Points +31%
Geekom GT13 Pro Intel Core i9-13900H	2260 Points +30%
Geekom XT12 Pro Intel Core i9-12900H	2121 Points +22%
Aoostar GEM10 AMD Ryzen 7 6800H	2117 Points +22%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	2030 Points +17%
Maxtang MTN-FP750 AMD Ryzen 7 7735HS	1795 Points +3%
GMK NucBox M6 AMD Ryzen 5 6600H	1737 (1708.16^min - 1737.02^max) Points
Average AMD Ryzen 5 6600H (1626 - 1740, n=3)	1701 Points -2%
Acemagic AD15 Intel Core i5-11500B	1322 Points -24%
Geekom Mini IT12 Intel Core i5-12450H	1321 Points -24%
GMK NucBox M5 AMD Ryzen 7 5700U	1130 (1041.59^min - 1129.53^max) Points -35%
Intel NUC11TNKi5 Intel Core i5-1135G7	794 (772.57^min - 794.38^max) Points -54%

Cinebench R15 / CPU Single 64Bit
Aoostar GEM12 AMD Ryzen 7 8845HS	279 Points +15%
BOSGAME M1 AMD Ryzen 7 7840HS	275 Points +13%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	271 Points +12%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	268 Points +10%
Acemagic F2A Intel Core Ultra 7 155H	258 Points +6%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	256 Points +5%
Geekom XT12 Pro Intel Core i9-12900H	251 Points +3%
Aorus 15 YE5-54DEB34SH Intel Core i5-12500H	249 Points +2%
Maxtang MTN-FP750 AMD Ryzen 7 7735HS	245 Points +1%
Geekom GT13 Pro Intel Core i9-13900H	245 Points +1%
GMK NucBox M6 AMD Ryzen 5 6600H	243 Points
Aoostar GEM10 AMD Ryzen 7 6800H	240 Points -1%
Geekom Mini IT12 Intel Core i5-12450H	239 Points -2%
Average AMD Ryzen 5 6600H (231 - 243, n=3)	237 Points -2%
Acemagic AD15 Intel Core i5-11500B	223 Points -8%
Intel NUC11TNKi5 Intel Core i5-1135G7	201 Points -17%
GMK NucBox M5 AMD Ryzen 7 5700U	188.1 Points -23%

Blender / v2.79 BMW27 CPU
Intel NUC11TNKi5 Intel Core i5-1135G7	600 Seconds * -105%
GMK NucBox M5 AMD Ryzen 7 5700U	427 Seconds * -46%
Geekom Mini IT12 Intel Core i5-12450H	385 Seconds * -31%
Acemagic AD15 Intel Core i5-11500B	379 Seconds * -29%
Average AMD Ryzen 5 6600H (291 - 306, n=3)	297 Seconds * -1%
Geekom XT12 Pro Intel Core i9-12900H	296 Seconds * -1%
GMK NucBox M6 AMD Ryzen 5 6600H	293 Seconds *
Maxtang MTN-FP750 AMD Ryzen 7 7735HS	279 Seconds * +5%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	275 Seconds * +6%
Geekom GT13 Pro Intel Core i9-13900H	262 Seconds * +11%
Aoostar GEM10 AMD Ryzen 7 6800H	259 Seconds * +12%
Aorus 15 YE5-54DEB34SH Intel Core i5-12500H	246 Seconds * +16%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	223 Seconds * +24%
Aoostar GEM12 AMD Ryzen 7 8845HS	197 Seconds * +33%
BOSGAME M1 AMD Ryzen 7 7840HS	196 Seconds * +33%
Acemagic F2A Intel Core Ultra 7 155H	178 Seconds * +39%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	171 Seconds * +42%

7-Zip 18.03 / 7z b 4
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	71934 MIPS +46%
Aoostar GEM12 AMD Ryzen 7 8845HS	70733 MIPS +43%
BOSGAME M1 AMD Ryzen 7 7840HS	70417 MIPS +43%
Acemagic F2A Intel Core Ultra 7 155H	66438 MIPS +35%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	55528 MIPS +13%
Aoostar GEM10 AMD Ryzen 7 6800H	55067 MIPS +12%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	52959 MIPS +7%
Aorus 15 YE5-54DEB34SH Intel Core i5-12500H	52924 MIPS +7%
Geekom GT13 Pro Intel Core i9-13900H	52479 MIPS +6%
GMK NucBox M6 AMD Ryzen 5 6600H	49353 MIPS
Maxtang MTN-FP750 AMD Ryzen 7 7735HS	48327 MIPS -2%
Geekom XT12 Pro Intel Core i9-12900H	47146 MIPS -4%
Average AMD Ryzen 5 6600H (39886 - 49353, n=3)	45692 MIPS -7%
Acemagic AD15 Intel Core i5-11500B	36194 MIPS -27%
Geekom Mini IT12 Intel Core i5-12450H	35191 MIPS -29%
GMK NucBox M5 AMD Ryzen 7 5700U	34172 MIPS -31%
Intel NUC11TNKi5 Intel Core i5-1135G7	23280 MIPS -53%

7-Zip 18.03 / 7z b 4 -mmt1
Aoostar GEM12 AMD Ryzen 7 8845HS	6644 MIPS +16%
BOSGAME M1 AMD Ryzen 7 7840HS	6602 MIPS +15%
Geekom GT13 Pro Intel Core i9-13900H	6321 MIPS +11%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	5961 MIPS +4%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	5887 MIPS +3%
Geekom XT12 Pro Intel Core i9-12900H	5881 MIPS +3%
Maxtang MTN-FP750 AMD Ryzen 7 7735HS	5796 MIPS +1%
GMK NucBox M6 AMD Ryzen 5 6600H	5720 MIPS
Average AMD Ryzen 5 6600H (5466 - 5720, n=3)	5580 MIPS -2%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	5560 MIPS -3%
Aoostar GEM10 AMD Ryzen 7 6800H	5521 MIPS -3%
Acemagic AD15 Intel Core i5-11500B	5498 MIPS -4%
Acemagic F2A Intel Core Ultra 7 155H	5485 MIPS -4%
Aorus 15 YE5-54DEB34SH Intel Core i5-12500H	5418 MIPS -5%
Geekom Mini IT12 Intel Core i5-12450H	5386 MIPS -6%
Intel NUC11TNKi5 Intel Core i5-1135G7	4738 MIPS -17%
GMK NucBox M5 AMD Ryzen 7 5700U	4599 MIPS -20%

Geekbench 6.3 / Multi-Core
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	13356 Points +45%
BOSGAME M1 AMD Ryzen 7 7840HS	13326 Points +44%
Aoostar GEM12 AMD Ryzen 7 8845HS	13318 Points +44%
Acemagic F2A Intel Core Ultra 7 155H	12385 Points +34%
Geekom GT13 Pro Intel Core i9-13900H	11358 Points +23%
Aorus 15 YE5-54DEB34SH Intel Core i5-12500H	11069 Points +20%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	10348 Points +12%
Geekom XT12 Pro Intel Core i9-12900H	10233 Points +11%
Aoostar GEM10 AMD Ryzen 7 6800H	9527 Points +3%
GMK NucBox M6 AMD Ryzen 5 6600H	9240 Points
Average AMD Ryzen 5 6600H ()	9240 Points 0%
Geekom Mini IT12 Intel Core i5-12450H	8828 Points -4%
Acemagic AD15 Intel Core i5-11500B	8148 Points -12%
Maxtang MTN-FP750 AMD Ryzen 7 7735HS	7854 Points -15%
GMK NucBox M5 AMD Ryzen 7 5700U	6260 Points -32%

Geekbench 6.3 / Single-Core
Aoostar GEM12 AMD Ryzen 7 8845HS	2667 Points +31%
BOSGAME M1 AMD Ryzen 7 7840HS	2640 Points +29%
Geekom GT13 Pro Intel Core i9-13900H	2580 Points +26%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	2492 Points +22%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	2483 Points +22%
Geekom XT12 Pro Intel Core i9-12900H	2464 Points +21%
Acemagic F2A Intel Core Ultra 7 155H	2410 Points +18%
Aorus 15 YE5-54DEB34SH Intel Core i5-12500H	2320 Points +14%
Geekom Mini IT12 Intel Core i5-12450H	2286 Points +12%
Acemagic AD15 Intel Core i5-11500B	2173 Points +6%
Maxtang MTN-FP750 AMD Ryzen 7 7735HS	2072 Points +1%
Aoostar GEM10 AMD Ryzen 7 6800H	2049 Points 0%
GMK NucBox M6 AMD Ryzen 5 6600H	2042 Points
Average AMD Ryzen 5 6600H ()	2042 Points 0%
GMK NucBox M5 AMD Ryzen 7 5700U	1625 Points -20%

Geekbench 5.5 / Multi-Core
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	13392 Points +63%
Acemagic F2A Intel Core Ultra 7 155H	12662 Points +55%
Aoostar GEM12 AMD Ryzen 7 8845HS	12143 Points +48%
BOSGAME M1 AMD Ryzen 7 7840HS	12116 Points +48%
Geekom GT13 Pro Intel Core i9-13900H	11283 Points +38%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	10574 Points +29%
Aorus 15 YE5-54DEB34SH Intel Core i5-12500H	10560 Points +29%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	10322 Points +26%
Geekom XT12 Pro Intel Core i9-12900H	10028 Points +22%
Aoostar GEM10 AMD Ryzen 7 6800H	8898 Points +9%
GMK NucBox M6 AMD Ryzen 5 6600H	8195 Points
Geekom Mini IT12 Intel Core i5-12450H	8066 Points -2%
Average AMD Ryzen 5 6600H (6403 - 8195, n=3)	7442 Points -9%
Maxtang MTN-FP750 AMD Ryzen 7 7735HS	7368 Points -10%
Acemagic AD15 Intel Core i5-11500B	7132 Points -13%
GMK NucBox M5 AMD Ryzen 7 5700U	5593 Points -32%
Intel NUC11TNKi5 Intel Core i5-1135G7	4593 Points -44%

Geekbench 5.5 / Single-Core
Aoostar GEM12 AMD Ryzen 7 8845HS	1958 Points +29%
BOSGAME M1 AMD Ryzen 7 7840HS	1928 Points +27%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	1856 Points +23%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	1850 Points +22%
Geekom GT13 Pro Intel Core i9-13900H	1841 Points +22%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	1805 Points +19%
Geekom XT12 Pro Intel Core i9-12900H	1790 Points +18%
Acemagic F2A Intel Core Ultra 7 155H	1746 Points +15%
Geekom Mini IT12 Intel Core i5-12450H	1636 Points +8%
Aorus 15 YE5-54DEB34SH Intel Core i5-12500H	1626 Points +7%
Acemagic AD15 Intel Core i5-11500B	1566 Points +4%
Aoostar GEM10 AMD Ryzen 7 6800H	1552 Points +3%
Maxtang MTN-FP750 AMD Ryzen 7 7735HS	1534 Points +1%
GMK NucBox M6 AMD Ryzen 5 6600H	1513 Points
Average AMD Ryzen 5 6600H (1446 - 1513, n=3)	1478 Points -2%
Intel NUC11TNKi5 Intel Core i5-1135G7	1396 Points -8%
GMK NucBox M5 AMD Ryzen 7 5700U	1203 Points -20%

HWBOT x265 Benchmark v2.2 / 4k Preset
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	20.9 fps +50%
Aoostar GEM12 AMD Ryzen 7 8845HS	20.5 fps +47%
BOSGAME M1 AMD Ryzen 7 7840HS	20.3 fps +46%
Acemagic F2A Intel Core Ultra 7 155H	19.6 fps +41%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	16.3 fps +17%
Aorus 15 YE5-54DEB34SH Intel Core i5-12500H	15.1 fps +9%
Aoostar GEM10 AMD Ryzen 7 6800H	14.9 fps +7%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	14.2 fps +2%
Geekom GT13 Pro Intel Core i9-13900H	14.1 fps +1%
GMK NucBox M6 AMD Ryzen 5 6600H	13.9 fps
Average AMD Ryzen 5 6600H (11.5 - 14.2, n=3)	13.2 fps -5%
Maxtang MTN-FP750 AMD Ryzen 7 7735HS	12.7 fps -9%
Geekom XT12 Pro Intel Core i9-12900H	12.3 fps -12%
Geekom Mini IT12 Intel Core i5-12450H	10.4 fps -25%
Acemagic AD15 Intel Core i5-11500B	10.3 fps -26%
GMK NucBox M5 AMD Ryzen 7 5700U	8.44 fps -39%
Intel NUC11TNKi5 Intel Core i5-1135G7	6.63 fps -52%

LibreOffice / 20 Documents To PDF
Aorus 15 YE5-54DEB34SH Intel Core i5-12500H	58.5 s * -12%
GMK NucBox M5 AMD Ryzen 7 5700U	58 s * -11%
Average AMD Ryzen 5 6600H (52.4 - 60, n=3)	56.9 s * -9%
Maxtang MTN-FP750 AMD Ryzen 7 7735HS	54.8 s * -5%
Geekom Mini IT12 Intel Core i5-12450H	53.2 s * -2%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	52.5 s * -0%
GMK NucBox M6 AMD Ryzen 5 6600H	52.4 s *
Intel NUC11TNKi5 Intel Core i5-1135G7	51.3 s * +2%
Aoostar GEM10 AMD Ryzen 7 6800H	51.2 s * +2%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	49.5 s * +6%
Aoostar GEM12 AMD Ryzen 7 8845HS	47.5 s * +9%
BOSGAME M1 AMD Ryzen 7 7840HS	47.4 s * +10%
Acemagic F2A Intel Core Ultra 7 155H	44.5 s * +15%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	43.7 s * +17%
Acemagic AD15 Intel Core i5-11500B	41.2 s * +21%
Geekom XT12 Pro Intel Core i9-12900H	39.6 s * +24%
Geekom GT13 Pro Intel Core i9-13900H	39.4 s * +25%

R Benchmark 2.5 / Overall mean
Intel NUC11TNKi5 Intel Core i5-1135G7	0.622 sec * -25%
GMK NucBox M5 AMD Ryzen 7 5700U	0.584 sec * -17%
Acemagic AD15 Intel Core i5-11500B	0.561 sec * -12%
Aorus 15 YE5-54DEB34SH Intel Core i5-12500H	0.519 sec * -4%
Aoostar GEM10 AMD Ryzen 7 6800H	0.515 sec * -3%
Average AMD Ryzen 5 6600H (0.4995 - 0.532, n=3)	0.511 sec * -2%
Maxtang MTN-FP750 AMD Ryzen 7 7735HS	0.507 sec * -2%
Geekom Mini IT12 Intel Core i5-12450H	0.505 sec * -1%
GMK NucBox M6 AMD Ryzen 5 6600H	0.4995 sec *
Acemagic F2A Intel Core Ultra 7 155H	0.4652 sec * +7%
Geekom XT12 Pro Intel Core i9-12900H	0.4632 sec * +7%
Minisforum AtomMan X7 Ti Intel Core Ultra 9 185H	0.4627 sec * +7%
HP Elite Mini 800 G9-5M9T9EA Intel Core i5-13500	0.4469 sec * +11%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P	0.445 sec * +11%
BOSGAME M1 AMD Ryzen 7 7840HS	0.4418 sec * +12%
Geekom GT13 Pro Intel Core i9-13900H	0.4395 sec * +12%
Aoostar GEM12 AMD Ryzen 7 8845HS	0.4392 sec * +12%

CPU Performance Rating: Percent
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 6.3: Multi-Core | Single-Core
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

* ... smaller is better

Performance Rating
BOSGAME M1 AMD Ryzen 7 7840HS, Radeon 780M	100 pt
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	97.7 pt
GMK NucBox M6 AMD Ryzen 5 6600H, Radeon 660M	62.2 pt
Average AMD Ryzen 5 6600H	60.6 pt
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	56.7 pt
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	46.4 pt
GMK NucBox M5 AMD Ryzen 7 5700U, Vega 8	43.2 pt

AIDA64 / FP32 Ray-Trace
BOSGAME M1 AMD Ryzen 7 7840HS, Radeon 780M	26022 KRay/s +112%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	25360 KRay/s +107%
Average AMD Ryzen 5 6600H (12156 - 12871, n=3)	12434 KRay/s +1%
GMK NucBox M6 AMD Ryzen 5 6600H, Radeon 660M	12274 KRay/s
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	11040 KRay/s -10%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	8895 KRay/s -28%
GMK NucBox M5 AMD Ryzen 7 5700U, Vega 8	7345 KRay/s -40%

AIDA64 / FPU Julia
BOSGAME M1 AMD Ryzen 7 7840HS, Radeon 780M	110752 Points +44%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	107805 Points +40%
GMK NucBox M6 AMD Ryzen 5 6600H, Radeon 660M	76931 Points
Average AMD Ryzen 5 6600H (75025 - 78277, n=3)	76744 Points 0%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	56914 Points -26%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	55557 Points -28%
GMK NucBox M5 AMD Ryzen 7 5700U, Vega 8	45926 Points -40%

AIDA64 / CPU SHA3
BOSGAME M1 AMD Ryzen 7 7840HS, Radeon 780M	4854 MB/s +83%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	4763 MB/s +80%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	2728 MB/s +3%
GMK NucBox M6 AMD Ryzen 5 6600H, Radeon 660M	2650 MB/s
Average AMD Ryzen 5 6600H (2606 - 2689, n=3)	2648 MB/s 0%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	1943 MB/s -27%
GMK NucBox M5 AMD Ryzen 7 5700U, Vega 8	1503 MB/s -43%

AIDA64 / CPU Queen
BOSGAME M1 AMD Ryzen 7 7840HS, Radeon 780M	117809 Points +43%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	111803 Points +36%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	86691 Points +6%
GMK NucBox M6 AMD Ryzen 5 6600H, Radeon 660M	82119 Points
Average AMD Ryzen 5 6600H (78765 - 82119, n=3)	80152 Points -2%
GMK NucBox M5 AMD Ryzen 7 5700U, Vega 8	68805 Points -16%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	67352 Points -18%

AIDA64 / FPU SinJulia
BOSGAME M1 AMD Ryzen 7 7840HS, Radeon 780M	14915 Points +53%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	14721 Points +51%
GMK NucBox M5 AMD Ryzen 7 5700U, Vega 8	9992 Points +3%
GMK NucBox M6 AMD Ryzen 5 6600H, Radeon 660M	9739 Points
Average AMD Ryzen 5 6600H (9184 - 9739, n=3)	9426 Points -3%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	8505 Points -13%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	7269 Points -25%

AIDA64 / FPU Mandel
BOSGAME M1 AMD Ryzen 7 7840HS, Radeon 780M	59072 Points +39%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	57534 Points +36%
GMK NucBox M6 AMD Ryzen 5 6600H, Radeon 660M	42406 Points
Average AMD Ryzen 5 6600H (41153 - 43222, n=3)	42260 Points 0%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	31339 Points -26%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	27772 Points -35%
GMK NucBox M5 AMD Ryzen 7 5700U, Vega 8	24053 Points -43%

AIDA64 / CPU AES
BOSGAME M1 AMD Ryzen 7 7840HS, Radeon 780M	166944 MB/s +60%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	164041 MB/s +58%
GMK NucBox M6 AMD Ryzen 5 6600H, Radeon 660M	104138 MB/s
Average AMD Ryzen 5 6600H (100609 - 104138, n=3)	102594 MB/s -1%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	99244 MB/s -5%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	78948 MB/s -24%
GMK NucBox M5 AMD Ryzen 7 5700U, Vega 8	46218 MB/s -56%

AIDA64 / CPU ZLib
BOSGAME M1 AMD Ryzen 7 7840HS, Radeon 780M	1051 MB/s +59%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	1031 MB/s +56%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	807 MB/s +22%
GMK NucBox M6 AMD Ryzen 5 6600H, Radeon 660M	660 MB/s
Average AMD Ryzen 5 6600H (634 - 660, n=3)	649 MB/s -2%
GMK NucBox M5 AMD Ryzen 7 5700U, Vega 8	513 MB/s -22%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	509 MB/s -23%

AIDA64 / FP64 Ray-Trace
BOSGAME M1 AMD Ryzen 7 7840HS, Radeon 780M	13897 KRay/s +111%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	13642 KRay/s +107%
Average AMD Ryzen 5 6600H (6545 - 6911, n=3)	6681 KRay/s +1%
GMK NucBox M6 AMD Ryzen 5 6600H, Radeon 660M	6588 KRay/s
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	5920 KRay/s -10%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	4540 KRay/s -31%
GMK NucBox M5 AMD Ryzen 7 5700U, Vega 8	3892 KRay/s -41%

AIDA64 / CPU PhotoWorxx
BOSGAME M1 AMD Ryzen 7 7840HS, Radeon 780M	41516 MPixel/s +40%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	40760 MPixel/s +38%
GMK NucBox M6 AMD Ryzen 5 6600H, Radeon 660M	29621 MPixel/s
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	29108 MPixel/s -2%
GMK NucBox M5 AMD Ryzen 7 5700U, Vega 8	25066 MPixel/s -15%
Average AMD Ryzen 5 6600H (16218 - 29621, n=3)	24848 MPixel/s -16%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	17917 MPixel/s -40%

Stresstest

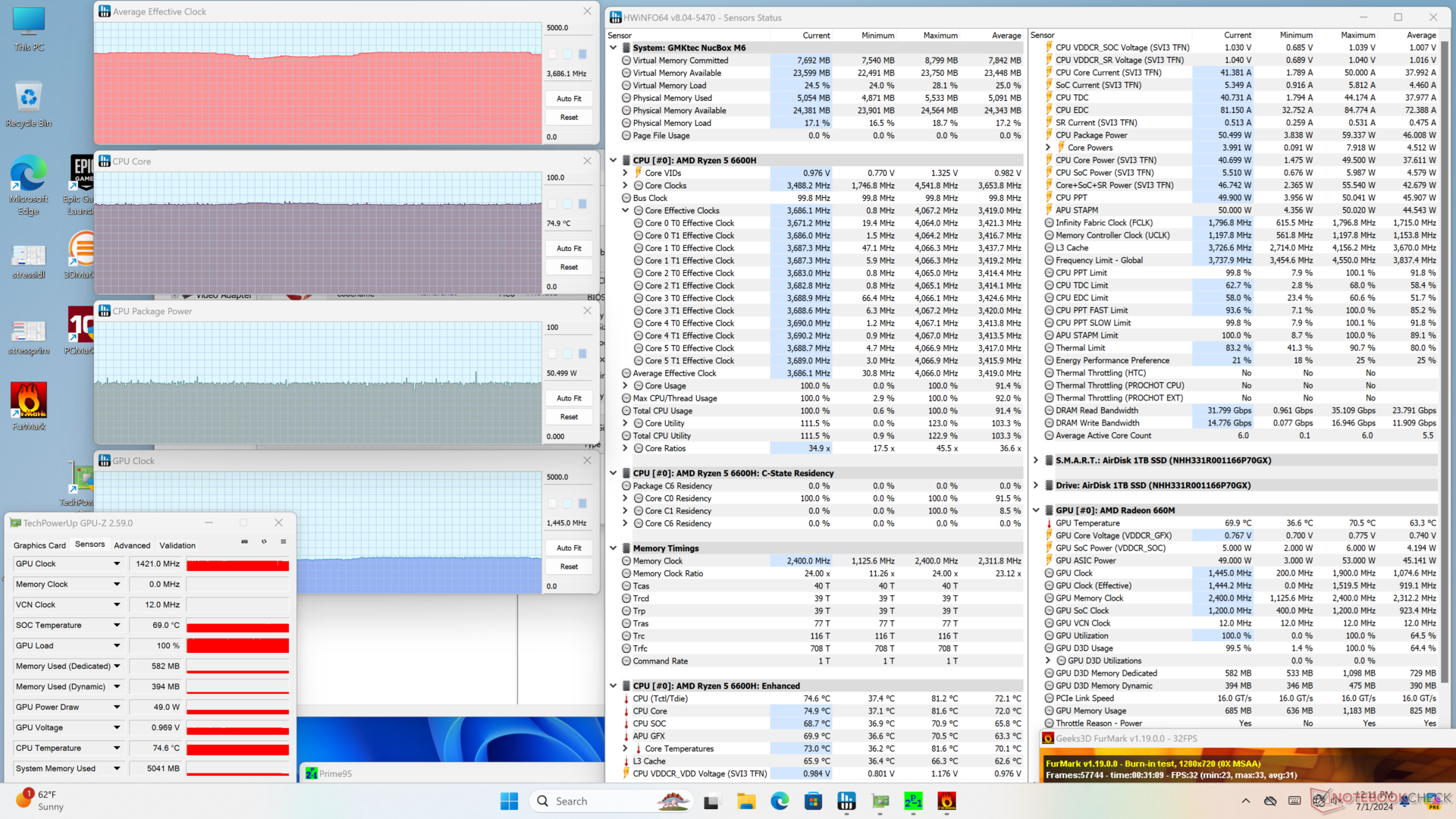

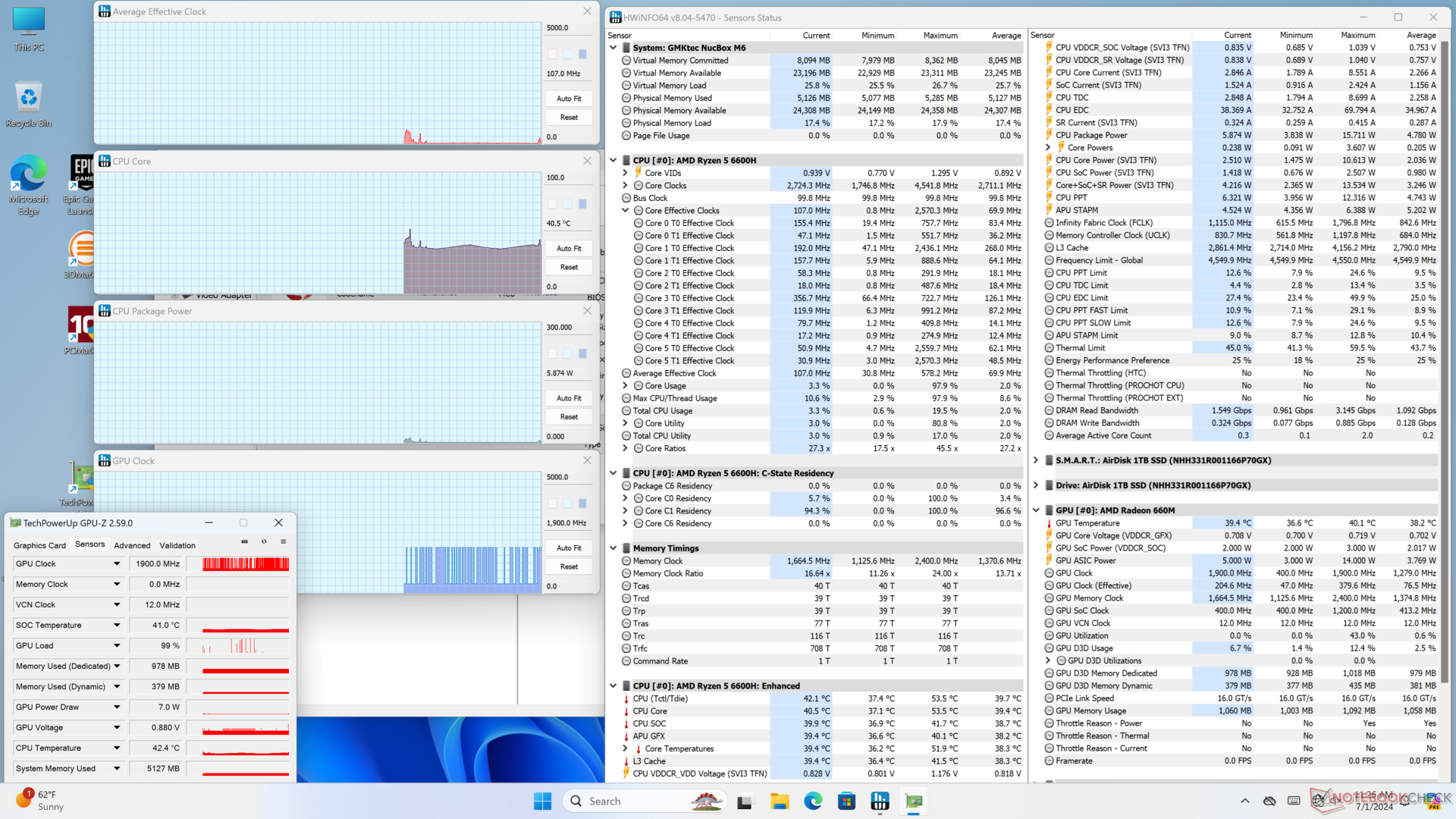

Processorn ökade till 4,1 GHz, 54 W och 78 C när Prime95 stressades för att sedan snabbt sjunka och stabiliseras till 3,9 GHz och 50 W bara några sekunder senare. Även om maximal Turbo Core-prestanda inte är obegränsad, är nedgången förvånansvärt marginell.

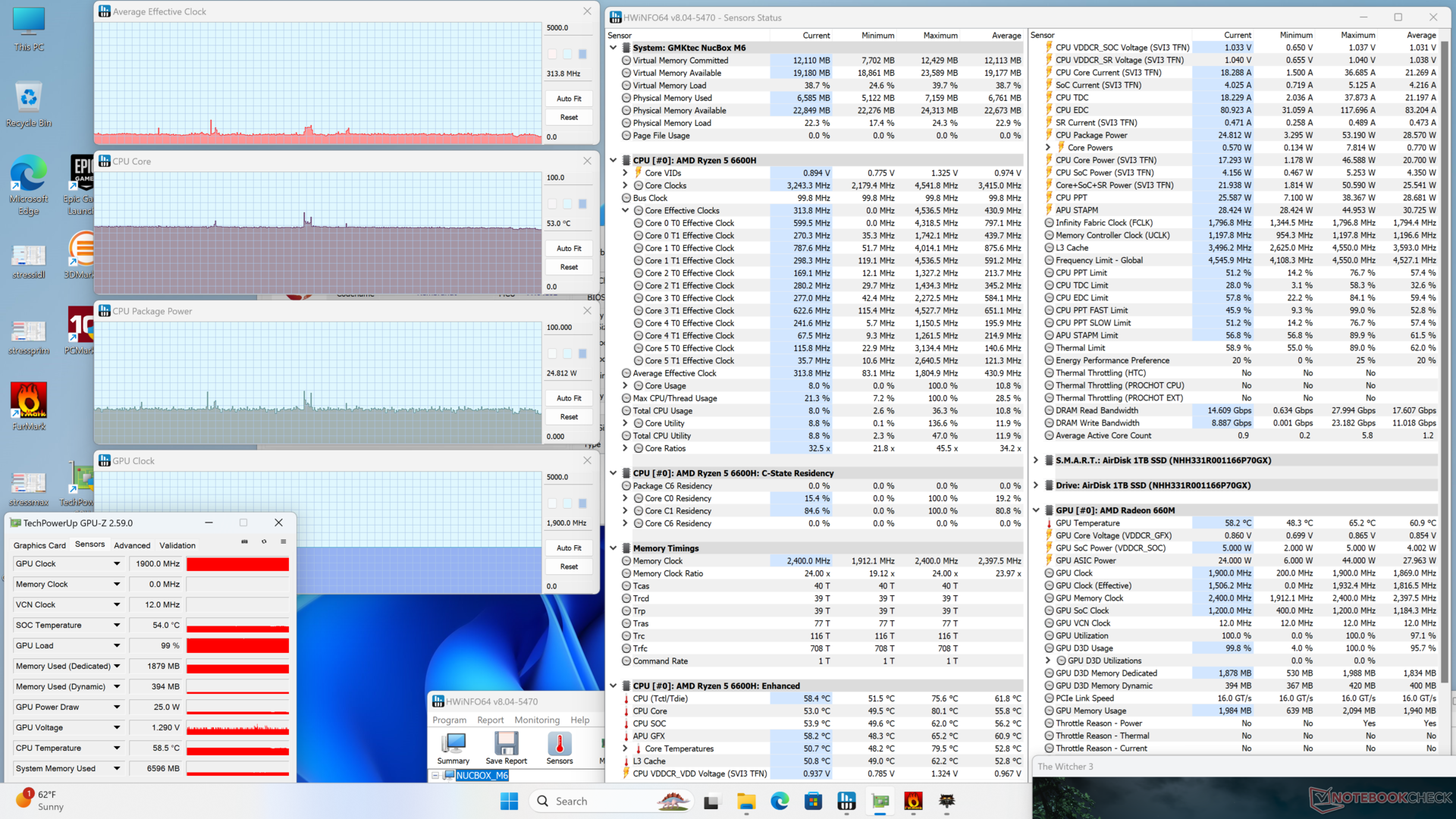

Kärntemperaturen skulle stabiliseras på bara 64 C när man körde Witcher 3 för att representera typiska spelbelastningar, vilket är jämförbart med den långsammare NucBox M5.

Systemets prestanda

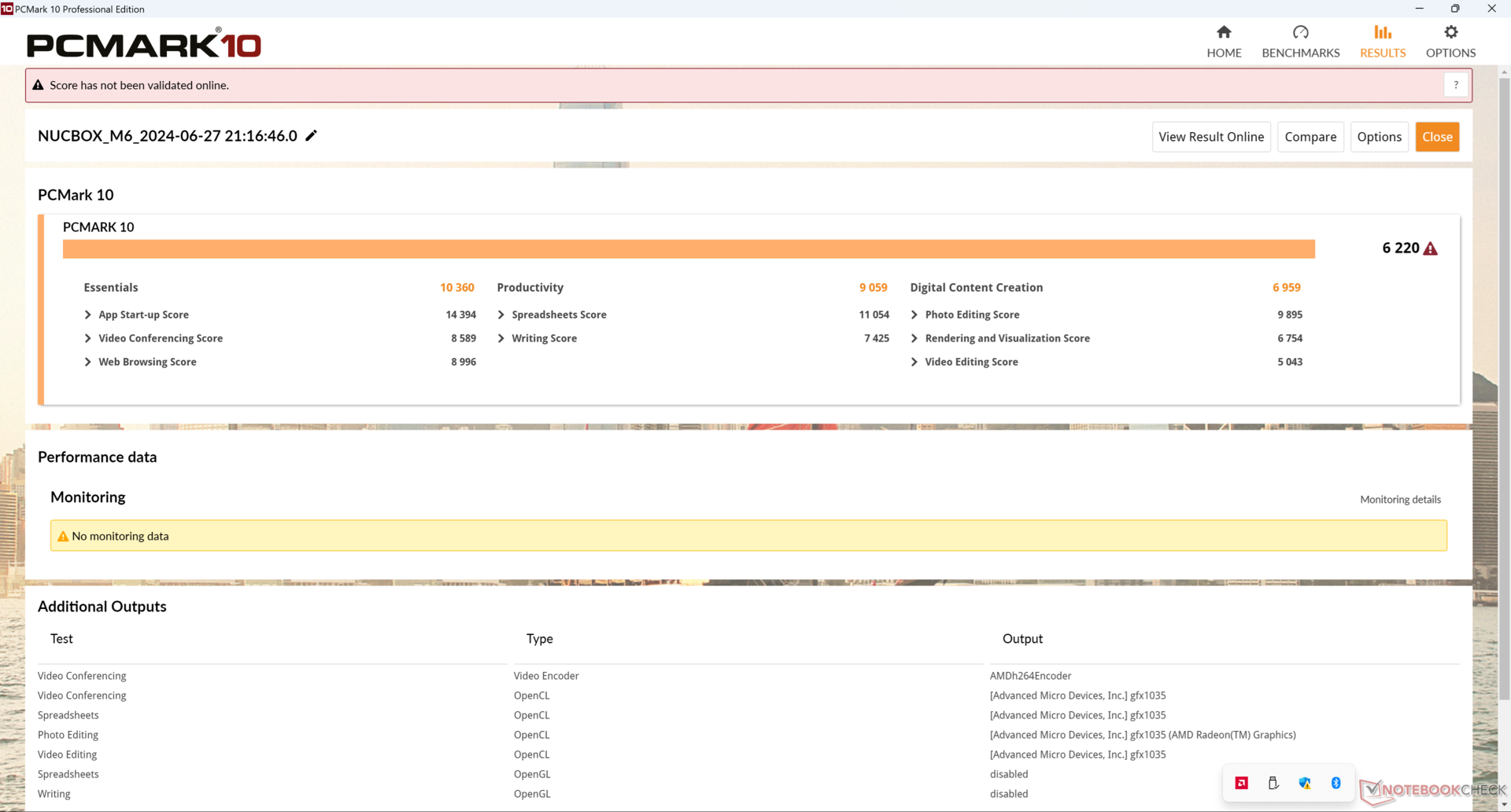

PCMark 10 Standard. Genomsnittliga poäng ligger mellan minidatorer som körs på snabbare Zen 4-processorer och långsammare Zen 2-processorer, vilket var väntat

PCMark 10 / Score
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	7529 Points +21%
BOSGAME M1 Radeon 780M, R7 7840HS	7198 Points +16%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	6281 Points +1%
GMK NucBox M6 Radeon 660M, R5 6600H, AirDisk APF 10-512G	6220 Points
Average AMD Ryzen 5 6600H, AMD Radeon 660M ()	6220 Points 0%
Beelink SER5 Vega 6, R5 5560U, Crucial P3 Plus CT1000P3PSSD8	5453 Points -12%
GMK NucBox M5 Vega 8, R7 5700U, Lexar 1024GB LNM6A1X001T-HNNNG	5293 Points -15%

PCMark 10 / Essentials
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	11596 Points +12%
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	11214 Points +8%
BOSGAME M1 Radeon 780M, R7 7840HS	11211 Points +8%
GMK NucBox M6 Radeon 660M, R5 6600H, AirDisk APF 10-512G	10360 Points
Average AMD Ryzen 5 6600H, AMD Radeon 660M ()	10360 Points 0%
GMK NucBox M5 Vega 8, R7 5700U, Lexar 1024GB LNM6A1X001T-HNNNG	9554 Points -8%
Beelink SER5 Vega 6, R5 5560U, Crucial P3 Plus CT1000P3PSSD8	9440 Points -9%

PCMark 10 / Productivity
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	10591 Points +17%
BOSGAME M1 Radeon 780M, R7 7840HS	9075 Points 0%
GMK NucBox M6 Radeon 660M, R5 6600H, AirDisk APF 10-512G	9059 Points
Average AMD Ryzen 5 6600H, AMD Radeon 660M ()	9059 Points 0%
Beelink SER5 Vega 6, R5 5560U, Crucial P3 Plus CT1000P3PSSD8	8901 Points -2%
GMK NucBox M5 Vega 8, R7 5700U, Lexar 1024GB LNM6A1X001T-HNNNG	8457 Points -7%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	7893 Points -13%

PCMark 10 / Digital Content Creation
BOSGAME M1 Radeon 780M, R7 7840HS	9948 Points +43%
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	9752 Points +40%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	7348 Points +6%
GMK NucBox M6 Radeon 660M, R5 6600H, AirDisk APF 10-512G	6959 Points
Average AMD Ryzen 5 6600H, AMD Radeon 660M ()	6959 Points 0%
Beelink SER5 Vega 6, R5 5560U, Crucial P3 Plus CT1000P3PSSD8	5238 Points -25%
GMK NucBox M5 Vega 8, R7 5700U, Lexar 1024GB LNM6A1X001T-HNNNG	4982 Points -28%

CrossMark / Overall
BOSGAME M1 Radeon 780M, R7 7840HS	1891 Points +24%
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	1873 Points +23%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1810 Points +19%
GMK NucBox M6 Radeon 660M, R5 6600H, AirDisk APF 10-512G	1521 Points
Average AMD Ryzen 5 6600H, AMD Radeon 660M ()	1521 Points 0%
Beelink SER5 Vega 6, R5 5560U, Crucial P3 Plus CT1000P3PSSD8	1196 Points -21%
GMK NucBox M5 Vega 8, R7 5700U, Lexar 1024GB LNM6A1X001T-HNNNG	1087 Points -29%

CrossMark / Productivity
BOSGAME M1 Radeon 780M, R7 7840HS	1823 Points +20%
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	1816 Points +20%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1740 Points +15%
GMK NucBox M6 Radeon 660M, R5 6600H, AirDisk APF 10-512G	1517 Points
Average AMD Ryzen 5 6600H, AMD Radeon 660M ()	1517 Points 0%
Beelink SER5 Vega 6, R5 5560U, Crucial P3 Plus CT1000P3PSSD8	1259 Points -17%
GMK NucBox M5 Vega 8, R7 5700U, Lexar 1024GB LNM6A1X001T-HNNNG	1133 Points -25%

CrossMark / Creativity
BOSGAME M1 Radeon 780M, R7 7840HS	2013 Points +28%
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	1994 Points +27%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1970 Points +26%
GMK NucBox M6 Radeon 660M, R5 6600H, AirDisk APF 10-512G	1567 Points
Average AMD Ryzen 5 6600H, AMD Radeon 660M ()	1567 Points 0%
Beelink SER5 Vega 6, R5 5560U, Crucial P3 Plus CT1000P3PSSD8	1153 Points -26%
GMK NucBox M5 Vega 8, R7 5700U, Lexar 1024GB LNM6A1X001T-HNNNG	1042 Points -34%

CrossMark / Responsiveness
BOSGAME M1 Radeon 780M, R7 7840HS	1749 Points +24%
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	1706 Points +21%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1578 Points +12%
GMK NucBox M6 Radeon 660M, R5 6600H, AirDisk APF 10-512G	1407 Points
Average AMD Ryzen 5 6600H, AMD Radeon 660M ()	1407 Points 0%
Beelink SER5 Vega 6, R5 5560U, Crucial P3 Plus CT1000P3PSSD8	1144 Points -19%
GMK NucBox M5 Vega 8, R7 5700U, Lexar 1024GB LNM6A1X001T-HNNNG	1091 Points -22%

WebXPRT 3 / Overall
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	328 Points +34%
BOSGAME M1 Radeon 780M, R7 7840HS	319 Points +31%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	305 Points +25%
Beelink SER5 Vega 6, R5 5560U, Crucial P3 Plus CT1000P3PSSD8	250 Points +2%
GMK NucBox M6 Radeon 660M, R5 6600H, AirDisk APF 10-512G	244 Points
Average AMD Ryzen 5 6600H, AMD Radeon 660M ()	244 Points 0%
GMK NucBox M5 Vega 8, R7 5700U, Lexar 1024GB LNM6A1X001T-HNNNG	214 Points -12%

WebXPRT 4 / Overall
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	266 Points +38%
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	266 Points +38%
BOSGAME M1 Radeon 780M, R7 7840HS	258 Points +33%
GMK NucBox M6 Radeon 660M, R5 6600H, AirDisk APF 10-512G	193.4 Points
Average AMD Ryzen 5 6600H, AMD Radeon 660M ()	193.4 Points 0%
Beelink SER5 Vega 6, R5 5560U, Crucial P3 Plus CT1000P3PSSD8	192.4 Points -1%
GMK NucBox M5 Vega 8, R7 5700U, Lexar 1024GB LNM6A1X001T-HNNNG	158.5 Points -18%

Mozilla Kraken 1.1 / Total
GMK NucBox M5 Vega 8, R7 5700U, Lexar 1024GB LNM6A1X001T-HNNNG	802 ms * -33%
Beelink SER5 Vega 6, R5 5560U, Crucial P3 Plus CT1000P3PSSD8	702 ms * -16%
GMK NucBox M6 Radeon 660M, R5 6600H, AirDisk APF 10-512G	604 ms *
Average AMD Ryzen 5 6600H, AMD Radeon 660M ()	604 ms * -0%
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	534 ms * +12%
BOSGAME M1 Radeon 780M, R7 7840HS	526 ms * +13%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	494 ms * +18%

* ... smaller is better

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
BOSGAME M1 AMD Ryzen 7 7840HS, Radeon 780M	69508 MB/s +37%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	69281 MB/s +36%
GMK NucBox M6 AMD Ryzen 5 6600H, Radeon 660M	50886 MB/s
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	44892 MB/s -12%
Average AMD Ryzen 5 6600H (28335 - 50886, n=3)	42594 MB/s -16%
GMK NucBox M5 AMD Ryzen 7 5700U, Vega 8	39126 MB/s -23%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	38690 MB/s -24%

AIDA64 / Memory Read
BOSGAME M1 AMD Ryzen 7 7840HS, Radeon 780M	61765 MB/s +20%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	61708 MB/s +19%
GMK NucBox M6 AMD Ryzen 5 6600H, Radeon 660M	51684 MB/s
GMK NucBox M5 AMD Ryzen 7 5700U, Vega 8	46813 MB/s -9%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	45196 MB/s -13%
Average AMD Ryzen 5 6600H (34300 - 51684, n=3)	45152 MB/s -13%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	39794 MB/s -23%

AIDA64 / Memory Write
BOSGAME M1 AMD Ryzen 7 7840HS, Radeon 780M	86719 MB/s +57%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	86528 MB/s +57%
GMK NucBox M6 AMD Ryzen 5 6600H, Radeon 660M	55160 MB/s
Average AMD Ryzen 5 6600H (31788 - 55160, n=3)	47364 MB/s -14%
GMK NucBox M5 AMD Ryzen 7 5700U, Vega 8	47048 MB/s -15%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	46179 MB/s -16%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	41162 MB/s -25%

AIDA64 / Memory Latency
GMK NucBox M5 AMD Ryzen 7 5700U, Vega 8	100.1 ns * -17%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Iris Xe G7 96EUs	96.1 ns * -12%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	93.1 ns * -9%
BOSGAME M1 AMD Ryzen 7 7840HS, Radeon 780M	89.8 ns * -5%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	88.1 ns * -3%
GMK NucBox M6 AMD Ryzen 5 6600H, Radeon 660M	85.8 ns *
Average AMD Ryzen 5 6600H (81.7 - 89.8, n=3)	85.8 ns * -0%

* ... smaller is better

DPC-fördröjning

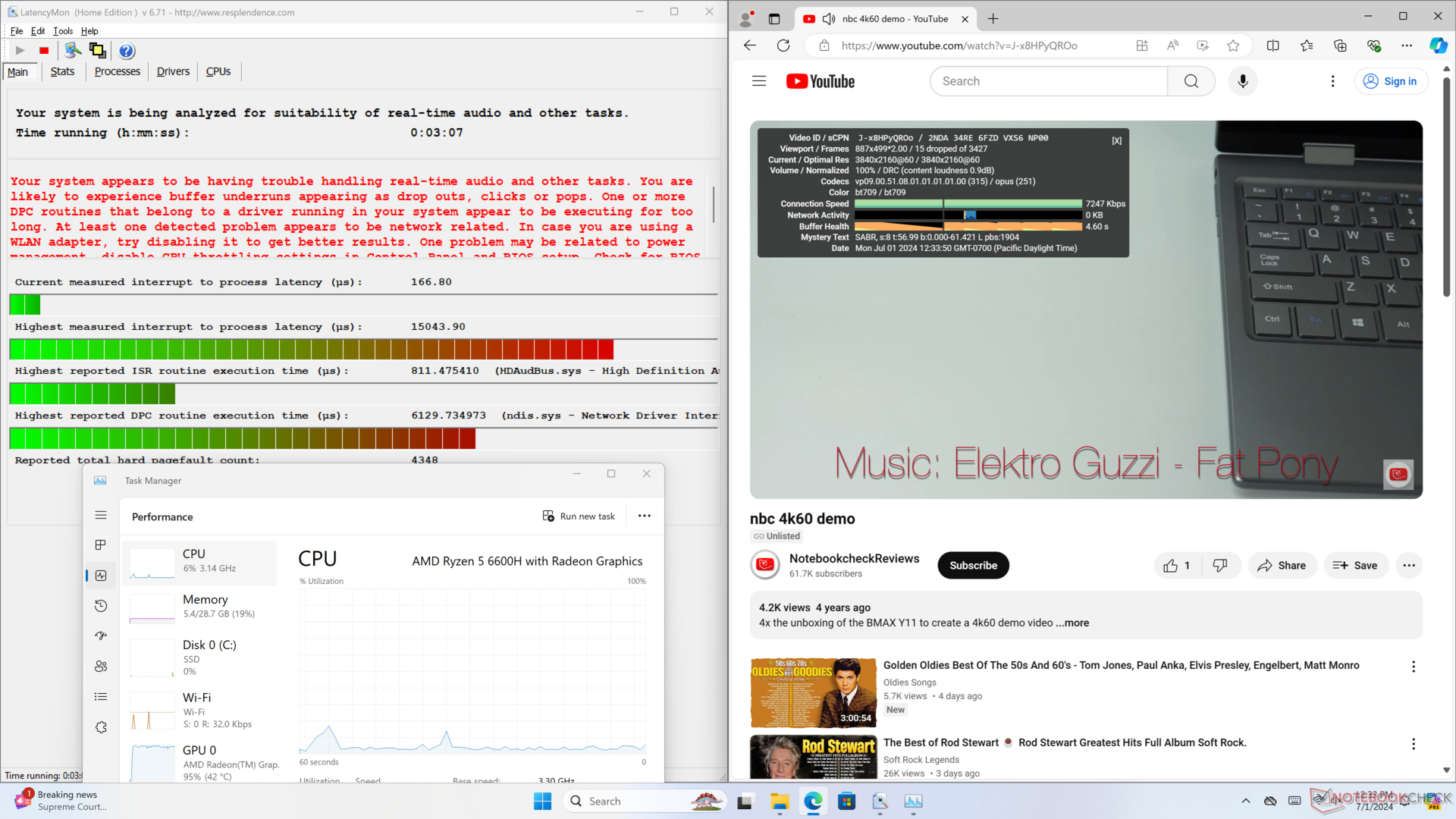

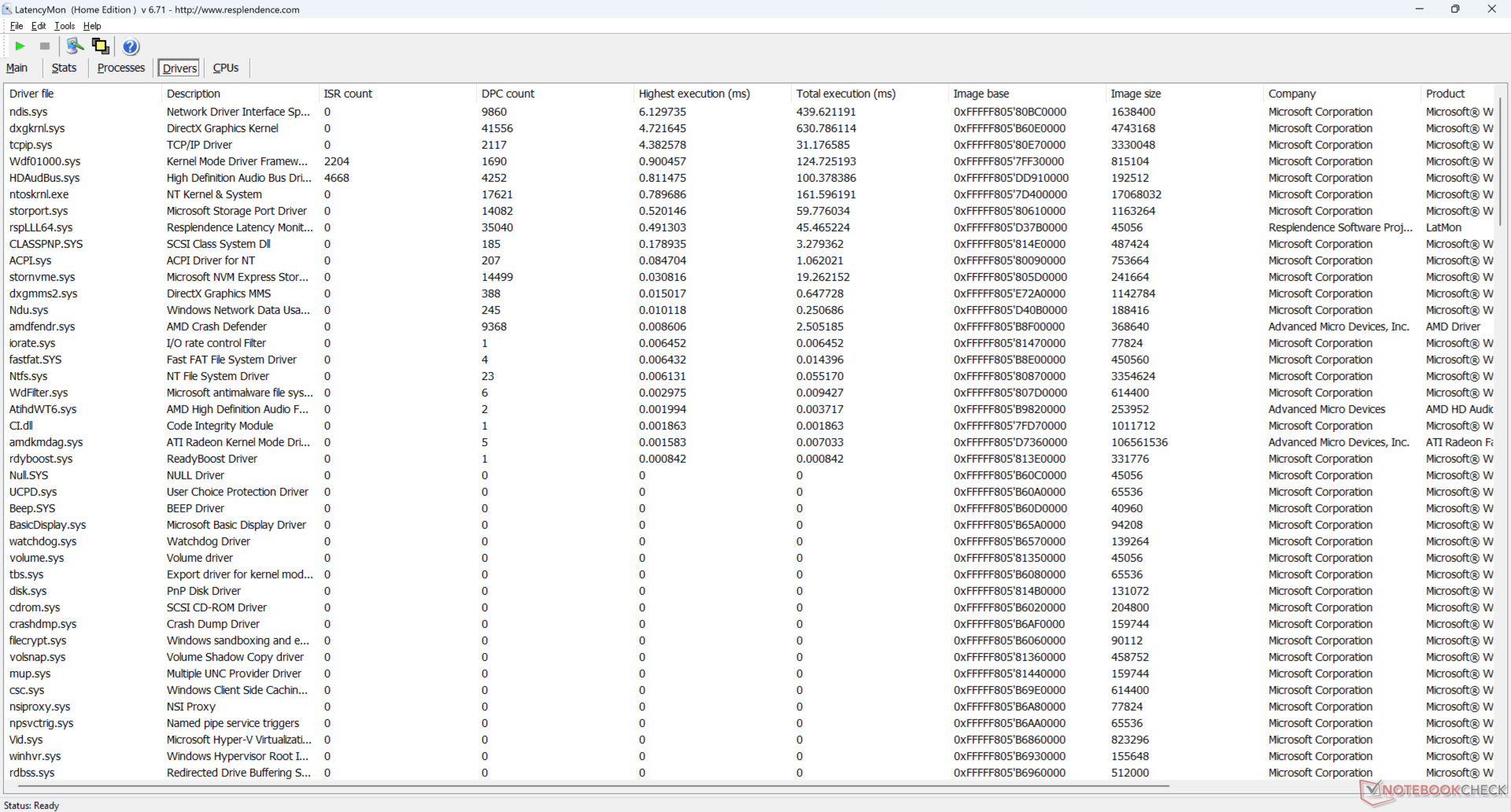

LatencyMon avslöjar stora DPC-problem när du öppnar flera webbläsarflikar på vår hemsida, även efter flera omtestningar. 4K-videouppspelning vid 60 FPS är också problematiskt med 15 tappade bildrutor inspelade under en 60-sekunders period. Dessa problem kvarstod trots att vi uppdaterade både Windows och AMD:s drivrutiner till deras senaste respektive versioner vid granskningstillfället.

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
GMK NucBox M6 Radeon 660M, R5 6600H, AirDisk APF 10-512G	15043.9 μs *
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	10561.5 μs * +30%
GMK NucBox M5 Vega 8, R7 5700U, Lexar 1024GB LNM6A1X001T-HNNNG	2146.9 μs * +86%
BOSGAME M1 Radeon 780M, R7 7840HS	1179.5 μs * +92%
Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1087 μs * +93%
Beelink SER5 Vega 6, R5 5560U, Crucial P3 Plus CT1000P3PSSD8	364.6 μs * +98%

* ... smaller is better

Lagringsenheter

Systemet levereras med en PCIe3 x4 NVMe SSD från AirDisk istället för den vanligare PCIe4-enheten, sannolikt för att spara på kostnaderna. SSD-enheten i mellanklassen erbjuder en stabil läshastighet på 2600 MB/s, vilket är tillräckligt med tanke på den CPU som den är ihopkopplad med.

M.2 SSD med borttagen värmespridare. Systemet levereras med bara en värmespridare trots att det kan stödja upp till två M.2 SSD-enheter

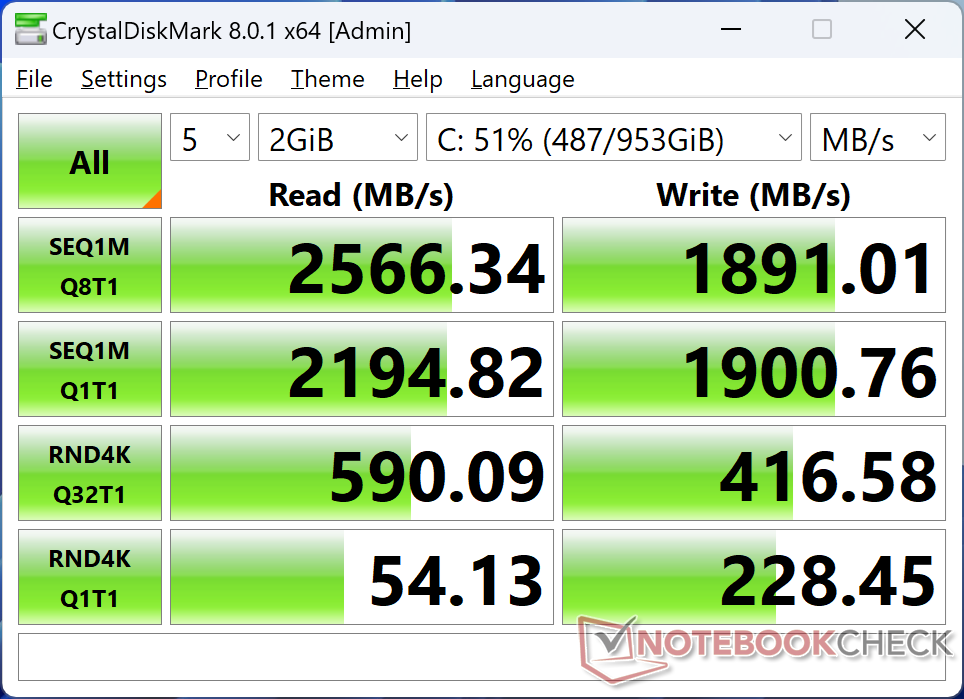

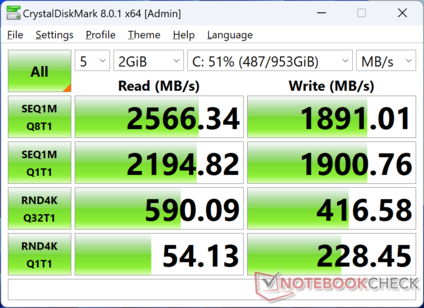

CrystalDiskMark 5.2 / 6

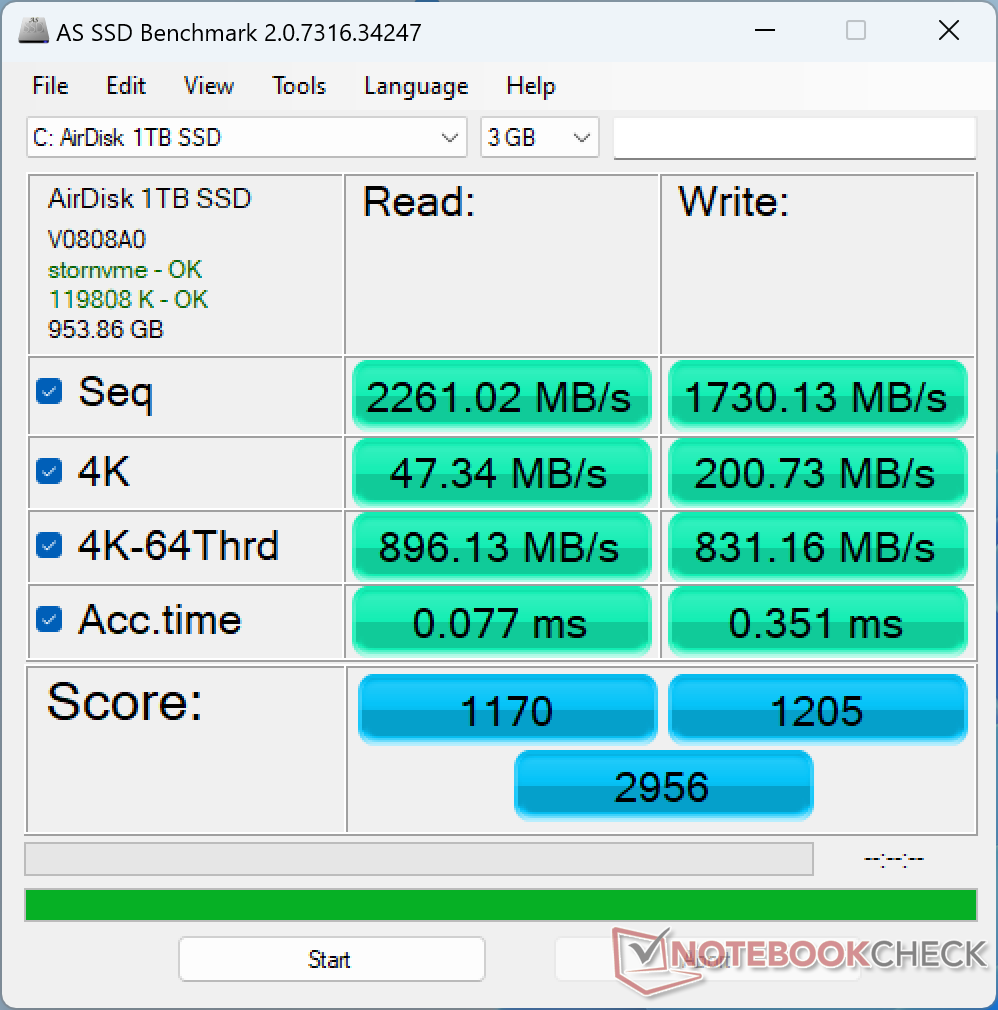

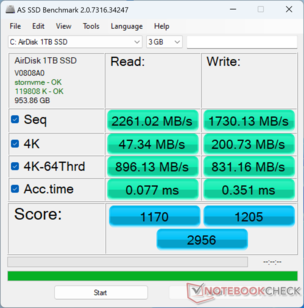

AS SSD

DiskSpd

AirDisk APF 10-512G

CDM 5/6 Read Seq Q32T1: 2547 MB/s

CDM 5/6 Write Seq Q32T1: 1852 MB/s

CDM 5/6 Read 4K Q32T1: 595 MB/s

CDM 5/6 Write 4K Q32T1: 425.3 MB/s

CDM 5 Read Seq: 2192 MB/s

CDM 5 Write Seq: 1856 MB/s

CDM 5/6 Read 4K: 54.06 MB/s

CDM 5/6 Write 4K: 223 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
GMK NucBox K6 MasonSemi 1TB MC7000	88.3 pt
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	70 pt
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	58.5 pt
BOSGAME M1	58.1 pt
GMK NucBox M5 Lexar 1024GB LNM6A1X001T-HNNNG	49.9 pt
GMK NucBox M6 AirDisk APF 10-512G	42 pt

DiskSpd
seq read
GMK NucBox K6 MasonSemi 1TB MC7000	3703 (3243.89^min - 3702.94^max) MB/s +75%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	3375 (3310.44^min - 3375.33^max) MB/s +60%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	2615 (2607.21^min - 2614.94^max) MB/s +24%
GMK NucBox M5 Lexar 1024GB LNM6A1X001T-HNNNG	2560 (2546.51^min - 2560.12^max) MB/s +21%
BOSGAME M1	2533 (2518.88^min - 2532.52^max) MB/s +20%
GMK NucBox M6 AirDisk APF 10-512G	2113 (2099.24^min - 2112.85^max) MB/s
seq write
GMK NucBox K6 MasonSemi 1TB MC7000	5595 (1443.73^min - 5595.13^max) MB/s +202%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	3360 (1416.73^min - 3360.47^max) MB/s +81%
BOSGAME M1	3176 (2921.36^min - 3176.08^max) MB/s +71%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	2878 (2868.83^min - 2877.62^max) MB/s +55%
GMK NucBox M5 Lexar 1024GB LNM6A1X001T-HNNNG	2752 (2706.58^min - 2751.67^max) MB/s +49%
GMK NucBox M6 AirDisk APF 10-512G	1852 (1762.49^min - 1851.99^max) MB/s
seq q8 t1 read
GMK NucBox K6 MasonSemi 1TB MC7000	7069 (6459.52^min - 7068.99^max) MB/s +179%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	6729 (6134.8^min - 6728.5^max) MB/s +165%
BOSGAME M1	4109 (3651.18^min - 4108.53^max) MB/s +62%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	3673 (3327.76^min - 3673.17^max) MB/s +45%
GMK NucBox M5 Lexar 1024GB LNM6A1X001T-HNNNG	3536 (3096.86^min - 3536.22^max) MB/s +39%
GMK NucBox M6 AirDisk APF 10-512G	2536 (2272.68^min - 2536.26^max) MB/s
seq q8 t1 write
GMK NucBox K6 MasonSemi 1TB MC7000	6669 (1251.16^min - 6668.61^max) MB/s +262%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	3220 (3120.61^min - 3219.7^max) MB/s +75%
BOSGAME M1	3187 (3142.8^min - 3187.38^max) MB/s +73%
GMK NucBox M5 Lexar 1024GB LNM6A1X001T-HNNNG	3126 (3077.57^min - 3126.22^max) MB/s +70%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	2830 (1138.15^min - 2830.32^max) MB/s +54%
GMK NucBox M6 AirDisk APF 10-512G	1842 (1840.35^min - 1842.35^max) MB/s
4k q1 t1 read
GMK NucBox K6 MasonSemi 1TB MC7000	71 (70.41^min - 71.02^max) MB/s +30%
BOSGAME M1	64.4 (64.2^min - 64.35^max) MB/s +18%
GMK NucBox M5 Lexar 1024GB LNM6A1X001T-HNNNG	62.7 (54.67^min - 62.69^max) MB/s +14%
GMK NucBox M6 AirDisk APF 10-512G	54.8 (52.56^min - 54.76^max) MB/s
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	52.5 (52.31^min - 52.46^max) MB/s -4%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	51.8 (51.62^min - 51.84^max) MB/s -5%
4k q1 t1 write
BOSGAME M1	261 (258.95^min - 260.75^max) MB/s +14%
GMK NucBox K6 MasonSemi 1TB MC7000	239 (237.67^min - 239.17^max) MB/s +5%
GMK NucBox M6 AirDisk APF 10-512G	228 (215.43^min - 228.32^max) MB/s
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	177.7 (176.17^min - 177.7^max) MB/s -22%
GMK NucBox M5 Lexar 1024GB LNM6A1X001T-HNNNG	175.4 (153.43^min - 175.39^max) MB/s -23%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	173.4 (172.45^min - 173.36^max) MB/s -24%
4k q32 t16 read
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	2781 (2776.44^min - 2781.48^max) MB/s +187%
GMK NucBox K6 MasonSemi 1TB MC7000	2463 (2040.37^min - 2463.15^max) MB/s +154%
GMK NucBox M5 Lexar 1024GB LNM6A1X001T-HNNNG	2315 (2310.04^min - 2315.42^max) MB/s +139%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	1225 (1194.7^min - 1224.8^max) MB/s +27%
GMK NucBox M6 AirDisk APF 10-512G	968 (965.06^min - 967.94^max) MB/s
BOSGAME M1	791 (751.42^min - 791.35^max) MB/s -18%
4k q32 t16 write
GMK NucBox K6 MasonSemi 1TB MC7000	3983 (3232.63^min - 3982.67^max) MB/s +401%
BOSGAME M1	3112 (3068.44^min - 3111.56^max) MB/s +291%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	2218 (2164.78^min - 2217.8^max) MB/s +179%
GMK NucBox M5 Lexar 1024GB LNM6A1X001T-HNNNG	1400 (948.76^min - 1400.43^max) MB/s +76%
GMK NucBox M6 AirDisk APF 10-512G	795 (753.98^min - 794.81^max) MB/s
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	626 (605.6^min - 625.63^max) MB/s -21%

AS SSD
Score Total
GMK NucBox K6 MasonSemi 1TB MC7000	7918 Points +168%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	6005 Points +103%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	4696 Points +59%
BOSGAME M1	4263 Points +44%
GMK NucBox M5 Lexar 1024GB LNM6A1X001T-HNNNG	3786 Points +28%
GMK NucBox M6 AirDisk APF 10-512G	2956 Points
Score Read
GMK NucBox K6 MasonSemi 1TB MC7000	3258 Points +178%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	1701 Points +45%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	1673 Points +43%
GMK NucBox M5 Lexar 1024GB LNM6A1X001T-HNNNG	1433 Points +22%
GMK NucBox M6 AirDisk APF 10-512G	1170 Points
BOSGAME M1	1146 Points -2%
Score Write
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	3574 Points +197%
GMK NucBox K6 MasonSemi 1TB MC7000	3000 Points +149%
BOSGAME M1	2547 Points +111%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	2136 Points +77%
GMK NucBox M5 Lexar 1024GB LNM6A1X001T-HNNNG	1626 Points +35%
GMK NucBox M6 AirDisk APF 10-512G	1205 Points
Seq Read
GMK NucBox K6 MasonSemi 1TB MC7000	5825.09 MB/s +158%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	4767 MB/s +111%
BOSGAME M1	3438.69 MB/s +52%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	3157.87 MB/s +40%
GMK NucBox M5 Lexar 1024GB LNM6A1X001T-HNNNG	3028.67 MB/s +34%
GMK NucBox M6 AirDisk APF 10-512G	2261.02 MB/s
Seq Write
GMK NucBox K6 MasonSemi 1TB MC7000	5783.3 MB/s +234%
BOSGAME M1	2877.44 MB/s +66%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	2830.61 MB/s +64%
GMK NucBox M5 Lexar 1024GB LNM6A1X001T-HNNNG	2729.51 MB/s +58%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	2442 MB/s +41%
GMK NucBox M6 AirDisk APF 10-512G	1730.13 MB/s
4K Read
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	78.3 MB/s +65%
GMK NucBox K6 MasonSemi 1TB MC7000	65.5 MB/s +38%
GMK NucBox M5 Lexar 1024GB LNM6A1X001T-HNNNG	50 MB/s +6%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	49.71 MB/s +5%
BOSGAME M1	48.27 MB/s +2%
GMK NucBox M6 AirDisk APF 10-512G	47.34 MB/s
4K Write
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	209 MB/s +4%
GMK NucBox M6 AirDisk APF 10-512G	200.73 MB/s
GMK NucBox K6 MasonSemi 1TB MC7000	190.06 MB/s -5%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	143.94 MB/s -28%
GMK NucBox M5 Lexar 1024GB LNM6A1X001T-HNNNG	126.66 MB/s -37%
BOSGAME M1	114.69 MB/s -43%
4K-64 Read
GMK NucBox K6 MasonSemi 1TB MC7000	2610.4 MB/s +191%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	1335.88 MB/s +49%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	1118 MB/s +25%
GMK NucBox M5 Lexar 1024GB LNM6A1X001T-HNNNG	1080.06 MB/s +21%
GMK NucBox M6 AirDisk APF 10-512G	896.13 MB/s
BOSGAME M1	754.28 MB/s -16%
4K-64 Write
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	3120 MB/s +275%
GMK NucBox K6 MasonSemi 1TB MC7000	2231.47 MB/s +168%
BOSGAME M1	2144.62 MB/s +158%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	1708.89 MB/s +106%
GMK NucBox M5 Lexar 1024GB LNM6A1X001T-HNNNG	1226.59 MB/s +48%
GMK NucBox M6 AirDisk APF 10-512G	831.16 MB/s
Access Time Read
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	0.094 ms * -22%
BOSGAME M1	0.088 ms * -14%
GMK NucBox K6 MasonSemi 1TB MC7000	0.079 ms * -3%
GMK NucBox M5 Lexar 1024GB LNM6A1X001T-HNNNG	0.077 ms * -0%
GMK NucBox M6 AirDisk APF 10-512G	0.077 ms *
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	0.045 ms * +42%
Access Time Write
GMK NucBox M5 Lexar 1024GB LNM6A1X001T-HNNNG	0.408 ms * -16%
GMK NucBox M6 AirDisk APF 10-512G	0.351 ms *
GMK NucBox K6 MasonSemi 1TB MC7000	0.196 ms * +44%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	0.077 ms * +78%
BOSGAME M1	0.058 ms * +83%
Intel NUC 13 Pro Kit NUC13ANK Samsung PM9A1 MZVL2512HCJQ	0.02 ms * +94%

* ... smaller is better

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

GMK NucBox M6; diskspd 2.0.17 f: Ø2502 (2251.92-2522.24)

GPU-prestanda - Radeon 660M kämpar i de flesta spel

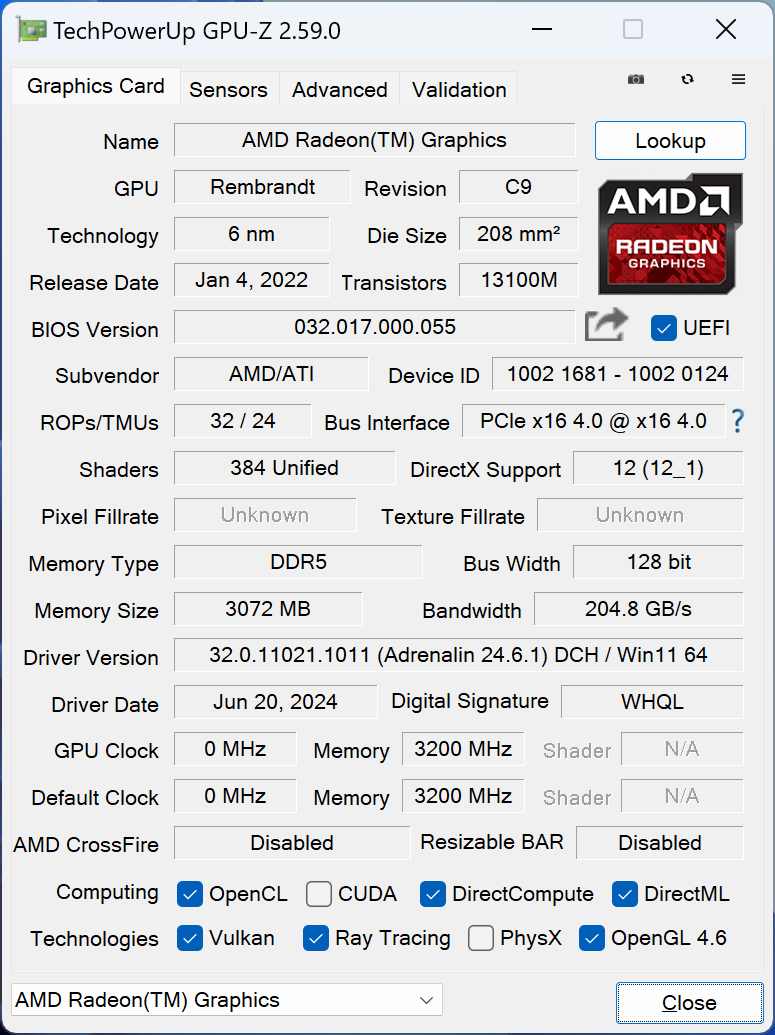

Radeon 660M Radeon 660M är ungefär 35 procent långsammare än Radeon 680M för att vara ungefär i nivå med de vanligare Iris Xe 96 EUs. Även om det inte är särskilt lämpat för de flesta spel är det åtminstone ett respektabelt språng över Radeon RX Vega 8 på äldre generationens Zen-processorer.

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
BOSGAME M1 AMD Radeon 780M, AMD Ryzen 7 7840HS	99.8 pt
Aoostar GEM12 AMD Radeon 780M, AMD Ryzen 7 8845HS	90.2 pt
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	88.5 pt
Minisforum AtomMan X7 Ti Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	85 pt
Aoostar GEM10 AMD Radeon 680M, AMD Ryzen 7 6800H	82.7 pt
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	58.2 pt
Geekom XT12 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	54.1 pt
GMK NucBox M6 AMD Radeon 660M, AMD Ryzen 5 6600H	53.8 pt
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	53.2 pt
Average AMD Radeon 660M	49.2 pt
Maxtang MTN-FP750 AMD Radeon 680M, AMD Ryzen 7 7735HS	46.9 pt
GMK NucBox M5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700U	40.5 pt
Intel NUC11TNKi5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	35.1 pt
HP Elite Mini 800 G9-5M9T9EA Intel UHD Graphics 770, Intel Core i5-13500	26.8 pt
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i5-11500B	24.5 pt

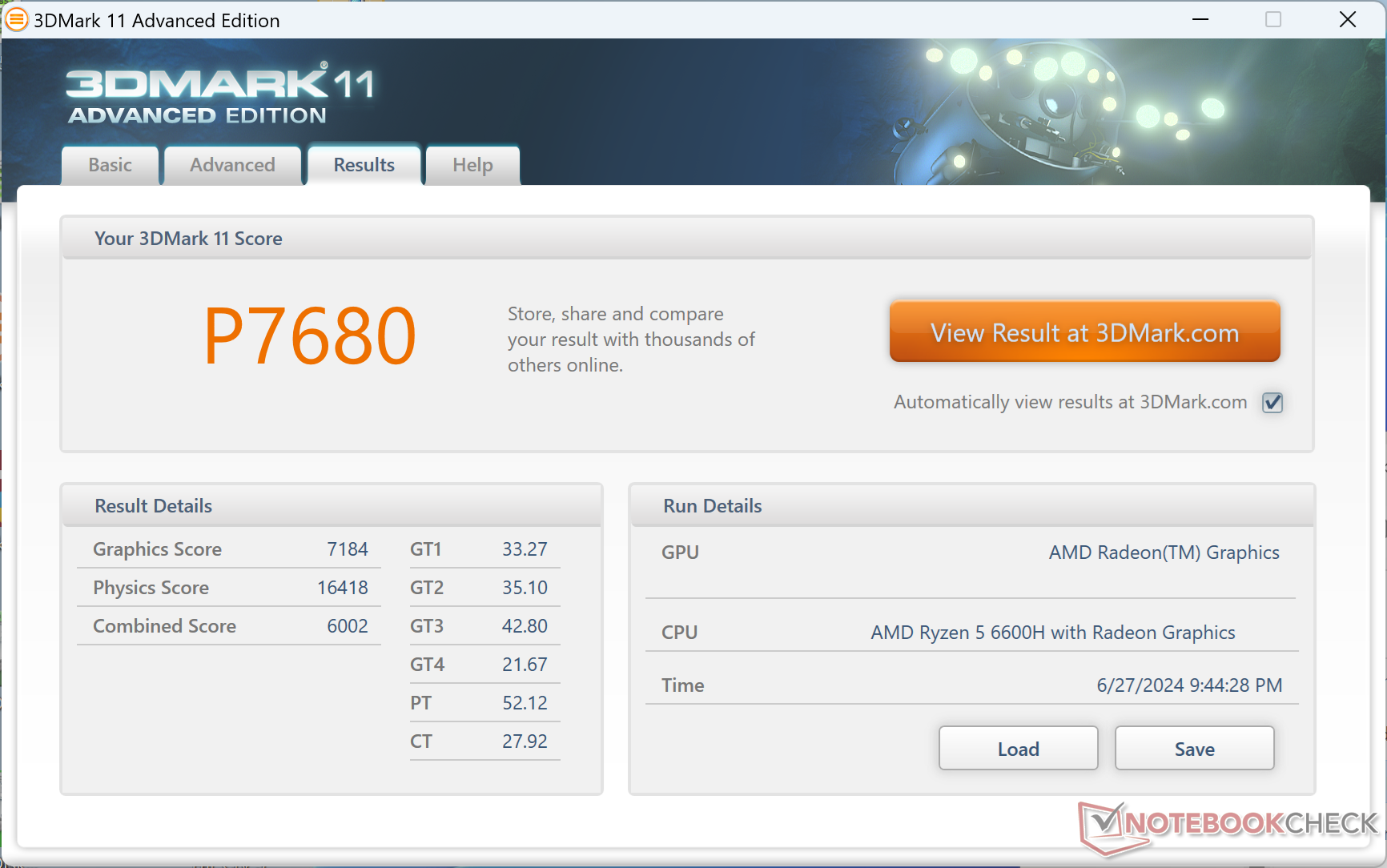

3DMark 11 - 1280x720 Performance GPU
BOSGAME M1 AMD Radeon 780M, AMD Ryzen 7 7840HS	14249 Points +98%
Aoostar GEM12 AMD Radeon 780M, AMD Ryzen 7 8845HS	13410 Points +87%
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	12085 Points +68%
Minisforum AtomMan X7 Ti Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	11691 Points +63%
Aoostar GEM10 AMD Radeon 680M, AMD Ryzen 7 6800H	11668 Points +62%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	7424 Points +3%
GMK NucBox M6 AMD Radeon 660M, AMD Ryzen 5 6600H	7184 Points
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	7143 Points -1%
Geekom XT12 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	6975 Points -3%
Maxtang MTN-FP750 AMD Radeon 680M, AMD Ryzen 7 7735HS	6858 Points -5%
Average AMD Radeon 660M (4636 - 7184, n=9)	6332 Points -12%
GMK NucBox M5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700U	5388 Points -25%
Intel NUC11TNKi5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	5221 Points -27%
HP Elite Mini 800 G9-5M9T9EA Intel UHD Graphics 770, Intel Core i5-13500	3428 Points -52%
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i5-11500B	3065 Points -57%

3DMark

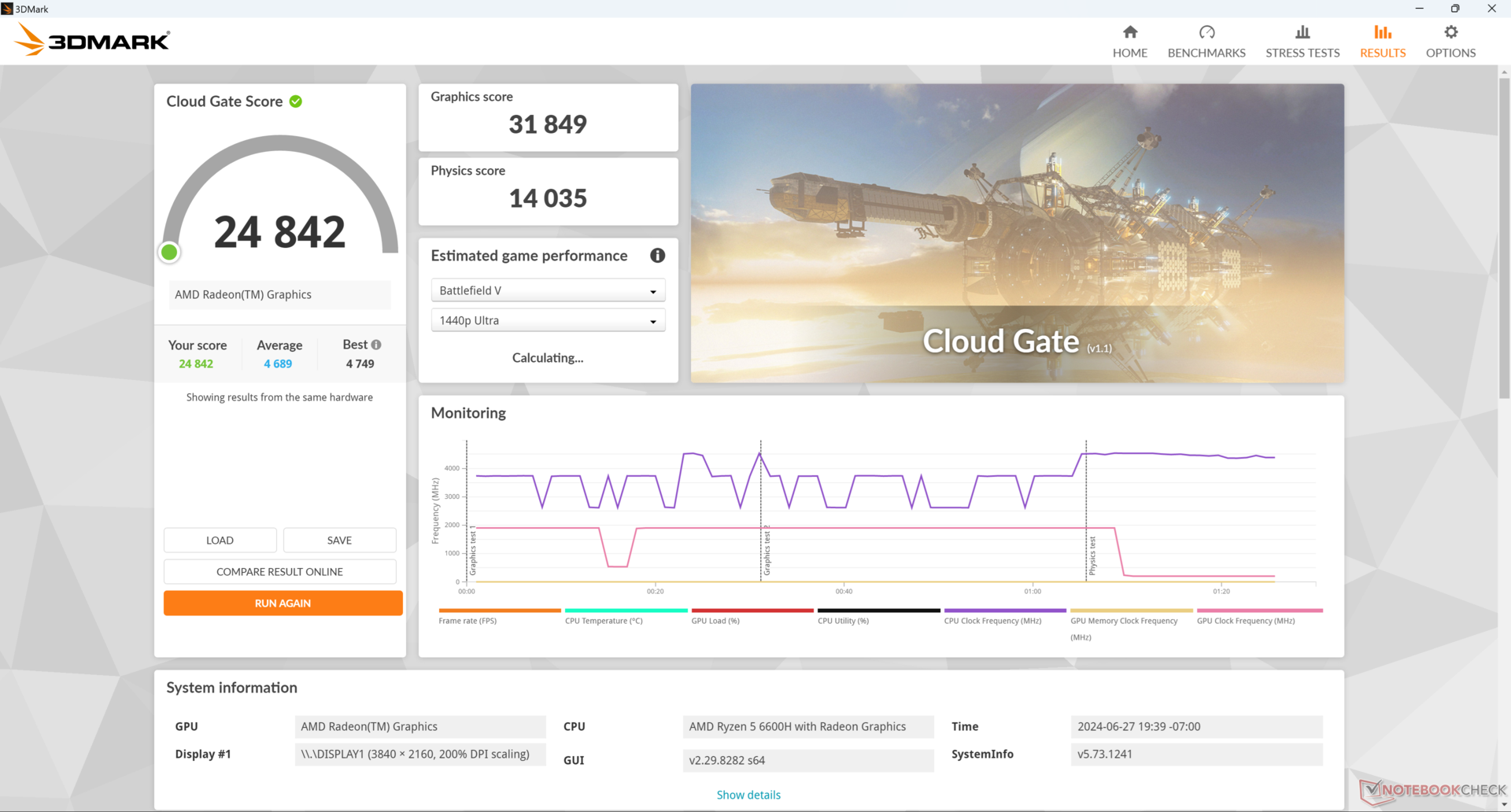

1280x720 Cloud Gate Standard Graphics
BOSGAME M1 AMD Radeon 780M, AMD Ryzen 7 7840HS	53972 Points +69%
Aoostar GEM12 AMD Radeon 780M, AMD Ryzen 7 8845HS	46987 Points +48%
Aoostar GEM10 AMD Radeon 680M, AMD Ryzen 7 6800H	45116 Points +42%
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	44014 Points +38%
Minisforum AtomMan X7 Ti Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	38976 Points +22%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	33541 Points +5%
GMK NucBox M6 AMD Radeon 660M, AMD Ryzen 5 6600H	31849 Points
Geekom XT12 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	30564 Points -4%
Average AMD Radeon 660M (21857 - 33949, n=8)	30318 Points -5%
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	27511 Points -14%
GMK NucBox M5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700U	25003 Points -21%
Maxtang MTN-FP750 AMD Radeon 680M, AMD Ryzen 7 7735HS	24634 Points -23%
Intel NUC11TNKi5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	19330 Points -39%
HP Elite Mini 800 G9-5M9T9EA Intel UHD Graphics 770, Intel Core i5-13500	16288 Points -49%
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i5-11500B	15716 Points -51%

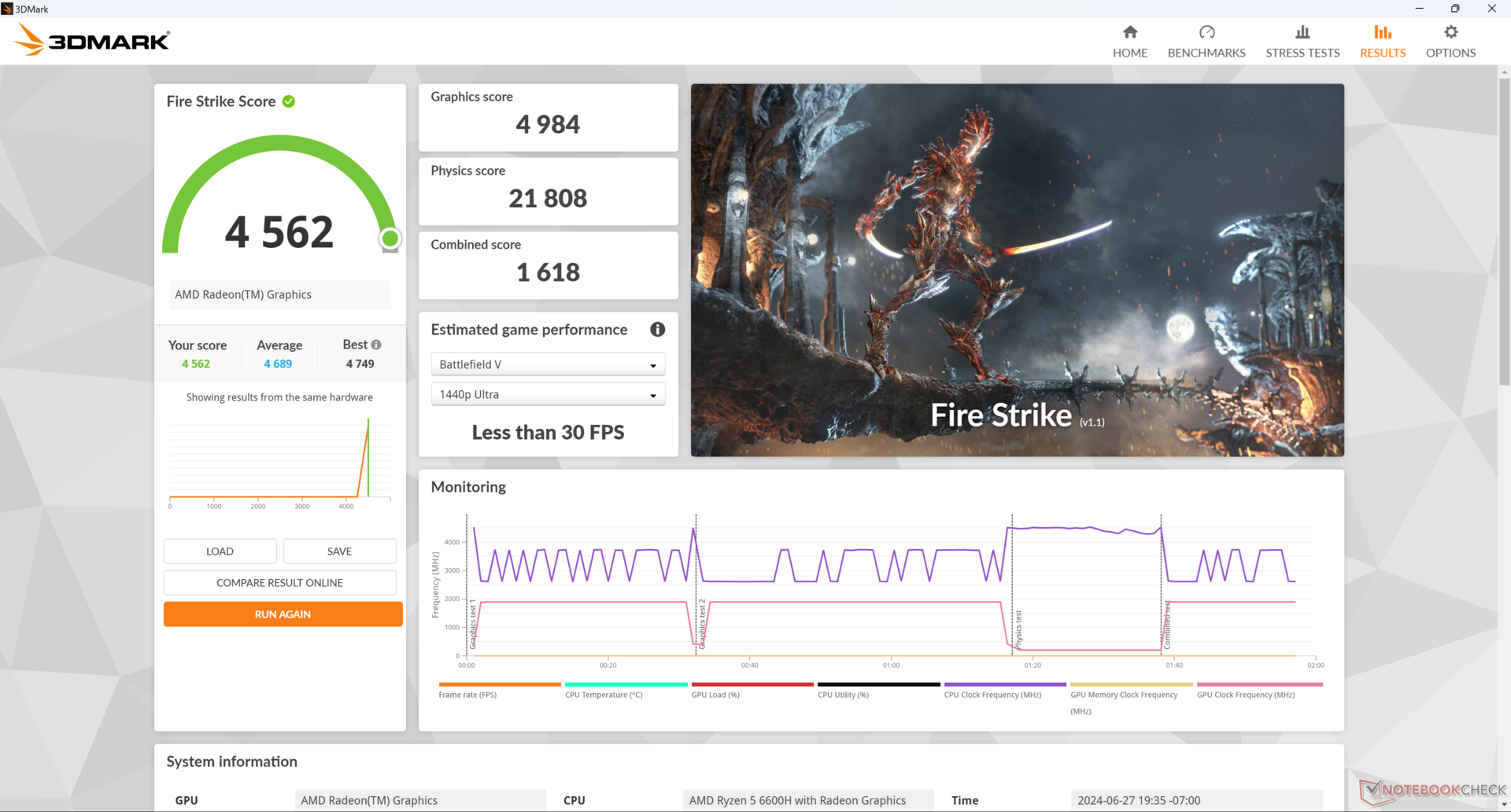

1920x1080 Fire Strike Graphics
BOSGAME M1 AMD Radeon 780M, AMD Ryzen 7 7840HS	8816 Points +77%
Aoostar GEM12 AMD Radeon 780M, AMD Ryzen 7 8845HS	8007 Points +61%
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	7710 Points +55%
Aoostar GEM10 AMD Radeon 680M, AMD Ryzen 7 6800H	7653 Points +54%
Minisforum AtomMan X7 Ti Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	7599 Points +52%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	5812 Points +17%
Geekom XT12 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	5421 Points +9%
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	5229 Points +5%
GMK NucBox M6 AMD Radeon 660M, AMD Ryzen 5 6600H	4984 Points
Average AMD Radeon 660M (3447 - 4993, n=9)	4521 Points -9%
Maxtang MTN-FP750 AMD Radeon 680M, AMD Ryzen 7 7735HS	4424 Points -11%
GMK NucBox M5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700U	3653 Points -27%
Intel NUC11TNKi5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	3152 Points -37%
HP Elite Mini 800 G9-5M9T9EA Intel UHD Graphics 770, Intel Core i5-13500	2643 Points -47%
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i5-11500B	2363 Points -53%
2560x1440 Time Spy Graphics
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	3205 Points +103%
Minisforum AtomMan X7 Ti Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	3193 Points +102%
BOSGAME M1 AMD Radeon 780M, AMD Ryzen 7 7840HS	3178 Points +101%
Aoostar GEM12 AMD Radeon 780M, AMD Ryzen 7 8845HS	2846 Points +80%
Aoostar GEM10 AMD Radeon 680M, AMD Ryzen 7 6800H	2518 Points +59%
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	1690 Points +7%
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	1673 Points +6%
GMK NucBox M6 AMD Radeon 660M, AMD Ryzen 5 6600H	1582 Points
Geekom XT12 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	1581 Points 0%
Average AMD Radeon 660M (1016 - 1588, n=9)	1442 Points -9%
Maxtang MTN-FP750 AMD Radeon 680M, AMD Ryzen 7 7735HS	1399 Points -12%
GMK NucBox M5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700U	1162 Points -27%
Intel NUC11TNKi5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	1031 Points -35%
HP Elite Mini 800 G9-5M9T9EA Intel UHD Graphics 770, Intel Core i5-13500	739 Points -53%
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i5-11500B	658 Points -58%

3DMark Performance Rating | 3DMark 11 | 3DMark

Blender
v3.3 Classroom HIP/AMD
Average AMD Radeon 660M (438 - 755, n=7)	561 Seconds *
Maxtang MTN-FP750 AMD Radeon 680M, AMD Ryzen 7 7735HS	458 Seconds *
Aoostar GEM10 AMD Radeon 680M, AMD Ryzen 7 6800H	306 Seconds *
v3.3 Classroom CPU
GMK NucBox M5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700U	758 Seconds * -53%
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i5-11500B	673 Seconds * -35%
Average AMD Radeon 660M (323 - 968, n=9)	662 Seconds * -33%
Geekom XT12 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900H	536 Seconds * -8%
GMK NucBox M6 AMD Radeon 660M, AMD Ryzen 5 6600H	497 Seconds *
Geekom GT13 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	467 Seconds * +6%
Intel NUC 13 Pro Kit NUC13ANK Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	464 Seconds * +7%
Maxtang MTN-FP750 AMD Radeon 680M, AMD Ryzen 7 7735HS	460 Seconds * +7%
Aoostar GEM10 AMD Radeon 680M, AMD Ryzen 7 6800H	438 Seconds * +12%
HP Elite Mini 800 G9-5M9T9EA Intel UHD Graphics 770, Intel Core i5-13500	399 Seconds * +20%
Aoostar GEM12 AMD Radeon 780M, AMD Ryzen 7 8845HS	320 Seconds * +36%
BOSGAME M1 AMD Radeon 780M, AMD Ryzen 7 7840HS	319 Seconds * +36%
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	301 Seconds * +39%
Minisforum AtomMan X7 Ti Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	294 Seconds * +41%
v3.3 Classroom oneAPI/Intel
Minisforum AtomMan X7 Ti Intel Arc 8-Core iGPU, Intel Core Ultra 9 185H	254 Seconds *

* ... smaller is better

Performance Rating - Percent
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	99.6 pt
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	96.2 pt
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	62 pt
Intel NUC 13 Pro Kit NUC13ANK ^-2! Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	52.2 pt
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	46.4 pt
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	42.3 pt

The Witcher 3 - 1920x1080 Ultra Graphics & Postprocessing (HBAO+)
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	33.3 (29^min) fps +87%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	30.8 (27^min) fps +73%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	17.8 (15^min) fps
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	16.3 fps -8%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	13.7 (12^min) fps -23%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	11.8 (11^min) fps -34%

Final Fantasy XV Benchmark - 1920x1080 High Quality
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	30.8 fps +72%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	29.3 fps +64%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	17.9 fps
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	13.1 fps -27%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	11.5 fps -36%

Strange Brigade - 1920x1080 ultra AA:ultra AF:16
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	52.1 (5.2^min, 33.8^P1) fps +76%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	48.8 (11.1^min, 31.1^P1) fps +65%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	29.6 (21^min, 24.7^P1) fps
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	25.2 (5.1^min, 6.91^P1) fps -15%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	22.7 (11.3^min, 12.5^P1) fps -23%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	20.5 (12.2^min, 14.6^P1) fps -31%

Dota 2 Reborn - 1920x1080 ultra (3/3) best looking
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	88.5 (78.9^min) fps +46%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	87.4 (16.1^min) fps +44%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	61.6 (54.6^min) fps +1%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	60.8 (54.4^min) fps
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	47.6 (40.4^min) fps -22%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	45.4 (42.4^min) fps -25%

X-Plane 11.11 - 1920x1080 high (fps_test=3)
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	39.7 fps +20%
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	38.7 fps +17%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	33.2 fps
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	25.1 fps -24%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	24.2 fps -27%

Tiny Tina's Wonderlands - 1920x1080 Badass Preset (DX12)
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	30.3 fps +94%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	29.5 fps +89%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	15.6 fps
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	12.7 fps -19%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	10.3 fps -34%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	8.9 fps -43%

The Witcher 3
1024x768 Low Graphics & Postprocessing
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	160.7 (126^min) fps +64%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	155.1 (145^min) fps +58%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	101.7 fps +4%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	98.2 (84^min) fps
Average AMD Radeon 660M (61.7 - 98.2, n=7)	84.2 fps -14%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	67.6 (60^min) fps -31%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	58.8 (52^min) fps -40%
1366x768 Medium Graphics & Postprocessing
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	103.8 (96^min) fps +97%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	99 (72^min) fps +88%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	52.6 (38^min) fps
Average AMD Radeon 660M (40.2 - 58.5, n=6)	49.4 fps -6%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	43.3 (38^min) fps -18%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	39 (36^min) fps -26%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	52.2 (48^min) fps +103%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	50.9 (45^min) fps +98%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	31.1 fps +21%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	25.7 (24^min) fps
Average AMD Radeon 660M (18.5 - 28.6, n=7)	24.3 fps -5%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	22 (20^min) fps -14%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	18.8 (17^min) fps -27%
1920x1080 Ultra Graphics & Postprocessing (HBAO+)
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	33.3 (29^min) fps +87%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	30.8 (27^min) fps +73%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	17.8 (15^min) fps
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	16.3 fps -8%
Average AMD Radeon 660M (12.3 - 17.9, n=7)	15.5 fps -13%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	13.7 (12^min) fps -23%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	11.8 (11^min) fps -34%

Far Cry 5
1280x720 Low Preset AA:T
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	88 (77^min) fps +24%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	86 (75^min) fps +21%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	71 (62^min) fps
Average AMD Radeon 660M (38 - 71, n=6)	58.3 fps -18%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	46 (37^min) fps -35%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	46 (41^min) fps -35%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	42 (36^min) fps -41%
1920x1080 Medium Preset AA:T
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	54 (48^min) fps +64%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	49 (44^min) fps +48%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	33 (29^min) fps
Average AMD Radeon 660M (18 - 33, n=6)	27.8 fps -16%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	26 (24^min) fps -21%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	21 (18^min) fps -36%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	20 (17^min) fps -39%
1920x1080 High Preset AA:T
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	49 (43^min) fps +63%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	45 (41^min) fps +50%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	30 (26^min) fps
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	25 (22^min) fps -17%
Average AMD Radeon 660M (16 - 30, n=6)	25 fps -17%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	19 (17^min) fps -37%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	19 (16^min) fps -37%
1920x1080 Ultra Preset AA:T
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	47 (41^min) fps +74%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	43 (38^min) fps +59%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	27 (20^min) fps
Average AMD Radeon 660M (16 - 27, n=5)	23.2 fps -14%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	23 (21^min) fps -15%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	18 (16^min) fps -33%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	17 (15^min) fps -37%

Final Fantasy XV Benchmark
1280x720 Lite Quality
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	84.5 fps +75%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	80.8 fps +67%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	48.3 fps
Average AMD Radeon 660M (33.1 - 53.4, n=9)	43.9 fps -9%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	35.2 fps -27%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	32.2 fps -33%
1920x1080 Standard Quality
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	40.9 fps +66%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	39.3 fps +59%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	24.7 fps
Average AMD Radeon 660M (16 - 24.7, n=9)	21.2 fps -14%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	18 fps -27%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	16.1 fps -35%
1920x1080 High Quality
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	30.8 fps +72%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	29.3 fps +64%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	17.9 fps
Average AMD Radeon 660M (11.1 - 17.9, n=9)	15.2 fps -15%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	13.1 fps -27%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	11.5 fps -36%

Cyberpunk 2077 2.1 Phantom Liberty
1280x720 Low Preset (FSR off)
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	80.6 (51.6^min) fps
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	77.4 (28.7^min) fps
Average AMD Radeon 660M ()	27.5 fps
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	24.4 (12.7^min) fps
1920x1080 Low Preset (FSR off)
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	47.9 (37.5^min) fps +97%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	46.3 (32.3^min) fps +91%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	24.3 (20.5^min) fps
Average AMD Radeon 660M (14.9 - 24.3, n=3)	20.7 fps -15%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	13.8 (6.57^min) fps -43%
1920x1080 Medium Preset (FSR off)
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	37.5 (30.6^min) fps +107%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	35.2 (10.9^min) fps +94%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	18.1 (15.7^min) fps
Average AMD Radeon 660M (11.5 - 18.1, n=3)	15.7 fps -13%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	10.9 (8.08^min) fps -40%
1920x1080 High Preset (FSR off)
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	29.6 (23.3^min) fps +155%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	27.7 (9.25^min) fps +139%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	11.6 (10^min) fps
Average AMD Radeon 660M (8.85 - 13.2, n=4)	11.2 fps -3%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	9.17 (6.25^min) fps -21%
1920x1080 Ultra Preset (FSR off)
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	25.8 (19.9^min) fps
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	24.5 (9.31^min) fps
Average AMD Radeon 660M (7.77 - 11.2, n=2)	9.49 fps

Strange Brigade
1280x720 lowest AF:1
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	175.9 (26.4^min, 151.8^P1) fps +46%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	167.7 (34.3^min, 142.9^P1) fps +40%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	120.2 (78.3^min, 104.5^P1) fps
Average AMD Radeon 660M (70.2 - 120.7, n=8)	107.5 fps -11%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	95.4 (19.5^min, 37.2^P1) fps -21%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	79.8 (20.7^min, 69.9^P1) fps -34%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	78.9 (56.9^min, 66.5^P1) fps -34%
1920x1080 medium AA:medium AF:4
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	70.9 (5^min, 61.9^P1) fps +65%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	67.9 (43.7^min, 58.3^P1) fps +58%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	43 (36.6^min, 37.4^P1) fps
Average AMD Radeon 660M (26.8 - 44.5, n=8)	39.7 fps -8%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	37.3 (12^min, 16.1^P1) fps -13%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	32.4 (15.3^min, 28.3^P1) fps -25%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	30.3 (25.6^min, 27.4^P1) fps -30%
1920x1080 high AA:high AF:8
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	60.6 (32.5^min, 47.4^P1) fps +69%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	57.9 (7^min, 45^P1) fps +61%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	35.9 (28.5^min, 29.1^P1) fps
Average AMD Radeon 660M (21.4 - 35.9, n=8)	31.9 fps -11%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	31 (8.5^min, 12^P1) fps -14%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	26.8 (14.8^min, 19.1^P1) fps -25%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	24.6 (19.8^min, 20.3^P1) fps -31%
1920x1080 ultra AA:ultra AF:16
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	52.1 (5.2^min, 33.8^P1) fps +76%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	48.8 (11.1^min, 31.1^P1) fps +65%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	29.6 (21^min, 24.7^P1) fps
Average AMD Radeon 660M (18.4 - 29.7, n=8)	26.5 fps -10%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	25.2 (5.1^min, 6.91^P1) fps -15%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	22.7 (11.3^min, 12.5^P1) fps -23%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	20.5 (12.2^min, 14.6^P1) fps -31%

Tiny Tina's Wonderlands
1280x720 Lowest Preset (DX12)
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	142.1 fps +76%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	139 fps +72%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	80.8 fps
Average AMD Radeon 660M (56.3 - 80.8, n=2)	68.6 fps -15%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	59.8 fps -26%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	54.5 fps -33%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	54 fps -33%
1920x1080 Low Preset (DX12)
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	77.7 fps +94%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	74.6 fps +87%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	40 fps
Average AMD Radeon 660M (26.9 - 40, n=3)	33.7 fps -16%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	32.5 fps -19%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	27.3 fps -32%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	25.6 fps -36%
1920x1080 Medium Preset (DX12)
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	55.9 fps +79%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	52.2 fps +67%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	31.3 fps
Average AMD Radeon 660M (19.7 - 31.3, n=3)	26 fps -17%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	25.2 fps -19%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	21.5 fps -31%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	19.5 fps -38%
1920x1080 High Preset (DX12)
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	37.9 fps +85%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	36.6 fps +79%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	20.5 fps
Average AMD Radeon 660M (12.6 - 20.5, n=3)	16.9 fps -18%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	16.1 fps -21%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	13.8 fps -33%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	12.1 fps -41%
1920x1080 Badass Preset (DX12)
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	30.3 fps +94%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	29.5 fps +89%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	15.6 fps
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	12.7 fps -19%
Average AMD Radeon 660M (9.57 - 15.6, n=2)	12.6 fps -19%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	10.3 fps -34%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	8.9 fps -43%

Dota 2 Reborn
1280x720 min (0/3) fastest
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	161.2 (11.9^min) fps +11%
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	159.5 (137.7^min) fps +10%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	144.9 (123.5^min) fps
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	123.8 (98^min) fps -15%
Average AMD Radeon 660M (93.7 - 144.9, n=9)	114.7 fps -21%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	110.7 (97.6^min) fps -24%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	99.7 (85.3^min) fps -31%
1366x768 med (1/3)
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	126.5 (104.4^min) fps +17%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	124.8 (104.5^min) fps +16%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	107.9 (92.8^min) fps
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	93.9 (77.2^min) fps -13%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	90.8 (71^min) fps -16%
Average AMD Radeon 660M (72.2 - 107.9, n=9)	90.7 fps -16%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	80.6 (61.8^min) fps -25%
1920x1080 high (2/3)
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	98.8 (88.1^min) fps +41%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	96.8 (17.4^min) fps +38%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	70 (63.6^min) fps
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	67.6 (59.9^min) fps -3%
Average AMD Radeon 660M (37.4 - 70, n=9)	56.6 fps -19%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	50.5 (43.1^min) fps -28%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	48.7 (44.8^min) fps -30%
1920x1080 ultra (3/3) best looking
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	88.5 (78.9^min) fps +46%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	87.4 (16.1^min) fps +44%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	61.6 (54.6^min) fps +1%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	60.8 (54.4^min) fps
Average AMD Radeon 660M (32.8 - 60.8, n=9)	48.8 fps -20%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	47.6 (40.4^min) fps -22%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	45.4 (42.4^min) fps -25%

F1 22
1280x720 Ultra Low Preset AA:T AF:16x
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	186.7 (148^min, 125^P1) fps +74%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	170 (137^min, 113^P1) fps +58%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	107.3 (86^min, 79^P1) fps
Average AMD Radeon 660M (72.1 - 107.3, n=3)	88.8 fps -17%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	80 (64^min, 64^P1) fps -25%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	64.5 (55^min, 54^P1) fps -40%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	61.5 (52^min, 51^P1) fps -43%
1920x1080 Low Preset AA:T AF:16x
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	109.9 (95^min, 85^P1) fps +89%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	99.8 (12^min, 70^P1) fps +71%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	58.3 (43^min, 42^P1) fps
Average AMD Radeon 660M (42.4 - 58.3, n=4)	48.4 fps -17%
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	48 (40^min, 40^P1) fps -18%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	35.7 (31^min, 27^P1) fps -39%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	32.4 (28^min, 26^P1) fps -44%
1920x1080 Medium Preset AA:T AF:16x
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	95 (81^min, 76^P1) fps +82%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	85.9 (67^min, 59^P1) fps +64%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	52.3 (41^min, 39^P1) fps
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	44.3 (36^min, 36^P1) fps -15%
Average AMD Radeon 660M (37 - 52.3, n=4)	42.9 fps -18%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	32.3 (28^min, 25^P1) fps -38%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	28.6 (25^min, 24^P1) fps -45%
1920x1080 High Preset AA:T AF:16x
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	70.6 (60^min, 59^P1) fps +90%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	66.7 (53^min, 36^P1) fps +79%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	37.2 (31^min, 29^P1) fps
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	31.2 (27^min, 26^P1) fps -16%
Average AMD Radeon 660M (26.2 - 37.2, n=4)	29.7 fps -20%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	23.8 (20^min, 18^P1) fps -36%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	21.6 (18^min, 18^P1) fps -42%
1920x1080 Ultra High Preset AA:T AF:16x
Intel NUC 13 Pro Kit NUC13ANK Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	24 fps +185%
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	19.2 (14^min, 14^P1) fps +128%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	18.4 (12^min, 12^P1) fps +118%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	16.8 (13^min, 13^P1) fps +99%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	15.3 (13^min, 13^P1) fps +81%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	8.43 (6^min, 6^P1) fps
Average AMD Radeon 660M (5.13 - 8.43, n=3)	6.49 fps -23%

Baldur's Gate 3
1280x720 Low Preset
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	64.7 fps +73%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	37.3 fps
Average AMD Radeon 660M (26.6 - 37.3, n=2)	32 fps -14%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	22.5 fps -40%
1920x1080 Low Preset
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	43.9 fps +92%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	40.5 fps +77%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	22.9 fps
Average AMD Radeon 660M (16.5 - 22.9, n=3)	20.5 fps -10%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	14.2 fps -38%
1920x1080 Medium Preset
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	36.8 fps +144%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	33.7 fps +123%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	15.1 fps
Average AMD Radeon 660M (12.8 - 15.1, n=3)	14 fps -7%
1920x1080 High Preset
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	29.9 fps +125%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	28.1 fps +111%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	13.3 fps
Average AMD Radeon 660M (10.3 - 13.3, n=3)	12.2 fps -8%
1920x1080 Ultra Preset
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	29.2 fps +132%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	27 fps +114%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	12.6 fps
Average AMD Radeon 660M (9.97 - 12.6, n=3)	11.5 fps -9%

X-Plane 11.11
1280x720 low (fps_test=1)
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	65.9 fps +27%
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	64.2 fps +24%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	51.8 fps
Average AMD Radeon 660M (34.8 - 51.8, n=9)	44.1 fps -15%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	40.4 fps -22%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	38 fps -27%
1920x1080 med (fps_test=2)
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	47.3 fps +23%
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	46.3 fps +20%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	38.5 fps
Average AMD Radeon 660M (24.2 - 38.5, n=9)	31.9 fps -17%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	27.4 fps -29%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	27.3 fps -29%
1920x1080 high (fps_test=3)
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	39.7 fps +20%
BOSGAME M1 AMD Ryzen 7 7840HS, AMD Radeon 780M	38.7 fps +17%
GMK NucBox M6 AMD Ryzen 5 6600H, AMD Radeon 660M	33.2 fps
Average AMD Radeon 660M (22.1 - 33.8, n=9)	28.2 fps -15%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	25.1 fps -24%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	24.2 fps -27%

Tomgångskörning på Witcher 3 avslöjar problem med att upprätthålla stabila bildhastigheter, vilket tyder på dålig hantering av bakgrundsaktiviteter eller dåliga drivrutiner. Som framgår av vårt diagram nedan sjönk bildfrekvenserna ibland kraftigt från ~ 30 FPS till ~ 24 FPS till synes utan anledning när de borde vara stabila hela tiden.

Witcher 3 FPS Chart

GMK NucBox M6: Ø29.3 (23-32)

	låg	med.	hög	ultra
The Witcher 3 (2015)	98.2	52.6	25.7	17.8
Dota 2 Reborn (2015)	144.9	107.9	70	60.8
Final Fantasy XV Benchmark (2018)	48.3	24.7	17.9
X-Plane 11.11 (2018)	51.8	38.5	33.2
Far Cry 5 (2018)	71	33	30	27
Strange Brigade (2018)	120.2	43	35.9	29.6
Tiny Tina's Wonderlands (2022)	40	31.3	20.5	15.6
F1 22 (2022)	58.3	52.3	37.2	8.43
Baldur's Gate 3 (2023)	22.9	15.1	13.3	12.6
Cyberpunk 2077 2.1 Phantom Liberty (2023)	24.3	18.1	11.6

Utsläpp

Systembuller

Fläktljudet är högre än vad vi registrerade på NucBox M5. Med tanke på att M6 använder en mer krävande CPU utan några förändringar i kyllösningen är det högre ljudet ingen överraskning. Även medellånga belastningar som 3DMark 06 kan få fläkten att nå sitt maximala varvtal bara 30 sekunder in i testet jämfört med endast 37 dB(A) på den långsammare M5. Fläktpulseringen är

Fläktens ljudprofil (Vit: Bakgrund, Röd: System i viloläge, Blå: 3DMark 06, Orange: Cyberpunk 2077 stress, Grön: Prime95+FurMark stress)

Ljudnivå

Låg belastning		31.9 / 32 / 33.8 dB(A)
Hög belastning		48.5 / 48.5 dB(A)

	30 dB tyst 40 dB(A) hörbar 50 dB(A) högt ljud
min: , med: , max: Earthworks M23R, Arta (15 cm avstånd) environment noise: 24.2 dB(A)

Temperatur

AC-adaptern når över 37 C vid krävande belastningar

Yttemperaturen är aldrig obehagligt varm. Till skillnad från vissa Beelink-modeller har NucBox M6 inga galler på ovansidan, utan drar istället in frisk luft genom smala slitsar längs omkretsen. Det är säkert att placera enheten vertikalt, även om vissa ventilationsgaller kommer att blockeras.

Energihantering - högre prestanda, högre förbrukning

Strömförbrukning

Systemet är mycket mer krävande än NucBox M5 på grund av bytet till en CPU i H-serien. Körning Witcher 3skulle till exempel kräva 75 procent mer ström medan Prime95 skulle kräva över 2,5 gånger så mycket ström. Ryzen 5 6600H är förvisso snabbare än Ryzen 7 5700U i NucBox M5, men prestanda per watt gynnar fortfarande M5 med breda marginaler.

Vi kan registrera ett maximalt uttag på 85 W från den medelstora (~14,5 x 6,4 x 3,2 cm) 120 W AC-adaptern när processorn är fullt belastad. Observera att denna adapter är större än den 65 W AC-adapter som levereras med NucBox M5 på grund av den mer krävande processorn i NucBox M6.

Förbrukningen vid Prime95-stress ökade till 83 W under cirka 10 sekunder innan den sjönk något till 79 W

Prime95+FurMark stress initierad vid 10 sekunders markering

Strömförbrukning

Av/Standby	1.2 / 1.5 Watt
Låg belastning	7.9 / 8 / 8.3 Watt
Hög belastning	61.5 / 84.6 Watt


Förklaring: min: , med: , max: Metrahit Energy

	GMK NucBox M6 R5 6600H, Radeon 660M, AirDisk APF 10-512G, , x,	GMK NucBox M5 R7 5700U, Vega 8, Lexar 1024GB LNM6A1X001T-HNNNG, , x,	GMK NucBox K6 R7 7840HS, Radeon 780M, MasonSemi 1TB MC7000, , x,	BOSGAME M1 R7 7840HS, Radeon 780M, , , x,	Beelink SER5 R5 5560U, Vega 6, Crucial P3 Plus CT1000P3PSSD8, , x,	Intel NUC 13 Pro Kit NUC13ANK i7-1360P, Iris Xe G7 96EUs, Samsung PM9A1 MZVL2512HCJQ, , x,
Power Consumption		39%	-8%	-15%	43%	0%
Idle Minimum *	7.9	5.9 25%	6.7 15%	7.3 8%	4.4 44%	5.1 35%
Idle Average *	8	6.2 22%	7 12%	7.3 9%	5 37%	5.8 27%
Idle Maximum *	8.3	6.4 23%	7.6 8%	8.4 -1%	5.3 36%	10.2 -23%
Load Average *	61.5	28.2 54%	74.3 -21%	72.7 -18%	29.8 52%	68.1 -11%
Witcher 3 ultra *	47.3	27.5 42%	75 -59%	80.5 -70%	28.8 39%
Load Maximum *	84.6	29.5 65%	85.7 -1%	99.1 -17%	40.4 52%	108.3 -28%

* ... smaller is better

Power Consumption Witcher 3 / Stresstest

GMK NucBox M6 R5 6600H, Radeon 660M; Witcher 3 ultra: Ø47.3 (45.7-49.8)

GMK NucBox M5 R7 5700U, Vega 8; Witcher 3 ultra: Ø27.5 (26.7-28.1)

GMK NucBox M6 R5 6600H, Radeon 660M; 1280x720 Prime95 28.10 and Furmark 1.25: Ø80 (77.6-84.6)

GMK NucBox M5 R7 5700U, Vega 8; 1280x720 Prime95 28.10 and Furmark 1.25: Ø27.7 (27.4-29.5)

Power Consumption external Monitor

GMK NucBox M6 R5 6600H, Radeon 660M; Prime95 V2810 Stress (external Monitor): Ø78.3 (76.1-82.8)

GMK NucBox M5 R7 5700U, Vega 8; Prime95 V2810 Stress (external Monitor): Ø27.6 (27.3-28)

GMK NucBox M6 R5 6600H, Radeon 660M; Cinebench R15 Multi (external Monitor): Ø75.1 (57.8-78.5)

GMK NucBox M5 R7 5700U, Vega 8; Cinebench R15 Multi (external Monitor): Ø25.6 (25-25.9)

GMK NucBox M6 R5 6600H, Radeon 660M; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø54.7 (52.9-56.1)

GMK NucBox M5 R7 5700U, Vega 8; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø30.1 (29.6-30.5)

GMK NucBox M6 R5 6600H, Radeon 660M; 1920x1080 The Witcher 3 ultra (external Monitor): Ø47.3 (45.7-49.8)

GMK NucBox M5 R7 5700U, Vega 8; 1920x1080 The Witcher 3 ultra (external Monitor): Ø27.5 (26.7-28.1)

GMK NucBox M6 R5 6600H, Radeon 660M; Idle 1min (external Monitor): Ø8.08 (7.75-13.6)

GMK NucBox M5 R7 5700U, Vega 8; Idle 1min (external Monitor): Ø6.26 (6.02-7.71)

Bedömning - Bra värde för priset och storleken

Precis som resten av sortimentet slår NucBox M6 ut det ur parken när det gäller prestanda per dollar. Ryzen 5 6600H springer varv runt alla Core i3- eller Celeron-alternativ som vanligtvis finns i prisklassen under 300 USD. HTPC-användare som vill maximera prestandan utan att ruinera banken kommer att vilja överväga NucBox M5.

GMKtec NucBox M6 handlar om värde utan att nöja sig med långsammare U-serieprocessorer från Core i3- eller Celeron-familjerna. Fläktljudet kan dock vara på den högre sidan för en mini-dator.

Det finns några nackdelar, inklusive avsaknaden av USB4-stöd och det högre fläktljudet som förknippas med den snabbare H-serieprocessorn. Wi-Fi 6E-kompatibilitet, även om det är trevligt att ha, kan uppvisa prestandaproblem och detsamma kan sägas när man spelar 4K-videoinnehåll med 60 FPS. Särskilt de senare problemen kan visa på en brist på omsorg om modellens mindre detaljer. För målgruppen av hemanvändare och grundläggande HTPC-streaminguppgifter är det dock mer troligt att de flesta kommer att märka fläktljudet än något annat.

Pris och tillgänglighet

NucBox M6 levereras nu direkt från tillverkaren för $230 som barebones-kit eller för $300 med 16 GB RAM, 512 GB SSD och Windows 11 Pro. Modellen finns också tillgänglig på Amazon för högre startpriser.

Information: Vi har nyligen uppdaterat vårt betygssystem och resultaten från version 8 är inte jämförbara med resultaten från version 7. Ytterligare information om detta finns här tillgänglig.

Obs: Vi har nyligen uppdaterat vårt betygssystem och resultaten från version 8 är inte jämförbara med resultaten från version 7. Mer information finns tillgänglig här .

GMK NucBox M6 - 07/04/2024 v8
Allen Ngo

Design

82 / 98 → 84%

Anslutningar

56 / 81 → 69%

Vikt

83%

Spelprestanda

32 / 80 → 40%

Programprestanda

78 / 92 → 85%

Ljudnivå

69%

Medel

43%

64%

Mini PC - Vägt medel

CO2 Emissions
No Data

Materials
0%

Packaging
0%

Power Use
69.8%

Repairability
40%

Software Updates
22.3%

Total Sustainability Score: 22%

Transparency

The selection of devices to be reviewed is made by our editorial team. The test sample was provided to the author as a loan by the manufacturer or retailer for the purpose of this review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.

This is how Notebookcheck is testing

Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.

Rating	Version	Date	Model	Weight	Height	Resolution
63.6 %	v8	07/2024	GMK NucBox M6 R5 6600H, Radeon 660M	526 g	48 mm	x
78.9 % v7 ^(old)	v7 ^(old)	04/2024	GMK NucBox M5 R7 5700U, Vega 8	505 g	48 mm	x
83.6 % v7 ^(old)	v7 ^(old)	04/2024	GMK NucBox K6 R7 7840HS, Radeon 780M	514 g	47 mm	x
84.5 % v7 ^(old)	v7 ^(old)	05/2024	BOSGAME M1 R7 7840HS, Radeon 780M	766 g	51 mm	x
82.1 % v7 ^(old)	v7 ^(old)	11/2023	Beelink SER5 R5 5560U, Vega 6	439 g	42 mm	x
80.8 % v7 ^(old)	v7 ^(old)	04/2023	Intel NUC 13 Pro Kit NUC13ANK i7-1360P, Iris Xe G7 96EUs	538 g	37 mm	x

Cinebench R15 CPU Multi 64 Bit jämför
HP Pavilion 11-n070eg x360 (min) N2820, HD Graphics (Bay Trail)	46
...
Lenovo Legion 5 17ACH6H-82JY0003GE R5 5600H, GeForce RTX 3060 Laptop GPU	1723
Lenovo Legion 5 15ACH6A-82NW0010GE R5 5600H, Radeon RX 6600M	1723
Lenovo Yoga 7 16IRL8 i7-1355U, Iris Xe G7 96EUs	1735
GMK NucBox M6 R5 6600H, Radeon 660M	1737
Asus Zenbook S 13 OLED R7 6800U, Radeon 680M	1742
Asus Zenbook S 13 OLED R7 6800U, Radeon 680M	1742
SCHENKER XMG Apex 15 Max R9 5900X, GeForce RTX 3070 Laptop GPU	1744
...
(max) TR Pro 7995WX, RTX 6000 Ada Generation	15842

	Genomsnittlig CPU-klocka (GHz)	GPU-klocka (MHz)	Genomsnittlig CPU-temperatur (°C)
System i viloläge	--	--	40
Prime95 Stress	~3,9	--	80
Prime95 + FurMark Stress	~3,7	1421	75
Witcher 3 Stress	~0,3	1900	54

GMK NucBox M6 recension: En balanserad mini-dator för under 300 dollar

Zen 3+ i mellanklassen för en billig peng.

Potentiella konkurrenter i jämförelse

Fodral - Välbekant plastdesign

Storleksjämförelse

Anslutningsmöjligheter

Kommunikation

Underhåll

Tillbehör och garanti

Prestanda - Bra CPU för priset

Testförhållanden

Processor

Cinebench R15 Multi Loop

Stresstest

Systemets prestanda

DPC-fördröjning

Lagringsenheter

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

GPU-prestanda - Radeon 660M kämpar i de flesta spel

Witcher 3 FPS Chart

Utsläpp

Systembuller

Temperatur

Energihantering - högre prestanda, högre förbrukning

Strömförbrukning

Power Consumption Witcher 3 / Stresstest

Power Consumption external Monitor

För

Emot

Bedömning - Bra värde för priset och storleken

Pris och tillgänglighet

More articles related to this device

Transparency

Price comparison

3DMark 11 Performance		7680 poäng
3DMark Cloud Gate Standard Score		24842 poäng
3DMark Fire Strike Score		4562 poäng
3DMark Time Spy Score		1793 poäng
3DMark Steel Nomad Score		275 poäng
Hjälp

3DMark 11 jämför
Lenovo IdeaPad Flex-1570 81CA000RUS (min) i5-8550U, GeForce MX130	28
...
Geekom Mini IT13 i9-13900H, Iris Xe G7 96EUs	7656
HP EliteBook 840 G9 i7-1280P, Iris Xe G7 96EUs	7668
Minisforum Neptune Series NAD9 i9-12900H, Iris Xe G7 96EUs	7673
GMK NucBox M6 R5 6600H, Radeon 660M	7680
Lenovo ThinkPad P51 20HH0016GE E3-1505M v6, Quadro M2200	7709
MSI GL63 8RC-069US i5-8300H, GeForce GTX 1050 Mobile	7709
Asus TUF FX505DY R5 3550H, Radeon RX 560X (Laptop)	7714
...
(max) R7 9800X3D, NVIDIA GeForce RTX 4090	77609

	GMK NucBox M6 Radeon 660M, R5 6600H, AirDisk APF 10-512G	GMK NucBox M5 Vega 8, R7 5700U, Lexar 1024GB LNM6A1X001T-HNNNG	GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	BOSGAME M1 Radeon 780M, R7 7840HS	Beelink SER5 Vega 6, R5 5560U, Crucial P3 Plus CT1000P3PSSD8	Intel NUC 13 Pro Kit NUC13ANK Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ
Noise		9%	3%	8%	28%	4%
off / environment *	24.2	23.4 3%	23.2 4%	23.2 4%	23.7 2%	29.8 -23%
Idle Minimum *	31.9	33.8 -6%	31.3 2%	32 -0%	23.9 25%	30.2 5%
Idle Average *	32	33.8 -6%	31.3 2%	32 -0%	23.9 25%	31.1 3%
Idle Maximum *	33.8	33.8 -0%	33.4 1%	32 5%	23.9 29%	31.9 6%
Load Average *	48.5	36.5 25%	47.5 2%	38.7 20%	28 42%	40 18%
Witcher 3 ultra *	48.5	36.8 24%	43.6 10%	41.7 14%	27.6 43%
Load Maximum *	48.5	36.9 24%	47.7 2%	42 13%	32.8 32%	40.5 16%
