Intel NUC 12 Pro Kit - Wall Street Canyon

Intel har uppdaterat sin kompakta NUC-minidatorserie med de nya Alder Lake-P SoC:erna. Namnet "Wall Street Canyon" betecknar den senaste modellserien baserad på de moderna SoC:erna. Det finns två baskonfigurationer, som skiljer sig åt när det gäller dimensionerna. Den något högre modellen bär beteckningen "Tall", som anger möjligheten till en extra 2,5-tums enhet. Däremot erbjuder vår "Slim"-testenhet inte detta alternativ. När det gäller priset skiljer cirka 100 USD mellan de två varianterna. Båda enheterna kan endast fås som barebone. Användarna måste alltså själva installera RAM-minne och lagringsutrymme.

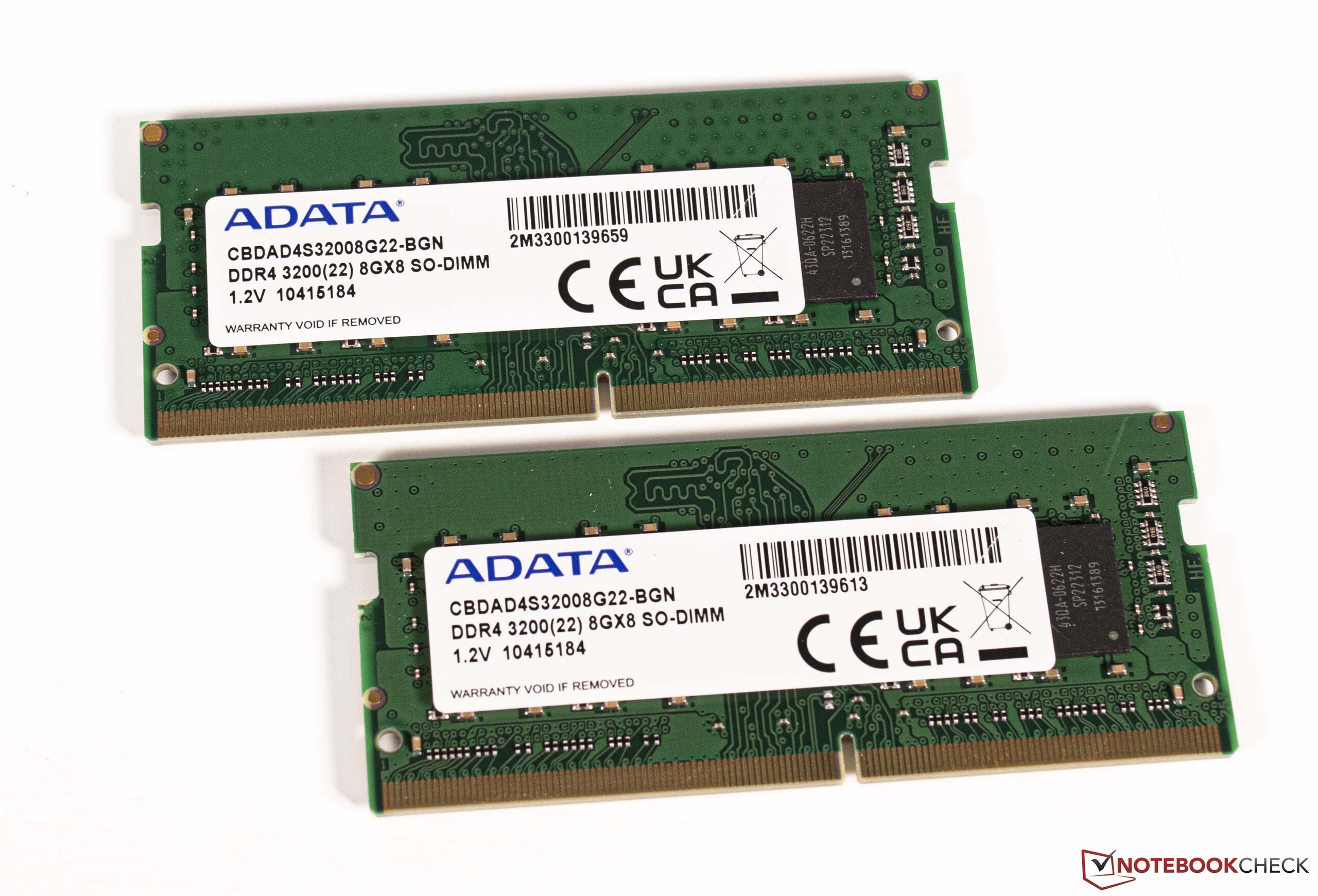

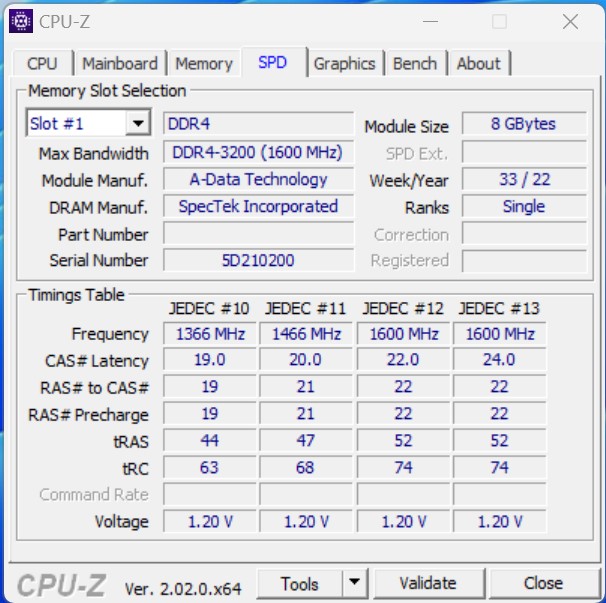

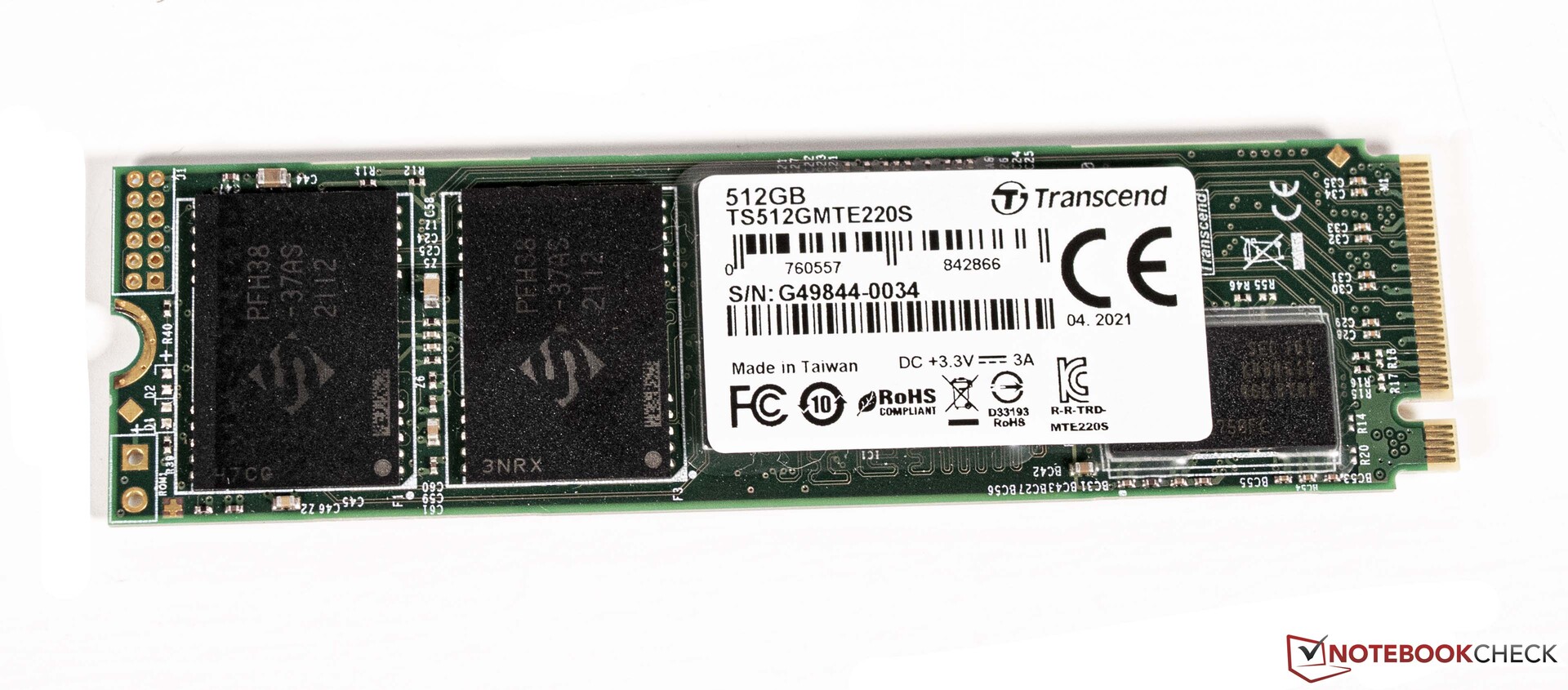

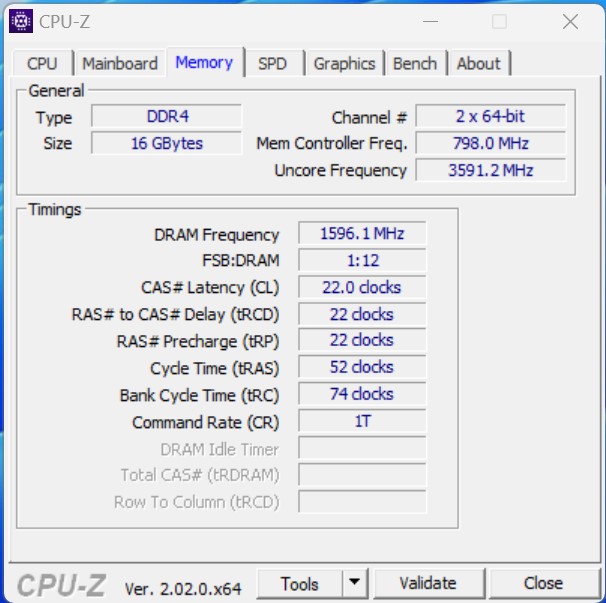

För vår testning installerade vi två 8-GB DDR4-3200-moduler och en 512-GB SSD i vårt testprov. Den senaste tillgängliga versionen av Windows 11 Professional vid tidpunkten för den här granskningen fungerar som operativsystem.

Hölje

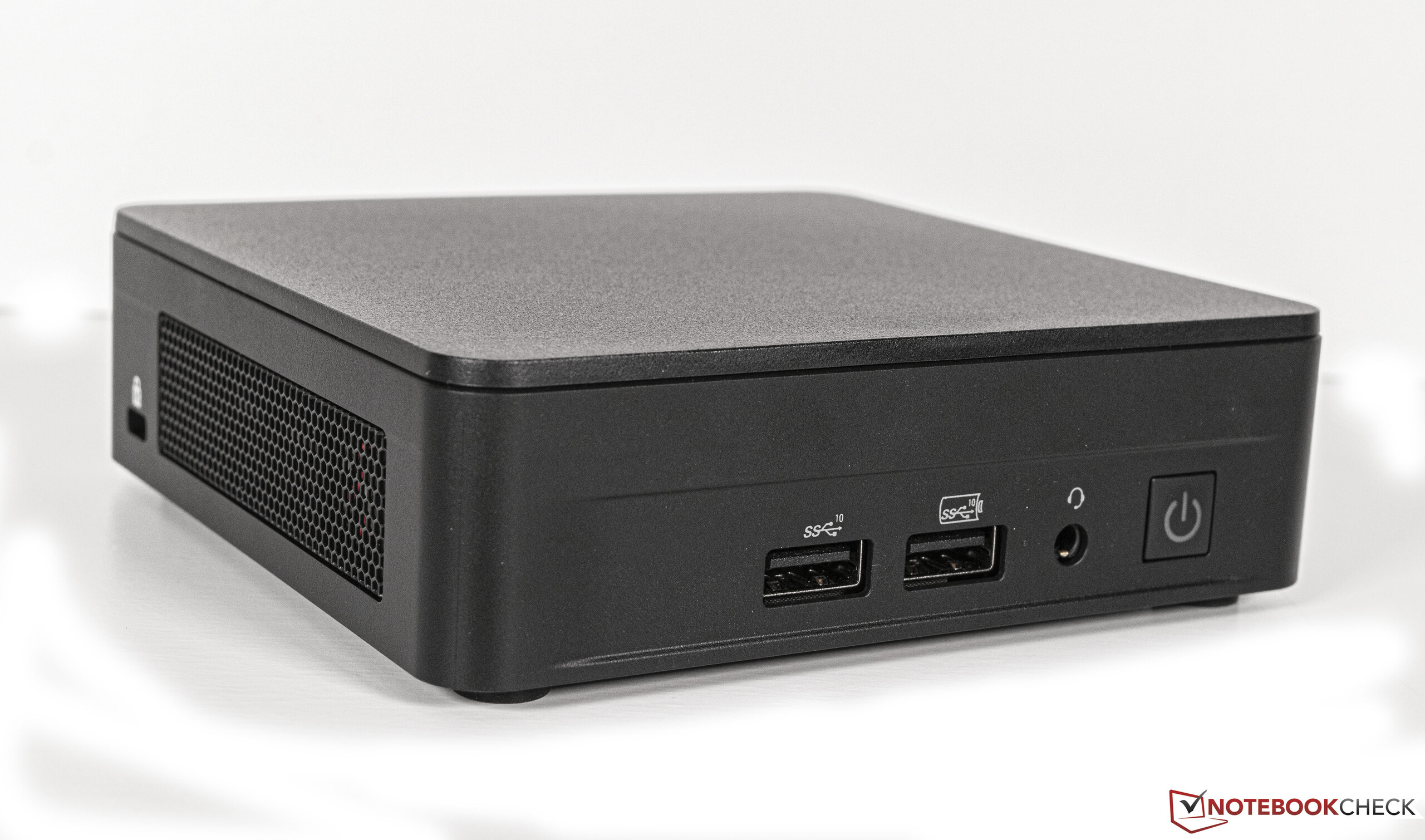

Wall Street Canyon är helt klart en Intel NUC. Enhetens yttre design är mycket diskret och det finns inga blanka ytor någonstans på systemet. Även om botten av höljet består av metall, som dubblerar som en kylningslösning för lagret, består en märkbar del av NUC:n av plast. Enheten har en robust metallram, vilket nästan har blivit standard på de kompakta Intel NUC:erna och ger datorn den nödvändiga styvheten. Med en höjd på bara 37 mm (~1,46 tum) är vår Slim-version ganska liten. Dessutom tar enheten inte mycket plats på ett skrivbord på grund av sitt lilla fotavtryck på 11,7 x 11,2 cm (~4,61 x 4,41 tum). Alternativt kan den fästas på en bildskärm med det medföljande VESA-fästet.

Anslutningsmöjligheter

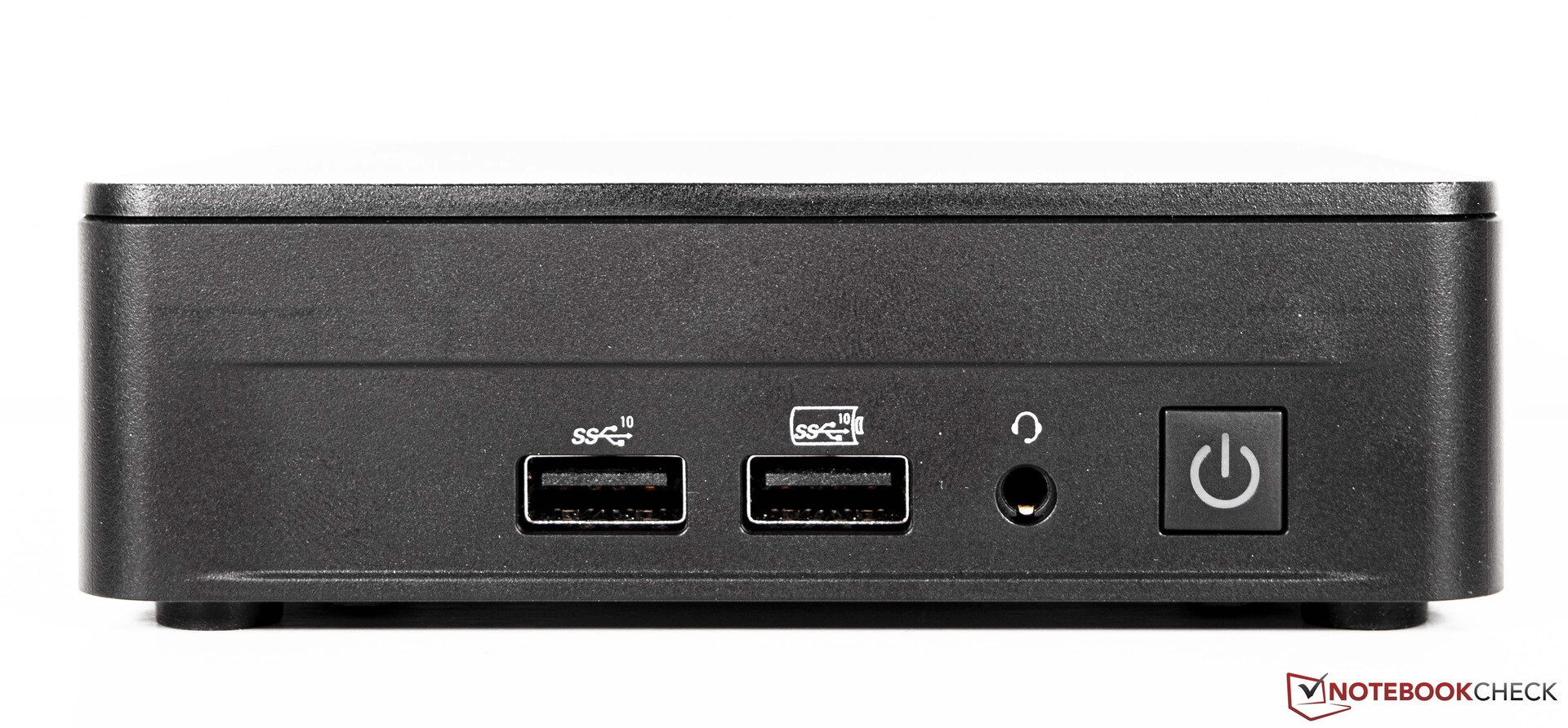

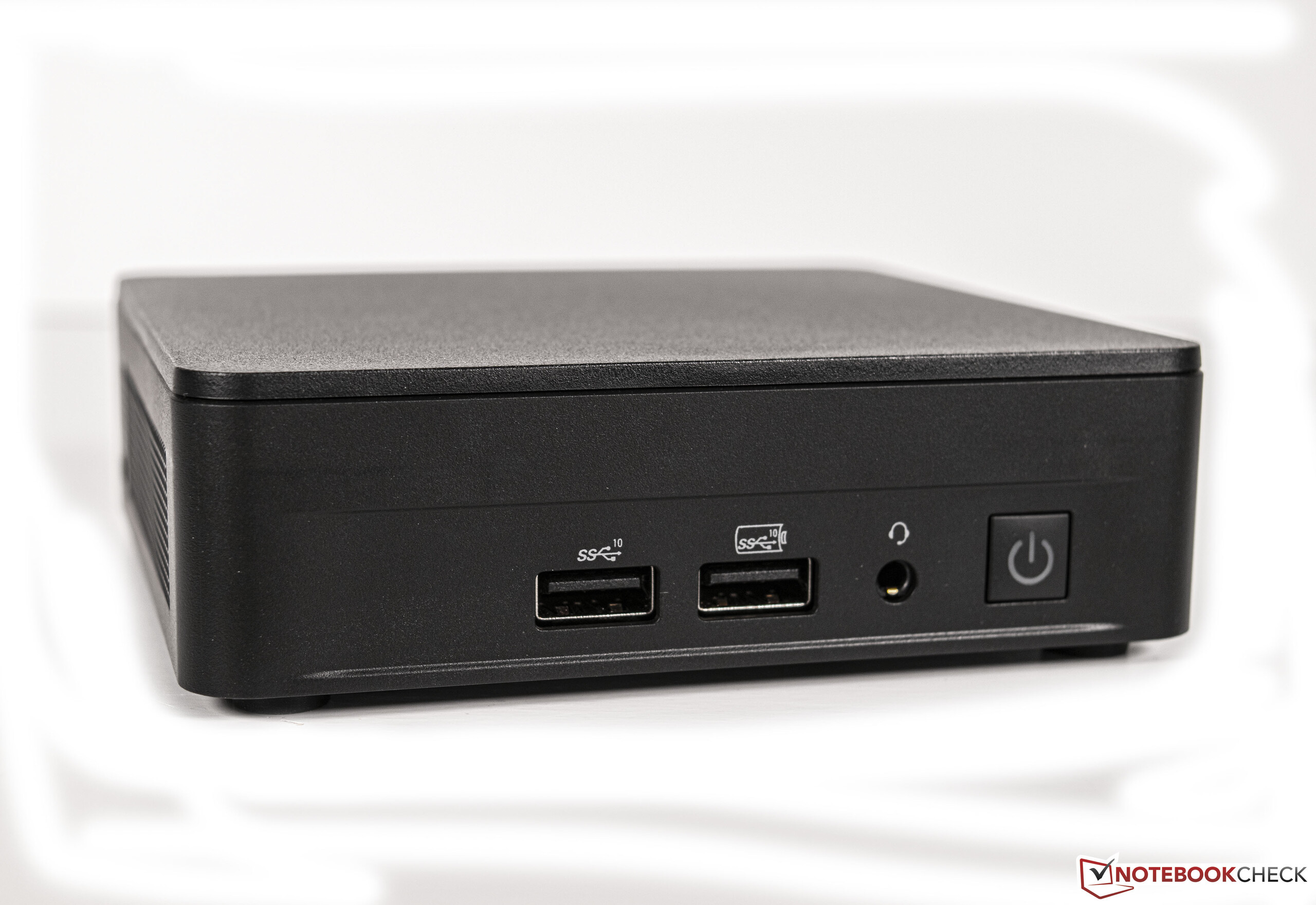

Intel NUC 12 Pro Kit erbjuder alla de vanligaste alternativen när det gäller val av portar. Det finns fyra USB typ-A-portar och två USB typ-C-portar. Typ-C-portarna stöder USB4-hastigheter. De två Thunderbolt-gränssnitten ökar också systemets flexibilitet enormt. Det breda utbudet av tillgängliga tillbehör är nästan oändligt. Slutligen finns det två HDMI-portar och en 2,5G Ethernet-port.

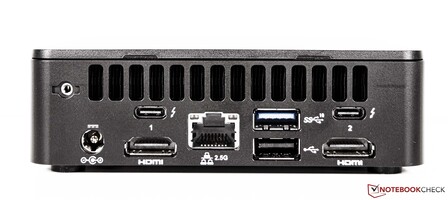

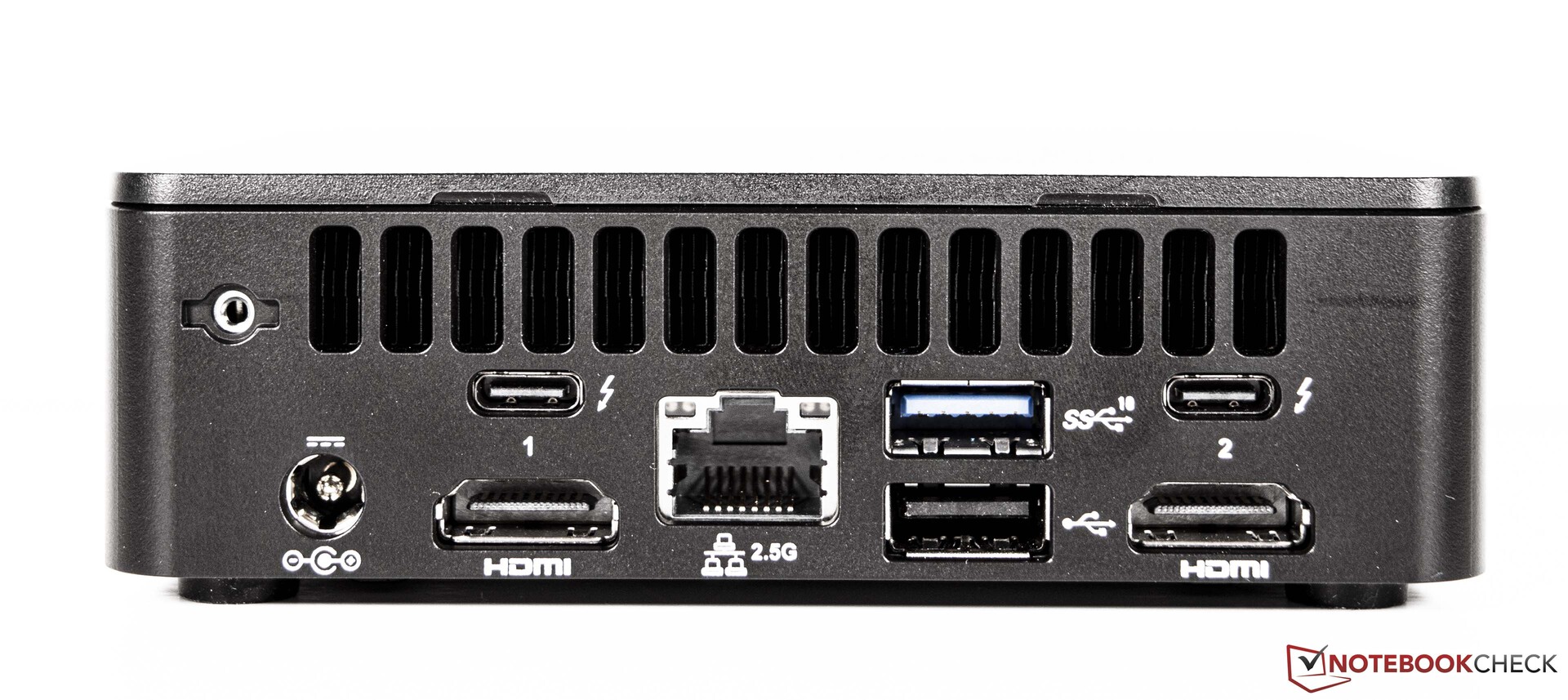

Baksidan: AC-adapter, 2x USB4 (typ-C), 1x USB 3.2, 1x USB 2.0, LAN 2,5G, 2x HDMI 2.1

Kommunikation

På NUC 12 Pro Kit används Intels egen Wi-Fi 6E AX211-modul för trådlöst nätverk. Den fungerar bra i våra tester. Oavsett det så når den inte riktigt de överföringshastigheter vi hoppades på när vi skickar data. Morefine S600-Apex uppnår betydligt bättre resultat med samma modul. Vi använde vår referensrouter Asus ROG Rapture GT-AXE11000 för det här testet.

Networking
iperf3 receive AXE11000 6GHz
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Wi-Fi 6E AX211	1530 (1509^min - 1551^max) MBit/s
Genomsnitt Intel Wi-Fi 6E AX211 (700 - 1857, n=217)	1493 MBit/s -2%
Genomsnitt av klass Mini PC (684 - 1806, n=55, senaste 2 åren)	1412 MBit/s -8%
Morefine S600-Apex Engineer Intel Wi-Fi 6E AX211	1044 (1009^min - 1058^max) MBit/s -32%
Minipc Union Ace Magician AMR5 MediaTek RZ608	903 (450^min - 913^max) MBit/s -41%
Minipc Union Ace Magician TK11-A0 Intel Wi-Fi 6 AX201	390 (322^min - 478^max) MBit/s -75%
iperf3 transmit AXE11000 6GHz
Morefine S600-Apex Engineer Intel Wi-Fi 6E AX211	1658 (1514^min - 1706^max) MBit/s +80%
Genomsnitt Intel Wi-Fi 6E AX211 (385 - 1851, n=217)	1366 MBit/s +49%
Genomsnitt av klass Mini PC (394 - 1800, n=55, senaste 2 åren)	1360 MBit/s +48%
Minipc Union Ace Magician AMR5 MediaTek RZ608	967 (486^min - 993^max) MBit/s +5%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Wi-Fi 6E AX211	919 (458^min - 982^max) MBit/s
Minipc Union Ace Magician TK11-A0 Intel Wi-Fi 6 AX201	745 (381^min - 876^max) MBit/s -19%

Intel NUC 12 Pro Kit NUC12WSKi7; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø904 (458-982)

Intel NUC 12 Pro Kit NUC12WSKi7; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1530 (1509-1551)

Tillbehör

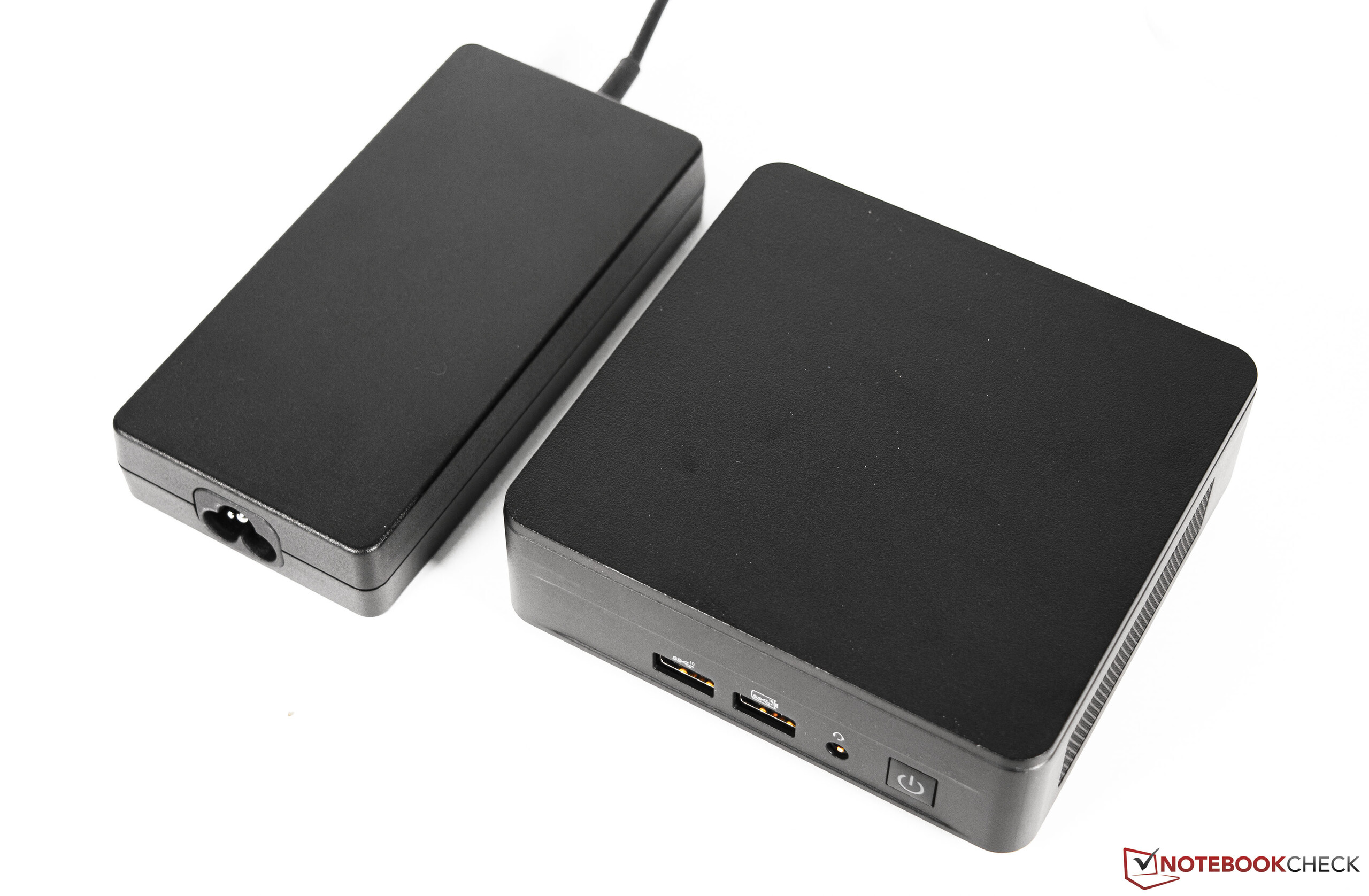

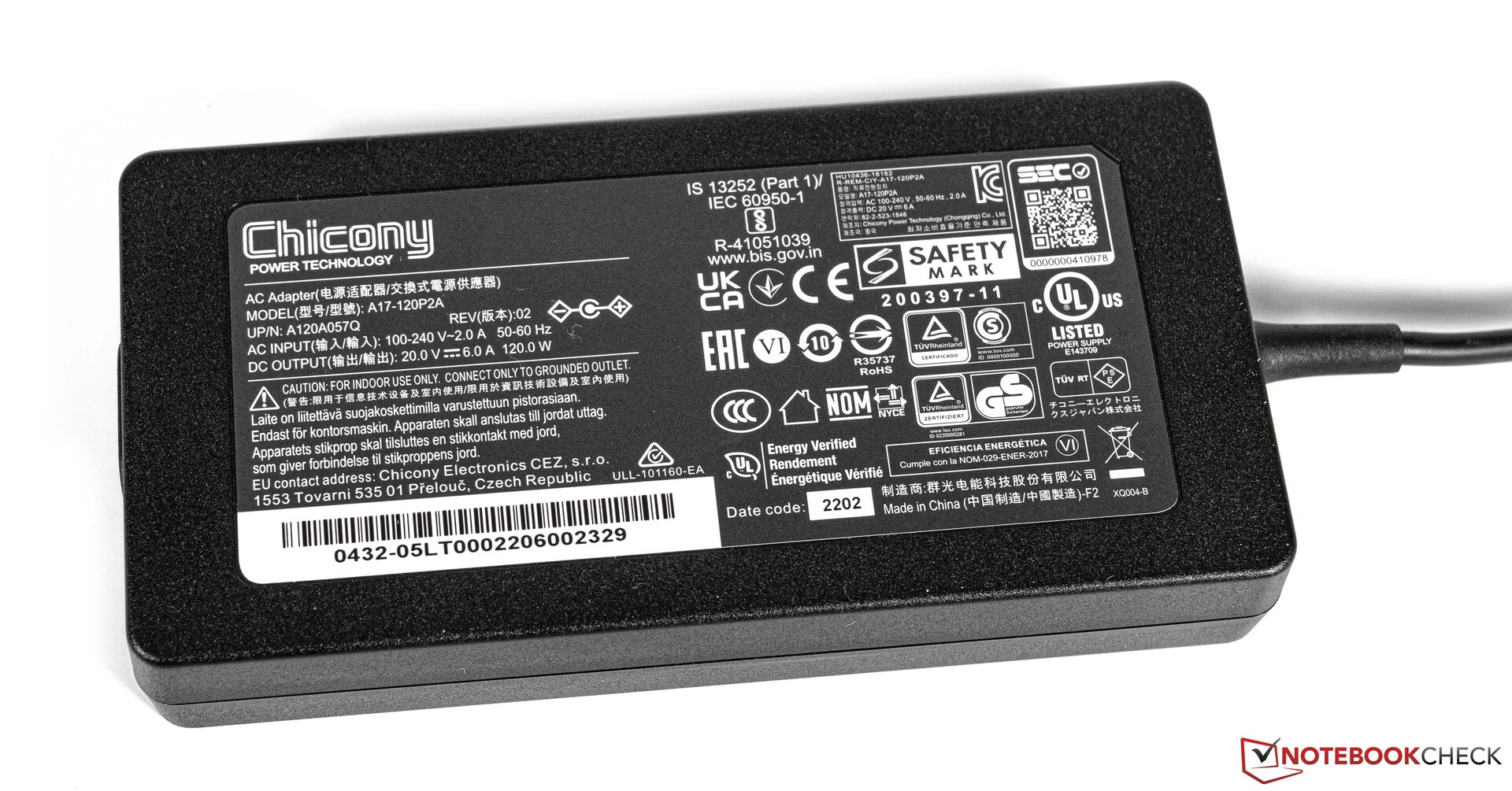

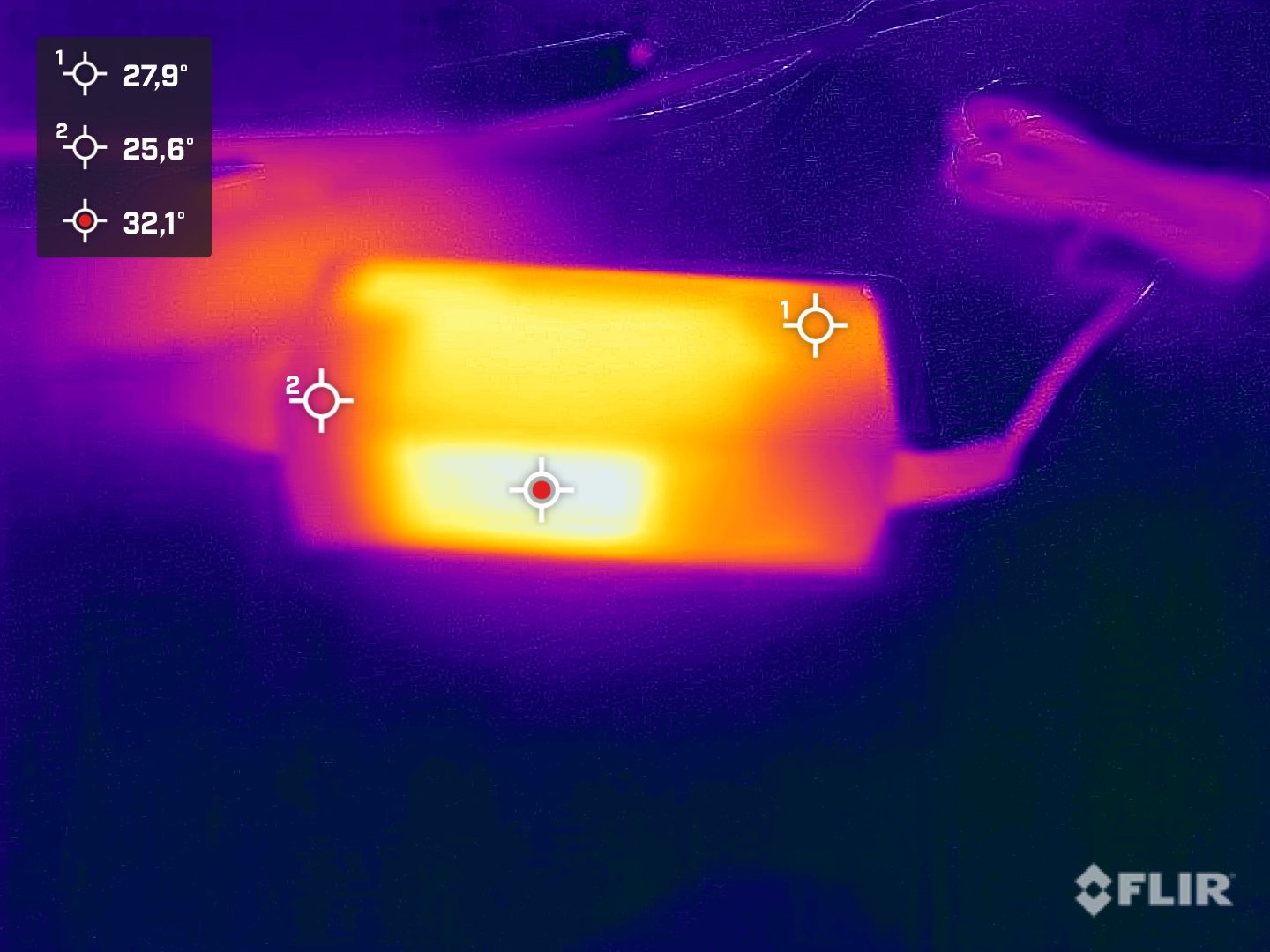

Förutom själva enheten ingår en 120-watts nätadapter och en platta för VESA-montering i paketet.

Underhåll

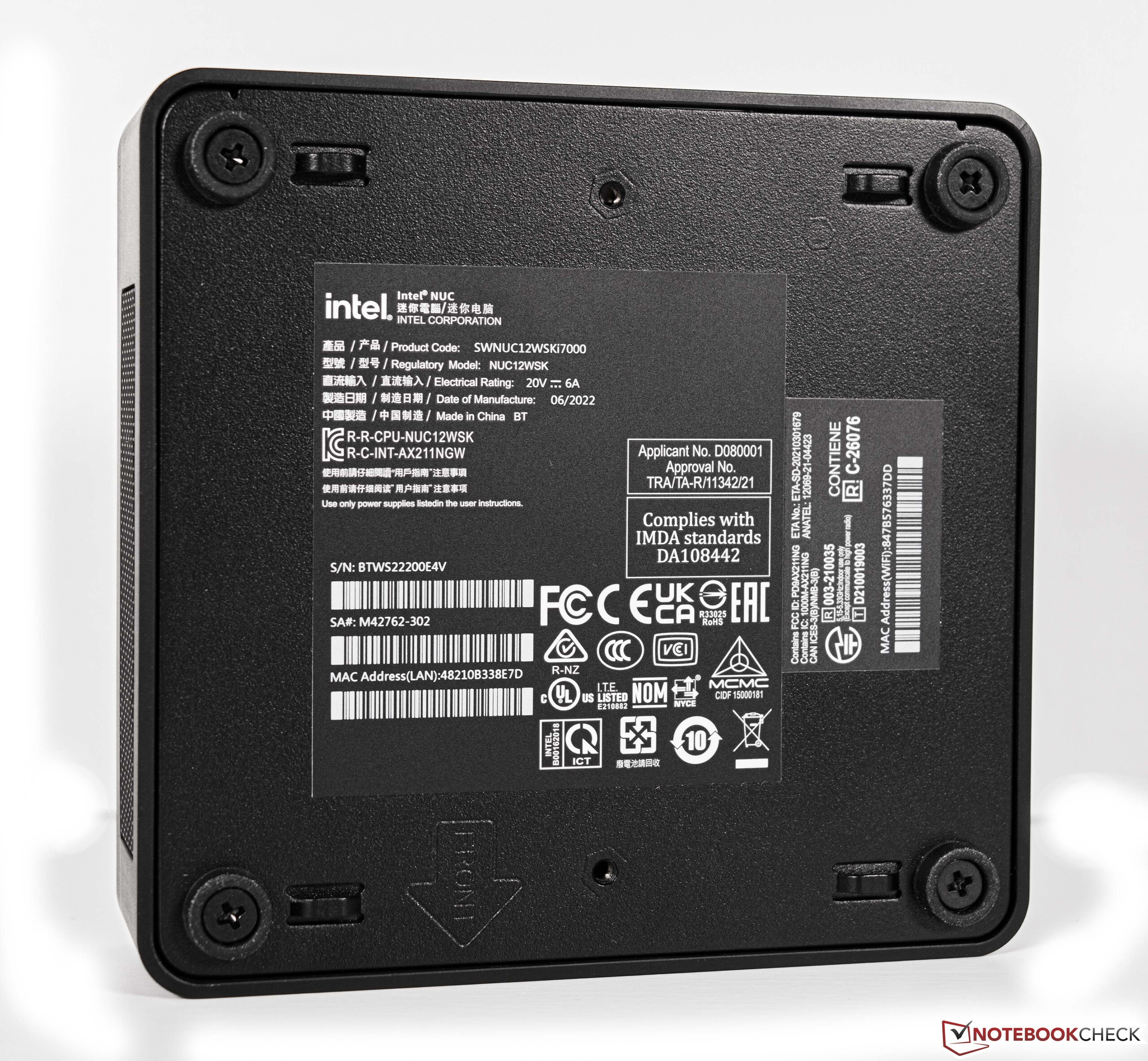

Liksom alla kompakta Intel NUC:er gör NUC 12 Pro Kit det möjligt att snabbt och enkelt utföra underhåll via enhetens undersida. Det nedre locket fästs med fyra små skruvar och fungerar som en kylare för SSD-enheterna. När man väl är inne är det mycket enkelt att komma åt RAM- och SSD-platserna.

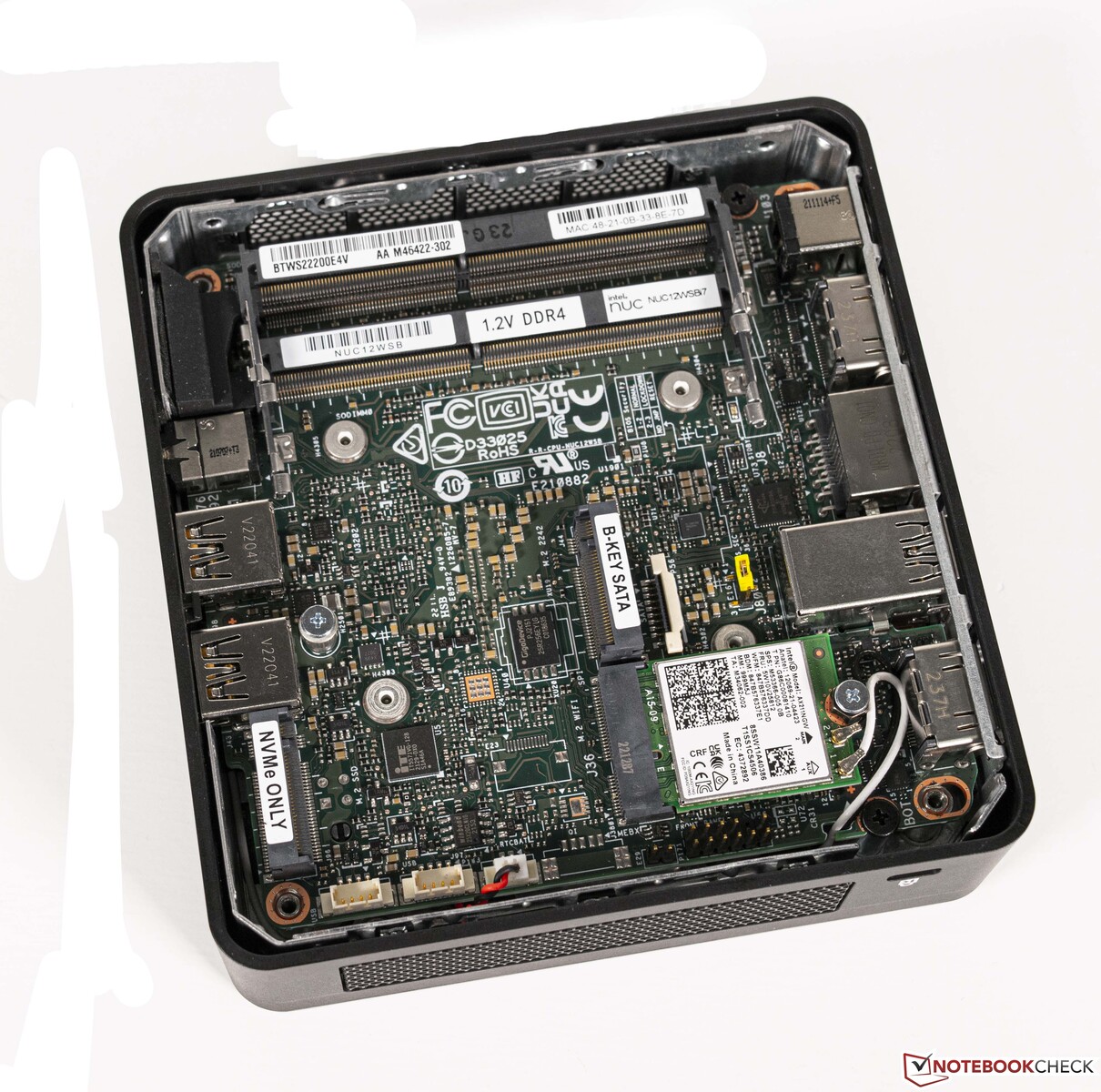

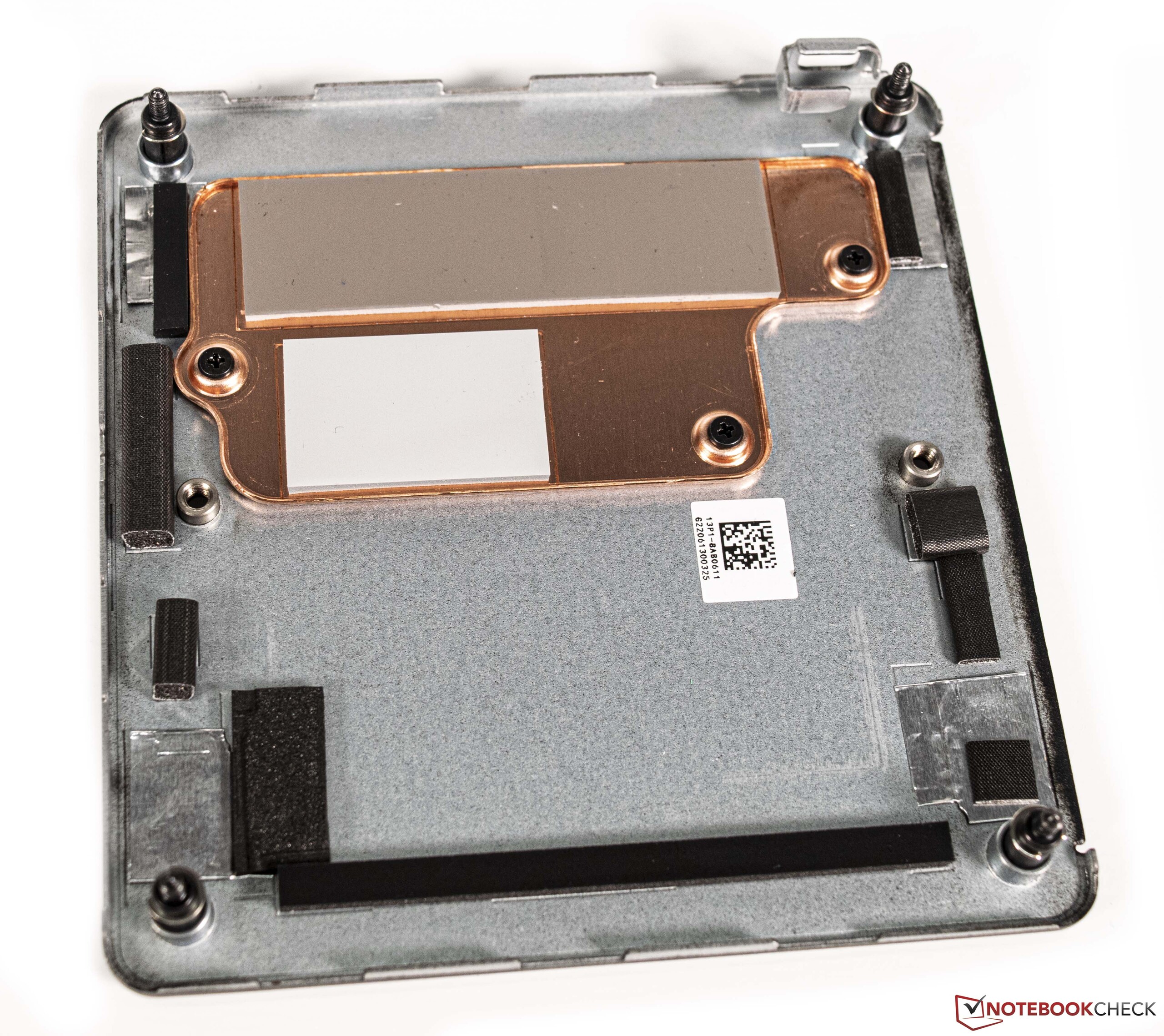

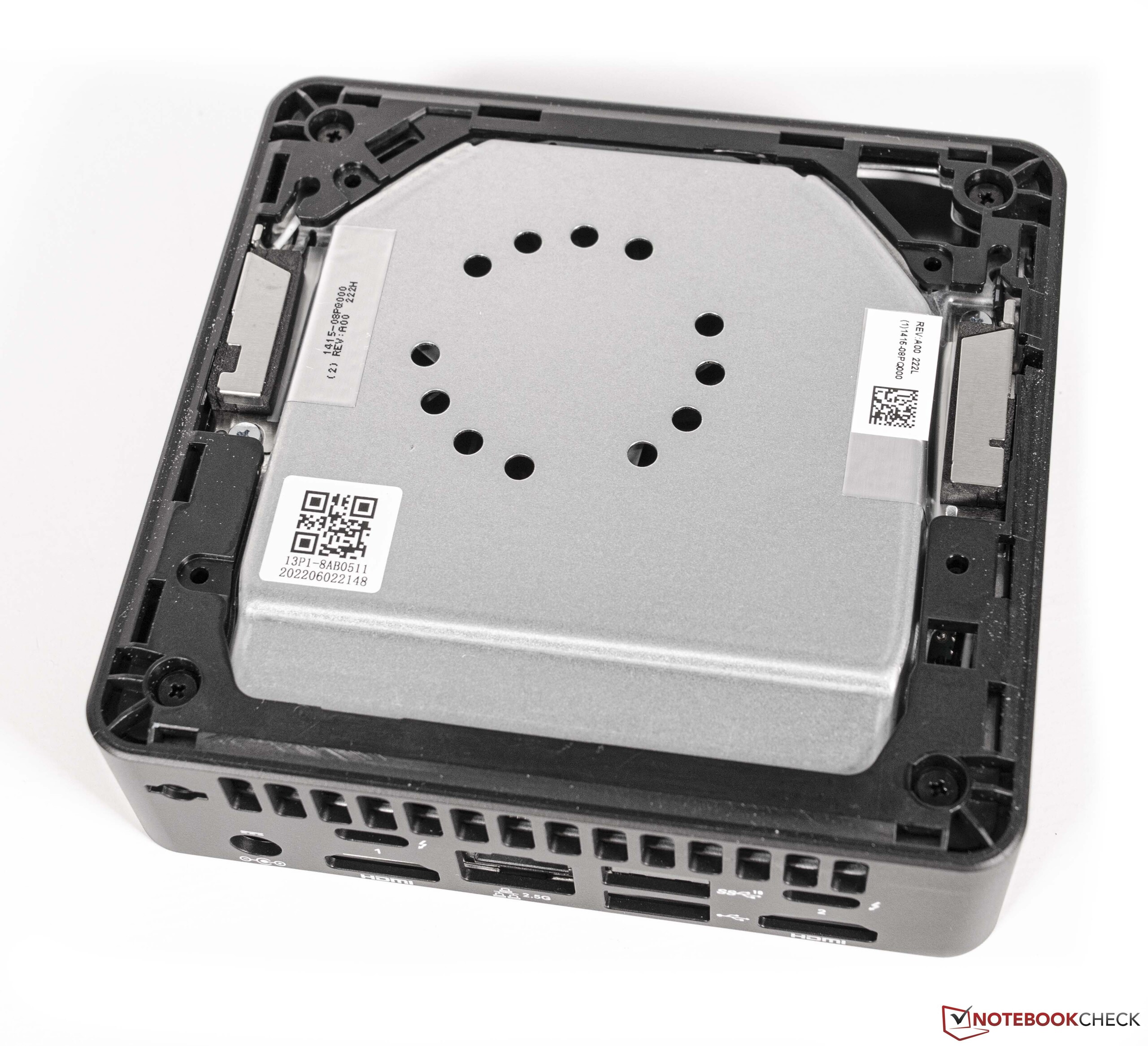

Intel NUC 12 Pro Kit - Wall Street Canyon med det nedre locket borttaget

Prestanda - Core i7 med 12 kärnor

Kompakta datorer blir allt mer kraftfulla, vilket användare som arbetar med Intel NUC 12 Pro Kit snabbt kommer att inse. I hjärtat av systemet finns en 12-kärnig CPU med 16 trådar, vilket gör det kompakta systemet till ett utmärkt val för krävande uppgifter.

Provningsförhållanden

Vi utförde alla benchmarks med den balanserade strömprofilen. Vi ändrade inte inställningarna för CPU-prestanda och lät allt stå på auto i BIOS-inställningarna.

Processor

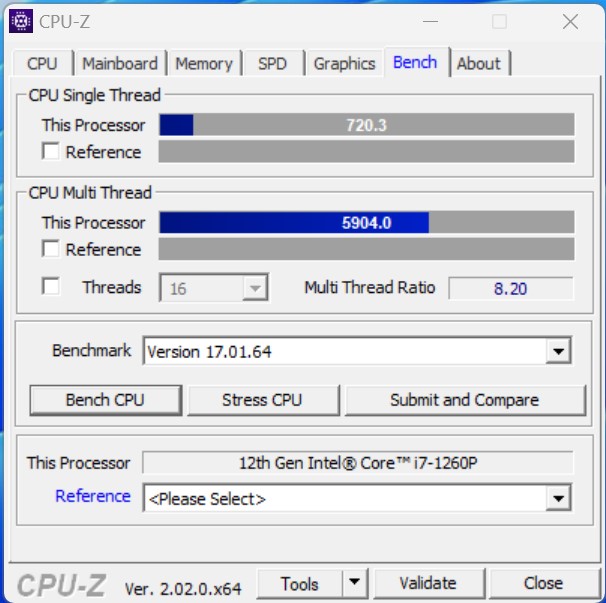

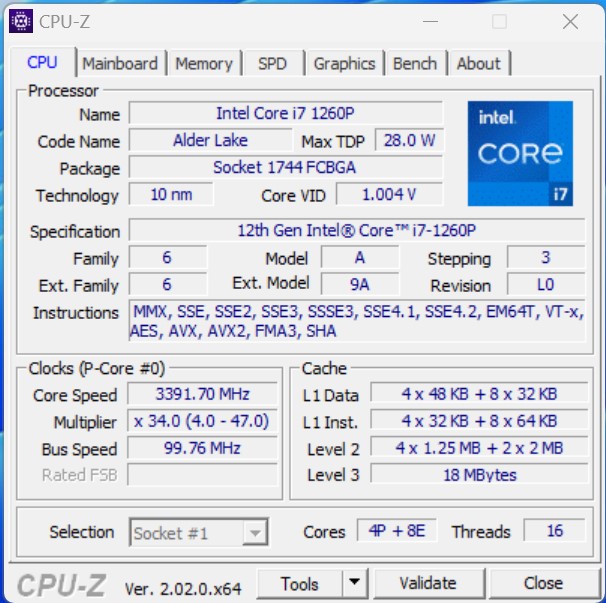

Med hjälp avIntel Core i7-1260Pinnehåller Intel NUC 12 Pro-satsen en mycket ny SoC. Tack vare sina 12 fysiska kärnor och totalt 16 trådar är Intel Core i7-1260p ett solitt val även för krävande användare. Den är klassad för en burst TDP (PL2) på 64 watt och en kontinuerlig TDP (PL1) på 40 watt. Jämfört med sina konkurrenter presterar Intel NUC 12 Pro Kit mycket bra. Bland konkurrenterna till kompakta datorer är det bara Morefine S600-Apex ett något bättre totalresultat. Ett underskott på 14 procent jämfört med en Intel Core i5-12600K är ändå inte särskilt stort. Detta illustrerar ytterligare hur bra denna mobila SoC kan prestera.

Fler jämförelser och benchmarks finns på vår CPU-benchmark-sida.

Performance Rating - Percent
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	56.1 pt
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	49.3 pt
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	47.7 pt
Genomsnitt Intel Core i7-1260P	46.8 pt
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	41.8 pt
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	35.8 pt

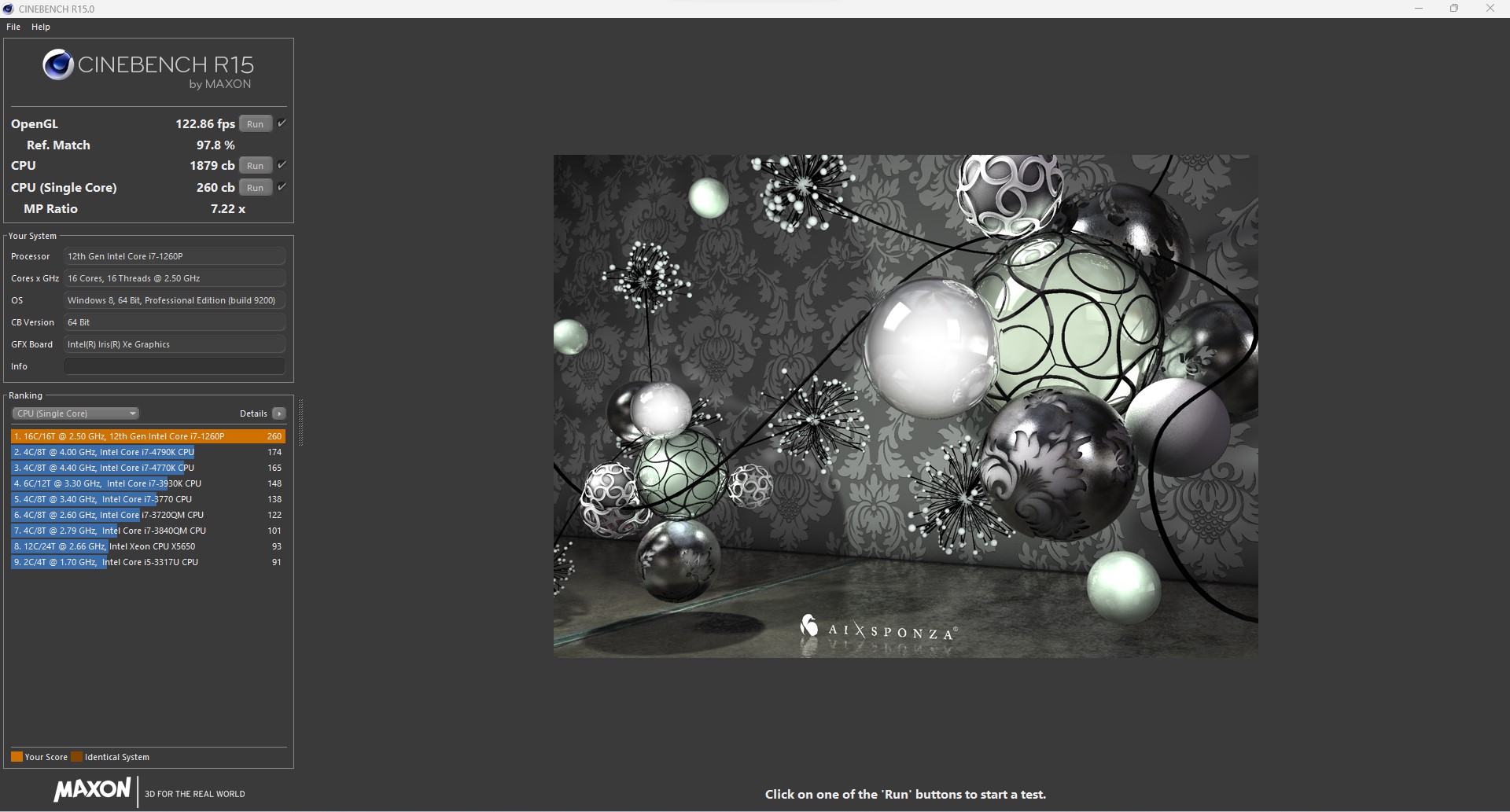

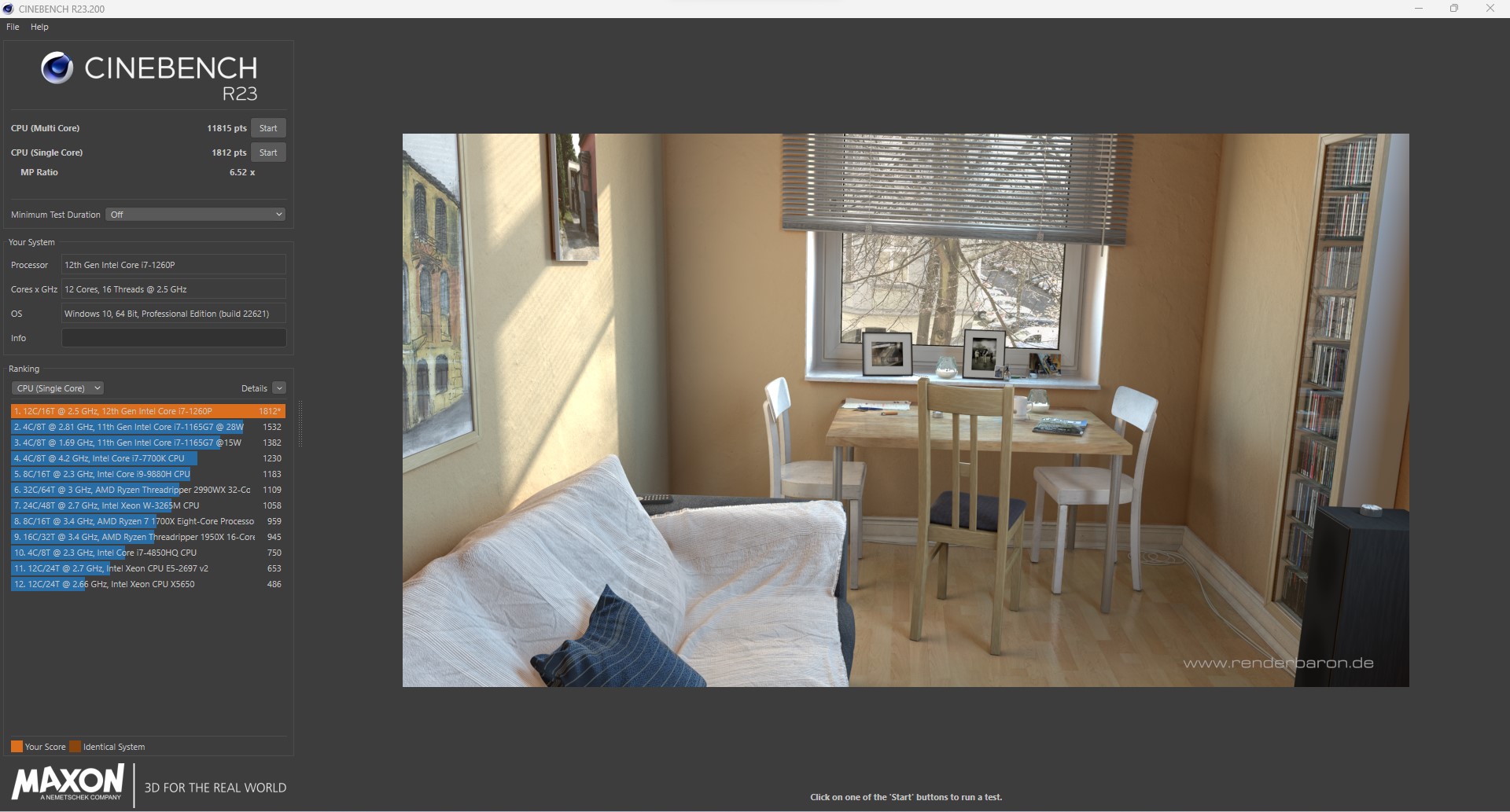

Cinebench R15
CPU Single 64Bit
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	275 Points +6%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	260 Points
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	242 Points -7%
Genomsnitt Intel Core i7-1260P (165.4 - 260, n=27)	232 Points -11%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	223 Points -14%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	197 Points -24%
CPU Multi 64Bit
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	2555 Points +36%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	2224 Points +18%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	1879 Points
Genomsnitt Intel Core i7-1260P (549 - 2034, n=29)	1553 Points -17%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1265 Points -33%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	560 Points -70%

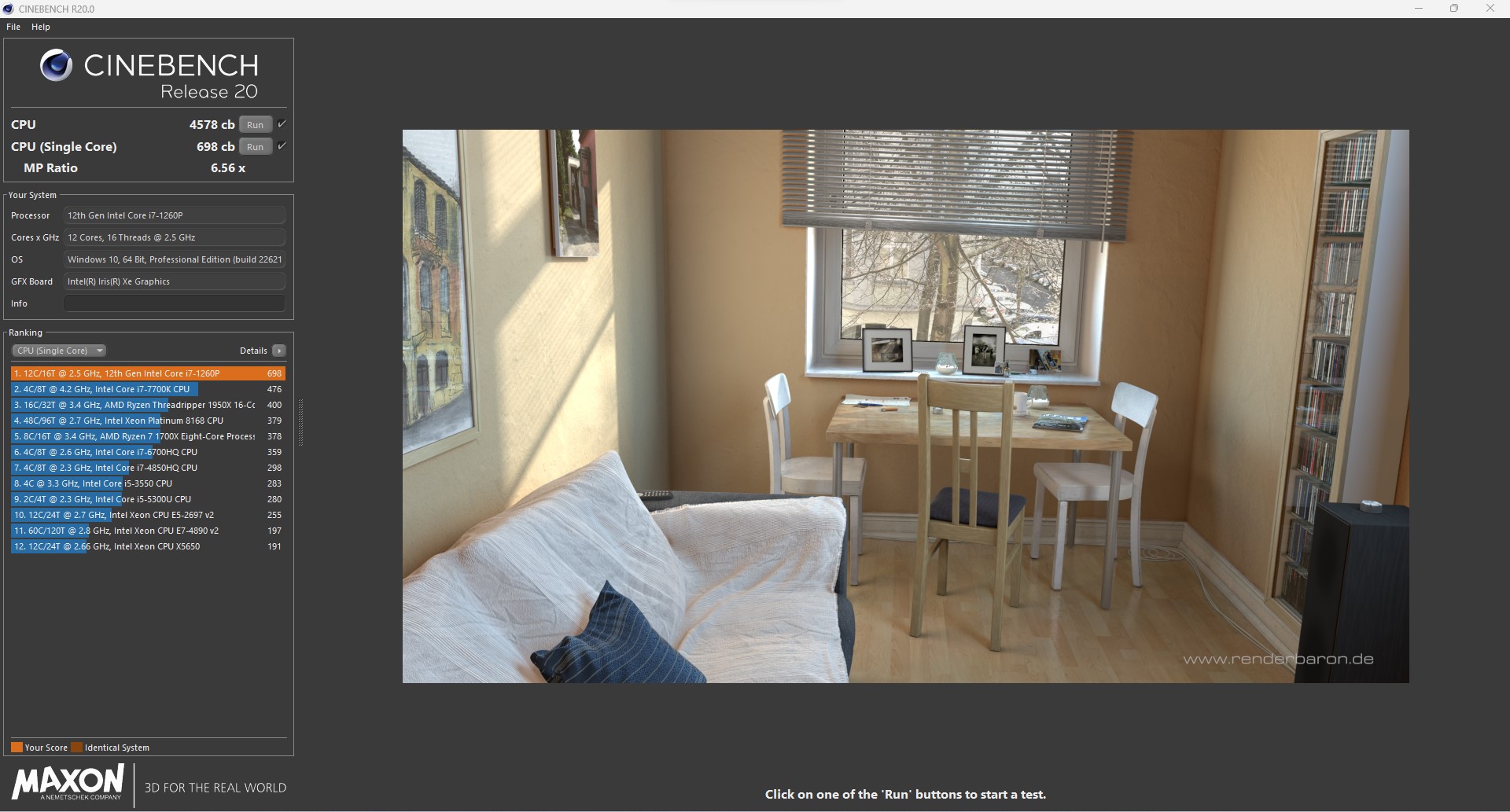

Cinebench R20
CPU (Single Core)
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	734 Points +5%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	698 Points
Genomsnitt Intel Core i7-1260P (448 - 698, n=25)	645 Points -8%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	582 Points -17%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	534 Points -23%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	517 Points -26%
CPU (Multi Core)
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	6692 Points +46%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	5185 Points +13%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	4578 Points
Genomsnitt Intel Core i7-1260P (1234 - 4748, n=25)	3595 Points -21%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	2975 Points -35%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	1440 Points -69%

Cinebench R11.5
CPU Single 64Bit
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	3.31 Points +5%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	3.15 Points
Genomsnitt Intel Core i7-1260P (2.93 - 3.15, n=3)	3.06 Points -3%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	2.86 Points -9%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	2.64 Points -16%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	2.31 Points -27%
CPU Multi 64Bit
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	30.01 Points +27%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	25.6 Points +8%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	23.6 Points
Genomsnitt Intel Core i7-1260P (20.1 - 23.6, n=3)	21.9 Points -7%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	14.78 Points -37%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	6.37 Points -73%

Cinebench R10
Rendering Single CPUs 64Bit
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	15180 Points +5%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	14504 Points
Genomsnitt Intel Core i7-1260P (13568 - 14504, n=2)	14036 Points -3%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	12152 Points -16%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	11098 Points -23%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	10395 Points -28%
Rendering Multiple CPUs 64Bit
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	89478 Points +22%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	73492 Points
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	73115 Points -1%
Genomsnitt Intel Core i7-1260P (53950 - 73492, n=2)	63721 Points -13%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	45363 Points -38%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	24499 Points -67%

Blender - v2.79 BMW27 CPU
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	750 Seconds * -168%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	399 Seconds * -43%
Genomsnitt Intel Core i7-1260P (264 - 906, n=26)	366 Seconds * -31%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	280 Seconds *
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	229.3 Seconds * +18%
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	189.5 Seconds * +32%

wPrime 2.10
32m
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	6.799 s * -87%
Genomsnitt Intel Core i7-1260P (3.64 - 9.8, n=3)	5.98 s * -64%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5.377 s * -48%
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	4.725 s * -30%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	3.641 s *
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	3.308 s * +9%
1024m
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	286.835 s * -22%
Genomsnitt Intel Core i7-1260P (236 - 314, n=3)	262 s * -11%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	235.874 s *
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	202.7 s * +14%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	156.33 s * +34%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	91.6 s * +61%

X264 HD Benchmark 4.0
Pass 1
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	333.5 (332^min - 336^max) fps +25%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	271.5 (259^min - 276^max) fps +2%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	266 (264^min - 271^max) fps
Genomsnitt Intel Core i7-1260P (224 - 266, n=2)	245 fps -8%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	234 (233^min - 235^max) fps -12%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	165.55 (163.6^min - 204^max) fps -38%
Pass 2
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	148 (147^min - 148^max) fps +34%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	128 (122^min - 128^max) fps +16%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	110.5 (101.7^min - 125.3^max) fps
Genomsnitt Intel Core i7-1260P (77.8 - 110.5, n=2)	94.1 fps -15%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	76 (75.7^min - 76.3^max) fps -31%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	36.7 (36.7^min - 37.6^max) fps -67%

WinRAR - Result
Genomsnitt Intel Core i7-1260P (6559 - 16777, n=3)	10179 KB/s +41%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	7200 KB/s
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	6877 KB/s -4%
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	6239 KB/s -13%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	4297 KB/s -40%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4185 KB/s -42%

TrueCrypt
AES Mean 100MB
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	12.8 GB/s +10%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	11.6 GB/s
Genomsnitt Intel Core i7-1260P (10.4 - 11.6, n=3)	11.2 GB/s -3%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	7.7 GB/s -34%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	7.4 GB/s -36%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	5.3 GB/s -54%
Twofish Mean 100MB
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	2.2 GB/s +16%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	2 GB/s +5%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	1.9 GB/s
Genomsnitt Intel Core i7-1260P (1.8 - 1.9, n=3)	1.867 GB/s -2%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1.1 GB/s -42%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	0.755 GB/s -60%
Serpent Mean 100MB
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	1.3 GB/s +18%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	1.2 GB/s +9%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	1.1 GB/s
Genomsnitt Intel Core i7-1260P (1 - 1.1, n=3)	1.067 GB/s -3%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	0.7 GB/s -36%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	0.448 GB/s -59%

Geekbench 5.5
Multi-Core
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	12797 Points +29%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	9935 Points
Genomsnitt Intel Core i7-1260P (3866 - 10570, n=25)	8763 Points -12%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	7875 Points -21%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	6175 Points -38%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4898 Points -51%
Single-Core
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	1904 Points +11%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	1715 Points
Genomsnitt Intel Core i7-1260P (1436 - 1786, n=25)	1693 Points -1%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	1542 Points -10%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1430 Points -17%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	1391 Points -19%

Geekbench 5.0
5.0 Multi-Core
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	12746 Points +30%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	9817 Points
Genomsnitt Intel Core i7-1260P (6440 - 10411, n=10)	9445 Points -4%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	7859 Points -20%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	6117 Points -38%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4841 Points -51%
5.0 Single-Core
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	1821 Points +7%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	1694 Points
Genomsnitt Intel Core i7-1260P (1557 - 1694, n=10)	1655 Points -2%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	1498 Points -12%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	1385 Points -18%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	1383 Points -18%

Geekbench 4.4
64 Bit Single-Core Score
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	8223 Points +9%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	7554 Points
Genomsnitt Intel Core i7-1260P (6698 - 7554, n=3)	7261 Points -4%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	6365 Points -16%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	5911 Points -22%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5854 Points -23%
64 Bit Multi-Core Score
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	46557 Points +26%
Genomsnitt Intel Core i7-1260P (36974 - 39852, n=3)	38338 Points +4%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	36974 Points
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	32434 Points -12%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	24495 Points -34%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	19288 Points -48%

3DMark 11 - 1280x720 Performance Physics
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	25017 Points +39%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	18044 Points
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	13940 Points -23%
Genomsnitt Intel Core i7-1260P (4745 - 18968, n=27)	13735 Points -24%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	12608 Points -30%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	7792 Points -57%

7-Zip 18.03
7z b 4
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	64260 MIPS +37%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	57435 MIPS +22%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	47064 MIPS
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	39207 MIPS -17%
Genomsnitt Intel Core i7-1260P (16146 - 47064, n=25)	38707 MIPS -18%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	17636 MIPS -63%
7z b 4 -mmt1
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	5944 MIPS +4%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	5739 MIPS 0%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	5738 MIPS
Genomsnitt Intel Core i7-1260P (4064 - 5791, n=25)	5284 MIPS -8%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5249 MIPS -9%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	4788 MIPS -17%

HWBOT x265 Benchmark v2.2 - 4k Preset
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	30.1 fps +128%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	15.9 fps +20%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	13.2 fps
Genomsnitt Intel Core i7-1260P (3.45 - 13.6, n=26)	10.8 fps -18%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	10.1 fps -23%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	5.26 fps -60%

R Benchmark 2.5 - Overall mean
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	0.639 sec * -33%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	0.537 sec * -12%
Genomsnitt Intel Core i7-1260P (0.4559 - 0.727, n=25)	0.5 sec * -4%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	0.4965 sec * -4%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	0.4787 sec *
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	0.4456 sec * +7%

LibreOffice - 20 Documents To PDF
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	71.8 s * -60%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	52 s * -16%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	51.1 s * -14%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	49.3 s * -10%
Genomsnitt Intel Core i7-1260P (40.2 - 65.7, n=25)	48.4 s * -8%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	45 s *

WebXPRT 3 - Overall
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	293 Points +3%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	285 Points
Genomsnitt Intel Core i7-1260P (250 - 298, n=24)	281 Points -1%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	278 Points -2%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	255 Points -11%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	236 Points -17%

Mozilla Kraken 1.1 - Total
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	724 ms * -36%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	646 ms * -21%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	601 ms * -13%
Genomsnitt Intel Core i7-1260P (531 - 604, n=24)	555 ms * -4%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	534 ms *
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	511 ms * +4%

3DMark
3840x2160 Fire Strike Ultra Physics
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	29443 Points +52%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	22976 Points +19%
Genomsnitt Intel Core i7-1260P (15903 - 22818, n=12)	19524 Points +1%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	19357 Points
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	17568 Points -9%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	9561 Points -51%
1920x1080 Fire Strike Physics
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	29671 Points +43%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	24096 Points +16%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	20684 Points
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	18076 Points -13%
Genomsnitt Intel Core i7-1260P (6797 - 22877, n=28)	17766 Points -14%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	9354 Points -55%
2560x1440 Time Spy CPU
Intel Core i5-12600K Intel Core i5-12600K, 2800 MHz	13869 Points +65%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	8393 Points
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, 3300 MHz	6955 Points -17%
Genomsnitt Intel Core i7-1260P (2352 - 10150, n=28)	6762 Points -19%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, 2300 MHz	5443 Points -35%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, 2400 MHz	2867 Points -66%

* ... mindre är bättre

Cinebench R15
CPU Single 64Bit
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	260 Points
Genomsnitt Intel Core i7-1260P (165.4 - 260, n=27)	232 Points -11%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	226 Points -13%
Intel NUC11TNKi5 Intel Core i5-1135G7, 2400 MHz	201 Points -23%
CPU Multi 64Bit
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	1975 Points +5%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	1879 Points
Genomsnitt Intel Core i7-1260P (549 - 2034, n=29)	1553 Points -17%
Intel NUC11TNKi5 Intel Core i5-1135G7, 2400 MHz	794 (772.57^min - 794.38^max) Points -58%

Cinebench R20
CPU (Single Core)
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	698 Points
Genomsnitt Intel Core i7-1260P (448 - 698, n=25)	645 Points -8%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	608 Points -13%
Intel NUC11TNKi5 Intel Core i5-1135G7, 2400 MHz	503 Points -28%
CPU (Multi Core)
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	5168 Points +13%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	4578 Points
Genomsnitt Intel Core i7-1260P (1234 - 4748, n=25)	3595 Points -21%
Intel NUC11TNKi5 Intel Core i5-1135G7, 2400 MHz	1974 Points -57%

Cinebench R11.5
CPU Single 64Bit
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	3.15 Points
Genomsnitt Intel Core i7-1260P (2.93 - 3.15, n=3)	3.06 Points -3%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	2.69 Points -15%
CPU Multi 64Bit
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	23.6 Points
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	23.44 Points -1%
Genomsnitt Intel Core i7-1260P (20.1 - 23.6, n=3)	21.9 Points -7%

Cinebench R10
Rendering Single CPUs 64Bit
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	14504 Points
Genomsnitt Intel Core i7-1260P (13568 - 14504, n=2)	14036 Points -3%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	12378 Points -15%
Rendering Multiple CPUs 64Bit
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	75223 Points +2%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	73492 Points
Genomsnitt Intel Core i7-1260P (53950 - 73492, n=2)	63721 Points -13%

Blender - v2.79 BMW27 CPU
Intel NUC11TNKi5 Intel Core i5-1135G7, 2400 MHz	600 Seconds * -114%
Genomsnitt Intel Core i7-1260P (264 - 906, n=26)	366 Seconds * -31%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	280 Seconds *
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	232 Seconds * +17%

wPrime 2.10
32m
Genomsnitt Intel Core i7-1260P (3.64 - 9.8, n=3)	5.98 s * -64%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	3.641 s *
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	3.375 s * +7%
1024m
Genomsnitt Intel Core i7-1260P (236 - 314, n=3)	262 s * -11%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	235.874 s *
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	201.062 s * +15%

X264 HD Benchmark 4.0
Pass 1
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	276 (273^min - 294^max) fps +4%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	266 (264^min - 271^max) fps
Genomsnitt Intel Core i7-1260P (224 - 266, n=2)	245 fps -8%
Pass 2
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	113.7 (113.5^min - 122.2^max) fps +3%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	110.5 (101.7^min - 125.3^max) fps
Genomsnitt Intel Core i7-1260P (77.8 - 110.5, n=2)	94.1 fps -15%

WinRAR - Result
Genomsnitt Intel Core i7-1260P (6559 - 16777, n=3)	10179 KB/s +41%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	7387 KB/s +3%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	7200 KB/s

TrueCrypt
AES Mean 100MB
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	14.1 GB/s +22%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	11.6 GB/s
Genomsnitt Intel Core i7-1260P (10.4 - 11.6, n=3)	11.2 GB/s -3%
Twofish Mean 100MB
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	2.3 GB/s +21%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	1.9 GB/s
Genomsnitt Intel Core i7-1260P (1.8 - 1.9, n=3)	1.867 GB/s -2%
Serpent Mean 100MB
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	1.3 GB/s +18%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	1.1 GB/s
Genomsnitt Intel Core i7-1260P (1 - 1.1, n=3)	1.067 GB/s -3%

Geekbench 5.5
Multi-Core
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	9935 Points
Genomsnitt Intel Core i7-1260P (3866 - 10570, n=25)	8763 Points -12%
Intel NUC11TNKi5 Intel Core i5-1135G7, 2400 MHz	4593 Points -54%
Single-Core
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	1715 Points
Genomsnitt Intel Core i7-1260P (1436 - 1786, n=25)	1693 Points -1%
Intel NUC11TNKi5 Intel Core i5-1135G7, 2400 MHz	1396 Points -19%

Geekbench 5.0
5.0 Multi-Core
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	9817 Points
Genomsnitt Intel Core i7-1260P (6440 - 10411, n=10)	9445 Points -4%
Intel NUC11TNKi5 Intel Core i5-1135G7, 2400 MHz	4586 Points -53%
5.0 Single-Core
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	1694 Points
Genomsnitt Intel Core i7-1260P (1557 - 1694, n=10)	1655 Points -2%
Intel NUC11TNKi5 Intel Core i5-1135G7, 2400 MHz	1368 Points -19%

Geekbench 4.4
64 Bit Single-Core Score
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	7554 Points
Genomsnitt Intel Core i7-1260P (6698 - 7554, n=3)	7261 Points -4%
Intel NUC11TNKi5 Intel Core i5-1135G7, 2400 MHz	5828 Points -23%
64 Bit Multi-Core Score
Genomsnitt Intel Core i7-1260P (36974 - 39852, n=3)	38338 Points +4%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	36974 Points
Intel NUC11TNKi5 Intel Core i5-1135G7, 2400 MHz	18200 Points -51%

3DMark 11 - 1280x720 Performance Physics
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	18044 Points
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	17378 Points -4%
Genomsnitt Intel Core i7-1260P (4745 - 18968, n=27)	13735 Points -24%
Intel NUC11TNKi5 Intel Core i5-1135G7, 2400 MHz	10105 Points -44%

7-Zip 18.03
7z b 4
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	56455 MIPS +20%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	47064 MIPS
Genomsnitt Intel Core i7-1260P (16146 - 47064, n=25)	38707 MIPS -18%
Intel NUC11TNKi5 Intel Core i5-1135G7, 2400 MHz	23280 MIPS -51%
7z b 4 -mmt1
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	5738 MIPS
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	5347 MIPS -7%
Genomsnitt Intel Core i7-1260P (4064 - 5791, n=25)	5284 MIPS -8%
Intel NUC11TNKi5 Intel Core i5-1135G7, 2400 MHz	4738 MIPS -17%

HWBOT x265 Benchmark v2.2 - 4k Preset
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	15.7 fps +19%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	13.2 fps
Genomsnitt Intel Core i7-1260P (3.45 - 13.6, n=26)	10.8 fps -18%
Intel NUC11TNKi5 Intel Core i5-1135G7, 2400 MHz	6.63 fps -50%

R Benchmark 2.5 - Overall mean
Intel NUC11TNKi5 Intel Core i5-1135G7, 2400 MHz	0.622 sec * -30%
Genomsnitt Intel Core i7-1260P (0.4559 - 0.727, n=25)	0.5 sec * -4%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	0.4997 sec * -4%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	0.4787 sec *

LibreOffice - 20 Documents To PDF
Intel NUC11TNKi5 Intel Core i5-1135G7, 2400 MHz	51.3 s * -14%
Genomsnitt Intel Core i7-1260P (40.2 - 65.7, n=25)	48.4 s * -8%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	45 s *
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	41.9 s * +7%

WebXPRT 3 - Overall
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	285 Points 0%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	285 Points
Genomsnitt Intel Core i7-1260P (250 - 298, n=24)	281 Points -1%
Intel NUC11TNKi5 Intel Core i5-1135G7, 2400 MHz	228 Points -20%

Mozilla Kraken 1.1 - Total
Intel NUC11TNKi5 Intel Core i5-1135G7, 2400 MHz	715 ms * -34%
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	582 ms * -9%
Genomsnitt Intel Core i7-1260P (531 - 604, n=24)	555 ms * -4%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	534 ms *

3DMark
3840x2160 Fire Strike Ultra Physics
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	22101 Points +14%
Genomsnitt Intel Core i7-1260P (15903 - 22818, n=12)	19524 Points +1%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	19357 Points
Intel NUC11TNKi5 Intel Core i5-1135G7, 2400 MHz	12434 Points -36%
1920x1080 Fire Strike Physics
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	23308 Points +13%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	20684 Points
Genomsnitt Intel Core i7-1260P (6797 - 22877, n=28)	17766 Points -14%
Intel NUC11TNKi5 Intel Core i5-1135G7, 2400 MHz	12562 Points -39%
2560x1440 Time Spy CPU
Morefine S600-Apex Engineer Intel Core i9-12900HK, 1800 MHz	9449 Points +13%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, 1500 MHz	8393 Points
Genomsnitt Intel Core i7-1260P (2352 - 10150, n=28)	6762 Points -19%
Intel NUC11TNKi5 Intel Core i5-1135G7, 2400 MHz	4117 Points -51%

* ... mindre är bättre

Performance Rating
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	91.9 pt
Genomsnitt av klass Mini PC	76.7 pt
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	70.1 pt
Intel Core i5-12600K Intel Core i5-12600K, NVIDIA Titan RTX	69 pt
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	63.7 pt
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	56.1 pt
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	39.9 pt
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	37.1 pt

AIDA64 / FP32 Ray-Trace
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	15755 KRay/s +52%
Genomsnitt av klass Mini PC (764 - 51004, n=114, senaste 2 åren)	14367 KRay/s +39%
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	12208 KRay/s +18%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	10351 KRay/s
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	9086 KRay/s -12%
Intel Core i5-12600K Intel Core i5-12600K, NVIDIA Titan RTX	8243 KRay/s -20%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	6699 KRay/s -35%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	5612 KRay/s -46%

AIDA64 / FPU Julia
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	100504 Points +93%
Genomsnitt av klass Mini PC (4140 - 214250, n=114, senaste 2 åren)	69668 Points +34%
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	61600 Points +18%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	57375 Points +10%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	52136 Points
Intel Core i5-12600K Intel Core i5-12600K, NVIDIA Titan RTX	37321 Points -28%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	27861 Points -47%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	24138 Points -54%

AIDA64 / CPU SHA3
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	3444 MB/s +33%
Intel Core i5-12600K Intel Core i5-12600K, NVIDIA Titan RTX	3250 MB/s +25%
Genomsnitt av klass Mini PC (290 - 9399, n=114, senaste 2 åren)	3083 MB/s +19%
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	2844 MB/s +10%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	2590 MB/s
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	1971 MB/s -24%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	1855 MB/s -28%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	1649 MB/s -36%

AIDA64 / CPU Queen
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	105123 Points +27%
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	95602 Points +16%
Intel Core i5-12600K Intel Core i5-12600K, NVIDIA Titan RTX	88337 Points +7%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	82493 Points
Genomsnitt av klass Mini PC (8172 - 184747, n=114, senaste 2 åren)	81952 Points -1%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	67224 Points -19%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	46646 Points -43%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	46536 Points -44%

AIDA64 / FPU SinJulia
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	12792 Points +90%
Intel Core i5-12600K Intel Core i5-12600K, NVIDIA Titan RTX	9510 Points +41%
Genomsnitt av klass Mini PC (408 - 29064, n=114, senaste 2 åren)	9391 Points +40%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	8294 Points +23%
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	8213 Points +22%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	6728 Points
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	4444 Points -34%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	3964 Points -41%

AIDA64 / FPU Mandel
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	55452 Points +113%
Genomsnitt av klass Mini PC (2088 - 113499, n=114, senaste 2 åren)	36346 Points +40%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	31389 Points +21%
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	30804 Points +18%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	25996 Points
Intel Core i5-12600K Intel Core i5-12600K, NVIDIA Titan RTX	24230 Points -7%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	16937 Points -35%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	14905 Points -43%

AIDA64 / CPU AES
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	135212 MB/s +46%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	92356 MB/s
Genomsnitt av klass Mini PC (3691 - 325960, n=114, senaste 2 åren)	89853 MB/s -3%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	78211 MB/s -15%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	66724 MB/s -28%
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	59882 MB/s -35%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	58910 MB/s -36%
Intel Core i5-12600K Intel Core i5-12600K, NVIDIA Titan RTX	58635 MB/s -37%

AIDA64 / CPU ZLib
Intel Core i5-12600K Intel Core i5-12600K, NVIDIA Titan RTX	988 MB/s +37%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	871 MB/s +21%
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	828 MB/s +15%
Genomsnitt av klass Mini PC (76.7 - 2039, n=114, senaste 2 åren)	793 MB/s +10%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	722 MB/s
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	505 MB/s -30%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	373 MB/s -48%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	265 MB/s -63%

AIDA64 / FP64 Ray-Trace
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	8425 KRay/s +50%
Genomsnitt av klass Mini PC (432 - 26952, n=114, senaste 2 åren)	7691 KRay/s +37%
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	6612 KRay/s +18%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	5613 KRay/s
Intel Core i5-12600K Intel Core i5-12600K, NVIDIA Titan RTX	5149 KRay/s -8%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	4636 KRay/s -17%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	3628 KRay/s -35%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	2997 KRay/s -47%

AIDA64 / CPU PhotoWorxx
Intel Core i5-12600K Intel Core i5-12600K, NVIDIA Titan RTX	48577 MPixel/s +71%
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	30098 MPixel/s +6%
Genomsnitt av klass Mini PC (5296 - 51727, n=114, senaste 2 åren)	30037 MPixel/s +6%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	28377 MPixel/s
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	26959 MPixel/s -5%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	19395 MPixel/s -32%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	16877 MPixel/s -41%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	14978 MPixel/s -47%

Intel NUC 12 Pro Kit - Wall Street Canyon vs. Cinebench R15 Multi Loop

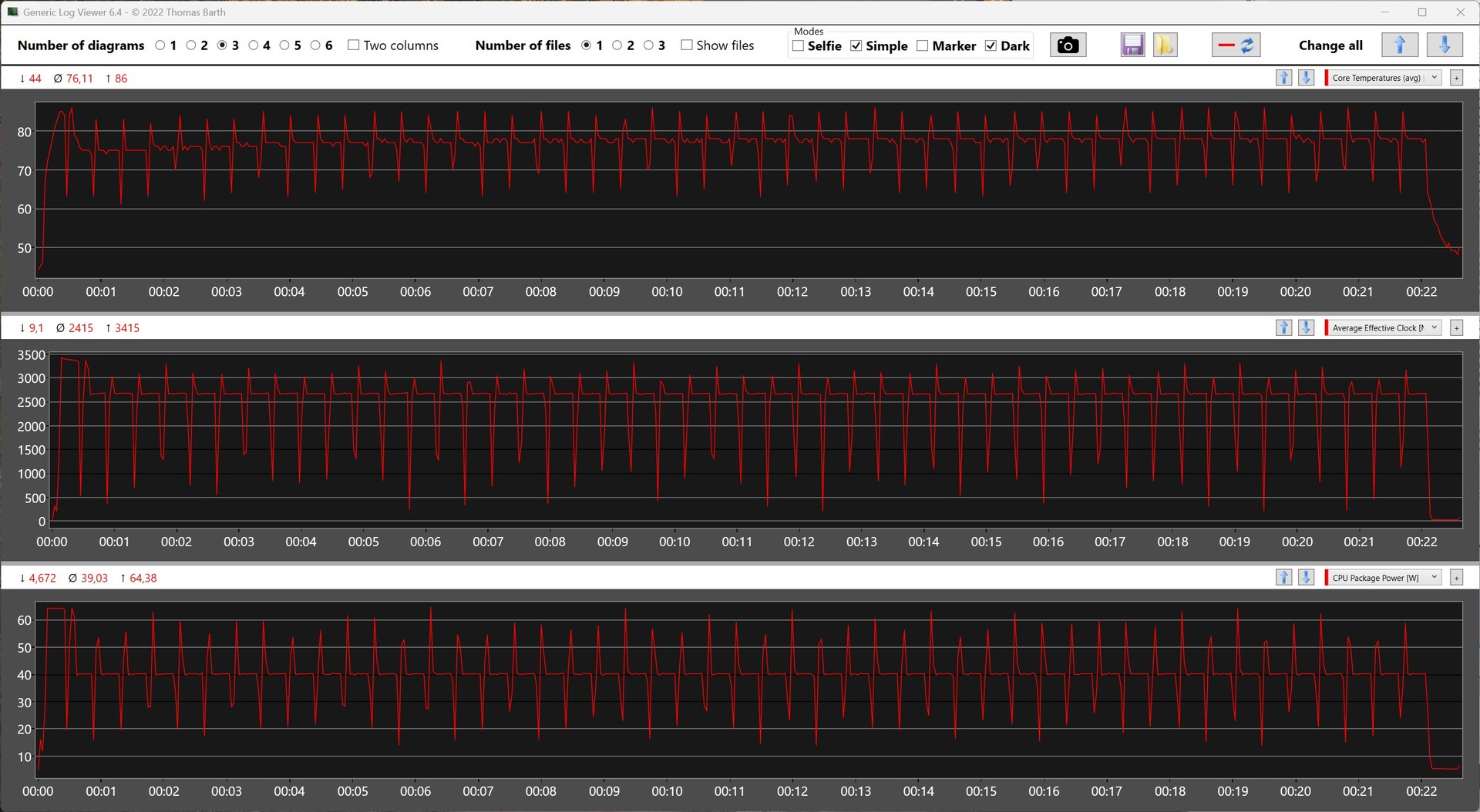

CPU-avläsningar under Cinebench R15-slingan

Vi får en första glimt av effektiviteten hos den integrerade kylningslösningen i vår Cinebench R15-slinga. Den maximala turbon är endast aktiv under den första slingan och prestandan sjunker avsevärt under den andra körningen. Poängen sjunker med cirka 10 procent. Det finns inga större svängningar under resten av testet och den genomsnittliga totalpoängen är 1702 poäng.

Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Core i7-1260P: Ø1702 (1671.26-2063.13)

Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Ryzen 9 5900HX: Ø2121 (2086.27-2197.32)

Intel NUC11TNKi5 Intel Core i5-1135G7, Intel Core i5-1135G7: Ø789 (772.57-794.38)

Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Ryzen 5 5600U: Ø1158 (1130.29-1266.62)

Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Core i5-1135G7: Ø574 (568.03-615.59)

Morefine S600-Apex Engineer Intel Core i9-12900HK, Intel Core i9-12900HK: Ø1986 (1882.53-2086.59)

Systemets prestanda

Tyvärr kan Intel NUC 12 Pro Kit inte smidigt överföra sina goda resultat från CPU-benchmarks till goda resultat från syntetiska benchmarks. Om man bortser från Intel Core i5-12600K placerar den sig bara på tredje plats i PCMark 10. Crossmark däremot verkar återigen gynna vår testenhet och återställer den gamla prestandahierarkin. På samma sätt observerar vi överföringshastigheter över genomsnittet jämfört med andra minidatorer i RAM-testerna.

PCMark 10: Score | Essentials | Productivity

PCMark 10 / Score
Intel Core i5-12600K, Intel Core i5-12600K NVIDIA Titan RTX, Intel Optane 905P 480GB 2.5	8259 Points +40%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	6507 Points +10%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S	5915 Points
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	5761 Points -3%
Morefine S600-Apex Engineer, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs, Crucial P1 SSD CT1000P1SSD8	5658 Points -4%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	4521 Points -24%
Intel NUC11TNKi5, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 80EUs, Transcend M.2 SSD 430S TS512GMTS430S	4512 Points -24%

PCMark 10 / Essentials
Morefine S600-Apex Engineer, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs, Crucial P1 SSD CT1000P1SSD8	10700 Points 0%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S	10661 Points
Intel Core i5-12600K, Intel Core i5-12600K NVIDIA Titan RTX, Intel Optane 905P 480GB 2.5	10650 Points 0%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	10385 Points -3%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	10321 Points -3%
Intel NUC11TNKi5, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 80EUs, Transcend M.2 SSD 430S TS512GMTS430S	9000 Points -16%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	8910 Points -16%

PCMark 10 / Productivity
Intel Core i5-12600K, Intel Core i5-12600K NVIDIA Titan RTX, Intel Optane 905P 480GB 2.5	11001 Points +44%
Minisforum EliteMini HX90, AMD Ryzen 9 5900HX AMD Radeon RX Vega 8 (Ryzen 4000/5000), Kingston OM8PCP3512F-AB	10196 Points +34%
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	9539 Points +25%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S	7626 Points
Morefine S600-Apex Engineer, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs, Crucial P1 SSD CT1000P1SSD8	7041 Points -8%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	6357 Points -17%
Intel NUC11TNKi5, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 80EUs, Transcend M.2 SSD 430S TS512GMTS430S	6190 Points -19%

CrossMark: Overall | Responsiveness | Creativity | Productivity

CrossMark / Overall
Morefine S600-Apex Engineer, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs, Crucial P1 SSD CT1000P1SSD8	1804 Points +7%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S	1679 Points
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1373 Points -18%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1245 Points -26%

CrossMark / Responsiveness
Morefine S600-Apex Engineer, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs, Crucial P1 SSD CT1000P1SSD8	1811 Points +23%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S	1476 Points
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1263 Points -14%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1224 Points -17%

CrossMark / Creativity
Morefine S600-Apex Engineer, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs, Crucial P1 SSD CT1000P1SSD8	1867 Points +5%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S	1785 Points
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1379 Points -23%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1193 Points -33%

CrossMark / Productivity
Morefine S600-Apex Engineer, Intel Core i9-12900HK Intel Iris Xe Graphics G7 96EUs, Crucial P1 SSD CT1000P1SSD8	1740 Points +6%
Intel NUC 12 Pro Kit NUC12WSKi7, Intel Core i7-1260P Intel Iris Xe Graphics G7 96EUs, Transcend M.2 SSD 2200S TS512GMTE220S	1649 Points
Minipc Union Ace Magician AMR5, AMD Ryzen 5 5600U AMD Radeon RX Vega 7, Future Path FPE220M8SSD512G	1406 Points -15%
Minipc Union Ace Magician TK11-A0, Intel Core i5-1135G7 Intel Iris Xe Graphics G7 96EUs, Future Path FPE220M8SSD512G	1306 Points -21%

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Intel Core i5-12600K Intel Core i5-12600K, NVIDIA Titan RTX	70749 MB/s +58%
Genomsnitt Intel Core i7-1260P (25125 - 71544, n=25)	54361 MB/s +22%
Genomsnitt av klass Mini PC (8377 - 89287, n=114, senaste 2 åren)	50681 MB/s +13%
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	44965 MB/s +1%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	44661 MB/s
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	37616 MB/s -16%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	35423 MB/s -21%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	35051 MB/s -22%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	22895 MB/s -49%

AIDA64 / Memory Read
Intel Core i5-12600K Intel Core i5-12600K, NVIDIA Titan RTX	76864 MB/s +65%
Genomsnitt Intel Core i7-1260P (24983 - 72065, n=25)	56385 MB/s +21%
Genomsnitt av klass Mini PC (8974 - 100086, n=114, senaste 2 åren)	51664 MB/s +11%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	46644 MB/s
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	44775 MB/s -4%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	43678 MB/s -6%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	40348 MB/s -13%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	38400 MB/s -18%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	24947 MB/s -47%

AIDA64 / Memory Write
Intel Core i5-12600K Intel Core i5-12600K, NVIDIA Titan RTX	73824 MB/s +60%
Genomsnitt av klass Mini PC (8762 - 100538, n=114, senaste 2 åren)	55802 MB/s +21%
Genomsnitt Intel Core i7-1260P (23512 - 66799, n=25)	53353 MB/s +15%
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	46454 MB/s 0%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	46223 MB/s
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	39154 MB/s -15%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	37475 MB/s -19%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	35146 MB/s -24%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	23454 MB/s -49%

AIDA64 / Memory Latency
Morefine S600-Apex Engineer Intel Core i9-12900HK, Iris Xe G7 96EUs	101.5 ns * -9%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Iris Xe G7 96EUs	92.7 ns *
Genomsnitt av klass Mini PC (44.9 - 184.8, n=114, senaste 2 åren)	91.8 ns * +1%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, Vega 7	91.3 ns * +2%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	87.1 ns * +6%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, Vega 8	79.6 ns * +14%
Genomsnitt Intel Core i7-1260P (77.9 - 118.4, n=21)	78.7 ns * +15%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Iris Xe G7 96EUs	69 ns * +26%

* ... mindre är bättre

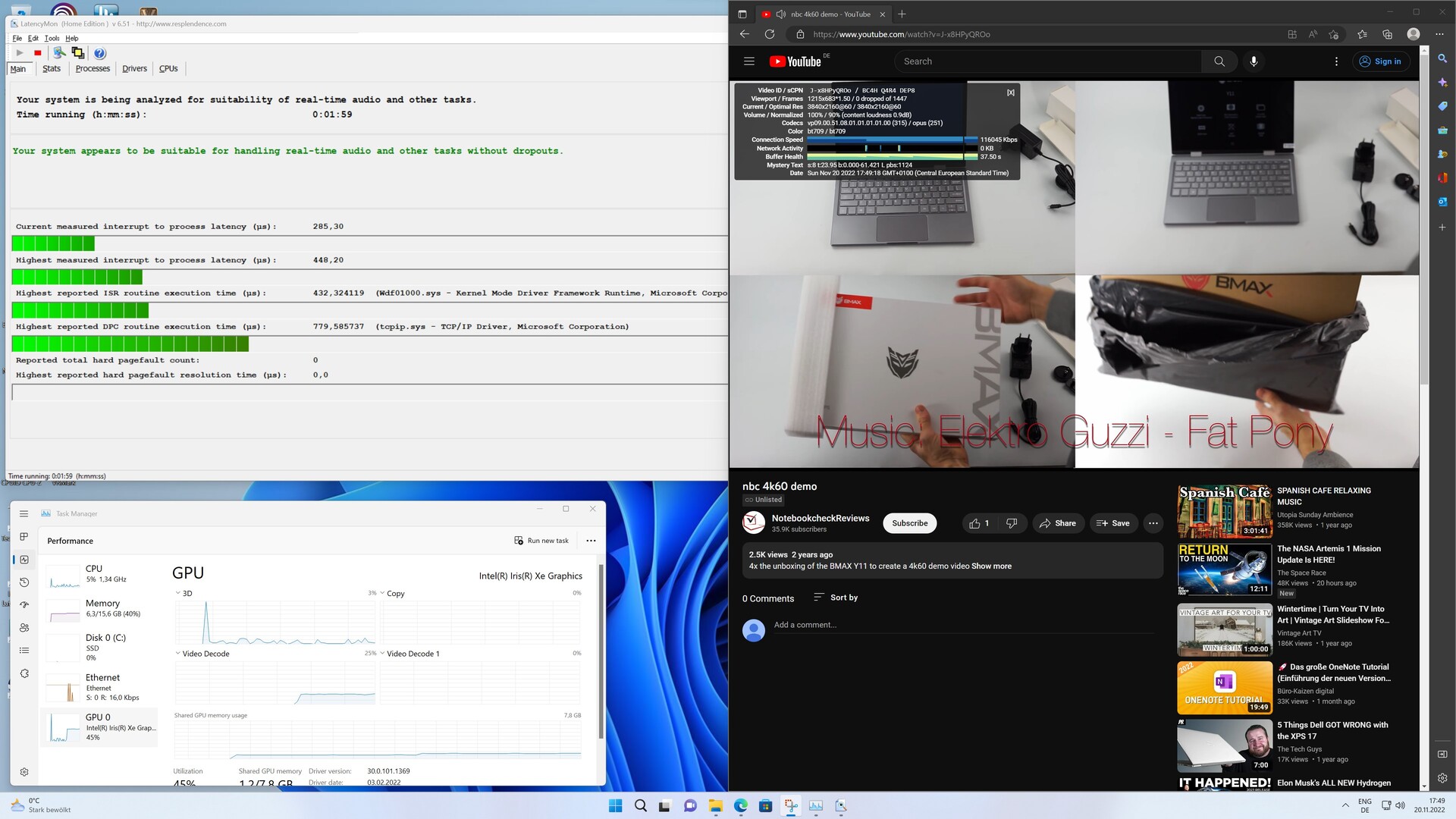

DPC-latenstid

Intel NUC 12 Pro Kit fungerar bra i kombination med Intel NUC 12 Pro Kit Intel Core i7-1260P. Vi observerade inga problematiska fördröjningar under videouppspelning av ett videoexempel. Här låg iGPU:n på cirka 45 procents utnyttjande.

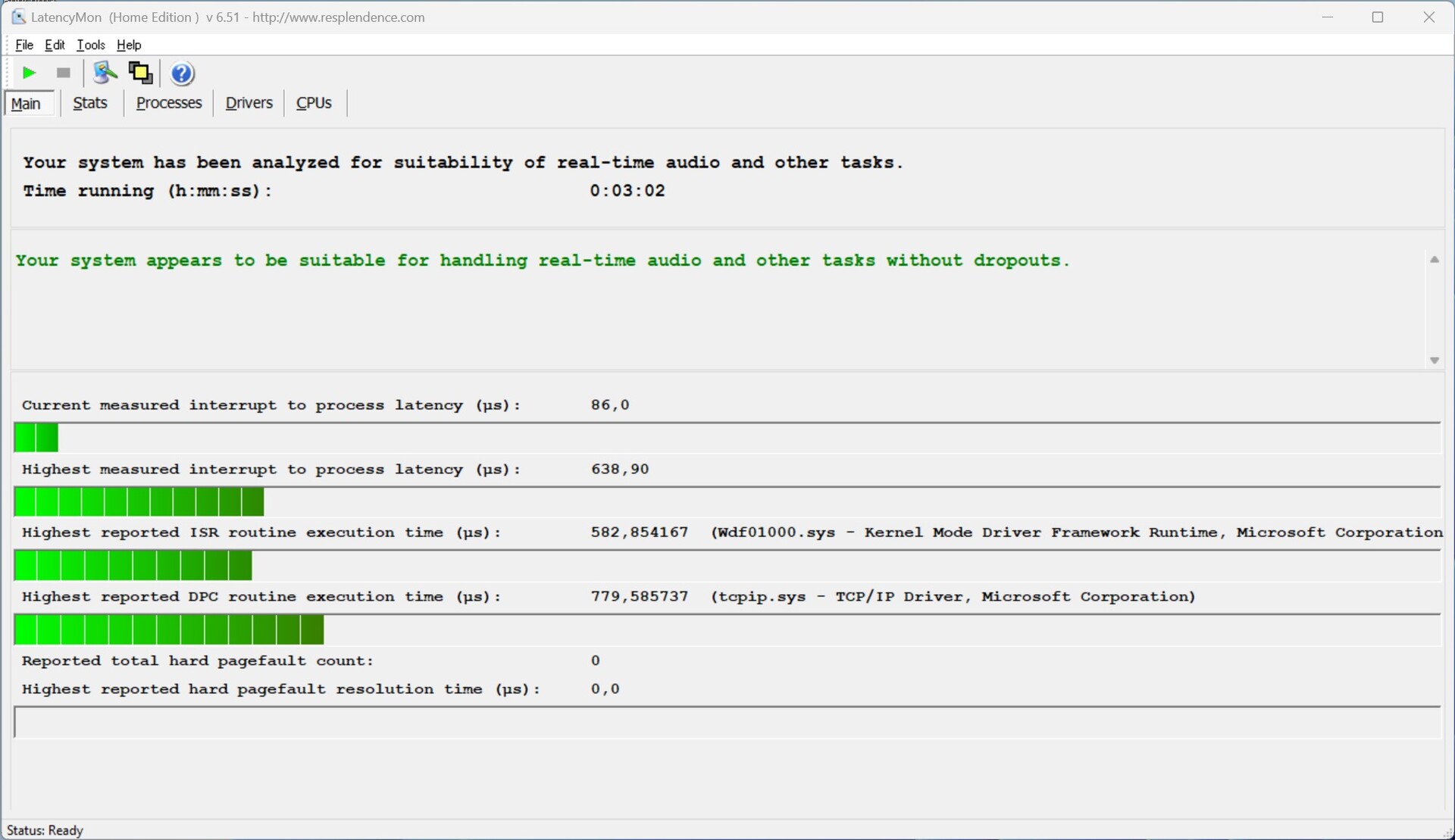

Maximal latens vid öppning av flera webbläsarflikar och uppspelning av 4K-video

Maximal latenstid efter att ha belastat systemet med Prime95 i tio sekunder

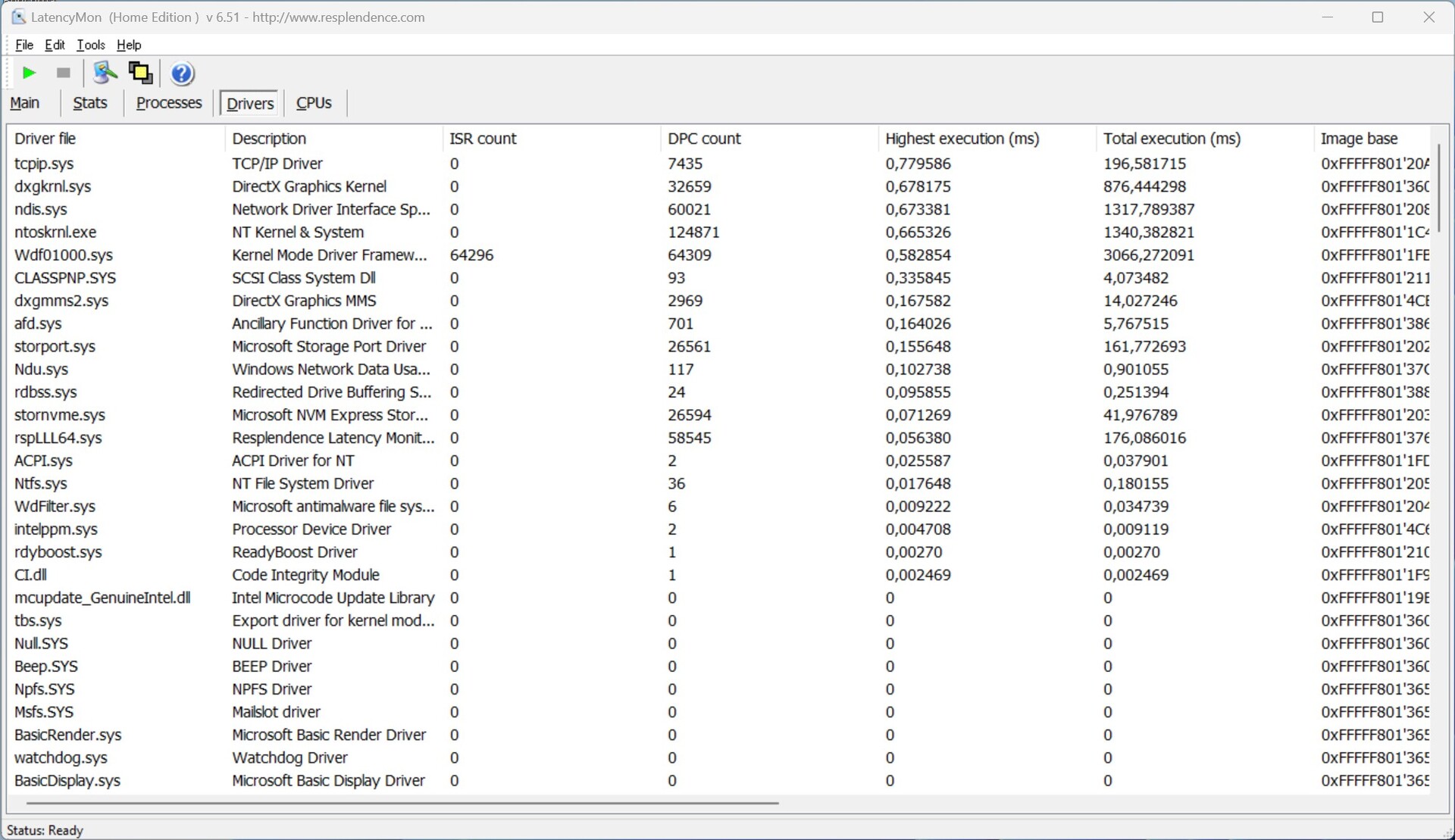

Drivrutiner ordnade efter högsta exekveringstid

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	1106 μs * -42%
Morefine S600-Apex Engineer Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8	961.5 μs * -23%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	779 μs *
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	765 μs * +2%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	659.1 μs * +15%
Intel NUC11TNKi5 Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S	525 μs * +33%

* ... mindre är bättre

Lagringslösning

Vårt testprov av Intel NUC 12 Pro Kit stöder upp till två M.2 SSD-enheter. Användarna måste dock vara uppmärksamma på formfaktorn. Medan det primära NVMe-M.2-facket endast stöder 80 mm stora SSD-diskar, accepterar det sekundära M.2-facket endast kortare 42 mm stora SSD-diskar.

Vi använder en Transcend SSD och RAM från vårt hårdvarulager. SSD-prestandan är solid. Andra enheter i vår jämförelse är dock utrustade med snabbare SSD-enheter. Betydelsen av de här resultaten bör inte överskattas, eftersom användarna kommer att kunna installera en valfri SSD i Intel NUC 12 Pro Kit barebone.

Fler jämförelser och riktmärken finns på vår SSD- och HDD-sidan.

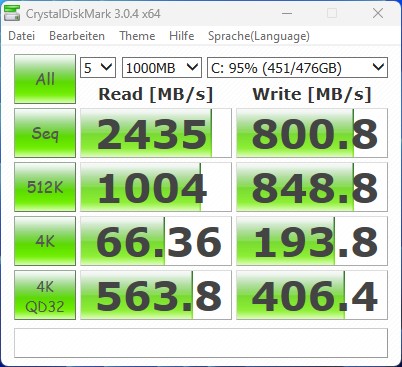

CrystalDiskMark 3.0

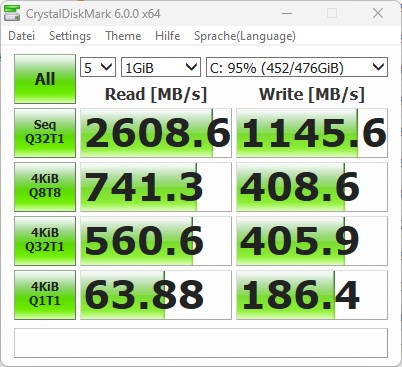

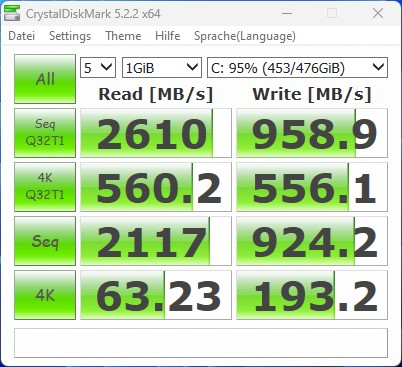

CrystalDiskMark 5.2 / 6

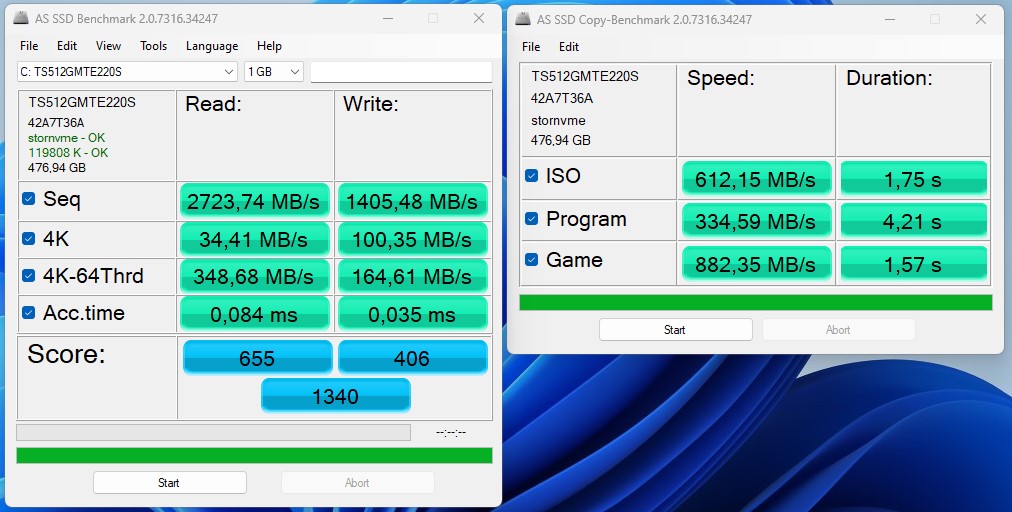

AS SSD

DiskSpd

Transcend M.2 SSD 2200S TS512GMTE220S

Sequential Read: 2435 MB/s

Sequential Write: 800.8 MB/s

512K Read: 1004 MB/s

512K Write: 848.8 MB/s

4K Read: 66.36 MB/s

4K Write: 193.8 MB/s

4K QD32 Read: 563.8 MB/s

4K QD32 Write: 406.4 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Genomsnitt av klass Mini PC	92.7 pt
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	69.4 pt
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	68 pt
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	56 pt
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	52.5 pt
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	18.9 pt

DiskSpd
seq read
Genomsnitt av klass Mini PC (413 - 4357, n=113, senaste 2 åren)	2385 MB/s +33%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2184 (2176.42^min - 2183.52^max) MB/s +22%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2082 (2067.58^min - 2082.23^max) MB/s +16%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	1790 (1744.2^min - 1789.7^max) MB/s
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	1319 (1307.78^min - 1319.44^max) MB/s -26%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	509 (505.62^min - 509.19^max) MB/s -72%
seq write
Genomsnitt av klass Mini PC (259 - 5595, n=113, senaste 2 åren)	2626 MB/s +167%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1792 (1662.17^min - 1791.62^max) MB/s +82%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1790 (1681.49^min - 1789.9^max) MB/s +82%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	984 (154.77^min - 984.48^max) MB/s
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	977 (973.56^min - 977.06^max) MB/s -1%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	467 (462^min - 467.13^max) MB/s -53%
seq q8 t1 read
Genomsnitt av klass Mini PC (397 - 8430, n=113, senaste 2 åren)	3935 MB/s +73%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2525 (2269.25^min - 2525.2^max) MB/s +11%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2444 (2328.09^min - 2444.09^max) MB/s +8%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	2273 (1501.91^min - 2273.31^max) MB/s
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	1973 (254.17^min - 1973.17^max) MB/s -13%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	561 (469.24^min - 560.5^max) MB/s -75%
seq q8 t1 write
Genomsnitt av klass Mini PC (271 - 6669, n=113, senaste 2 åren)	2949 MB/s +68%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1790 (1687.16^min - 1790.13^max) MB/s +2%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1769 (1687.39^min - 1768.92^max) MB/s +1%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	1758 (161.06^min - 1758.04^max) MB/s
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	977 (973.56^min - 976.5^max) MB/s -44%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	504 (500.38^min - 503.53^max) MB/s -71%
4k q1 t1 read
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	63 (57.2^min - 63.02^max) MB/s
Genomsnitt av klass Mini PC (6.85 - 87.3, n=113, senaste 2 åren)	56.2 MB/s -11%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	48.2 (48.04^min - 48.16^max) MB/s -23%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	47.4 (11.99^min - 47.41^max) MB/s -25%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	45.1 (43.96^min - 45.09^max) MB/s -28%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	21.6 (20.05^min - 21.62^max) MB/s -66%
4k q1 t1 write
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	210 (122.22^min - 209.88^max) MB/s +5%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	199.5 (150.75^min - 199.48^max) MB/s
Genomsnitt av klass Mini PC (40.4 - 435, n=113, senaste 2 åren)	197.7 MB/s -1%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	196.3 (179.94^min - 196.31^max) MB/s -2%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	167 (54.54^min - 166.59^max) MB/s -16%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	46.4 (45.57^min - 46.37^max) MB/s -77%
4k q32 t16 read
Genomsnitt av klass Mini PC (102.3 - 4158, n=113, senaste 2 åren)	1454 MB/s +315%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1005 (1003.31^min - 1005.12^max) MB/s +187%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	991 (989.79^min - 991.47^max) MB/s +183%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	350 (213.46^min - 349.65^max) MB/s
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	313 (311.66^min - 312.85^max) MB/s -11%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	285 (283.99^min - 284.61^max) MB/s -19%
4k q32 t16 write
Genomsnitt av klass Mini PC (70.3 - 4288, n=113, senaste 2 åren)	1374 MB/s +145%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	976 (747.22^min - 976.04^max) MB/s +74%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	774 (725.33^min - 774.03^max) MB/s +38%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	659 (650.84^min - 659.33^max) MB/s +17%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	561 (408.83^min - 561.15^max) MB/s
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	330 (329.53^min - 329.95^max) MB/s -41%

AS SSD
Score Total
Genomsnitt av klass Mini PC (507 - 10021, n=111, senaste 2 åren)	4290 Points +220%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2887 Points +115%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2797 Points +109%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	2184 Points +63%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	1340 Points
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	839 Points -37%
Score Read
Genomsnitt av klass Mini PC (172 - 3741, n=111, senaste 2 åren)	1576 Points +141%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1162 Points +77%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1152 Points +76%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	698 Points +7%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	655 Points
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	304 Points -54%
Score Write
Genomsnitt av klass Mini PC (210 - 4371, n=111, senaste 2 åren)	1949 Points +380%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1169 Points +188%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	1152 Points +184%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1059 Points +161%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	406 Points
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	375 Points -8%
Seq Read
Genomsnitt av klass Mini PC (483 - 6620, n=111, senaste 2 åren)	3277 MB/s +20%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	2723 MB/s
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	2260 MB/s -17%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	2204 MB/s -19%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	1777 MB/s -35%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	527 MB/s -81%
Seq Write
Genomsnitt av klass Mini PC (277 - 5783, n=111, senaste 2 åren)	2379 MB/s +69%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	1644 MB/s +17%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	1603 MB/s +14%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	1405 MB/s
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	929 MB/s -34%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	469 MB/s -67%
4K Read
Genomsnitt av klass Mini PC (18.2 - 104.3, n=111, senaste 2 åren)	59.4 MB/s +73%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	54.5 MB/s +58%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	52.54 MB/s +53%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	39.71 MB/s +15%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	34.41 MB/s
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	20.41 MB/s -41%
4K Write
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	185.32 MB/s +85%
Genomsnitt av klass Mini PC (40.8 - 366, n=111, senaste 2 åren)	178.1 MB/s +77%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	144.1 MB/s +44%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	143.1 MB/s +43%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	100.35 MB/s
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	42.52 MB/s -58%
4K-64 Read
Genomsnitt av klass Mini PC (94.3 - 3220, n=111, senaste 2 åren)	1189 MB/s +241%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	891.59 MB/s +156%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	883.24 MB/s +153%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	465.3 MB/s +33%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	348.68 MB/s
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	231.4 MB/s -34%
4K-64 Write
Genomsnitt av klass Mini PC (96.3 - 3731, n=111, senaste 2 åren)	1533 MB/s +831%
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	916 MB/s +456%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	823.51 MB/s +400%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	750.4 MB/s +356%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	285.3 MB/s +73%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	164.61 MB/s
Access Time Read
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	0.124 ms * -48%
Genomsnitt av klass Mini PC (0.025 - 0.288, n=111, senaste 2 åren)	0.09575 ms * -14%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	0.084 ms *
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	0.081 ms * +4%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	0.075 ms * +11%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	0.06 ms * +29%
Access Time Write
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	0.269 ms * -669%
Genomsnitt av klass Mini PC (0.014 - 0.706, n=111, senaste 2 åren)	0.1101 ms * -215%
Minipc Union Ace Magician TK11-A0 Future Path FPE220M8SSD512G	0.103 ms * -194%
Minipc Union Ace Magician AMR5 Future Path FPE220M8SSD512G	0.102 ms * -191%
Intel NUC 12 Pro Kit NUC12WSKi7 Transcend M.2 SSD 2200S TS512GMTE220S	0.035 ms *
Minisforum EliteMini HX90 Kingston OM8PCP3512F-AB	0.024 ms * +31%

* ... mindre är bättre

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

Intel NUC 12 Pro Kit NUC12WSKi7: Ø2242 (1995.64-2278.98)

GPU-prestanda

En Intel Iris Xe Graphics G7 med 96 EUs används som integrerad grafiklösning. Prestandamässigt är den endast lämplig för 2D-rendering. 3D-prestandan är betydligt sämre jämfört med en dedikerad GPU. En extern GPU kan dock anslutas via Thunderbolt istället. Vi testade detta med vår Razer Core X och en Nvidia GeForce RTX 3060 Ti och dokumenterade resultaten, som återfinns i följande grafer. Kort sagt ökar prestandan hos Inte NUC 12 Pro Kit avsevärt i detta scenario, där den till och med överträffar prestandan hos Inte NUC 12 Pro Kit Ace Magician TK11-A0.

Fler jämförelser och benchmarks finns på vår webbplats GPU-sida.

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	100 pt
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	95.9 pt
Morefine S600-Apex Engineer Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	20.1 pt
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	17.7 pt
Minisforum EliteMini HX90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	16.2 pt
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	14.7 pt
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	14.3 pt
Intel NUC11TNKi5 ^-1! Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	13.3 pt

3DMark 11 - 1280x720 Performance GPU
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	33425 Points +389%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	32630 Points +377%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	6840 Points
Morefine S600-Apex Engineer Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	6687 Points -2%
Minisforum EliteMini HX90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	6306 Points -8%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	5610 Points -18%
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	5565 Points -19%
Intel NUC11TNKi5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	5221 Points -24%

3DMark
1280x720 Cloud Gate Standard Graphics
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	121918 Points +477%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	112625 Points +433%
Morefine S600-Apex Engineer Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	30433 Points +44%
Minisforum EliteMini HX90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	28915 Points +37%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	26247 Points +24%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	21114 Points
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	20432 Points -3%
Intel NUC11TNKi5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	19330 Points -8%
1920x1080 Fire Strike Graphics
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	25071 Points +413%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	24193 Points +395%
Morefine S600-Apex Engineer Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	5543 Points +14%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	4883 Points
Minisforum EliteMini HX90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	3775 Points -23%
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	3725 Points -24%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	3586 Points -27%
Intel NUC11TNKi5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	3152 Points -35%
2560x1440 Time Spy Graphics
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	11032 Points +577%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	10530 Points +546%
Morefine S600-Apex Engineer Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	1633 Points 0%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	1630 Points
Minisforum EliteMini HX90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	1247 Points -23%
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	1109 Points -32%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	1102 Points -32%
Intel NUC11TNKi5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	1031 Points -37%
Fire Strike Extreme Graphics
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, Intel Core i7-1260P	13264 Points +514%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti Intel Core i5-1135G7	12943 Points +499%
Morefine S600-Apex Engineer Intel Iris Xe Graphics G7 96EUs, Intel Core i9-12900HK	2498 Points +16%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1260P	2161 Points
Minipc Union Ace Magician TK11-A0 Intel Iris Xe Graphics G7 96EUs, Intel Core i5-1135G7	1735 Points -20%
Minisforum EliteMini HX90 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	1578 Points -27%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	1472 Points -32%

Performance Rating | Unigine Heaven 4.0 | Unigine Valley 1.0 | ComputeMark v2.1 | LuxMark v2.0 64Bit

Performance Rating - Percent
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	97.1 pt
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti ^-8! , i5-1135G7, Future Path FPE220M8SSD512G	76 pt
Morefine S600-Apex Engineer Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8	27.1 pt
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	23.9 pt
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	18.7 pt
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	18.1 pt
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	17.9 pt

Unigine Heaven 4.0
Extreme Preset OpenGL
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	169.6 fps +664%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	142.1 fps +540%
Morefine S600-Apex Engineer Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8	24.1 fps +9%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	22.2 fps
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	17.7 fps -20%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	17.3 fps -22%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	16.2 fps -27%
Extreme Preset DX11
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	164.4 fps +631%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	135.3 fps +501%
Morefine S600-Apex Engineer Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8	24.7 fps +10%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	22.5 fps
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	18 fps -20%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	17.7 fps -21%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	17.1 fps -24%

Unigine Valley 1.0
1920x1080 Extreme HD DirectX AA:x8
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	141.6 fps +941%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	93.6 fps +588%
Morefine S600-Apex Engineer Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8	15.5 fps +14%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	13.6 fps
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	11.6 fps -15%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	11.5 fps -15%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	11.3 fps -17%
1920x1080 Extreme HD Preset OpenGL AA:x8
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	127.2 fps +685%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	91.6 fps +465%
Morefine S600-Apex Engineer Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8	16.4 fps +1%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	16.2 fps
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	13.7 fps -15%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	11.5 fps -29%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	10.7 fps -34%

ComputeMark v2.1
1024x600 Normal, Score
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	27847 Points +688%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	3535 Points
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	3499 Points -1%
Morefine S600-Apex Engineer Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8	3343 Points -5%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	3225 Points -9%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	2693 Points -24%
1024x600 Normal, Fluid 3DTex
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	2698 Points +1104%
Morefine S600-Apex Engineer Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8	298 Points +33%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	235 Points +5%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	224 Points 0%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	224 Points
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	186 Points -17%
1024x600 Normal, Fluid 2DTexArr
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	2629 Points +986%
Morefine S600-Apex Engineer Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8	286 Points +18%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	242 Points
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	231 Points -5%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	212 Points -12%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	204 Points -16%
1024x600 Normal, Mandel Vector
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	5711 Points +541%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	1066 Points +20%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	982 Points +10%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	891 Points
Morefine S600-Apex Engineer Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8	808 Points -9%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	558 Points -37%
1024x600 Normal, Mandel Scalar
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	6278 Points +618%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	964 Points +10%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	906 Points +4%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	874 Points
Morefine S600-Apex Engineer Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8	836 Points -4%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	751 Points -14%
1024x600 Normal, QJuliaRayTrace
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	10532 Points +708%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	1303 Points
Morefine S600-Apex Engineer Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8	1115 Points -14%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	1002 Points -23%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	994 Points -24%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	900 Points -31%

LuxMark v2.0 64Bit
Room GPUs-only
Morefine S600-Apex Engineer Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8	655 Samples/s +29%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	508 Samples/s
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	508 Samples/s 0%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	451 Samples/s -11%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	450 Samples/s -11%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	415 Samples/s -18%
Sala GPUs-only
Morefine S600-Apex Engineer Iris Xe G7 96EUs, i9-12900HK, Crucial P1 SSD CT1000P1SSD8	2494 Samples/s +14%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	2188 Samples/s
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	2188 Samples/s 0%
Minipc Union Ace Magician TK11-A0 Iris Xe G7 96EUs, i5-1135G7, Future Path FPE220M8SSD512G	1640 Samples/s -25%
Minipc Union Ace Magician AMR5 Vega 7, R5 5600U, Future Path FPE220M8SSD512G	993 Samples/s -55%
Minisforum EliteMini HX90 Vega 8, R9 5900HX, Kingston OM8PCP3512F-AB	939 Samples/s -57%

Spelprestanda

IGPU:n är inte lämplig för spelanvändning. I bästa fall kan vissa titlar spelas med låga upplösningar och låga grafikinställningar. Oavsett detta är spelupplevelsen fortfarande inte bra. Om du letar efter en spelenhet är en modell med en dedikerad GPU bättre lämpad. De senaste modellernaHX90G och NUCXi7 från Minisforum kan vara lämpliga alternativ. Alternativt kan en Thunderbolt eGPU-docka användas. Vi använde Razer Core X i kombination med en Nvidia GeForce RTX 3060 Ti för att testa den här konfigurationen. Även om den här konfigurationen kan köra många spel i höga upplösningar är prestandan fortfarande betydligt sämre jämfört med en traditionell stationär dator. Detta är ett resultat av att Thunderbolt 4-portarna är begränsade till endast 4 PCIe-lanes.

The Witcher 3
1024x768 Low Graphics & Postprocessing
Morefine S600-Apex Engineer Intel Core i9-12900HK, Intel Iris Xe Graphics G7 96EUs	97.6 (8.8^min, 27.5^P0.1, 58.5^P1) fps +11%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	88.1 (3.39^min, 21.4^P0.1, 52.9^P1) fps
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	72.2 (21.1^min, 40.1^P0.1, 51.4^P1) fps -18%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	65.9 (1.678^min, 12.6^P0.1, 39.7^P1) fps -25%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	61.8 (16.1^min, 20.6^P0.1, 34.6^P1) fps -30%
Intel NUC11TNKi5 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	59.8 (53^min) fps -32%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
Morefine S600-Apex Engineer Intel Core i9-12900HK, Intel Iris Xe Graphics G7 96EUs	32.1 (3.28^min, 14.8^P0.1, 18.7^P1) fps +111%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	23.7 (1.923^min, 13.5^P0.1, 19.7^P1) fps +56%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	21.9 (8.18^min, 17.5^P0.1, 19^P1) fps +44%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	19.6 (10.2^min, 13^P0.1, 16.4^P1) fps +29%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	15.2 (8.49^min, 8.73^P0.1, 9.27^P1) fps

GTA V
1024x768 Lowest Settings possible
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	116 (17^min, 76.9^P1) fps +7%
Morefine S600-Apex Engineer Intel Core i9-12900HK, Intel Iris Xe Graphics G7 96EUs	114.9 (9.31^min, 76.9^P1) fps +6%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	114.3 (8.54^min, 76.9^P1) fps +5%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	108.6 (21.4^min, 71.4^P1) fps
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	68.3 (18.7^min, 45.5^P1) fps -37%
1366x768 Normal/Off AF:4x
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	104 (13.4^min, 71.4^P1) fps +11%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	94.3 (5.72^min, 62.5^P1) fps 0%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	93.9 (23.8^min, 58.8^P1) fps
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	54.8 (16.1^min, 37^P1) fps -42%

Far Cry 5
1280x720 Low Preset AA:T
Morefine S600-Apex Engineer Intel Core i9-12900HK, Intel Iris Xe Graphics G7 96EUs	59 (53^min) fps +13%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	52 (45^min) fps
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	48 (44^min) fps -8%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	44 (38^min) fps -15%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	25 (19^min) fps -52%
1920x1080 Medium Preset AA:T
Morefine S600-Apex Engineer Intel Core i9-12900HK, Intel Iris Xe Graphics G7 96EUs	30 (27^min) fps +11%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	27 (25^min) fps
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	21 (19^min) fps -22%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	21 (19^min) fps -22%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	17 (14^min) fps -37%

Far Cry New Dawn
1280x720 Low Preset
Morefine S600-Apex Engineer Intel Core i9-12900HK, Intel Iris Xe Graphics G7 96EUs	53 (31^min) fps +13%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	47 (30^min) fps
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	44 (34^min) fps -6%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	40 (31^min) fps -15%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	29 (19^min) fps -38%
1920x1080 Medium Preset
Morefine S600-Apex Engineer Intel Core i9-12900HK, Intel Iris Xe Graphics G7 96EUs	29 (23^min) fps +7%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	27 (21^min) fps
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	22 (18^min) fps -19%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	20 (17^min) fps -26%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	16 (12^min) fps -41%

F1 2020
1280x720 Ultra Low Preset
Morefine S600-Apex Engineer Intel Core i9-12900HK, Intel Iris Xe Graphics G7 96EUs	95.2 (83^min) fps 0%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	95 (75^min) fps
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	94.7 (78^min) fps 0%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	90.4 (73^min) fps -5%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	60.4 (2^min) fps -36%
1920x1080 Medium Preset AF:16x
Morefine S600-Apex Engineer Intel Core i9-12900HK, Intel Iris Xe Graphics G7 96EUs	49.4 (42^min) fps +1%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	48.7 (41^min) fps
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	41.2 (34^min) fps -15%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	32.6 (2^min) fps -33%

Strange Brigade
1280x720 lowest AF:1
Morefine S600-Apex Engineer Intel Core i9-12900HK, Intel Iris Xe Graphics G7 96EUs	97.4 (21.9^min, 40.2^P1) fps +8%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	90.1 (16.9^min, 29.3^P1) fps
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	87.7 (45^min, 75.6^P1) fps -3%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	80.1 (48.8^min, 67.5^P1) fps -11%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	72.9 (14.8^min, 24.2^P1) fps -19%
1920x1080 medium AA:medium AF:4
Morefine S600-Apex Engineer Intel Core i9-12900HK, Intel Iris Xe Graphics G7 96EUs	44.6 (10.8^min, 23.9^P1) fps +13%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	39.5 (13.2^min, 21.1^P1) fps
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	33.5 (28.7^min, 29.8^P1) fps -15%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	30.2 (23.5^min, 26.3^P1) fps -24%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	28.3 (6.5^min, 7.43^P1) fps -28%

Borderlands 3
1920x1080 Medium Overall Quality (DX11)
Morefine S600-Apex Engineer Intel Core i9-12900HK, Intel Iris Xe Graphics G7 96EUs	25.3 fps +10%
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	23.1 fps 0%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	23 fps
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	21.2 fps -8%
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	15.8 fps -31%
1280x720 Very Low Overall Quality (DX11)
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	60.1 fps +15%
Morefine S600-Apex Engineer Intel Core i9-12900HK, Intel Iris Xe Graphics G7 96EUs	55.5 fps +6%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	53.4 fps +2%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	52.4 fps
Minipc Union Ace Magician TK11-A0 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 96EUs	33.9 fps -35%

Metro Exodus
1280x720 Low Quality AF:4x
Morefine S600-Apex Engineer Intel Core i9-12900HK, Intel Iris Xe Graphics G7 96EUs	42.9 (22.44^min) fps +3%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	41.5 (21.89^min) fps
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	39.2 (25.3^min) fps -6%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	37.9 (22.1^min) fps -9%
1920x1080 Medium Quality AF:4x
Morefine S600-Apex Engineer Intel Core i9-12900HK, Intel Iris Xe Graphics G7 96EUs	21.1 (10.84^min) fps +4%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	20.3 (10.85^min) fps
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	16.4 (7.91^min) fps -19%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	15.9 (8.1^min) fps -22%

F1 2021
1280x720 Ultra Low Preset
Morefine S600-Apex Engineer Intel Core i9-12900HK, Intel Iris Xe Graphics G7 96EUs	106.6 (85^min, 83^P1) fps +5%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	101.1 (75^min, 72^P1) fps
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	98.3 (74^min, 75^P1) fps -3%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	94.7 (75^min, 75^P1) fps -6%
1920x1080 Medium Preset AA:T AF:16x
Morefine S600-Apex Engineer Intel Core i9-12900HK, Intel Iris Xe Graphics G7 96EUs	52.6 (43^min, 42^P1) fps +11%
Intel NUC 12 Pro Kit NUC12WSKi7 Intel Core i7-1260P, Intel Iris Xe Graphics G7 96EUs	47.3 (37^min, 37^P1) fps
Minisforum EliteMini HX90 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	42.5 (34^min, 34^P1) fps -10%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U, AMD Radeon RX Vega 7	39.9 (32^min, 32^P1) fps -16%

The Witcher 3
1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Nvidia GeForce RTX 3060 Ti FE NVIDIA GeForce RTX 3060 Ti, R9 7950X	124.3 (35.1^min, 81.8^P0.1, 103.5^P1 - 390^max) fps
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	104.1 (24.9^min, 51.1^P0.1, 81.2^P1 - 254^max) fps
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	88 (41.9^min, 48.7^P0.1, 72.5^P1 - 232^max) fps
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	75.3 (40.5^min, 52.6^P0.1, 59.5^P1 - 173.3^max) fps
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	60.8 (40.3^min, 43^P0.1, 46.6^P1 - 140.7^max) fps
3840x2160 High Graphics & Postprocessing (Nvidia HairWorks Off)
Nvidia GeForce RTX 3060 Ti FE NVIDIA GeForce RTX 3060 Ti, R9 7950X	85.6 (59^min, 67.3^P0.1, 74.7^P1 - 139.4^max) fps
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	72.3 (48.3^min, 54.7^P0.1, 59.9^P1 - 170^max) fps
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	71.6 (27.6^min, 44.2^P0.1, 60.8^P1 - 323^max) fps
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	45 (8.46^min, 15.2^P0.1, 22^P1 - 192.2^max) fps
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	43.9 (32.8^min, 33^P0.1, 34.2^P1 - 66.8^max) fps

GTA V
1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x
Nvidia GeForce RTX 3060 Ti FE NVIDIA GeForce RTX 3060 Ti, R9 7950X	149.9 (6.21^min, 100^P1 - 286^max) fps +1713%
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	106 (6.46^min, 76.9^P1 - 212^max) fps +1182%
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	86.6 (3.43^min, 58.8^P1 - 176^max) fps +947%
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	85.1 (17.4^min, 52.6^P1 - 186.7^max) fps +929%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	56.1 (15.7^min, 38.5^P1 - 119.1^max) fps +578%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	8.27 (3.9^min, 4.85^P1 - 22.7^max) fps
2560x1440 Highest Settings possible AA:4xMSAA + FX AF:16x
Nvidia GeForce RTX 3060 Ti FE NVIDIA GeForce RTX 3060 Ti, R9 7950X	117 (8.45^min, 76.9^P1 - 225^max) fps
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	90.6 (7.58^min, 62.5^P1 - 157.1^max) fps
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	60.8 (5.28^min, 41.7^P1 - 124.7^max) fps
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	57.8 (15.7^min, 32.3^P1 - 150.9^max) fps
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	51.2 (15^min, 35.7^P1 - 107^max) fps

Dota 2 Reborn
1920x1080 ultra (3/3) best looking
Nvidia GeForce RTX 3060 Ti FE NVIDIA GeForce RTX 3060 Ti, R9 7950X	232.1 (197.7^min) fps +301%
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	135.6 (116.6^min) fps +134%
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	134.5 (115.1^min) fps +132%
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	96.6 (75.3^min) fps +67%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	92.8 (79.9^min) fps +60%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	57.9 (52^min) fps
3840x2160 ultra (3/3) best looking
Nvidia GeForce RTX 3060 Ti FE NVIDIA GeForce RTX 3060 Ti, R9 7950X	169 (145.3^min) fps
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	124.3 (103^min) fps
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	109 (89.4^min) fps
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	93.2 (80^min) fps
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	81.7 (71.3^min) fps

Final Fantasy XV Benchmark
1920x1080 High Quality
Nvidia GeForce RTX 3060 Ti FE NVIDIA GeForce RTX 3060 Ti, R9 7950X	125.9 fps +668%
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	103.3 fps +530%
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	97.6 fps +495%
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	81.4 fps +396%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	79 fps +382%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	16.4 fps
2560x1440 High Quality
Nvidia GeForce RTX 3060 Ti FE NVIDIA GeForce RTX 3060 Ti, R9 7950X	93.2 fps
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	77.1 fps
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	76.7 fps
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	70 fps
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	56.6 fps

X-Plane 11.11
1920x1080 high (fps_test=3)
Nvidia GeForce RTX 3060 Ti FE NVIDIA GeForce RTX 3060 Ti, R9 7950X	152.7 fps +278%
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	94.8 fps +135%
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	90.3 fps +124%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	58.9 fps +46%
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	47.1 fps +17%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	40.4 fps
3840x2160 high (fps_test=3)
Nvidia GeForce RTX 3060 Ti FE NVIDIA GeForce RTX 3060 Ti, R9 7950X	127.4 fps
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	81.5 fps
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	80.1 fps
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	53.2 fps
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	29 fps

Far Cry 5
1920x1080 Ultra Preset AA:T
Nvidia GeForce RTX 3060 Ti FE NVIDIA GeForce RTX 3060 Ti, R9 7950X	170 (134^min - 197^max) fps +608%
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	120 (92^min - 158^max) fps +400%
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	119 (90^min - 152^max) fps +396%
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	110 (87^min - 142^max) fps +358%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	60 (46^min - 78^max) fps +150%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	24 (21^min - 28^max) fps
2560x1440 Ultra Preset AA:T
Nvidia GeForce RTX 3060 Ti FE NVIDIA GeForce RTX 3060 Ti, R9 7950X	125 (113^min - 146^max) fps
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	100 (85^min - 120^max) fps
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	99 (83^min - 117^max) fps
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	89 (77^min - 111^max) fps
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	54 (43^min - 73^max) fps

Far Cry New Dawn
1920x1080 Ultra Preset
Nvidia GeForce RTX 3060 Ti FE NVIDIA GeForce RTX 3060 Ti, R9 7950X	142 (103^min - 196^max) fps +517%
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	101 (74^min - 147^max) fps +339%
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	100 (71^min - 156^max) fps +335%
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	90 (63^min - 144^max) fps +291%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	54 (39^min - 85^max) fps +135%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	23 (17^min - 30^max) fps
2560x1440 Ultra Preset
Nvidia GeForce RTX 3060 Ti FE NVIDIA GeForce RTX 3060 Ti, R9 7950X	121 (92^min - 148^max) fps
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	92 (73^min - 119^max) fps
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	91 (70^min - 121^max) fps
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	85 (63^min - 124^max) fps
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	50 (34^min - 75^max) fps

Strange Brigade
1920x1080 ultra AA:ultra AF:16
Nvidia GeForce RTX 3060 Ti FE NVIDIA GeForce RTX 3060 Ti, R9 7950X	219 (159.8^min, 163.4^P1 - 311^max) fps +736%
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	184.7 (56.8^min, 140.7^P1 - 287^max) fps +605%
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	151.8 (107^min, 110.3^P1 - 258^max) fps +479%
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	148.8 (78.4^min, 90.6^P1 - 285^max) fps +468%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	114.7 (58.8^min, 72.4^P1 - 210^max) fps +338%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	26.2 (8.6^min, 9.63^P1 - 224^max) fps
2560x1440 ultra AA:ultra AF:16
Nvidia GeForce RTX 3060 Ti FE NVIDIA GeForce RTX 3060 Ti, R9 7950X	161.3 (124.3^min, 127.6^P1 - 219^max) fps
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	137.3 (44.8^min, 111^P1 - 303^max) fps
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	129.9 (35.9^min, 86.2^P1 - 222^max) fps
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	98.3 (78^min, 79.9^P1 - 147.9^max) fps
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	92.8 (33.1^min, 61.7^P1 - 192.6^max) fps

Metro Exodus
1920x1080 Ultra Quality AF:16x
Nvidia GeForce RTX 3060 Ti FE NVIDIA GeForce RTX 3060 Ti, R9 7950X	91.5 (46.9^min - 167.64^max) fps
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	74.6 (38.07^min - 133.07^max) fps
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	59.2 (34.14^min - 86.99^max) fps
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	52.9 (24.48^min - 97.96^max) fps
2560x1440 Ultra Quality AF:16x
Nvidia GeForce RTX 3060 Ti FE NVIDIA GeForce RTX 3060 Ti, R9 7950X	72 (40.41^min - 128.37^max) fps
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	59.9 (32.93^min - 102.72^max) fps
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	46.1 (22.9^min - 80.71^max) fps
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	45.1 (27.81^min - 61.71^max) fps

Borderlands 3
2560x1440 Badass Overall Quality (DX11)
Nvidia GeForce RTX 3060 Ti FE NVIDIA GeForce RTX 3060 Ti, R9 7950X	76.3 fps
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	63.9 fps
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	62.6 fps
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	60.1 fps
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	44.9 fps
1920x1080 Badass Overall Quality (DX11)
Nvidia GeForce RTX 3060 Ti FE NVIDIA GeForce RTX 3060 Ti, R9 7950X	108.5 fps
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	84.7 fps
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	83.6 fps
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	71.3 fps
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	66.2 fps

Tiny Tina's Wonderlands
1920x1080 Badass Preset (DX12)
Nvidia GeForce RTX 3060 Ti FE NVIDIA GeForce RTX 3060 Ti, R9 7950X	106.8 fps
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	88.3 fps
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	81.5 fps
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	74.8 fps
2560x1440 Badass Preset (DX12)
Nvidia GeForce RTX 3060 Ti FE NVIDIA GeForce RTX 3060 Ti, R9 7950X	74.4 fps
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	62.1 fps
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	61.9 fps
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	49.4 fps

F1 2020
1920x1080 Ultra High Preset AA:T AF:16x
Nvidia GeForce RTX 3060 Ti FE NVIDIA GeForce RTX 3060 Ti, R9 7950X	201 (161^min - 240^max) fps +741%
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	166.2 (136^min - 198^max) fps +595%
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	132.4 (98^min - 165^max) fps +454%
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	102.7 (53^min - 145^max) fps +330%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	81.5 (43^min - 107^max) fps +241%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	23.9 (17^min - 30^max) fps
2560x1440 Ultra High Preset AA:T AF:16x
Nvidia GeForce RTX 3060 Ti FE NVIDIA GeForce RTX 3060 Ti, R9 7950X	150 (125^min - 175^max) fps
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	123.7 (103^min - 145^max) fps
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	96.6 (75^min - 119^max) fps
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	92.7 (51^min - 119^max) fps
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	67.7 (37^min - 87^max) fps

F1 2021
2560x1440 Ultra High Preset + Raytracing AA:T AF:16x
Nvidia GeForce RTX 3060 Ti FE NVIDIA GeForce RTX 3060 Ti, R9 7950X	107.8 (92^min, 92^P1 - 119^max) fps
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	90.2 (78^min, 77^P1 - 100^max) fps
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	65.7 (55^min, 55^P1 - 77^max) fps
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	58.9 (45^min, 41^P1 - 65^max) fps
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	49.2 (34^min, 21^P1 - 59^max) fps
1920x1080 Ultra High Preset + Raytracing AA:T AF:16x
Nvidia GeForce RTX 3060 Ti FE NVIDIA GeForce RTX 3060 Ti, R9 7950X	147.6 (127^min, 126^P1 - 165^max) fps +449%
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	123.1 (104^min, 93^P1 - 137^max) fps +358%
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	95.8 (80^min, 80^P1 - 110^max) fps +256%
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	65.4 (47^min, 47^P1 - 73^max) fps +143%
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	51.7 (34^min, 24^P1 - 59^max) fps +92%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	26.9 (20^min, 21^P1 - 30^max) fps

F1 22
2560x1440 Ultra High Preset AA:T AF:16x
Nvidia GeForce RTX 3060 Ti FE NVIDIA GeForce RTX 3060 Ti, R9 7950X	49.3 (42^min, 41^P1 - 58^max) fps
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	39.7 (31^min, 29^P1 - 47^max) fps
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	30.2 (20^min, 18^P1 - 37^max) fps
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	24.4 (19^min, 19^P1 - 30^max) fps
1920x1080 Ultra High Preset AA:T AF:16x
Nvidia GeForce RTX 3060 Ti FE NVIDIA GeForce RTX 3060 Ti, R9 7950X	77.7 (66^min, 65^P1 - 92^max) fps +228%
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	61.9 (49^min, 37^P1 - 72^max) fps +161%
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	39.9 (30^min, 30^P1 - 51^max) fps +68%
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	31.5 (21^min, 18^P1 - 39^max) fps +33%
Intel NUC 12 Pro Kit NUC12WSKi7 Iris Xe G7 96EUs, i7-1260P, Transcend M.2 SSD 2200S TS512GMTE220S	23.7 (19^min, 19^P1 - 28^max) fps

Performance Rating - Percent
Genomsnitt NVIDIA GeForce RTX 3060 Ti	97.2 pt
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	96.1 pt
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	84.6 pt
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	69.8 pt
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	65.4 pt

The Witcher 3
1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	104.1 (24.9^min, 51.1^P0.1, 81.2^P1 - 254^max) fps
Genomsnitt NVIDIA GeForce RTX 3060 Ti (64.6 - 124.3, n=6)	94 fps
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	88 (41.9^min, 48.7^P0.1, 72.5^P1 - 232^max) fps
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	75.3 (40.5^min, 52.6^P0.1, 59.5^P1 - 173.3^max) fps
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	60.8 (40.3^min, 43^P0.1, 46.6^P1 - 140.7^max) fps
3840x2160 High Graphics & Postprocessing (Nvidia HairWorks Off)
Genomsnitt NVIDIA GeForce RTX 3060 Ti (54.6 - 85.6, n=6)	75.1 fps
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	72.3 (48.3^min, 54.7^P0.1, 59.9^P1 - 170^max) fps
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	71.6 (27.6^min, 44.2^P0.1, 60.8^P1 - 323^max) fps
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	45 (8.46^min, 15.2^P0.1, 22^P1 - 192.2^max) fps
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	43.9 (32.8^min, 33^P0.1, 34.2^P1 - 66.8^max) fps

GTA V - 2560x1440 Highest Settings possible AA:4xMSAA + FX AF:16x
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	90.6 (7.58^min, 62.5^P1 - 157.1^max) fps
Genomsnitt NVIDIA GeForce RTX 3060 Ti (38.9 - 117, n=6)	87.2 fps
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	60.8 (5.28^min, 41.7^P1 - 124.7^max) fps
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	57.8 (15.7^min, 32.3^P1 - 150.9^max) fps
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	51.2 (15^min, 35.7^P1 - 107^max) fps

Dota 2 Reborn - 3840x2160 ultra (3/3) best looking
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	124.3 (103^min) fps
Genomsnitt NVIDIA GeForce RTX 3060 Ti (33.7 - 169, n=6)	121 fps
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	109 (89.4^min) fps
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	93.2 (80^min) fps
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	81.7 (71.3^min) fps

Final Fantasy XV Benchmark - 2560x1440 High Quality
Genomsnitt NVIDIA GeForce RTX 3060 Ti (40.8 - 93.2, n=6)	78.1 fps
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	77.1 fps
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	76.7 fps
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	70 fps
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	56.6 fps

X-Plane 11.11 - 3840x2160 high (fps_test=3)
Genomsnitt NVIDIA GeForce RTX 3060 Ti (30.3 - 128.8, n=6)	90.1 fps
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	81.5 fps
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	80.1 fps
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	53.2 fps
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	29 fps

Far Cry 5 - 2560x1440 Ultra Preset AA:T
Genomsnitt NVIDIA GeForce RTX 3060 Ti (90 - 125, n=6)	107.7 fps
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	100 (85^min - 120^max) fps
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	99 (83^min - 117^max) fps
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	89 (77^min - 111^max) fps
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	54 (43^min - 73^max) fps

Far Cry New Dawn - 2560x1440 Ultra Preset
Genomsnitt NVIDIA GeForce RTX 3060 Ti (73 - 121, n=6)	97.7 fps
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	92 (73^min - 119^max) fps
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	91 (70^min - 121^max) fps
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	85 (63^min - 124^max) fps
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	50 (34^min - 75^max) fps

Strange Brigade - 2560x1440 ultra AA:ultra AF:16
Genomsnitt NVIDIA GeForce RTX 3060 Ti (119.3 - 161.3, n=6)	140.8 fps
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	137.3 (44.8^min, 111^P1 - 303^max) fps
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	129.9 (35.9^min, 86.2^P1 - 222^max) fps
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	98.3 (78^min, 79.9^P1 - 147.9^max) fps
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	92.8 (33.1^min, 61.7^P1 - 192.6^max) fps

Borderlands 3
2560x1440 Badass Overall Quality (DX11)
Genomsnitt NVIDIA GeForce RTX 3060 Ti (63.2 - 76.3, n=6)	68.9 fps
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	63.9 fps
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	62.6 fps
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	60.1 fps
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	44.9 fps
1920x1080 Badass Overall Quality (DX11)
Genomsnitt NVIDIA GeForce RTX 3060 Ti (78.2 - 108.5, n=6)	92.6 fps
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	84.7 fps
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	83.6 fps
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	71.3 fps
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	66.2 fps

F1 2020 - 2560x1440 Ultra High Preset AA:T AF:16x
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	123.7 (103^min - 145^max) fps
Genomsnitt NVIDIA GeForce RTX 3060 Ti (87.6 - 150, n=6)	117.4 fps
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	96.6 (75^min - 119^max) fps
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	92.7 (51^min - 119^max) fps
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	67.7 (37^min - 87^max) fps

F1 2021 - 2560x1440 Ultra High Preset + Raytracing AA:T AF:16x
Minisforum NUCX i7 GeForce RTX 3070 Laptop GPU, i7-11800H	90.2 (78^min, 77^P1 - 100^max) fps
Genomsnitt NVIDIA GeForce RTX 3060 Ti (45.2 - 107.8, n=6)	77 fps
Minisforum Neptune Series HX90G Radeon RX 6600M, R9 5900HX, ESO512GYLCT	65.7 (55^min, 55^P1 - 77^max) fps
Ace Magician TK11-A0 + Nvidia GeForce RTX 3060 Ti , i5-1135G7, Future Path FPE220M8SSD512G	58.9 (45^min, 41^P1 - 65^max) fps
Intel NUC 12 Pro Kit NUC12WSKi7 NVIDIA GeForce RTX 3060 Ti, i7-1260P	49.2 (34^min, 21^P1 - 59^max) fps

Intel NUC 12 Pro Kit - Wall Street Canyon iGPU only

	låg	med.	hög	ultra
GTA V (2015)	108.6	93.9	19.4	8.27
The Witcher 3 (2015)	88.1		15.2
Dota 2 Reborn (2015)	116.4	87.9	63.1	57.9
Final Fantasy XV Benchmark (2018)	42.8	23	16.4
X-Plane 11.11 (2018)	62.3	46.2	40.4
Far Cry 5 (2018)	52	27	25	24
Strange Brigade (2018)	90.1	39.5	32.5	26.2
Far Cry New Dawn (2019)	47	27	26	23
Metro Exodus (2019)	41.5	20.3	14.4
Borderlands 3 (2019)	52.4	23	15
F1 2020 (2020)	95	48.7	37.4	23.9
F1 2021 (2021)	101.1	47.3	36.8	26.9
Tiny Tina's Wonderlands (2022)	31.8	24.2	15.2
F1 22 (2022)	44.3	42.6	30.9	23.7

Intel NUC 12 Pro Kit - Wall Street Canyon + Nvidia GeForce RTX 3060 Ti

	låg	med.	hög	ultra	QHD	4K
GTA V (2015)	178.5	172.4	128.2	85.1	57.8	39.4
The Witcher 3 (2015)	308	211	151.2	75.3		72.3
Dota 2 Reborn (2015)	167.7	150.9	144.9	134.5		109
Final Fantasy XV Benchmark (2018)	175.7	141.1	97.6		77.1	48.5
X-Plane 11.11 (2018)	126.9	110.6	90.3			80.1
Far Cry 5 (2018)	153	133	127	120	100
Strange Brigade (2018)	204	156.4	153.7	148.8	129.9	83.4
Far Cry New Dawn (2019)	133	115	111	101	92	59
Metro Exodus (2019)	144.5	91.9	70.5	52.9	46.1	33.8
Borderlands 3 (2019)	145.2	126.5	101.3	83.6	63.9	37.8
F1 2020 (2020)	209	124.7	126.1	102.7	92.7	60.3
F1 2021 (2021)	142.1	113.1	68.7	51.7	49.2	41.5
Tiny Tina's Wonderlands (2022)	173.9	139.5	100.3	81.5	61.9	36
F1 22 (2022)	71.3	70.4	57.7	31.5	30.2	21.1

Utsläpp

Systembrus

Intel NUC 12 Pro Kit är endast tyst när den är inaktiv. Fläkten går mjukt på 33 dB(A), vilket gör att den knappt märks. Under belastning ökar detta värde till i genomsnitt 38 dB(A) och till ännu högre 43 dB(A) under stresstestet. Med detta sagt är Intel NUC 12 Pro Kit fortfarande inte den mest högljudda enheten i vår jämförelse. Konkurrenter som t.ex Minisforum EliteMini HX90 kan förbli mycket tystare.

Ljudnivå

Låg belastning		33.1 / 33.1 / 33.1 dB(A)
Hög belastning		38.1 / 43.6 dB(A)

	30 dB tyst 40 dB(A) hörbar 50 dB(A) högt ljud
min: , med: , max: Earthworks M23R, Arta (15 cm avstånd) omgivningsljud: 30.4 dB(A)

Temperaturer

När Intel NUC 12 Pro Kit går på tomgång och under enkla uppgifter är yttemperaturen på Intel NUC 12 Pro Kit relativt sval. Värmen kan snabbt ta sig ut ur höljet genom baksidan.

När systemet stressas med Prime95 är Intel Core i7-1260P en topptemperatur på 93 °C och en klockfrekvens på 2,6 GHz på P-kärnorna. Samtidigt håller E-kärnorna fortfarande en respektabel takt på 2,3 GHz. Temperaturerna är inget att oroa sig för överlag och det finns ingen termisk strypning under ren CPU-stress. CPU:n når inledningsvis PL2 TDP-gränsen och faller därefter till PL1-gränsen på 40 watt. Detta värde kan bibehållas under hela stresstestet.

Energiförbrukning

Intel NUC 12 Pro Kit kan inte beskrivas som extremt energieffektiv. Detta beror på den något höga strömförbrukningen vid tomgång. I det här scenariot måste 120-watts nätadaptern tillhandahålla minst 12 watt. Under belastning ökar detta värde till i genomsnitt 64 watt med tillfälliga toppar till nästan 99 watt när Turbo är aktiv. Växelströmsadaptern är alltså tillräckligt dimensionerad. Överraskande nog är energiförbrukningen under viloläge (4,7 watt) och när den är avstängd (1,6 watt) relativt hög.

Strömförbrukning

Av/Standby	1.66 / 4.73 Watt
Låg belastning	12.1 / 12.2 / 12.3 Watt
Hög belastning	64 / 98.8 Watt


Förklaring: min: , med: , max: Metrahit Energy

	Intel NUC 12 Pro Kit NUC12WSKi7 i7-1260P, Iris Xe G7 96EUs	Intel NUC11TNKi5 i5-1135G7, Iris Xe G7 80EUs	Minipc Union Ace Magician AMR5 R5 5600U, Vega 7	Minipc Union Ace Magician TK11-A0 i5-1135G7, Iris Xe G7 96EUs	Morefine S600-Apex Engineer i9-12900HK, Iris Xe G7 96EUs	Genomsnitt Intel Iris Xe Graphics G7 96EUs	Genomsnitt av klass Mini PC
Power Consumption		12%	32%	48%	-231%	31%	2%
Idle Minimum *	12.1	11.5 5%	8.4 31%	3.4 72%	46.5 -284%	5.41 ?(2.2 - 46.5, n=196) 55%	9.54 ?(2.2 - 45.7, n=116, senaste 2 åren) 21%
Idle Average *	12.2	12.4 -2%	8.7 29%	5.7 53%	63 -416%	8.6 ?(3.8 - 63, n=196) 30%	11.7 ?(2.59 - 47.5, n=114, senaste 2 åren) 4%
Idle Maximum *	12.3	12.9 -5%	9.3 24%	7 43%	68.9 -460%	10.9 ?(5.8 - 68.9, n=196) 11%	15 ?(2.6 - 49, n=116, senaste 2 åren) -22%
Load Average *	64	40.7 36%	46.4 27%	36.5 43%	73.9 -15%	45.4 ?(12.5 - 87.3, n=196) 29%	59.1 ?(12.9 - 170.6, n=116, senaste 2 åren) 8%
Load Maximum *	98.8	73.5 26%	52 47%	68 31%	80.8 18%	67.6 ?(30.1 - 123.3, n=196) 32%	100.1 ?(25 - 423, n=116, senaste 2 åren) -1%
Witcher 3 ultra *		43.9

* ... mindre är bättre

Omdöme - Avancerad, kraftfull och framtidssäker

Recension av Intel NUC 12 Pro Kit - Wall Street Canyon - recensionsenhet från Intel Tyskland

Intel NUC 12 Pro Kit är mer än duglig som en utmärkt kontorsdator. Det är baserat på Intel Core i7-1260P, en snabb SoC med 12 kärnor och 16 trådar som klarar av att köra många program samtidigt. Systemets främsta fördel är dess kompakta formfaktor i kombination med de senaste och bästa gränssnitten, som knappt lämnar något att önska. Thunderbolt 4, som finns tillgängligt i två versioner, är det i särklass mest intressanta tillägget.

Priset på cirka 700 USD är en halv sanning när det gäller att fatta ett köpbeslut, eftersom barebone-systemet varken innehåller RAM-minne, en SSD eller en Windows-licens. Med detta sagt är erbjudandena från andra tillverkare av minidatorer liknande till sin karaktär. Vår blygsamt utrustade testkonfiguration innehåller 16 GB RAM och en 512 GB SSD och presterar mycket bra. Subjektivt sett kändes systemet aldrig långsamt under vår testperiod. Tack vare de goda DPC-latenserna är enheten väl lämpad som streamingklient i vardagsrummet. En extern GPU-docka kan också anslutas i händelse av att mer 3D-prestanda behövs. När vi granskade systemet utforskade vi detta alternativ med hjälp av en Nvidia GeForce RTX 3060 Ti.

Först och främst är Intel NUC 12 Pro Kit en utmärkt kontorsdator. Men med lämpliga tillbehör blir det lilla systemet kapabelt till mycket mer.

Visuellt sett ligger Intel NUC 12 Pro Kit i linje med andra modeller från Intels NUC-serie. Byggkvaliteten är god, även om det plastklädda yttre kan se något billigt ut vid första anblicken. På det hela taget gör Intel NUC 12 Pro Kit inga större felsteg som skulle diskvalificera oss från att rekommendera systemet. Det finns många konkurrenter inom området för minidatorer. Med det sagt är det inte många av dem som har Thunderbolt-stöd. Ace Magician TK11-A0 är ett av undantagen. Den kan dock inte mäta sig med CPU-prestandan i Intel NUC 12 Pro Kit.

Pris och tillgänglighet

Intel NUC 12 Pro Kit - Wall Street Canyon finns för närvarande tillgänglig i olika butiker som Amazon för cirka 710 USD.

Intel NUC 12 Pro Kit NUC12WSKi7 - 11/24/2022 v7 ^(old)
Sebastian Bade

Design

81 / 98 → 83%

Anslutningar

55 / 81 → 68%

Vikt

83%

Spelprestanda

67%

Programprestanda

94%

Ljudnivå

78%

Medel

76%

79%

Mini PC - Vägt medel

Gradering	Datum	Modell	Vikt	Höjd
78.9 % v7 ^(old)	11/2022	Intel NUC 12 Pro Kit NUC12WSKi7 i7-1260P, Iris Xe G7 96EUs	511 g	37 mm
v ^(old)	01/2022	Minisforum EliteMini HX90 R9 5900HX, Vega 8		60 mm
v ^(old)		Intel NUC11TNKi5 i5-1135G7, Iris Xe G7 80EUs	504 g	37 mm
v ^(old)	09/2022	Minipc Union Ace Magician AMR5 R5 5600U, Vega 7	628 g	72 mm
v7 ^(old)	09/2022	Minipc Union Ace Magician TK11-A0 i5-1135G7, Iris Xe G7 96EUs	586 g	53 mm
v7 ^(old)	10/2022	Morefine S600-Apex Engineer i9-12900HK, Iris Xe G7 96EUs	795 g	63.5 mm

Recension av Intel NUC 12 Pro Kit - Wall Street Canyon - Avancerad minidator med mångsidig Intel Core i7-1260P

Snabb och framtidssäker!

Potentiella konkurrenter i jämförelse

Intel NUC 12 Pro Kit i detalj

Hölje

Anslutningsmöjligheter

Kommunikation

Tillbehör

Underhåll

Prestanda - Core i7 med 12 kärnor

Provningsförhållanden

Processor

Intel NUC 12 Pro Kit - Wall Street Canyon vs. Cinebench R15 Multi Loop

Systemets prestanda

DPC-latenstid

Lagringslösning

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

GPU-prestanda

Spelprestanda

Intel NUC 12 Pro Kit - Wall Street Canyon iGPU only

Intel NUC 12 Pro Kit - Wall Street Canyon + Nvidia GeForce RTX 3060 Ti

Utsläpp

Systembrus

Temperaturer

Energiförbrukning

Consumption external Monitor

För

Emot

Omdöme - Avancerad, kraftfull och framtidssäker

Pris och tillgänglighet

Fler artiklar relaterade till den här enheten

3DMark 05 Standard		43430 poäng
3DMark 06 Standard Score		32994 poäng
3DMark Vantage P Result		24787 poäng
3DMark 11 Performance		7421 poäng
3DMark Ice Storm Standard Score		53585 poäng
3DMark Cloud Gate Standard Score		19367 poäng
3DMark Fire Strike Score		4564 poäng
3DMark Fire Strike Extreme Score		2165 poäng
3DMark Time Spy Score		1854 poäng
Hjälp

	Intel NUC 12 Pro Kit NUC12WSKi7 i7-1260P, Iris Xe G7 96EUs	Minisforum EliteMini HX90 R9 5900HX, Vega 8	Intel NUC11TNKi5 i5-1135G7, Iris Xe G7 80EUs	Minipc Union Ace Magician AMR5 R5 5600U, Vega 7	Minipc Union Ace Magician TK11-A0 i5-1135G7, Iris Xe G7 96EUs	Morefine S600-Apex Engineer i9-12900HK, Iris Xe G7 96EUs
Noise		9%	-2%	-7%	5%	-8%
av / miljö *	30.4	30.8 -1%	24.8 18%	30.5 -0%	30.28 -0%	29.6 3%
Idle Minimum *	33.1		35.6 -8%	31.5 5%	31.82 4%	36.1 -9%
Idle Average *	33.1	31.6 5%	35.6 -8%	32.6 2%	32.27 3%	37.6 -14%
Idle Maximum *	33.1		35.6 -8%	33.8 -2%	33.17 -0%	39.2 -18%
Load Average *	38.1		36.2 5%	49.3 -29%	35.82 6%	42.6 -12%
Load Maximum *	43.6	33.4 23%	47.6 -9%	50.9 -17%	37.1 15%	42.4 3%
Witcher 3 ultra *			38
