Recension av mini-PC:n Beelink SEi11 - Billigare än en Intel NUC 11 men lika snabb

Core i5-11320H mot Core i7-1165G7.

NUC-alternativ kan ofta vara en blandad kompott, men Beelink SEi11 kommer väldigt nära en fullfjädrad NUC samtidigt som den kostar tusentals kronor mindre tack vare den ovanliga Core i5-11320H.

Allen Ngo, 👁 Allen Ngo (översatt av DeepL / Ninh Duy), Published 09/13/2022 🇺🇸 🇫🇷 ...

Tiger Lake Mini PC

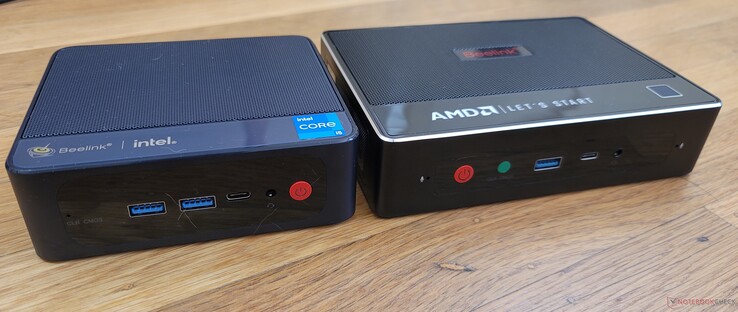

Till vänster: Beelink SEi11, till höger: Beelink GTR5

Till skillnad från Beelink GTI 11 drivs SEi11 av en CPU i Intel Core H-serien i stället för Core U-serien. Det finns bara en konfiguration tillgänglig för tillfället med den 11:e generationen Tiger Lake-H Core i5-11320H, 16 GB RAM och 500 GB NVMe SSD för cirka 450 USD

SEi11 konkurrerar direkt med Intel NUC-serien som t.ex NUC11PAQ eller NUC11TNK

Fler recensioner från Beelink:

Beelink SEi11 Pro

Processor

Intel Core i5-11320H 4 x 3.2 - 4.5 GHz, 35 W PL2 / Short Burst, 35 W PL1 / Sustained, Tiger Lake-H35

Grafikkort

Intel Iris Xe Graphics G7 96EUs, Kärna: 1350 MHz, Minne: 1200 MHz, DDR4, 31.0.101.3413

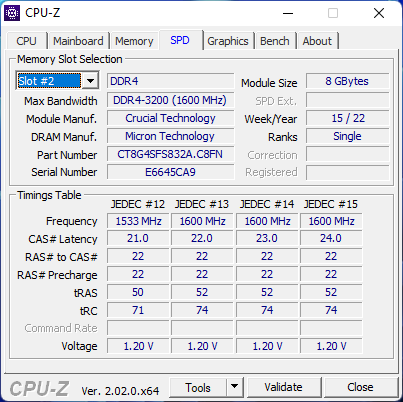

Minne

16 GB

, Crucial DDR4-3200, 22-22-22-52, Dual-Channel, 2x SODIMM

Moderkort

Intel Tiger Lake-UP3 PCH-LP

Hårddisk

Kingston NV1 SNVS/500GCN, 500 GB

Ljudkort

Intel Tiger Lake-U/Y PCH-LP - cAVS (Audio, Voice, Speech)

Anslutningar

4 USB 2.0, 3 USB 3.0, 2 HDMI, Ljudanslutningar: 3.5 mm headset

Nätverk

Realtek Semiconductor RTL8168/8111 PCI-E Gigabit Ethernet NIC (10/100/1000MBit/s), MediaTek RZ608 (a/b/g/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/ Wi-Fi 6E 6 GHz), Bluetooth 5.2

Storlek

höjd x bredd x djup (i mm) 40 x 126 x 113

Operativsystem

Microsoft Windows 11 Pro

Övrigt

2x HDMI cables, VESA wall-mounting bracket, extra screws, 12 Månader Garanti

Vikt

440 g, Strömförsörjning: 222 g

Pris

430 USD

Länkar

Beelink hemsida

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

see all specifications

Potentiella konkurrenter i jämförelse

Rating	Date	Model	Weight	Height	Resolution
v ^(old)	09/2022	Beelink SEi11 Pro i5-11320H, Iris Xe G7 96EUs	440 g	40 mm	x
v ^(old)	01/2022	Beelink GTR5 R9 5900HX, Vega 8	686 g	39 mm	x
v ^(old)	12/2021	Beelink GTI 11 i5-1135G7, Iris Xe G7 80EUs	638 g	39 mm	x
v ^(old)	04/2022	Beelink SER4 R7 4800U, Vega 8	494 g	40 mm	x
v ^(old)		Intel NUC11TNKi5 i5-1135G7, Iris Xe G7 80EUs	504 g	37 mm	x

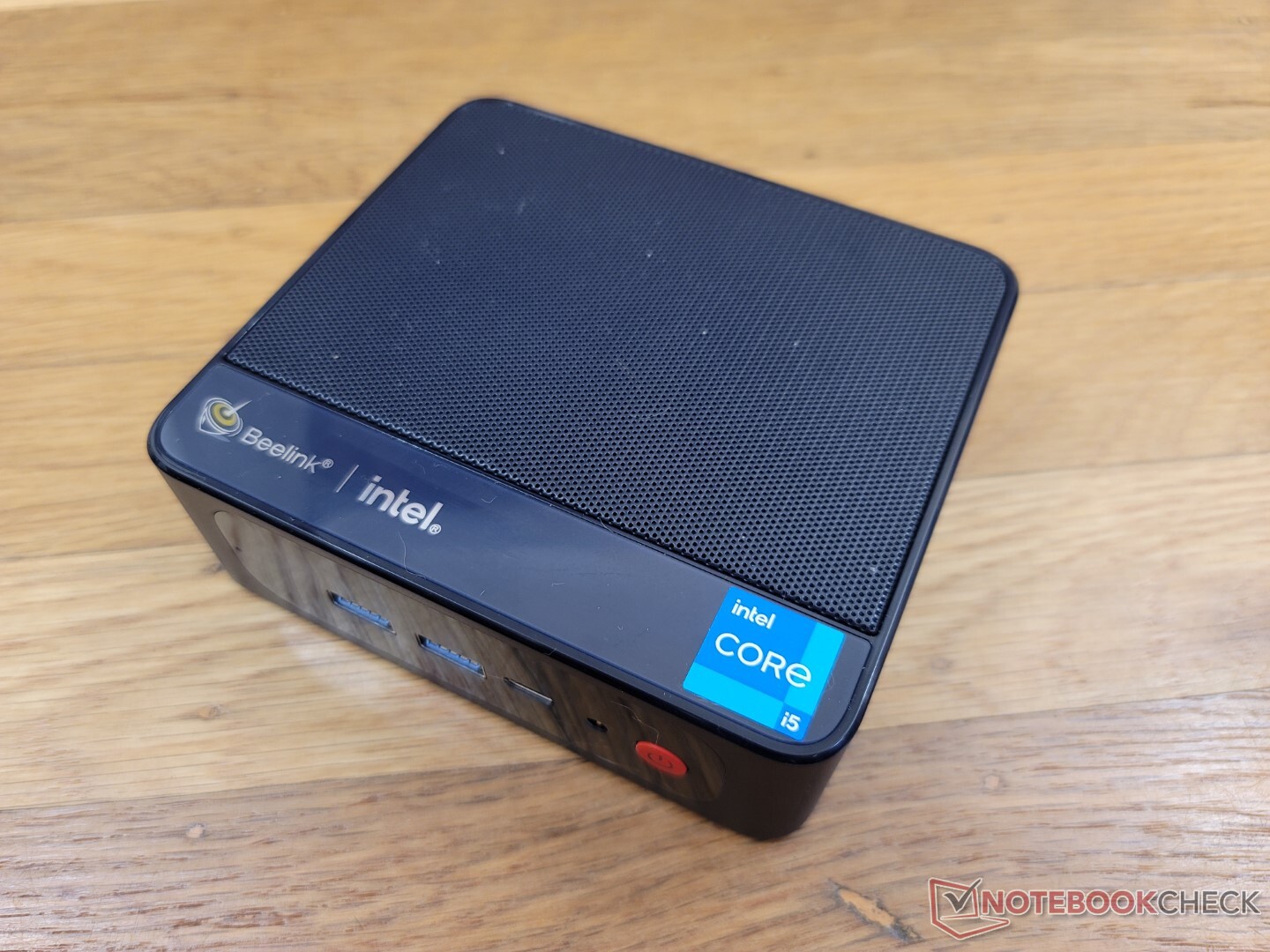

Hölje

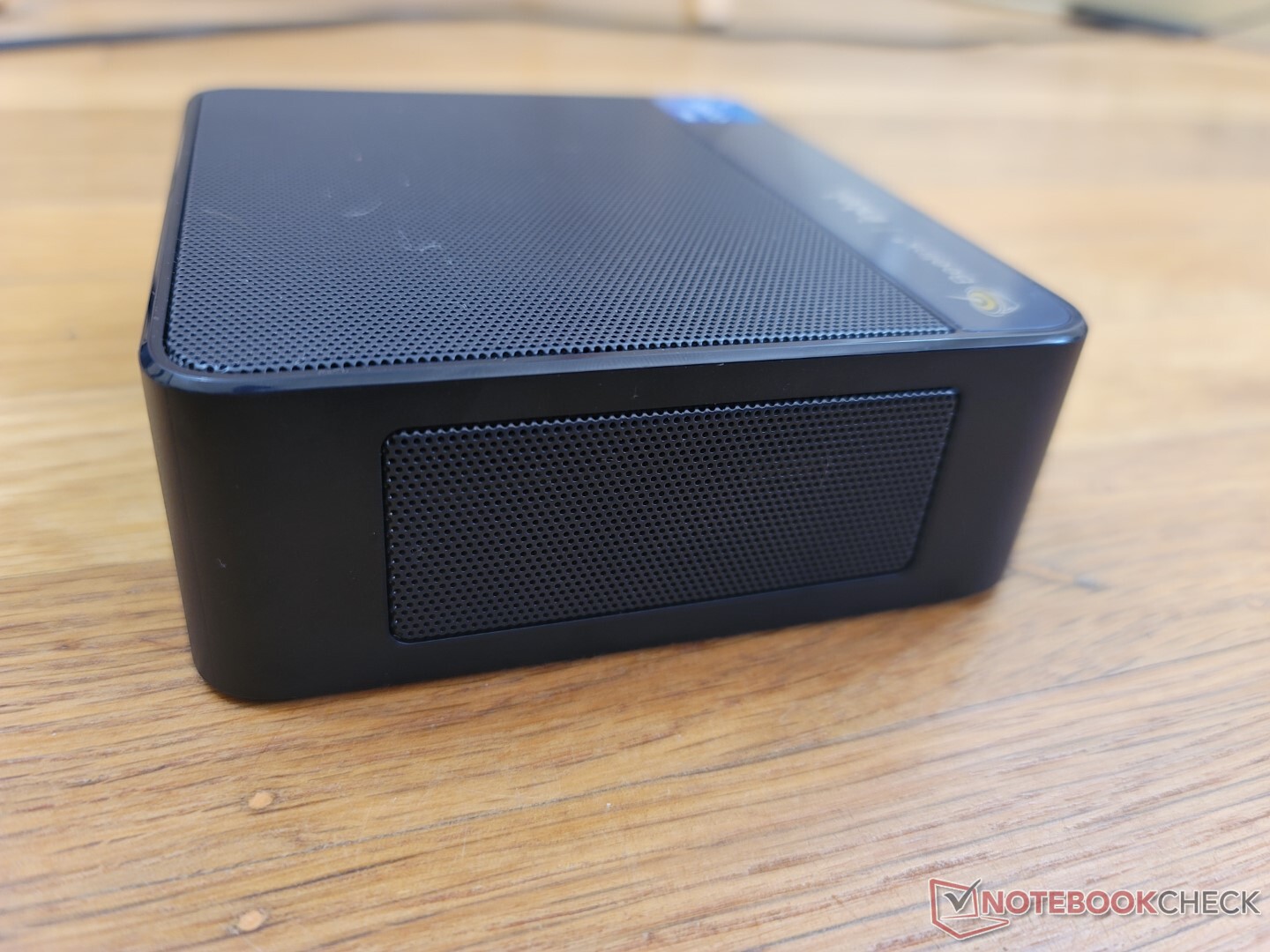

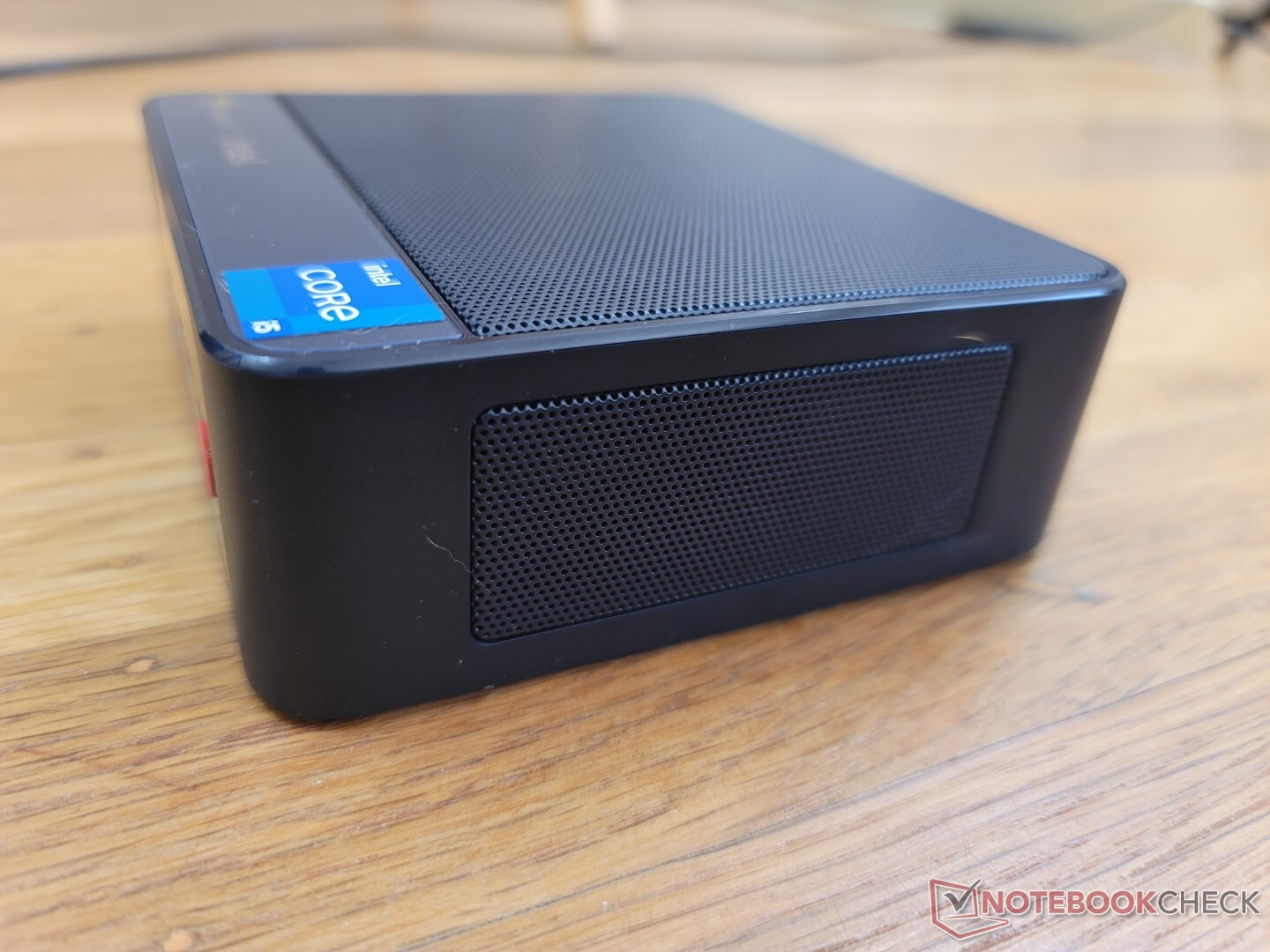

Chassit är i huvudsak Intel-versionen av det AMD-drivna Beelink SER4. Mått och konstruktion är nästan exakt likadana, men SEi11 är cirka 50 gram lättare, troligen på grund av några mindre interna förändringar. Visuellt saknar enheten det rödfärgade nätet på sidorna och de kromskurna kanterna och hörnen som finns på SER4.

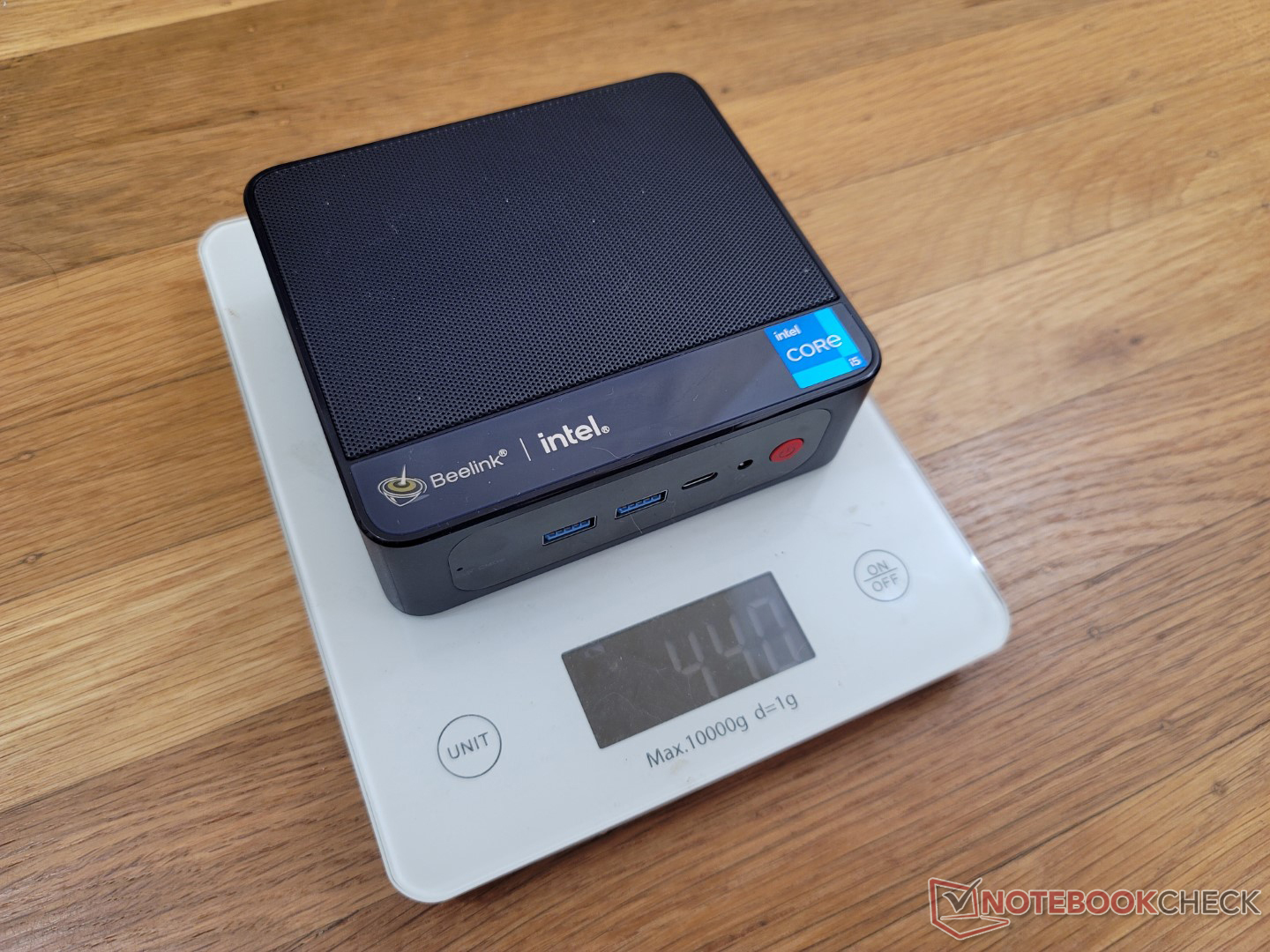

Enheten är betydligt lättare än en Intel NUC eftersom Beelink använder färre och tunnare metallmaterial

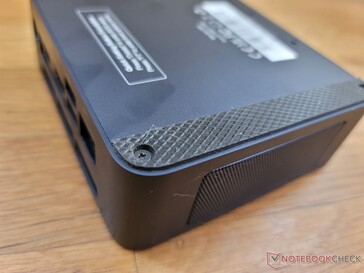

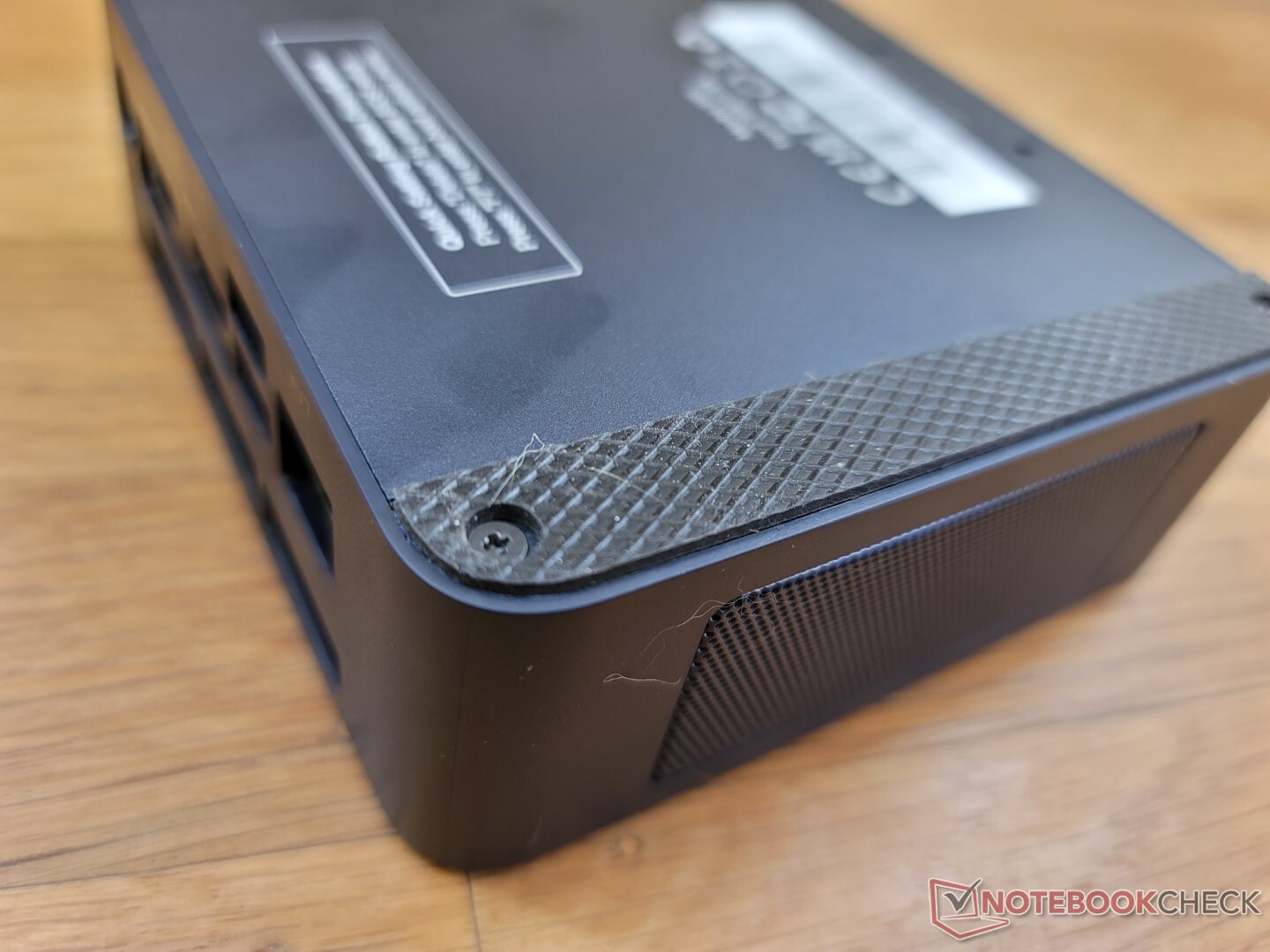

Gummifötter på undersidan med tillgängliga skruvar och VESA-montering

Storleksjämförelse

Anslutningsmöjligheter

Portalternativ och placering är identiska med SER4. Tänk på att USB-C-porten inte stöder DisplayPort eller Power Delivery och därför är den endast användbar för data eller laddning av externa enheter. Vi försökte ansluta externa USB-C-skärmar och USB-C-strömadaptrar, men ingen av dem fungerade med SEi11.

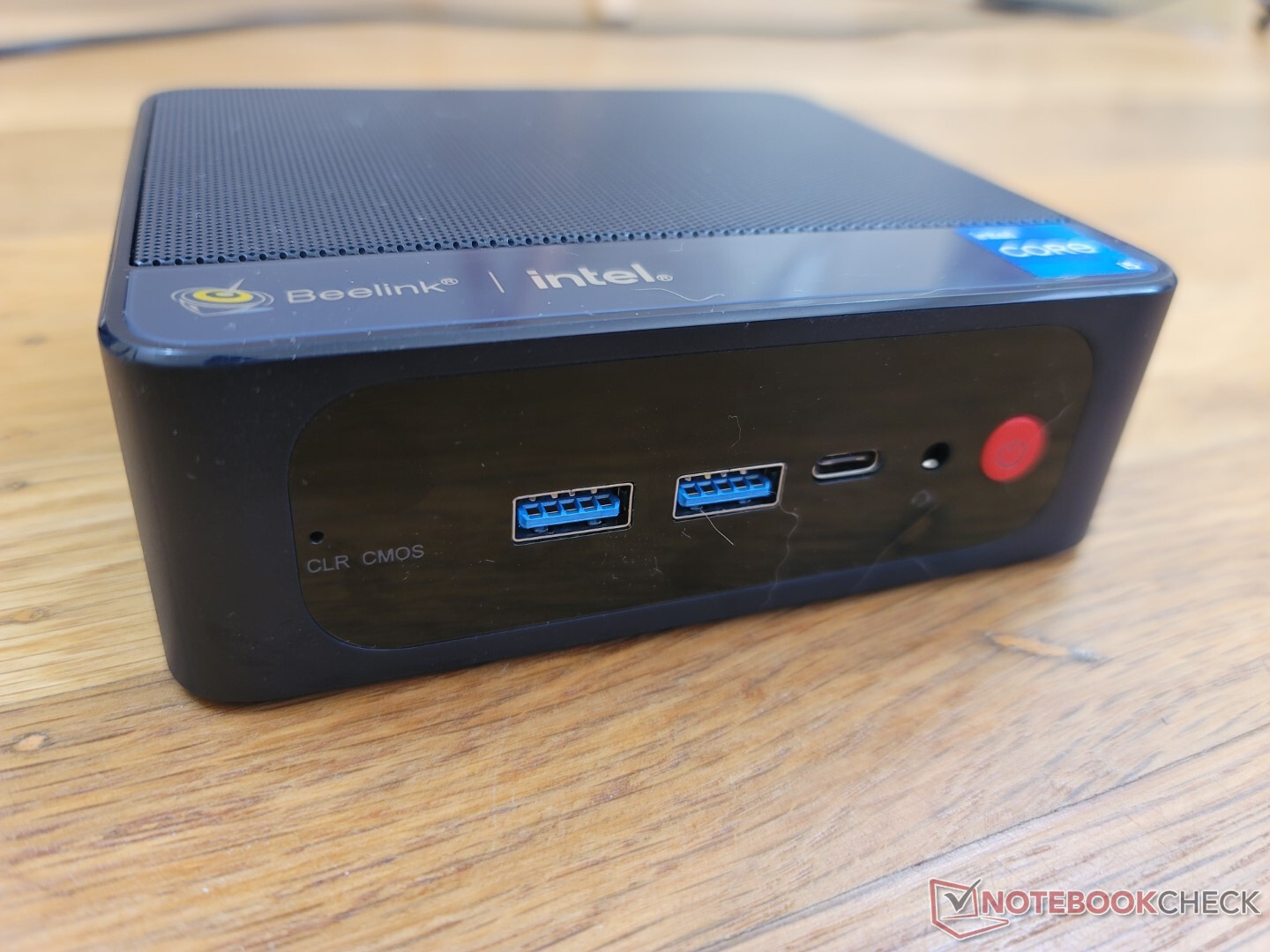

Framsida: 2x USB 3.0, USB-C, 3,5 mm ljudkombination, strömknapp

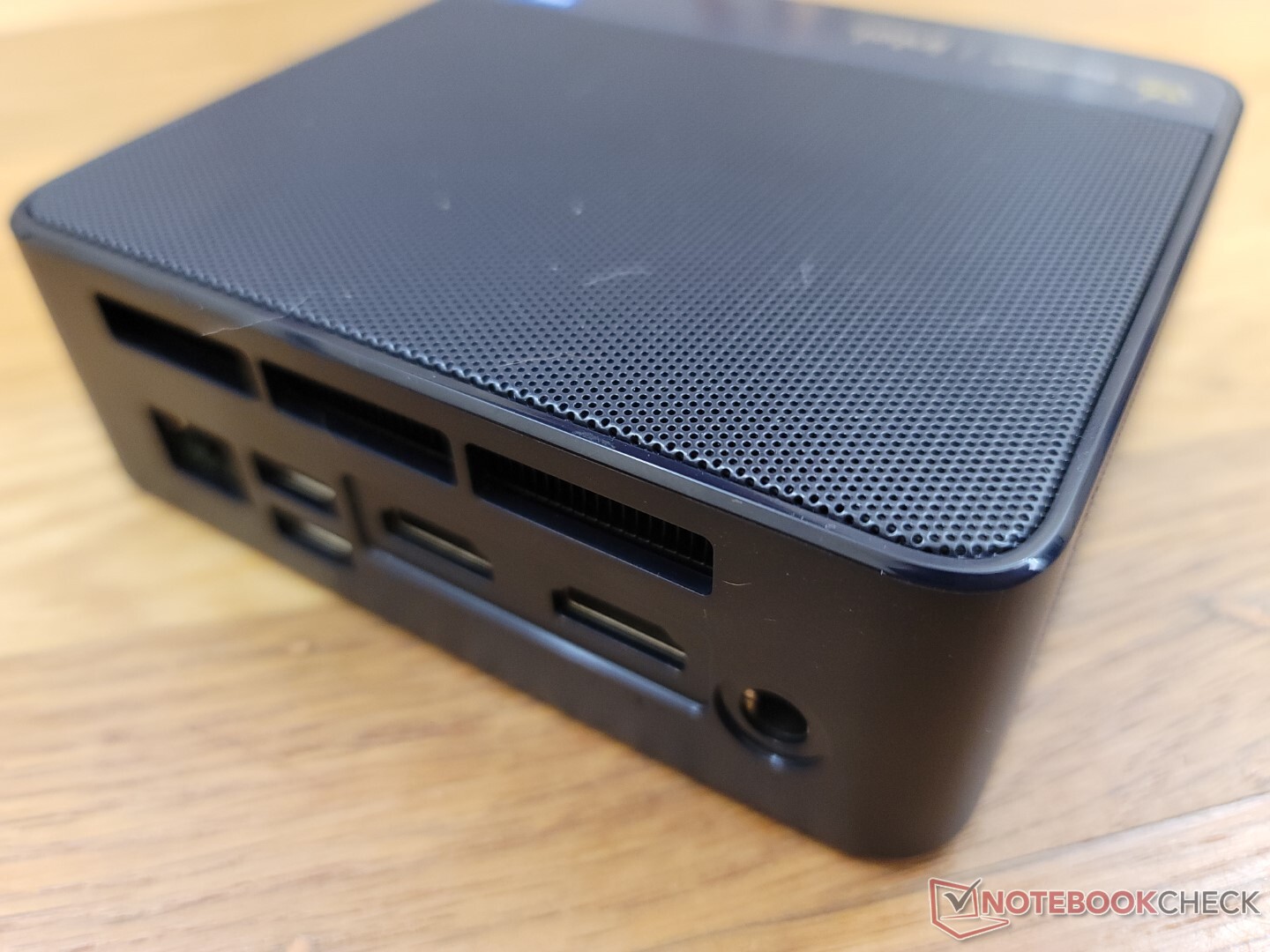

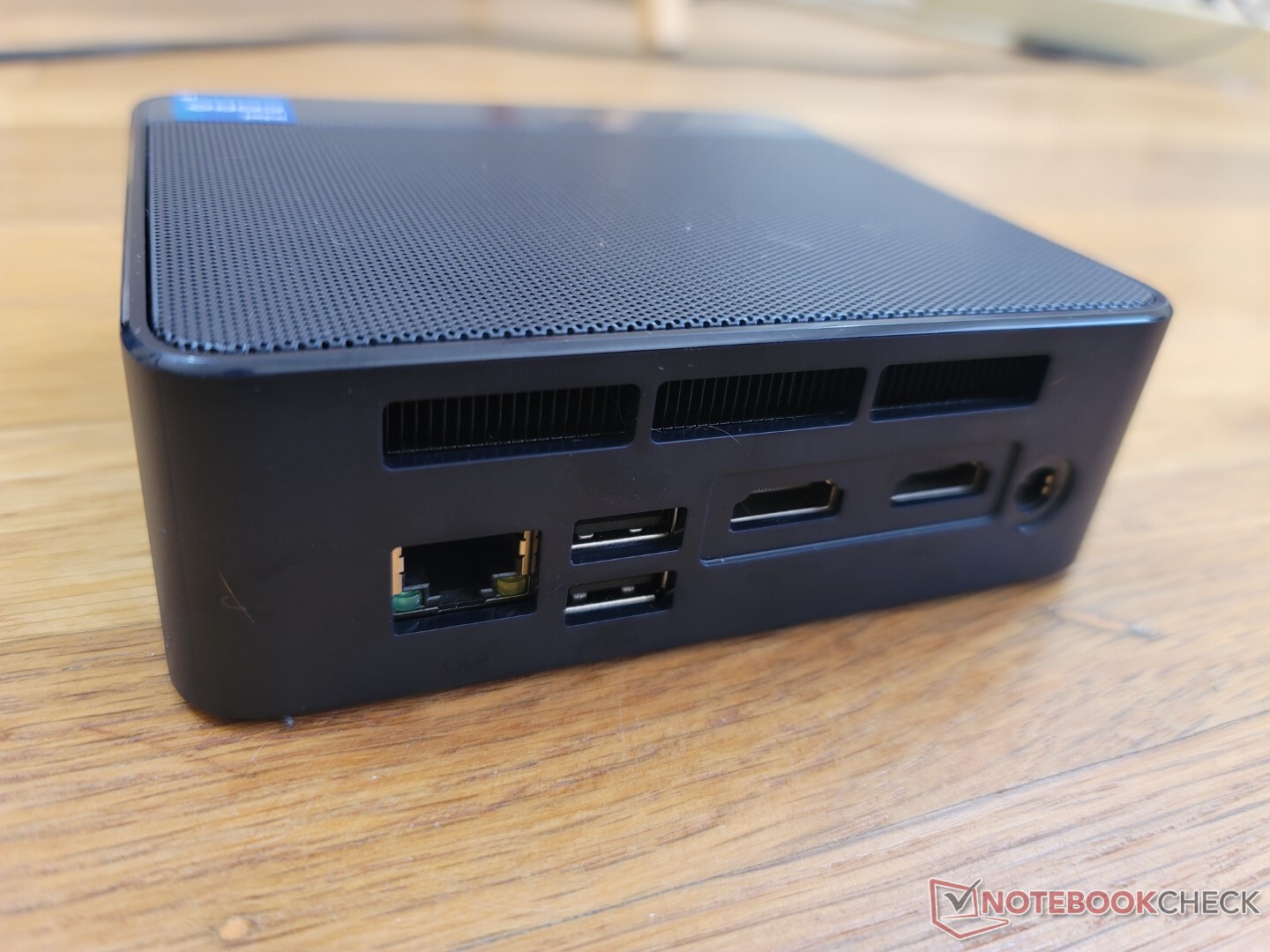

Baksida: Gigabit RJ-45, 2x USB 3.0, 2x HDMI 2.0, AC-adapter

Kommunikation

Enheten levereras med den relativt nya MediaTek RZ608 för Wi-Fi 6E och Bluetooth 5.2. Tyvärr är modulen inte lika pålitlig eller snabb som de vanliga Intel AX-lösningarna. När den är kopplad till vårt 6 GHz-nätverk toppar överföringshastigheten på endast ~750 Mbps jämfört med nästan dubbelt så mycket som en Intel AX201 eller AX210. Dessutom skulle systemet ha problem med att upptäcka vårt 6 GHz-nätverk överhuvudtaget.

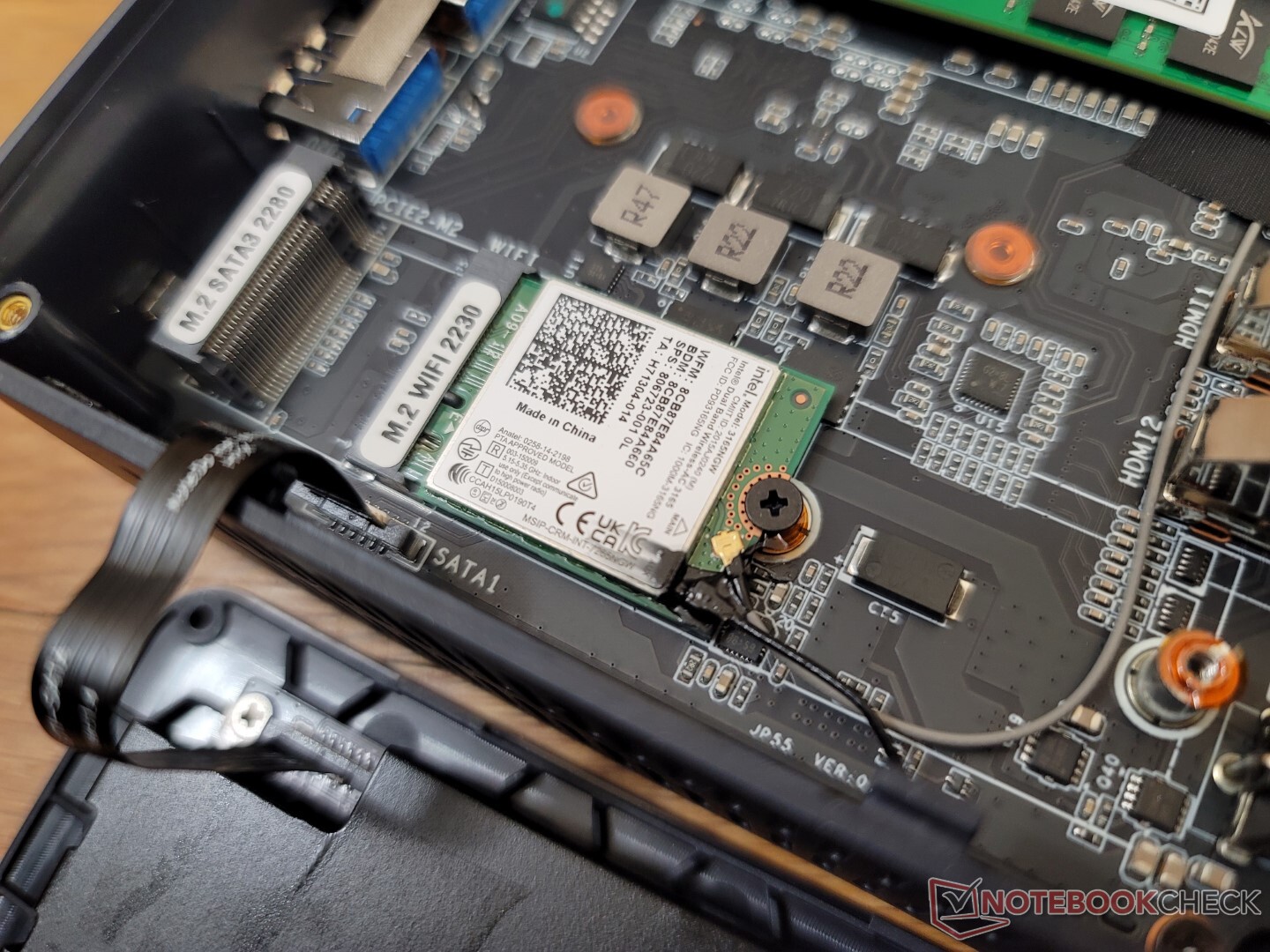

Uttagbar WLAN-modul sitter under M.2 SSD-enheten

Networking
iperf3 transmit AX12
Intel NUC11TNKi5 Intel Wi-Fi 6 AX201	1626 (1386^min - 1677^max) MBit/s
Beelink GTI 11 Intel Wi-Fi 6 AX201	1228 (1149^min - 1287^max) MBit/s
Beelink SER4 MediaTek RZ608	821 (758^min - 891^max) MBit/s
Beelink GTR5 MediaTek RZ608	657 (321^min - 735^max) MBit/s
iperf3 receive AX12
Intel NUC11TNKi5 Intel Wi-Fi 6 AX201	1524 (1442^min - 1571^max) MBit/s
Beelink GTI 11 Intel Wi-Fi 6 AX201	1086 (810^min - 1317^max) MBit/s
Beelink SER4 MediaTek RZ608	880 (842^min - 900^max) MBit/s
Beelink GTR5 MediaTek RZ608	837 (806^min - 876^max) MBit/s
iperf3 receive AXE11000 6GHz
Beelink SEi11 Pro MediaTek RZ608	743 (453^min - 793^max) MBit/s
iperf3 transmit AXE11000 6GHz
Beelink SEi11 Pro MediaTek RZ608	722 (447^min - 789^max) MBit/s

Beelink SEi11 Pro; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø707 (447-789)

Beelink SEi11 Pro; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø742 (453-793)

Underhåll

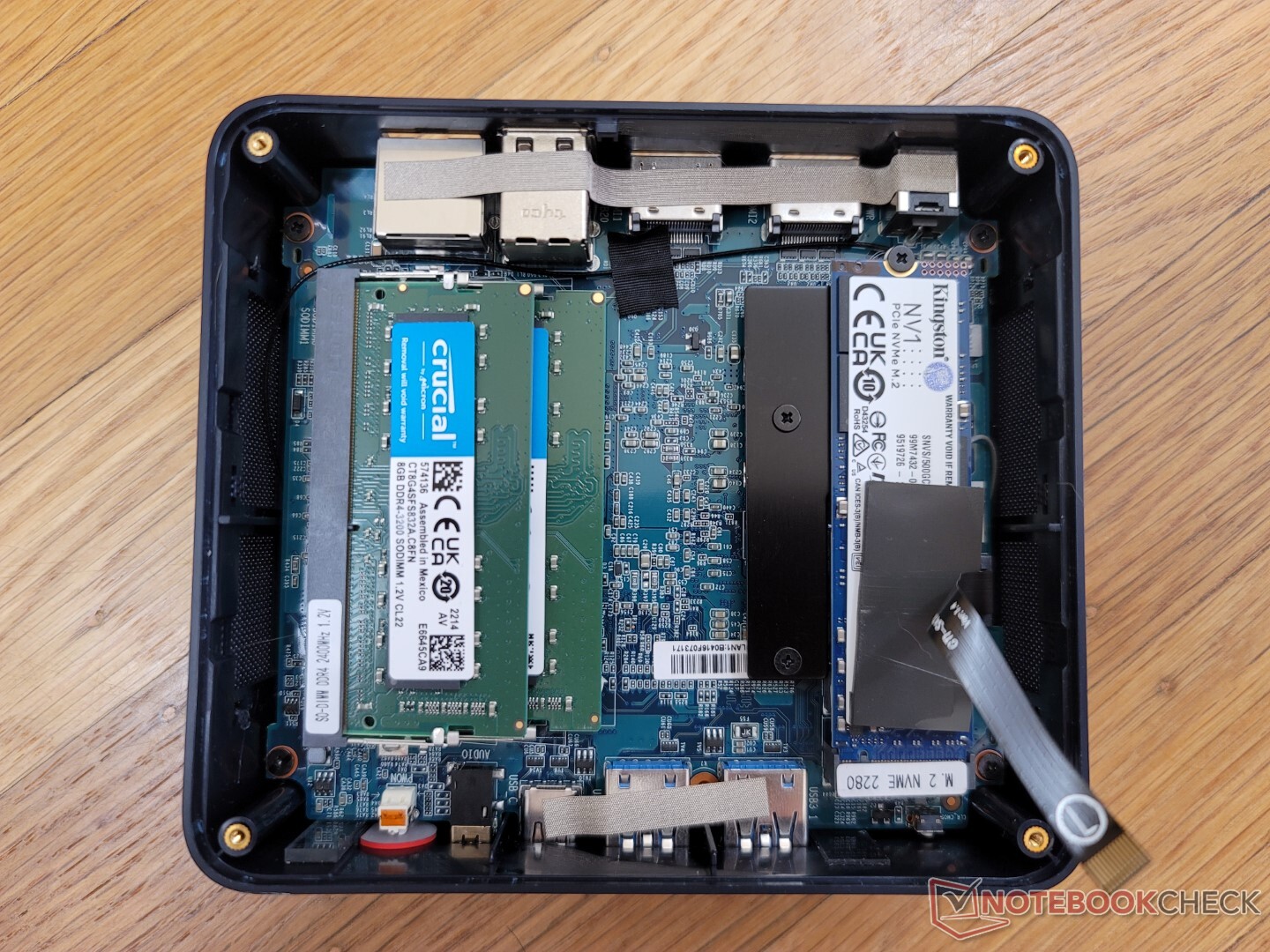

Bottenpanelen fästs med 4 Philips-skruvar. För att faktiskt ta bort den rekommenderar vi dock att du fäster VESA-monteringsfästet så att det kan användas som ett handtag för att dra ut den platta plattan

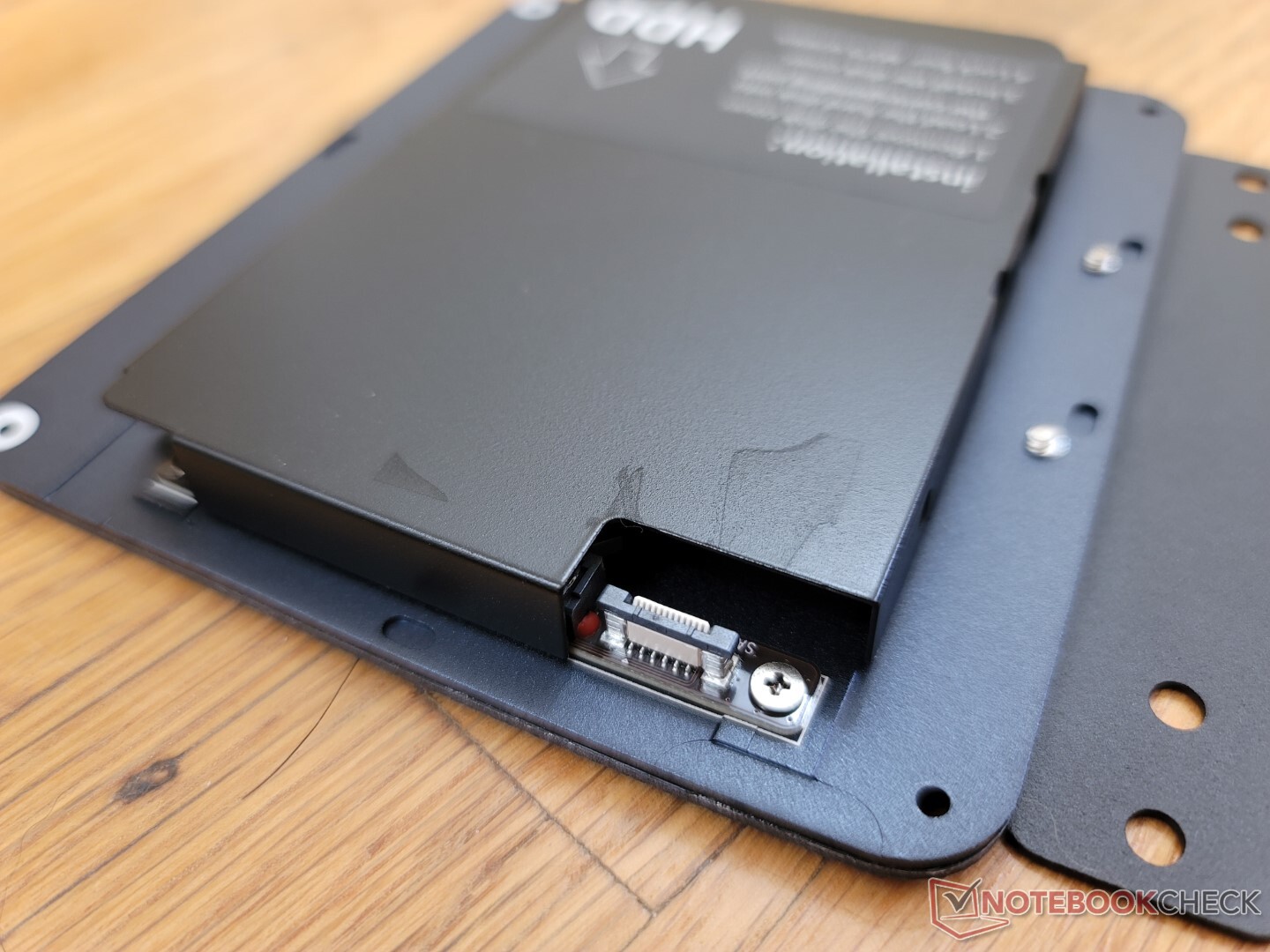

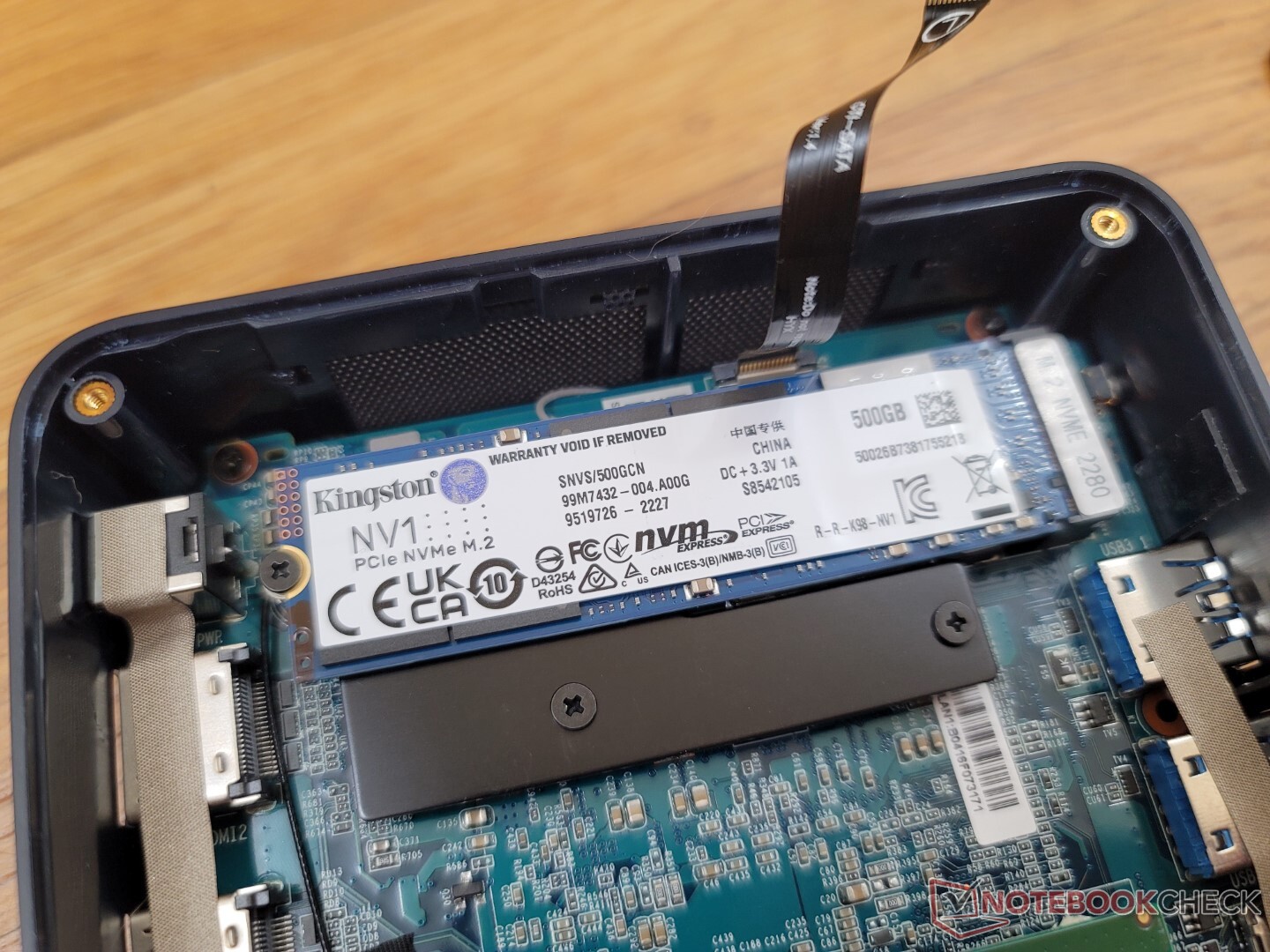

Användare har direkt tillgång till M.2 2280 SSD-facket, 2,5-tums SATA III-facket, WLAN-modulen och 2x DDR4 SODIMM-facken.

Tillbehör och garanti

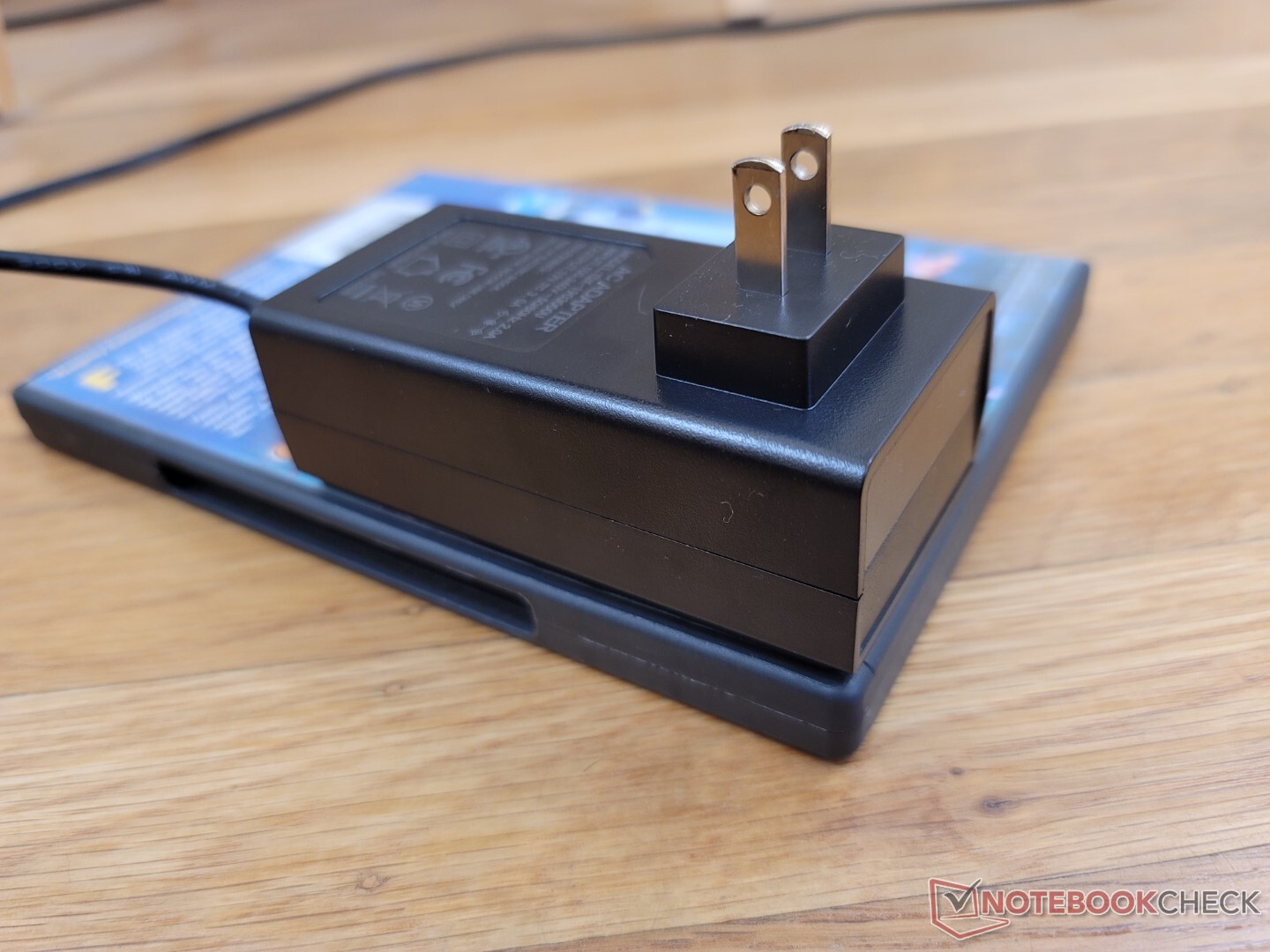

I förpackningen ingår 2x HDMI-kablar, växelströmsadapter, pappersarbete, VESA-monteringsfäste och extra skruvar. En ettårig begränsad tillverkargaranti gäller om den köps i USA. Som jämförelse kan nämnas att Intel NUC-modeller vanligtvis har en treårig garanti som standard.

Prestanda

Provningsförhållanden

Vi ställde in vår enhet i prestandaläge via Windows innan vi körde alla benchmarks nedan. Det finns inget förinstallerat program i stil med Control Center för att justera processorns prestanda.

Processor

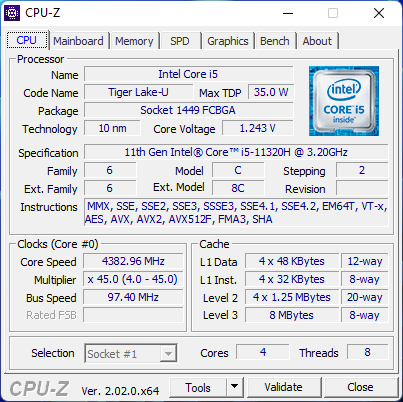

Core i5-11320H är en ovanlig CPU eftersom de flesta andra datorer som drivs av Tiger Lake-H CPU:er vanligtvis använder sig av Core i5-11300H i stället. I5-11320H har i princip samma prestanda för alla ändamål. Den har små skillnader i klockfrekvens på pappret som inte har någon inverkan i de flesta applikationer baserat på våra observationer med Beelink.

Cinebench R15 Multi Loop

Beelink SEi11 Pro Intel Core i5-11320H: Ø851 (845.25-856.84)

Beelink GTR5 AMD Ryzen 9 5900HX: Ø1938 (1889.11-1963.48)

Beelink SER4 AMD Ryzen 7 4800U: Ø1404 (1390.29-1411.03)

Intel NUC11TNKi5 Intel Core i5-1135G7: Ø789 (772.57-794.38)

Dell Inspiron 15 Plus Intel Core i5-11400H: Ø1125 (1069.8-1220.78)

Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R23: Multi Core | Single Core
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

Cinebench R20 / CPU (Multi Core)
Honor MagicBook 14 2022 Intel Core i5-12500H	4723 Points +114%
Beelink GTR5 AMD Ryzen 9 5900HX	4596 Points +108%
Lenovo IdeaPad Gaming 3 15ARH7 AMD Ryzen 5 6600H	3965 Points +80%
Beelink SER4 AMD Ryzen 7 4800U	3248 Points +47%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U	2975 Points +35%
Dell Inspiron 15 Plus Intel Core i5-11400H	2936 Points +33%
Razer Blade 15 Advanced Model Early 2021 Intel Core i7-10875H	2632 Points +19%
Average Intel Core i5-11320H (2208 - 2349, n=4)	2273 Points +3%
Lenovo Ideapad Gaming 3 15IHU-82K1002RGE Intel Core i5-11300H	2258 Points +2%
Beelink SEi11 Pro Intel Core i5-11320H	2208 Points
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7	2051 Points -7%
Intel NUC11TNKi5 Intel Core i5-1135G7	1974 Points -11%

Cinebench R20 / CPU (Single Core)
Honor MagicBook 14 2022 Intel Core i5-12500H	652 Points +16%
Beelink GTR5 AMD Ryzen 9 5900HX	579 Points +3%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7	568 Points +1%
Lenovo IdeaPad Gaming 3 15ARH7 AMD Ryzen 5 6600H	564 Points +1%
Dell Inspiron 15 Plus Intel Core i5-11400H	562 Points 0%
Beelink SEi11 Pro Intel Core i5-11320H	561 Points
Average Intel Core i5-11320H (557 - 567, n=4)	561 Points 0%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U	534 Points -5%
Intel NUC11TNKi5 Intel Core i5-1135G7	503 Points -10%
Lenovo Ideapad Gaming 3 15IHU-82K1002RGE Intel Core i5-11300H	494 Points -12%
Beelink SER4 AMD Ryzen 7 4800U	488 Points -13%
Razer Blade 15 Advanced Model Early 2021 Intel Core i7-10875H	476 Points -15%

Cinebench R23 / Multi Core
Honor MagicBook 14 2022 Intel Core i5-12500H	12225 Points +114%
Beelink GTR5 AMD Ryzen 9 5900HX	11599 (11445.9^min - 11598.6^max) Points +103%
Lenovo IdeaPad Gaming 3 15ARH7 AMD Ryzen 5 6600H	10226 (10089.9^min - 10226.3^max) Points +79%
Beelink SER4 AMD Ryzen 7 4800U	8376 (8310.1^min - 8376.05^max) Points +46%
Dell Inspiron 15 Plus Intel Core i5-11400H	7772 Points +36%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U	7615 Points +33%
Razer Blade 15 Advanced Model Early 2021 Intel Core i7-10875H	6852 Points +20%
Average Intel Core i5-11320H (5720 - 6051, n=4)	5869 Points +3%
Beelink SEi11 Pro Intel Core i5-11320H	5720 (5681.08^min - 5720.38^max) Points
Lenovo Ideapad Gaming 3 15IHU-82K1002RGE Intel Core i5-11300H	5604 Points -2%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7	5240 Points -8%
Intel NUC11TNKi5 Intel Core i5-1135G7	5098 (4930.91^min - 5098.17^max) Points -11%

Cinebench R23 / Single Core
Honor MagicBook 14 2022 Intel Core i5-12500H	1697 Points +16%
Beelink GTR5 AMD Ryzen 9 5900HX	1497 Points +2%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7	1487 Points +1%
Beelink SEi11 Pro Intel Core i5-11320H	1467 Points
Dell Inspiron 15 Plus Intel Core i5-11400H	1459 Points -1%
Lenovo IdeaPad Gaming 3 15ARH7 AMD Ryzen 5 6600H	1458 Points -1%
Average Intel Core i5-11320H (1341 - 1467, n=4)	1432 Points -2%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U	1376 Points -6%
Intel NUC11TNKi5 Intel Core i5-1135G7	1369 Points -7%
Lenovo Ideapad Gaming 3 15IHU-82K1002RGE Intel Core i5-11300H	1337 Points -9%
Beelink SER4 AMD Ryzen 7 4800U	1240 Points -15%
Razer Blade 15 Advanced Model Early 2021 Intel Core i7-10875H	1216 Points -17%

Cinebench R15 / CPU Multi 64Bit
Honor MagicBook 14 2022 Intel Core i5-12500H	2094 (1576.35^min - 2094.02^max) Points +144%
Honor MagicBook 14 2022 Intel Core i5-12500H	2091 (1748.1^min - 2091.07^max) Points +144%
Beelink GTR5 AMD Ryzen 9 5900HX	1963 (1889.11^min - 1963.48^max) Points +129%
Lenovo IdeaPad Gaming 3 15ARH7 AMD Ryzen 5 6600H	1626 (1594.77^min - 1626.41^max) Points +90%
Beelink SER4 AMD Ryzen 7 4800U	1411 (1390.29^min - 1411.03^max) Points +65%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U	1265 Points +48%
Dell Inspiron 15 Plus Intel Core i5-11400H	1221 (1069.8^min - 1220.78^max) Points +42%
Razer Blade 15 Advanced Model Early 2021 Intel Core i7-10875H	1208 Points +41%
Lenovo Ideapad Gaming 3 15IHU-82K1002RGE Intel Core i5-11300H	960 (926.91^min - 959.58^max) Points +12%
Average Intel Core i5-11320H (857 - 1019, n=4)	922 Points +8%
Beelink SEi11 Pro Intel Core i5-11320H	857 (845.25^min - 856.84^max) Points
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7	832 Points -3%
Intel NUC11TNKi5 Intel Core i5-1135G7	794 (772.57^min - 794.38^max) Points -7%

Cinebench R15 / CPU Single 64Bit
Beelink GTR5 AMD Ryzen 9 5900HX	240 Points +12%
Honor MagicBook 14 2022 Intel Core i5-12500H	240 Points +12%
Lenovo IdeaPad Gaming 3 15ARH7 AMD Ryzen 5 6600H	231 Points +8%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U	223 Points +4%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7	221 Points +3%
Dell Inspiron 15 Plus Intel Core i5-11400H	219 Points +2%
Beelink SEi11 Pro Intel Core i5-11320H	214 Points
Average Intel Core i5-11320H (212 - 215, n=4)	214 Points 0%
Lenovo Ideapad Gaming 3 15IHU-82K1002RGE Intel Core i5-11300H	209 Points -2%
Intel NUC11TNKi5 Intel Core i5-1135G7	201 Points -6%
Razer Blade 15 Advanced Model Early 2021 Intel Core i7-10875H	199 Points -7%
Beelink SER4 AMD Ryzen 7 4800U	187 Points -13%

Blender / v2.79 BMW27 CPU
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7	759 Seconds * -40%
Intel NUC11TNKi5 Intel Core i5-1135G7	600 Seconds * -11%
Beelink SEi11 Pro Intel Core i5-11320H	541 Seconds *
Average Intel Core i5-11320H (507 - 543, n=4)	527 Seconds * +3%
Lenovo Ideapad Gaming 3 15IHU-82K1002RGE Intel Core i5-11300H	481 Seconds * +11%
Dell Inspiron 15 Plus Intel Core i5-11400H	419 Seconds * +23%
Razer Blade 15 Advanced Model Early 2021 Intel Core i7-10875H	411 Seconds * +24%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U	399 Seconds * +26%
Beelink SER4 AMD Ryzen 7 4800U	340 Seconds * +37%
Lenovo IdeaPad Gaming 3 15ARH7 AMD Ryzen 5 6600H	306 Seconds * +43%
Honor MagicBook 14 2022 Intel Core i5-12500H	264 Seconds * +51%
Beelink GTR5 AMD Ryzen 9 5900HX	262 Seconds * +52%

7-Zip 18.03 / 7z b 4
Beelink GTR5 AMD Ryzen 9 5900HX	56761 MIPS +129%
Honor MagicBook 14 2022 Intel Core i5-12500H	51818 MIPS +109%
Beelink SER4 AMD Ryzen 7 4800U	40117 MIPS +62%
Lenovo IdeaPad Gaming 3 15ARH7 AMD Ryzen 5 6600H	39886 MIPS +61%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U	39207 MIPS +58%
Razer Blade 15 Advanced Model Early 2021 Intel Core i7-10875H	36430 MIPS +47%
Dell Inspiron 15 Plus Intel Core i5-11400H	27615 MIPS +11%
Average Intel Core i5-11320H (24718 - 26858, n=4)	25274 MIPS +2%
Beelink SEi11 Pro Intel Core i5-11320H	24798 MIPS
Lenovo Ideapad Gaming 3 15IHU-82K1002RGE Intel Core i5-11300H	24721 MIPS 0%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7	24006 MIPS -3%
Intel NUC11TNKi5 Intel Core i5-1135G7	23280 MIPS -6%

7-Zip 18.03 / 7z b 4 -mmt1
Beelink GTR5 AMD Ryzen 9 5900HX	5791 MIPS +13%
Lenovo IdeaPad Gaming 3 15ARH7 AMD Ryzen 5 6600H	5466 MIPS +7%
Razer Blade 15 Advanced Model Early 2021 Intel Core i7-10875H	5310 MIPS +4%
Honor MagicBook 14 2022 Intel Core i5-12500H	5260 MIPS +3%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7	5255 MIPS +3%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U	5249 MIPS +3%
Beelink SEi11 Pro Intel Core i5-11320H	5105 MIPS
Dell Inspiron 15 Plus Intel Core i5-11400H	5094 MIPS 0%
Average Intel Core i5-11320H (4813 - 5119, n=4)	4996 MIPS -2%
Lenovo Ideapad Gaming 3 15IHU-82K1002RGE Intel Core i5-11300H	4825 MIPS -5%
Intel NUC11TNKi5 Intel Core i5-1135G7	4738 MIPS -7%
Beelink SER4 AMD Ryzen 7 4800U	4603 MIPS -10%

Geekbench 5.5 / Multi-Core
Honor MagicBook 14 2022 Intel Core i5-12500H	10828 Points +118%
Beelink GTR5 AMD Ryzen 9 5900HX	8147 Points +64%
Razer Blade 15 Advanced Model Early 2021 Intel Core i7-10875H	6586 Points +33%
Lenovo IdeaPad Gaming 3 15ARH7 AMD Ryzen 5 6600H	6403 Points +29%
Beelink SER4 AMD Ryzen 7 4800U	6375 Points +29%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U	6175 Points +25%
Average Intel Core i5-11320H (4927 - 5955, n=4)	5375 Points +8%
Beelink SEi11 Pro Intel Core i5-11320H	4959 Points
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7	4851 Points -2%
Dell Inspiron 15 Plus Intel Core i5-11400H	4679 Points -6%
Intel NUC11TNKi5 Intel Core i5-1135G7	4593 Points -7%
Lenovo Ideapad Gaming 3 15IHU-82K1002RGE Intel Core i5-11300H	4509 Points -9%

Geekbench 5.5 / Single-Core
Honor MagicBook 14 2022 Intel Core i5-12500H	1685 Points +11%
Beelink GTR5 AMD Ryzen 9 5900HX	1560 Points +3%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7	1543 Points +2%
Beelink SEi11 Pro Intel Core i5-11320H	1518 Points
Average Intel Core i5-11320H (1453 - 1523, n=4)	1497 Points -1%
Lenovo IdeaPad Gaming 3 15ARH7 AMD Ryzen 5 6600H	1446 Points -5%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U	1430 Points -6%
Intel NUC11TNKi5 Intel Core i5-1135G7	1396 Points -8%
Dell Inspiron 15 Plus Intel Core i5-11400H	1396 Points -8%
Lenovo Ideapad Gaming 3 15IHU-82K1002RGE Intel Core i5-11300H	1394 Points -8%
Razer Blade 15 Advanced Model Early 2021 Intel Core i7-10875H	1296 Points -15%
Beelink SER4 AMD Ryzen 7 4800U	1192 Points -21%

HWBOT x265 Benchmark v2.2 / 4k Preset
Beelink GTR5 AMD Ryzen 9 5900HX	14.8 fps +103%
Honor MagicBook 14 2022 Intel Core i5-12500H	14.3 fps +96%
Lenovo IdeaPad Gaming 3 15ARH7 AMD Ryzen 5 6600H	11.5 fps +58%
Beelink SER4 AMD Ryzen 7 4800U	10.4 fps +43%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U	10.1 fps +39%
Razer Blade 15 Advanced Model Early 2021 Intel Core i7-10875H	9.82 fps +35%
Dell Inspiron 15 Plus Intel Core i5-11400H	8.48 fps +16%
Lenovo Ideapad Gaming 3 15IHU-82K1002RGE Intel Core i5-11300H	8.05 fps +11%
Average Intel Core i5-11320H (7.25 - 7.91, n=4)	7.58 fps +4%
Beelink SEi11 Pro Intel Core i5-11320H	7.28 fps
Intel NUC11TNKi5 Intel Core i5-1135G7	6.63 fps -9%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7	4.74 fps -35%

LibreOffice / 20 Documents To PDF
Beelink SER4 AMD Ryzen 7 4800U	62.6 s * -27%
Lenovo IdeaPad Gaming 3 15ARH7 AMD Ryzen 5 6600H	58.4 s * -19%
Razer Blade 15 Advanced Model Early 2021 Intel Core i7-10875H	55.8 s * -14%
Lenovo Ideapad Gaming 3 15IHU-82K1002RGE Intel Core i5-11300H	53.4 s * -9%
Dell Inspiron 15 Plus Intel Core i5-11400H	52.3 s * -7%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7	51.8 s * -5%
Intel NUC11TNKi5 Intel Core i5-1135G7	51.3 s * -4%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U	51.1 s * -4%
Beelink GTR5 AMD Ryzen 9 5900HX	49.7 s * -1%
Beelink SEi11 Pro Intel Core i5-11320H	49.1 s *
Average Intel Core i5-11320H (44 - 50, n=4)	48 s * +2%
Honor MagicBook 14 2022 Intel Core i5-12500H	41.6 s * +15%

R Benchmark 2.5 / Overall mean
Intel NUC11TNKi5 Intel Core i5-1135G7	0.622 sec * -7%
Lenovo Ideapad Gaming 3 15IHU-82K1002RGE Intel Core i5-11300H	0.612 sec * -5%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Core i7-1165G7	0.609 sec * -5%
Dell Inspiron 15 Plus Intel Core i5-11400H	0.605 sec * -4%
Average Intel Core i5-11320H (0.581 - 0.622, n=4)	0.596 sec * -3%
Beelink SEi11 Pro Intel Core i5-11320H	0.581 sec *
Razer Blade 15 Advanced Model Early 2021 Intel Core i7-10875H	0.58 sec * -0%
Beelink SER4 AMD Ryzen 7 4800U	0.576 sec * +1%
Minipc Union Ace Magician AMR5 AMD Ryzen 5 5600U	0.537 sec * +8%
Lenovo IdeaPad Gaming 3 15ARH7 AMD Ryzen 5 6600H	0.532 sec * +8%
Honor MagicBook 14 2022 Intel Core i5-12500H	0.4969 sec * +14%
Beelink GTR5 AMD Ryzen 9 5900HX	0.48 sec * +17%

* ... smaller is better

Cinebench R15 CPU Multi 64Bit

857 Points

Cinebench R15 OpenGL 64Bit

99 fps

Cinebench R15 Ref. Match 64Bit

97.8 %

Cinebench R15 CPU Single 64Bit

214 Points

Cinebench R20 CPU (Multi Core)

2208 Points

Cinebench R20 CPU (Single Core)

561 Points

Cinebench R23 Multi Core

5720 Points

Cinebench R23 Single Core

1467 Points

Hjälp

... jämför

Performance Rating
Beelink GTR5 AMD Ryzen 9 5900HX, Vega 8	96.4 pt
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	70.5 pt
Beelink GTI 11 Intel Core i5-1135G7, Iris Xe G7 80EUs	54.1 pt
Average Intel Core i5-11320H	52.3 pt
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	51.4 pt
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	46.6 pt

AIDA64 / FP32 Ray-Trace
Beelink GTR5 AMD Ryzen 9 5900HX, Vega 8	13987 KRay/s +98%
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	10046 KRay/s +43%
Beelink GTI 11 Intel Core i5-1135G7, Iris Xe G7 80EUs	7627 KRay/s +8%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	7047 KRay/s
Average Intel Core i5-11320H (6369 - 7489, n=4)	6970 KRay/s -1%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	6699 KRay/s -5%

AIDA64 / FPU Julia
Beelink GTR5 AMD Ryzen 9 5900HX, Vega 8	88153 Points +194%
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	56388 Points +88%
Beelink GTI 11 Intel Core i5-1135G7, Iris Xe G7 80EUs	31613 Points +5%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	29972 Points
Average Intel Core i5-11320H (27391 - 31637, n=4)	29750 Points -1%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	27861 Points -7%

AIDA64 / CPU SHA3
Beelink GTR5 AMD Ryzen 9 5900HX, Vega 8	3026 MB/s +52%
Beelink GTI 11 Intel Core i5-1135G7, Iris Xe G7 80EUs	2171 MB/s +9%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	1992 MB/s
Average Intel Core i5-11320H (1847 - 2099, n=4)	1979 MB/s -1%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	1855 MB/s -7%
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	1840 MB/s -8%

AIDA64 / CPU Queen
Beelink GTR5 AMD Ryzen 9 5900HX, Vega 8	97835 Points +103%
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	78511 Points +63%
Average Intel Core i5-11320H (43565 - 52477, n=4)	48247 Points 0%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	48212 Points
Beelink GTI 11 Intel Core i5-1135G7, Iris Xe G7 80EUs	46657 Points -3%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	46536 Points -3%

AIDA64 / FPU SinJulia
Beelink GTR5 AMD Ryzen 9 5900HX, Vega 8	12402 Points +160%
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	11799 Points +147%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	4771 Points
Average Intel Core i5-11320H (4381 - 5011, n=4)	4747 Points -1%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	4444 Points -7%
Beelink GTI 11 Intel Core i5-1135G7, Iris Xe G7 80EUs	4442 Points -7%

AIDA64 / FPU Mandel
Beelink GTR5 AMD Ryzen 9 5900HX, Vega 8	48563 Points +170%
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	28667 Points +59%
Beelink GTI 11 Intel Core i5-1135G7, Iris Xe G7 80EUs	18635 Points +4%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	17987 Points
Average Intel Core i5-11320H (16659 - 18770, n=4)	17842 Points -1%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	16937 Points -6%

AIDA64 / CPU AES
Beelink GTR5 AMD Ryzen 9 5900HX, Vega 8	119784 MB/s +74%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	68683 MB/s
Average Intel Core i5-11320H (59851 - 76500, n=4)	68407 MB/s 0%
Beelink GTI 11 Intel Core i5-1135G7, Iris Xe G7 80EUs	67937 MB/s -1%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	66724 MB/s -3%
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	54686 MB/s -20%

AIDA64 / CPU ZLib
Beelink GTR5 AMD Ryzen 9 5900HX, Vega 8	769 MB/s +109%
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	593 MB/s +61%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	373 MB/s +1%
Beelink GTI 11 Intel Core i5-1135G7, Iris Xe G7 80EUs	370 MB/s +1%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	368 MB/s
Average Intel Core i5-11320H (330 - 410, n=4)	368 MB/s 0%

AIDA64 / FP64 Ray-Trace
Beelink GTR5 AMD Ryzen 9 5900HX, Vega 8	7395 KRay/s +94%
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	5555 KRay/s +46%
Beelink GTI 11 Intel Core i5-1135G7, Iris Xe G7 80EUs	3864 KRay/s +1%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	3811 KRay/s
Average Intel Core i5-11320H (3536 - 4021, n=4)	3782 KRay/s -1%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	3628 KRay/s -5%

AIDA64 / CPU PhotoWorxx
Beelink GTI 11 Intel Core i5-1135G7, Iris Xe G7 80EUs	31708 MPixel/s +22%
Average Intel Core i5-11320H (25964 - 36644, n=4)	29806 MPixel/s +15%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	25964 MPixel/s
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	24254 MPixel/s -7%
Beelink GTR5 AMD Ryzen 9 5900HX, Vega 8	20277 MPixel/s -22%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	16877 MPixel/s -35%

Systemets prestanda

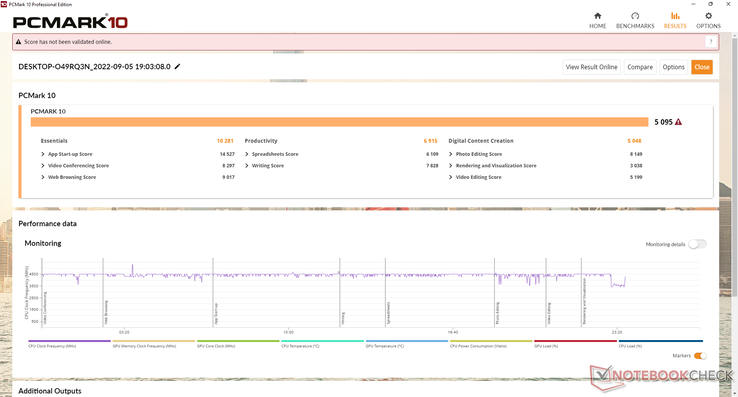

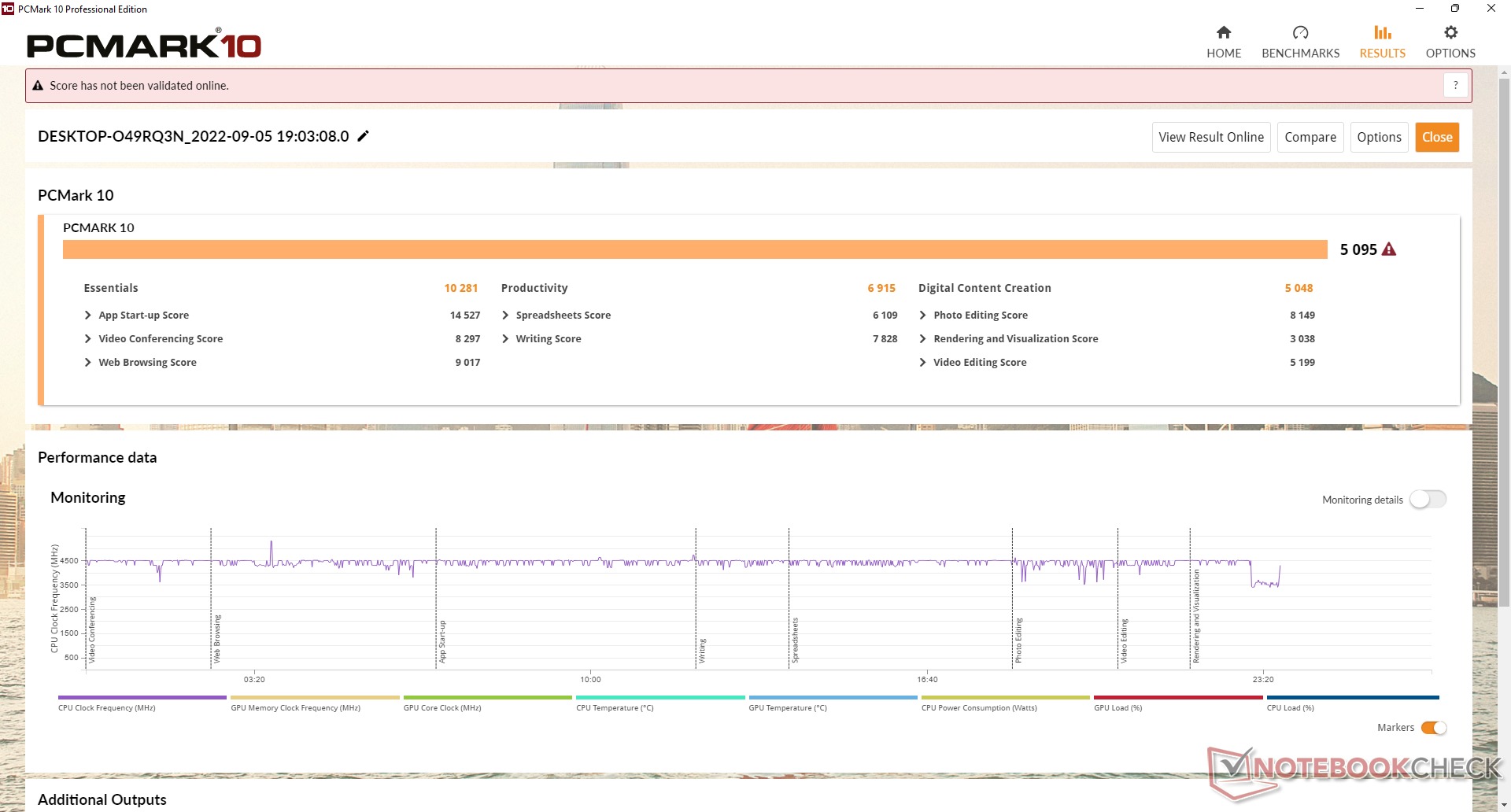

PCMark 10 / Score
Beelink GTR5 Vega 8, R9 5900HX, Kingston NV1 SNVS/500GCN	6504 Points +28%
Beelink SER4 Vega 8, R7 4800U, Intel SSD 660p SSDPEKNW512G8	5257 Points +3%
Average Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs (5095 - 5302, n=3)	5176 Points +2%
Beelink SEi11 Pro Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN	5095 Points
Beelink GTI 11 Iris Xe G7 80EUs, i5-1135G7, Kingston SA2000M8500G	4952 Points -3%
Intel NUC11TNKi5 Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S	4512 Points -11%

PCMark 10 / Essentials
Beelink GTR5 Vega 8, R9 5900HX, Kingston NV1 SNVS/500GCN	10772 Points +5%
Beelink SEi11 Pro Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN	10281 Points
Average Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs (9556 - 10558, n=3)	10132 Points -1%
Beelink GTI 11 Iris Xe G7 80EUs, i5-1135G7, Kingston SA2000M8500G	9893 Points -4%
Beelink SER4 Vega 8, R7 4800U, Intel SSD 660p SSDPEKNW512G8	9188 Points -11%
Intel NUC11TNKi5 Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S	9000 Points -12%

PCMark 10 / Productivity
Beelink GTR5 Vega 8, R9 5900HX, Kingston NV1 SNVS/500GCN	9875 Points +43%
Beelink SER4 Vega 8, R7 4800U, Intel SSD 660p SSDPEKNW512G8	7916 Points +14%
Beelink SEi11 Pro Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN	6915 Points
Average Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs (6832 - 6963, n=3)	6903 Points 0%
Beelink GTI 11 Iris Xe G7 80EUs, i5-1135G7, Kingston SA2000M8500G	6400 Points -7%
Intel NUC11TNKi5 Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S	6190 Points -10%

PCMark 10 / Digital Content Creation
Beelink GTR5 Vega 8, R9 5900HX, Kingston NV1 SNVS/500GCN	7020 Points +39%
Beelink SER4 Vega 8, R7 4800U, Intel SSD 660p SSDPEKNW512G8	5422 Points +7%
Average Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs (5048 - 5615, n=3)	5388 Points +7%
Beelink GTI 11 Iris Xe G7 80EUs, i5-1135G7, Kingston SA2000M8500G	5206 Points +3%
Beelink SEi11 Pro Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN	5048 Points
Intel NUC11TNKi5 Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S	4474 Points -11%

CrossMark / Overall
Beelink GTR5 Vega 8, R9 5900HX, Kingston NV1 SNVS/500GCN	1501 Points +12%
Beelink SEi11 Pro Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN	1335 Points
Average Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs (1300 - 1371, n=3)	1335 Points 0%

CrossMark / Productivity
Beelink GTR5 Vega 8, R9 5900HX, Kingston NV1 SNVS/500GCN	1495 Points +5%
Beelink SEi11 Pro Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN	1419 Points
Average Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs (1376 - 1456, n=3)	1417 Points 0%

CrossMark / Creativity
Beelink GTR5 Vega 8, R9 5900HX, Kingston NV1 SNVS/500GCN	1589 Points +27%
Beelink SEi11 Pro Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN	1256 Points
Average Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs (1241 - 1256, n=3)	1251 Points 0%

CrossMark / Responsiveness
Average Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs (1260 - 1494, n=3)	1363 Points +2%
Beelink SEi11 Pro Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN	1336 Points
Beelink GTR5 Vega 8, R9 5900HX, Kingston NV1 SNVS/500GCN	1281 Points -4%

PCMark 10 Score		5095 poäng
Hjälp

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
Average Intel Core i5-11320H (41106 - 55961, n=4)	46757 MB/s +14%
Beelink GTR5 AMD Ryzen 9 5900HX, Vega 8	42079 MB/s +2%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	41106 MB/s
Beelink GTI 11 Intel Core i5-1135G7, Iris Xe G7 80EUs	40994 MB/s 0%
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	37086 MB/s -10%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	22895 MB/s -44%

AIDA64 / Memory Read
Average Intel Core i5-11320H (46516 - 52799, n=4)	48181 MB/s +4%
Beelink GTR5 AMD Ryzen 9 5900HX, Vega 8	47281 MB/s +2%
Beelink GTI 11 Intel Core i5-1135G7, Iris Xe G7 80EUs	46916 MB/s +1%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	46516 MB/s
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	44706 MB/s -4%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	24947 MB/s -46%

AIDA64 / Memory Write
Average Intel Core i5-11320H (46760 - 63323, n=4)	51804 MB/s +11%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	46760 MB/s
Beelink GTI 11 Intel Core i5-1135G7, Iris Xe G7 80EUs	46366 MB/s -1%
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	43768 MB/s -6%
Beelink GTR5 AMD Ryzen 9 5900HX, Vega 8	42270 MB/s -10%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	23454 MB/s -50%

AIDA64 / Memory Latency
Beelink SER4 AMD Ryzen 7 4800U, Vega 8	94.7 ns * -17%
Average Intel Core i5-11320H (77.6 - 114.1, n=4)	92.1 ns * -14%
Intel NUC11TNKi5 Intel Core i5-1135G7, Iris Xe G7 80EUs	87.1 ns * -8%
Beelink SEi11 Pro Intel Core i5-11320H, Iris Xe G7 96EUs	81 ns *
Beelink GTR5 AMD Ryzen 9 5900HX, Vega 8	80 ns * +1%
Beelink GTI 11 Intel Core i5-1135G7, Iris Xe G7 80EUs	68.3 ns * +16%

* ... smaller is better

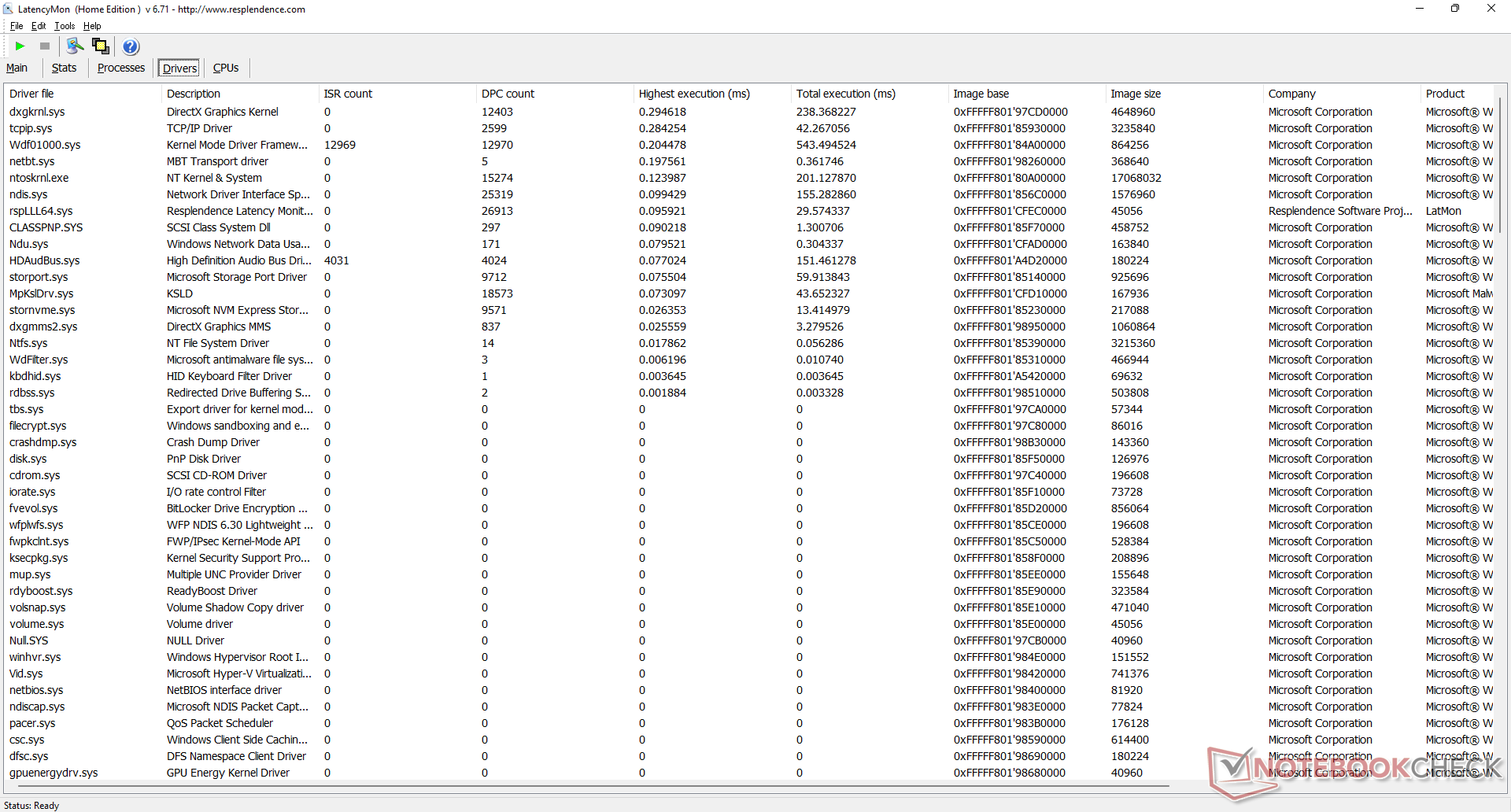

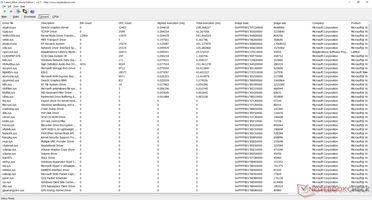

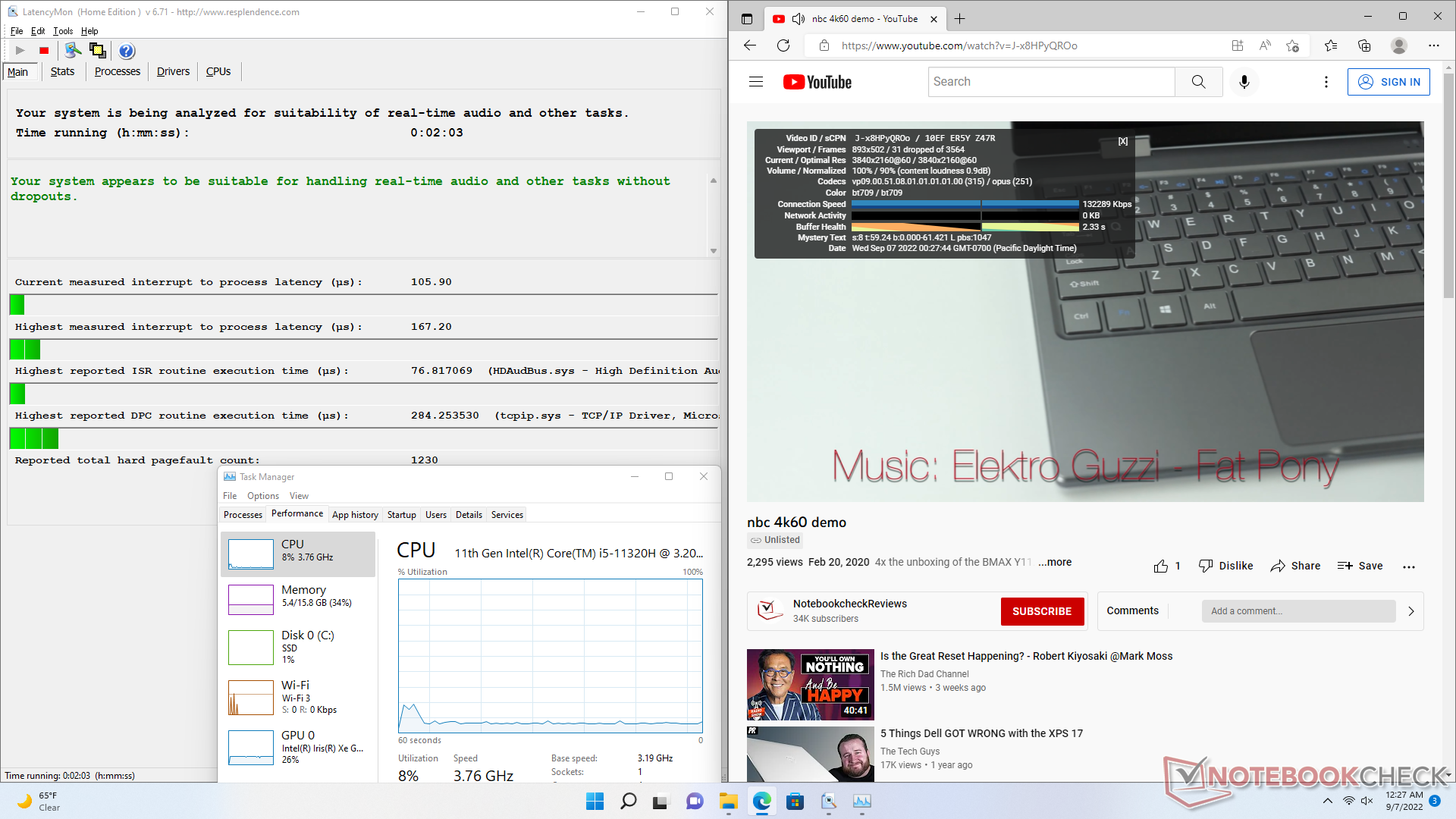

DPC-latenstid

LatencyMon visar inga DPC-problem när vi öppnar flera webbläsarflikar på vår hemsida eller när vi kör Prime95 stress. Tyvärr är 4K-uppspelning vid 60 FPS ofullständig med 31 tappade bilder under vårt minutlånga videotest.

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Intel NUC11TNKi5 Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S	525 μs * -214%
Beelink SER4 Vega 8, R7 4800U, Intel SSD 660p SSDPEKNW512G8	336 μs * -101%
Beelink GTI 11 Iris Xe G7 80EUs, i5-1135G7, Kingston SA2000M8500G	278.2 μs * -66%
Beelink SEi11 Pro Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN	167.2 μs *
Beelink GTR5 Vega 8, R9 5900HX, Kingston NV1 SNVS/500GCN	116 μs * +31%

* ... smaller is better

Lagringsenheter

SEi11 Pro levereras med sammaKingston NV1 SBVS500GCN M.2 SSD som finns på GTR5. Detta är en PCIe3 x4-enhet i mellanklass med sekventiell läshastighet på cirka 2300 MB/s jämfört med >3000 MB/s på en Samsung PM981a.

Sekundärt 2,5-tums SATA III-fack på bottenpanelen

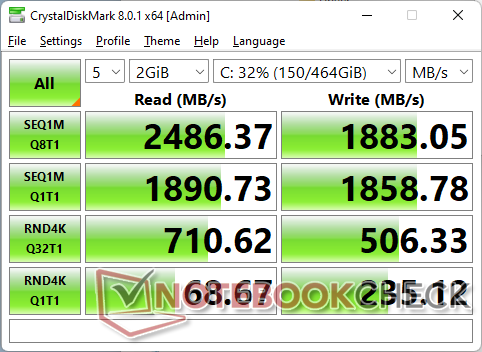

CrystalDiskMark 5.2 / 6

AS SSD

DiskSpd

Kingston NV1 SNVS/500GCN

CDM 5/6 Read Seq Q32T1: 2466 MB/s

CDM 5/6 Write Seq Q32T1: 1301 MB/s

CDM 5/6 Read 4K Q32T1: 708.1 MB/s

CDM 5/6 Write 4K Q32T1: 509.5 MB/s

CDM 5 Read Seq: 1883 MB/s

CDM 5 Write Seq: 1441 MB/s

CDM 5/6 Read 4K: 68.01 MB/s

CDM 5/6 Write 4K: 233.9 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Beelink GTI 11 Kingston SA2000M8500G	92.8 pt
Beelink GTR5 Kingston NV1 SNVS/500GCN	80.9 pt
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	80.4 pt
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	64.2 pt
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	25.5 pt

DiskSpd
seq read
Beelink GTR5 Kingston NV1 SNVS/500GCN	1986 (1983.26^min - 1986.21^max) MB/s +21%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	1638 (1628.34^min - 1637.59^max) MB/s
Beelink GTI 11 Kingston SA2000M8500G	1392 (1389.99^min - 1391.88^max) MB/s -15%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	1370 (1352.45^min - 1370.49^max) MB/s -16%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	509 (505.62^min - 509.19^max) MB/s -69%
seq write
Beelink GTI 11 Kingston SA2000M8500G	1810 (1639.55^min - 1810.32^max) MB/s +9%
Beelink GTR5 Kingston NV1 SNVS/500GCN	1766 (564^min - 1766.22^max) MB/s +6%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	1661 (336.85^min - 1661.33^max) MB/s
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	971 (941.83^min - 970.77^max) MB/s -42%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	467 (462^min - 467.13^max) MB/s -72%
seq q8 t1 read
Beelink GTR5 Kingston NV1 SNVS/500GCN	2511 (2320.5^min - 2511.12^max) MB/s +6%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	2374 (2218.75^min - 2374.19^max) MB/s
Beelink GTI 11 Kingston SA2000M8500G	1699 (1607.68^min - 1699.07^max) MB/s -28%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	1562 (1435.86^min - 1562.38^max) MB/s -34%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	561 (469.24^min - 560.5^max) MB/s -76%
seq q8 t1 write
Beelink GTI 11 Kingston SA2000M8500G	1873 (1713.16^min - 1872.55^max) MB/s +31%
Beelink GTR5 Kingston NV1 SNVS/500GCN	1797 (679.16^min - 1796.66^max) MB/s +25%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	1433 (67.32^min - 1432.98^max) MB/s
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	970 (945.19^min - 970.14^max) MB/s -32%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	504 (500.38^min - 503.53^max) MB/s -65%
4k q1 t1 read
Beelink GTI 11 Kingston SA2000M8500G	66 (65.66^min - 66.02^max) MB/s +31%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	62.4 (61.64^min - 62.4^max) MB/s +24%
Beelink GTR5 Kingston NV1 SNVS/500GCN	51.1 (45.32^min - 51.14^max) MB/s +1%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	50.5 (48.13^min - 50.48^max) MB/s
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	21.6 (20.05^min - 21.62^max) MB/s -57%
4k q1 t1 write
Beelink GTI 11 Kingston SA2000M8500G	223 (200.71^min - 223.16^max) MB/s +28%
Beelink GTR5 Kingston NV1 SNVS/500GCN	203 (155.48^min - 203.38^max) MB/s +17%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	200 (197.44^min - 200.13^max) MB/s +15%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	173.6 (113.3^min - 173.62^max) MB/s
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	46.4 (45.57^min - 46.37^max) MB/s -73%
4k q32 t16 read
Beelink GTI 11 Kingston SA2000M8500G	813 (810.85^min - 813.32^max) MB/s +9%
Beelink GTR5 Kingston NV1 SNVS/500GCN	747 (741.87^min - 747.14^max) MB/s 0%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	745 (742.2^min - 744.53^max) MB/s
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	345 (343.07^min - 345.33^max) MB/s -54%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	285 (283.99^min - 284.61^max) MB/s -62%
4k q32 t16 write
Beelink GTI 11 Kingston SA2000M8500G	1089 (1047.09^min - 1088.53^max) MB/s +49%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	826 (804.5^min - 825.5^max) MB/s +13%
Beelink GTR5 Kingston NV1 SNVS/500GCN	801 (384.08^min - 801.12^max) MB/s +9%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	733 (332^min - 733.18^max) MB/s
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	330 (329.53^min - 329.95^max) MB/s -55%

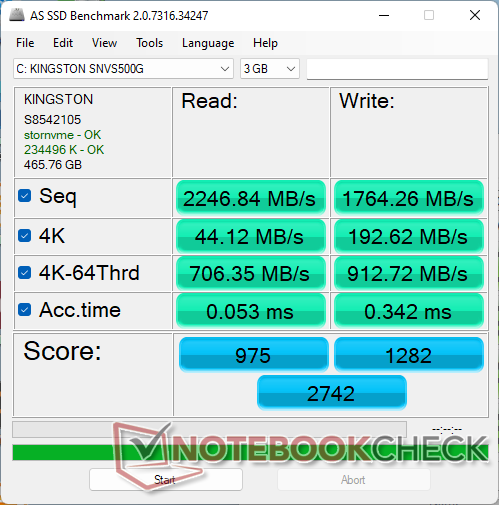

AS SSD
Score Total
Beelink GTI 11 Kingston SA2000M8500G	3013 Points +10%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	2742 Points
Beelink GTR5 Kingston NV1 SNVS/500GCN	2544 Points -7%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	1833 Points -33%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	839 Points -69%
Score Read
Beelink GTI 11 Kingston SA2000M8500G	1001 Points +3%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	975 Points
Beelink GTR5 Kingston NV1 SNVS/500GCN	966 Points -1%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	544 Points -44%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	304 Points -69%
Score Write
Beelink GTI 11 Kingston SA2000M8500G	1486 Points +16%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	1282 Points
Beelink GTR5 Kingston NV1 SNVS/500GCN	1103 Points -14%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	1028 Points -20%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	375 Points -71%
Seq Read
Beelink GTR5 Kingston NV1 SNVS/500GCN	2289 MB/s +2%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	2246.84 MB/s
Beelink GTI 11 Kingston SA2000M8500G	2006 MB/s -11%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	1653 MB/s -26%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	527 MB/s -77%
Seq Write
Beelink GTI 11 Kingston SA2000M8500G	1904 MB/s +8%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	1764.26 MB/s
Beelink GTR5 Kingston NV1 SNVS/500GCN	1703 MB/s -3%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	869 MB/s -51%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	469 MB/s -73%
4K Read
Beelink GTI 11 Kingston SA2000M8500G	60.9 MB/s +38%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	56.4 MB/s +28%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	44.12 MB/s
Beelink GTR5 Kingston NV1 SNVS/500GCN	43.84 MB/s -1%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	20.41 MB/s -54%
4K Write
Beelink GTI 11 Kingston SA2000M8500G	203.7 MB/s +6%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	192.62 MB/s
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	163.7 MB/s -15%
Beelink GTR5 Kingston NV1 SNVS/500GCN	137.3 MB/s -29%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	42.52 MB/s -78%
4K-64 Read
Beelink GTI 11 Kingston SA2000M8500G	740 MB/s +5%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	706.35 MB/s
Beelink GTR5 Kingston NV1 SNVS/500GCN	693 MB/s -2%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	321.8 MB/s -54%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	231.4 MB/s -67%
4K-64 Write
Beelink GTI 11 Kingston SA2000M8500G	1092 MB/s +20%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	912.72 MB/s
Beelink GTR5 Kingston NV1 SNVS/500GCN	795 MB/s -13%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	778 MB/s -15%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	285.3 MB/s -69%
Access Time Read
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	0.124 ms * -134%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	0.085 ms * -60%
Beelink GTR5 Kingston NV1 SNVS/500GCN	0.054 ms * -2%
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	0.053 ms *
Beelink GTI 11 Kingston SA2000M8500G	0.047 ms * +11%
Access Time Write
Beelink SEi11 Pro Kingston NV1 SNVS/500GCN	0.342 ms *
Beelink GTR5 Kingston NV1 SNVS/500GCN	0.332 ms * +3%
Intel NUC11TNKi5 Transcend M.2 SSD 430S TS512GMTS430S	0.269 ms * +21%
Beelink SER4 Intel SSD 660p SSDPEKNW512G8	0.137 ms * +60%
Beelink GTI 11 Kingston SA2000M8500G	0.083 ms * +76%

* ... smaller is better

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

Beelink SEi11 Pro: Ø2297 (2130.85-2361.6)

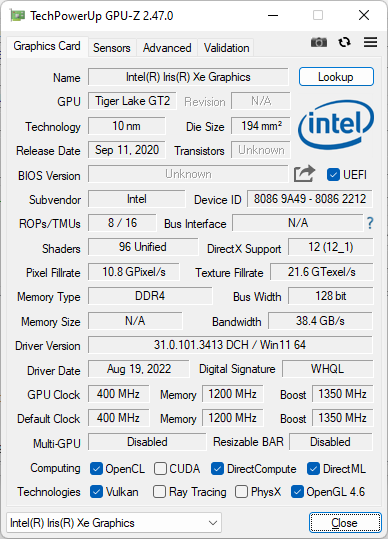

GPU-prestanda

Den integrerade grafikprestandan är där vi förväntar oss att den ska vara i förhållande till andra datorer med samma Iris Xe 96 EUs GPU. Se till att konfigurera SEi11 med RAM-minne med dubbla kanaler, annars kan grafikprestandan sjunka med så mycket som 30 till 40 procent.

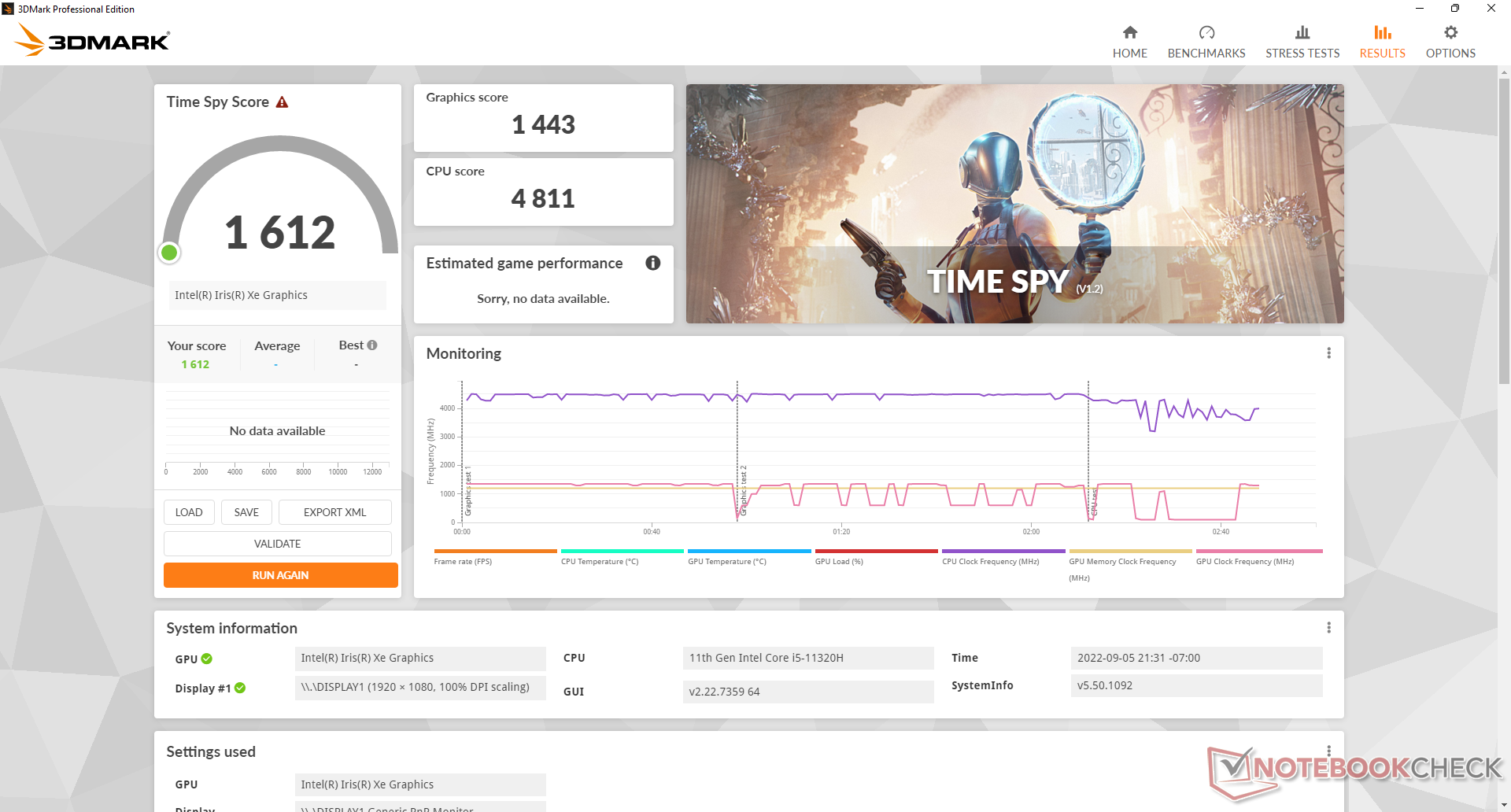

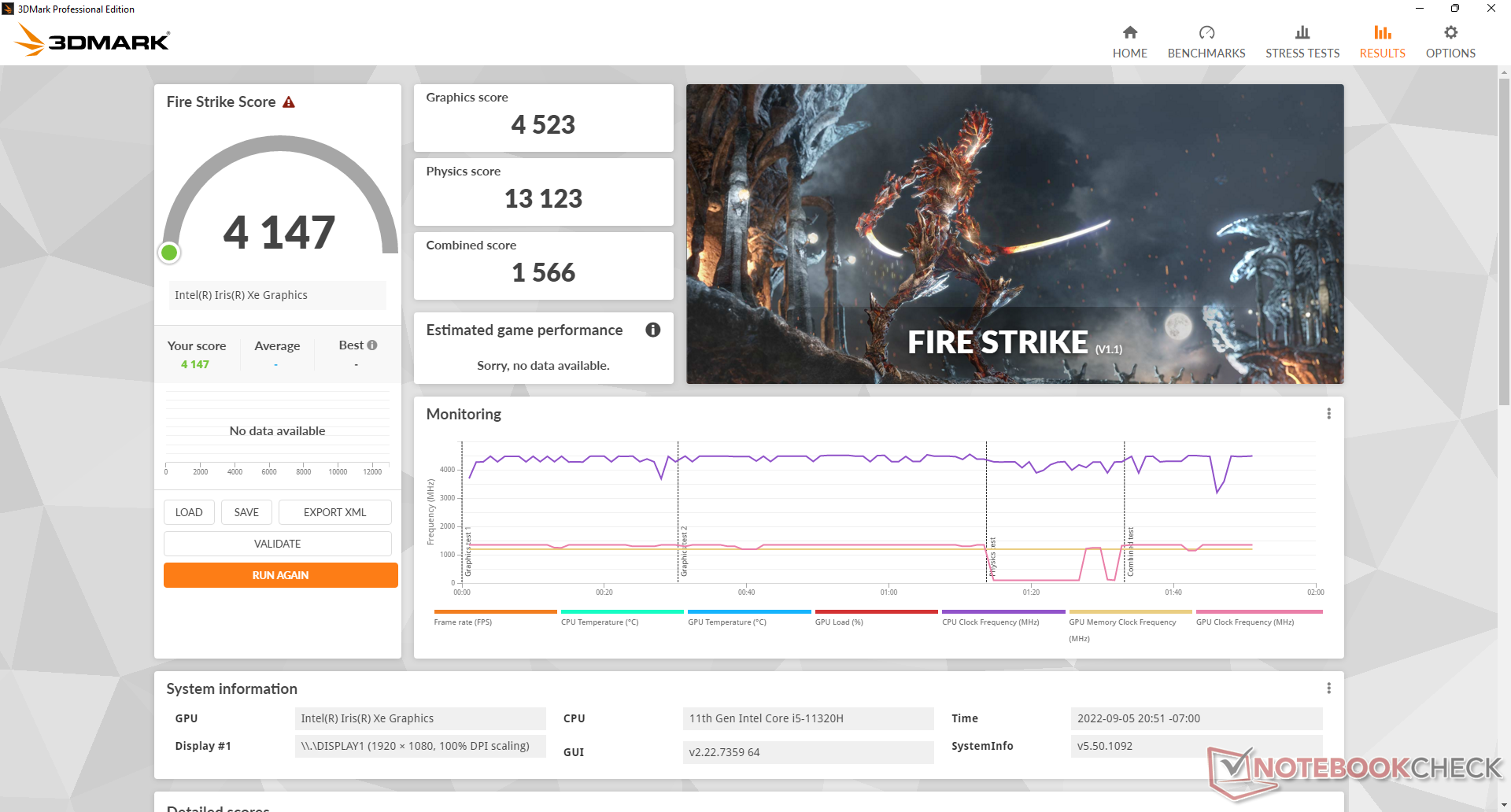

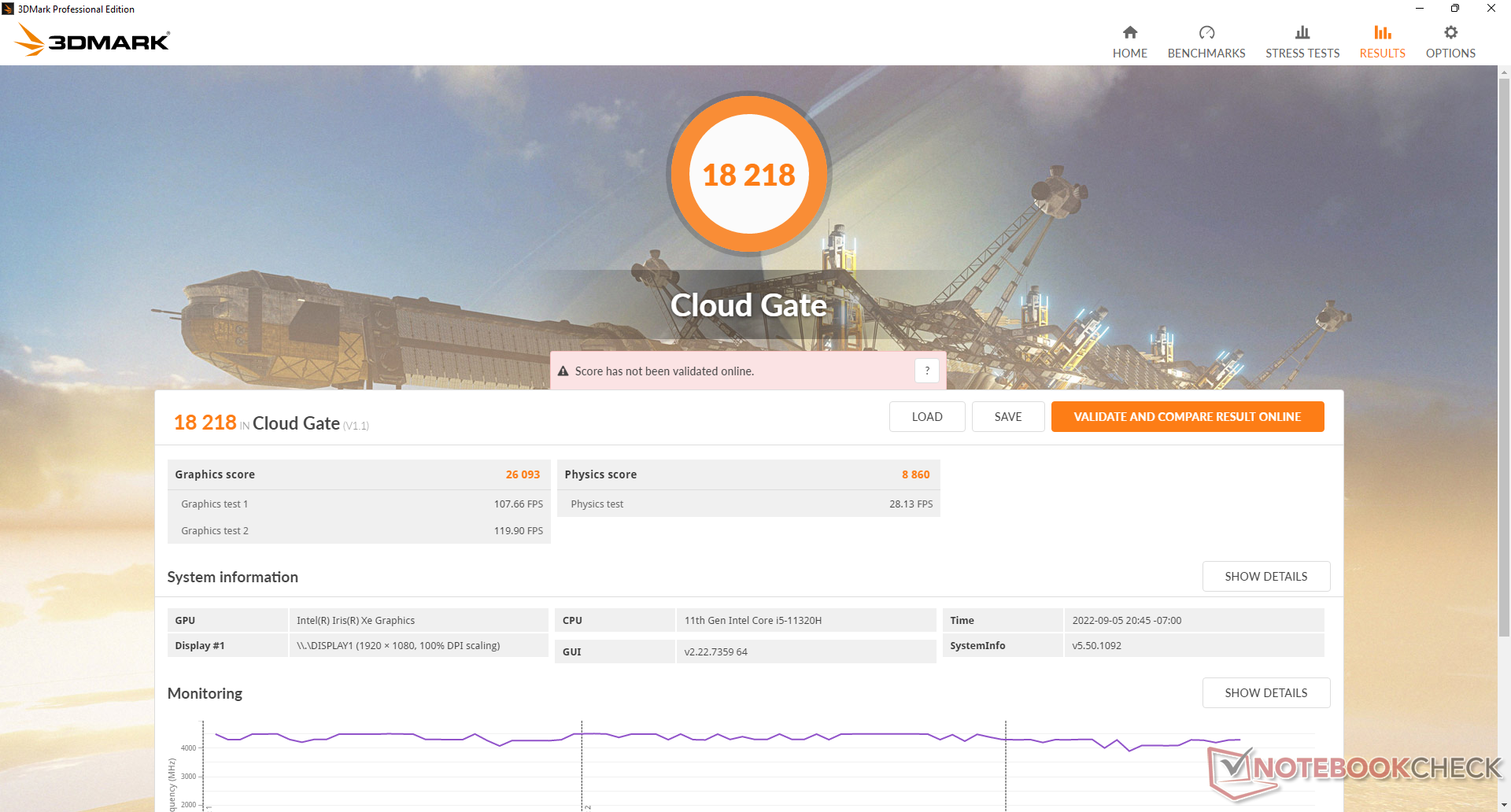

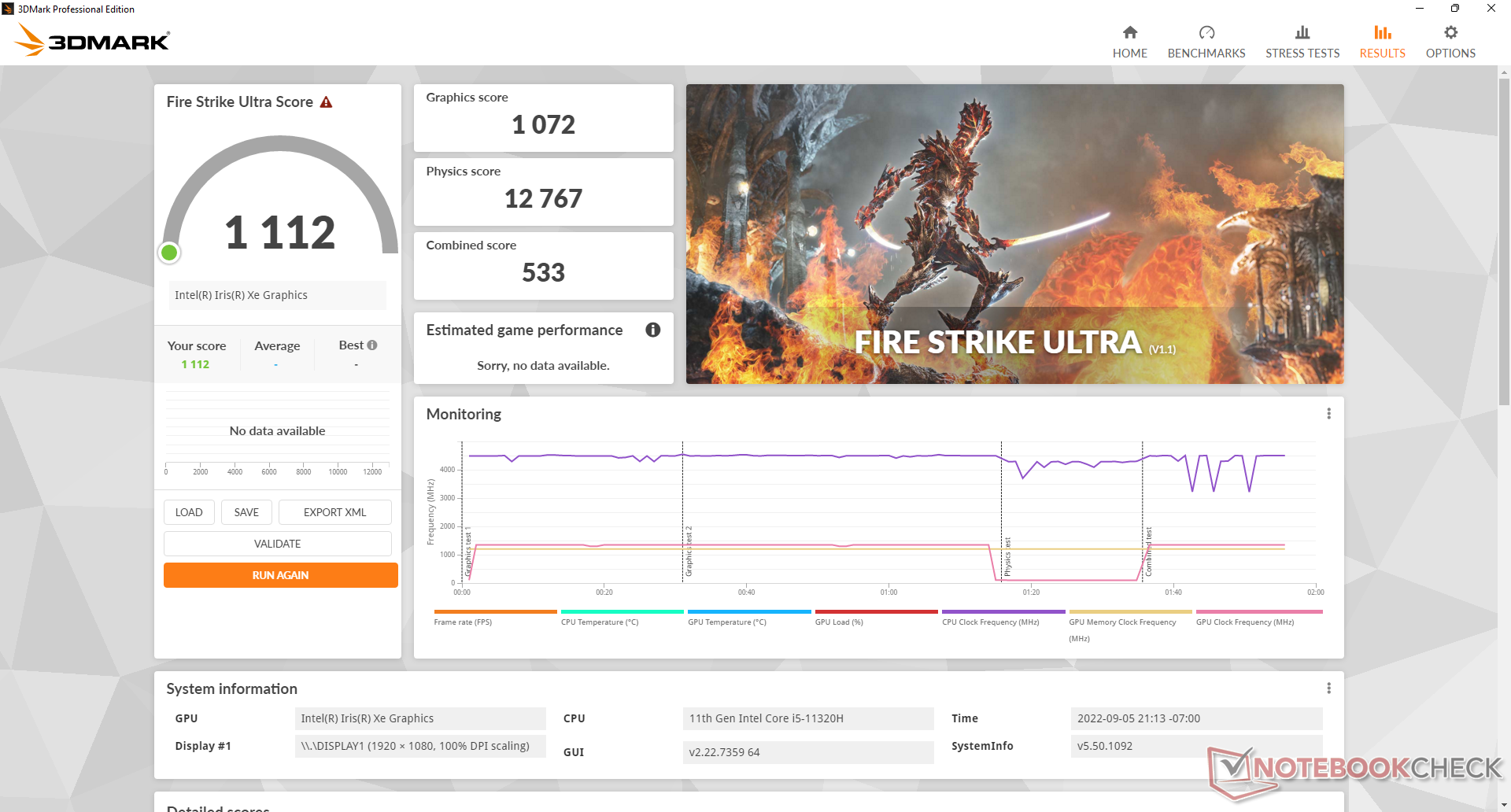

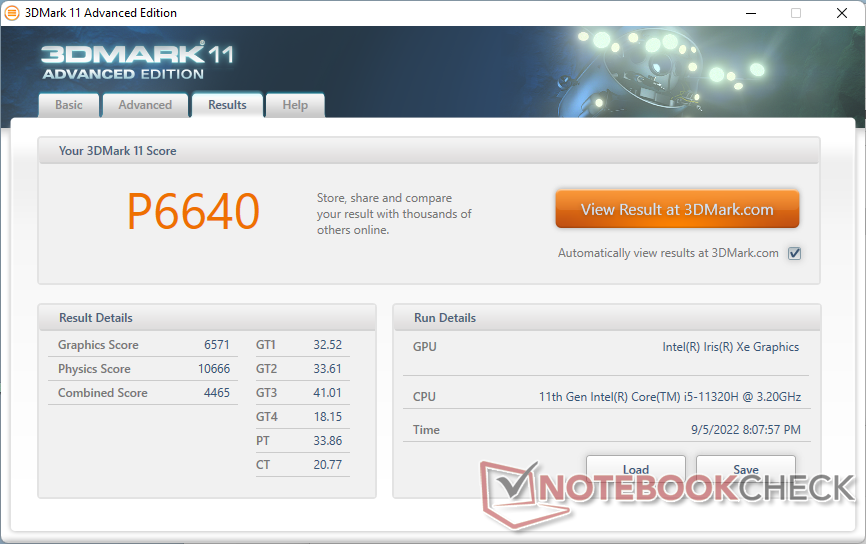

3DMark | 3DMark 11

3DMark
1920x1080 Fire Strike Graphics
Honor MagicBook 14 2022 NVIDIA GeForce RTX 2050 Mobile, Intel Core i5-12500H	10621 Points +135%
Average Intel Iris Xe Graphics G7 96EUs (2286 - 6482, n=215)	4920 Points +9%
Beelink SEi11 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	4523 Points
Beelink GTR5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	4493 Points -1%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	4360 Points -4%
Beelink SER4 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 4800U	3927 Points -13%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	3586 Points -21%
Intel NUC11TNKi5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	3152 Points -30%
2560x1440 Time Spy Graphics
Honor MagicBook 14 2022 NVIDIA GeForce RTX 2050 Mobile, Intel Core i5-12500H	3938 Points +173%
Average Intel Iris Xe Graphics G7 96EUs (707 - 1871, n=212)	1495 Points +4%
Beelink SEi11 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	1443 Points
Beelink GTR5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	1441 Points 0%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	1287 Points -11%
Beelink SER4 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 4800U	1241 Points -14%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	1102 Points -24%
Intel NUC11TNKi5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	1031 Points -29%
2560x1440 Time Spy Score
Honor MagicBook 14 2022 NVIDIA GeForce RTX 2050 Mobile, Intel Core i5-12500H	4326 Points +168%
Average Intel Iris Xe Graphics G7 96EUs (789 - 2133, n=209)	1675 Points +4%
Beelink GTR5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	1647 Points +2%
Beelink SEi11 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	1612 Points
Beelink SER4 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 4800U	1412 Points -12%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	1409 Points -13%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	1251 Points -22%
Intel NUC11TNKi5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	1161 Points -28%

3DMark 11 - 1280x720 Performance GPU
Honor MagicBook 14 2022 NVIDIA GeForce RTX 2050 Mobile, Intel Core i5-12500H	15411 Points +135%
Beelink GTR5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 9 5900HX	7102 Points +8%
Beelink SEi11 Pro Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	6571 Points
Average Intel Iris Xe Graphics G7 96EUs (2867 - 7676, n=202)	6353 Points -3%
Prime Computer PrimeBook Circular-i7-1165G7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	6091 Points -7%
Beelink SER4 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 4800U	6036 Points -8%
Minipc Union Ace Magician AMR5 AMD Radeon RX Vega 7, AMD Ryzen 5 5600U	5610 Points -15%
Intel NUC11TNKi5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1135G7	5221 Points -21%

3DMark 11 Performance		6640 poäng
3DMark Cloud Gate Standard Score		18218 poäng
3DMark Fire Strike Score		4147 poäng
3DMark Time Spy Score		1612 poäng
Hjälp

... jämför

The Witcher 3
1024x768 Low Graphics & Postprocessing
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	89.7 (45^min) fps
Beelink GTR5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	86.9 (77^min) fps -3%
Average Intel Iris Xe Graphics G7 96EUs (28.9 - 117.2, n=186)	84 fps -6%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	77.1 (44^min) fps -14%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	64.2 (51^min) fps -28%
Intel NUC11TNKi5 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	59.8 (53^min) fps -33%
1366x768 Medium Graphics & Postprocessing
Beelink GTR5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	55.2 (52^min) fps +3%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	53.7 (44^min) fps
Average Intel Iris Xe Graphics G7 96EUs (21.4 - 77.8, n=184)	53.6 fps 0%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	46.6 (41^min) fps -13%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	45.2 (41^min) fps -16%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
Average Intel Iris Xe Graphics G7 96EUs (10.6 - 45.9, n=189)	28.7 fps +3%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	27.8 (25^min) fps
Beelink GTR5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	26.8 (25^min) fps -4%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	23.1 (19^min) fps -17%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	22.6 (21^min) fps -19%
1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Beelink GTR5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	17.1 (15^min) fps +24%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	14.3 (13^min) fps +4%
Average Intel Iris Xe Graphics G7 96EUs (8.79 - 20.1, n=179)	14 fps +1%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	13.8 (12^min) fps
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	11.5 (10^min) fps -17%

Cyberpunk 2077 1.6
1920x1080 Low Preset
Average Intel Iris Xe Graphics G7 96EUs (13 - 25.9, n=42)	19 fps +2%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	18.6 (8.1^min) fps
1920x1080 Medium Preset
Average Intel Iris Xe Graphics G7 96EUs (10.8 - 21.7, n=37)	16.1 fps +3%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	15.6 (7.8^min) fps
1920x1080 High Preset
Average Intel Iris Xe Graphics G7 96EUs (9.8 - 16.9, n=34)	12.7 fps +9%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	11.7 (6.1^min) fps
1920x1080 Ultra Preset
Average Intel Iris Xe Graphics G7 96EUs (7.4 - 16.8, n=32)	10.6 fps +8%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	9.8 (4.9^min) fps

GTA V
1024x768 Lowest Settings possible
Beelink GTR5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	140 (14^min, 90.9^P1) fps +49%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	110 (19.4^min, 71.4^P1) fps +17%
Average Intel Iris Xe Graphics G7 96EUs (52 - 166.4, n=162)	98.5 fps +5%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	95.1 (21.9^min, 55.6^P1) fps +1%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	94.2 (16.5^min, 58.8^P1) fps
1920x1080 Lowest Settings possible
Beelink GTR5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	81.8 (10.6^min, 58.8^P1) fps +24%
Average Intel Iris Xe Graphics G7 96EUs (34.7 - 132.1, n=136)	73.8 fps +12%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	71.5 (8.83^min, 52.6^P1) fps +8%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	65.9 (13.2^min, 45.5^P1) fps
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	65.4 (20.4^min, 45.5^P1) fps -1%
1366x768 Normal/Off AF:4x
Beelink GTR5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	124 (14.4^min, 83.3^P1) fps +60%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	98.3 (13.8^min, 62.5^P1) fps +27%
Average Intel Iris Xe Graphics G7 96EUs (24.1 - 149.3, n=165)	83.1 fps +7%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	79.5 (21.5^min, 50^P1) fps +2%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	77.6 (21.9^min, 50^P1) fps
1920x1080 Normal/Off AF:4x
Beelink GTR5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	84.6 (9.51^min, 58.8^P1) fps +48%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	72.2 (6.79^min, 50^P1) fps +26%
Average Intel Iris Xe Graphics G7 96EUs (20 - 119.3, n=137)	65.2 fps +14%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	57.3 (22.2^min, 38.5^P1) fps
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	56.6 (16.5^min, 38.5^P1) fps -1%
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
Beelink GTR5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	33.4 (6.39^min, 24.4^P1) fps +44%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	29.6 (5.48^min, 21.7^P1) fps +28%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	23.2 (11.5^min, 15.9^P1) fps
Average Intel Iris Xe Graphics G7 96EUs (9.39 - 51.6, n=157)	22.8 fps -2%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	21.1 (8.42^min, 14.9^P1) fps -9%
1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x
Beelink GTR5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	15.1 (3.94^min, 10.6^P1) fps
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	13.4 (3.61^min, 9.62^P1) fps
Average Intel Iris Xe Graphics G7 96EUs (4.13 - 22.9, n=151)	9.48 fps
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	8.17 (3.68^min, 5.03^P1) fps

Final Fantasy XV Benchmark
1280x720 Lite Quality
Beelink GTR5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	44.8 fps +16%
Average Intel Iris Xe Graphics G7 96EUs (14.9 - 56.5, n=183)	39.4 fps +2%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	38.6 fps
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	37.3 fps -3%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	36.7 fps -5%
Intel NUC11TNKi5 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	26.8 fps -31%
1920x1080 Standard Quality
Beelink GTR5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	22.3 fps +10%
Average Intel Iris Xe Graphics G7 96EUs (10.5 - 31.2, n=179)	21.8 fps +7%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	20.3 fps
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	19.2 fps -5%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	18.7 fps -8%
Intel NUC11TNKi5 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	13.7 fps -33%
1920x1080 High Quality
Average Intel Iris Xe Graphics G7 96EUs (8.15 - 27.8, n=172)	16.8 fps +13%
Beelink GTR5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	15.7 fps +5%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	14.9 fps
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	13.8 fps -7%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	13.5 fps -9%
Intel NUC11TNKi5 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	10.5 fps -30%

X-Plane 11.11
1280x720 low (fps_test=1)
Beelink GTR5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	58.2 fps 0%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	58.2 fps
Average Intel Iris Xe Graphics G7 96EUs (13.4 - 88.4, n=212)	41.5 fps -29%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	41.1 fps -29%
Intel NUC11TNKi5 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	37.1 fps -36%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	24 fps -59%
1920x1080 med (fps_test=2)
Beelink GTR5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	45.7 fps +11%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	41.2 fps
Average Intel Iris Xe Graphics G7 96EUs (11.6 - 69.5, n=213)	35.2 fps -15%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	33.2 fps -19%
Intel NUC11TNKi5 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	27.3 fps -34%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	21.4 fps -48%
1920x1080 high (fps_test=3)
Beelink GTR5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	40.5 fps +9%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	37.3 fps
Average Intel Iris Xe Graphics G7 96EUs (11.1 - 59.8, n=212)	31.6 fps -15%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	29.5 fps -21%
Intel NUC11TNKi5 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	29.1 fps -22%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	21.9 fps -41%

Dota 2 Reborn
1280x720 min (0/3) fastest
Beelink GTR5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	135 (115.7^min) fps +13%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	123 (107.9^min) fps +3%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	119.6 (108.4^min) fps
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	103 (88.1^min) fps -14%
Average Intel Iris Xe Graphics G7 96EUs (36 - 148, n=215)	100.3 fps -16%
Intel NUC11TNKi5 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	73.8 (47.9^min) fps -38%
1366x768 med (1/3)
Beelink GTR5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	107 (88.2^min) fps +36%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	83.3 (67.5^min) fps +6%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	81 (68.5^min) fps +3%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	78.6 (66.2^min) fps
Average Intel Iris Xe Graphics G7 96EUs (31.6 - 108.5, n=215)	75.7 fps -4%
Intel NUC11TNKi5 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	56 (40.8^min) fps -29%
1920x1080 high (2/3)
Beelink GTR5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	63.8 (56.8^min) fps +27%
Average Intel Iris Xe Graphics G7 96EUs (23.2 - 88.1, n=215)	54.2 fps +8%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	53.1 (44.7^min) fps +5%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	50.4 (41.9^min) fps
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	49.7 (44.3^min) fps -1%
Intel NUC11TNKi5 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	34.2 (20^min) fps -32%
1920x1080 ultra (3/3) best looking
Beelink GTR5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	59.9 (53.3^min) fps +26%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	51.1 (44.6^min) fps +8%
Average Intel Iris Xe Graphics G7 96EUs (20.6 - 78.5, n=215)	49.4 fps +4%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	47.4 (40.8^min) fps
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	47.2 (41.2^min) fps 0%
Intel NUC11TNKi5 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	31.4 (18.2^min) fps -34%

Strange Brigade
1280x720 lowest AF:1
Beelink GTR5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	99.1 (72.8^min, 85.4^P1) fps +25%
Average Intel Iris Xe Graphics G7 96EUs (48.5 - 115.1, n=168)	84.8 fps +7%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	82.3 (43.8^min, 72.3^P1) fps +4%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	79.3 (18.8^min, 25.6^P1) fps
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	76.5 (17.1^min, 23^P1) fps -4%
1920x1080 medium AA:medium AF:4
Beelink GTR5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	37.8 (31.8^min, 33.6^P1) fps +12%
Average Intel Iris Xe Graphics G7 96EUs (18.2 - 51.4, n=166)	36.5 fps +8%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	33.9 (10.3^min, 19.8^P1) fps
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	33.3 (24^min, 29.6^P1) fps -2%
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	30.8 (9.7^min, 16.6^P1) fps -9%
1920x1080 high AA:high AF:8
Beelink GTR5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	31.9 (23.5^min, 25.5^P1) fps +15%
Average Intel Iris Xe Graphics G7 96EUs (15.4 - 39.8, n=165)	29.3 fps +6%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	28.1 (20.4^min, 22.5^P1) fps +1%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	27.7 (10^min, 15.1^P1) fps
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	25.2 (5.1^min, 8.82^P1) fps -9%
1920x1080 ultra AA:ultra AF:16
Beelink GTR5 AMD Ryzen 9 5900HX, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	27.5 (21.3^min, 22.3^P1) fps +24%
Beelink SER4 AMD Ryzen 7 4800U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	24 (17.8^min, 19.5^P1) fps +8%
Average Intel Iris Xe Graphics G7 96EUs (13.2 - 31.7, n=163)	23.7 fps +7%
Beelink SEi11 Pro Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	22.2 (5.6^min, 7.76^P1) fps
Beelink GTI 11 Intel Core i5-1135G7, Intel Iris Xe Graphics G7 80EUs	20.2 (5^min, 5^P1) fps -9%

Witcher 3 FPS Chart

Beelink SEi11 Pro: Ø84.9 (76-90)

	låg	med.	hög	ultra
GTA V (2015)	94.2	77.6	23.2
The Witcher 3 (2015)	89.7	53.7	27.8	13.8
Dota 2 Reborn (2015)	119.6	78.6	50.4	47.4
Final Fantasy XV Benchmark (2018)	38.6	20.3	14.9
X-Plane 11.11 (2018)	58.2	41.2	37.3
Strange Brigade (2018)	79.3	33.9	27.7	22.2
Cyberpunk 2077 1.6 (2022)	18.6	15.6	11.7	9.8

Utsläpp

Systembrus

Enhetens fläkt är alltid aktiv oavsett belastning eller aktivitet på skärmen. Den är tack och lov relativt tyst med endast 24,7 dB(A) mot en bakgrund på 22,8 dB(A), men användare som förväntar sig en helt tyst mini-dator kommer inte att hitta det här

Det totala fläktljudet är fortfarande tystare än på många andra minidatorer när man kör mer krävande belastningar. När man till exempel surfar på webben eller streamar video tenderar fläktljudet att pendla mellan 25 och 28 dB(A) jämfört med över 30 dB(A) på GTR5 eller Intel NUC11. Fläkten toppar på strax under 38 dB(A) när CPU:n används till 100 procent under långa perioder, vilket återigen är märkbart tystare än många alternativ.

Profil för fläktljud (vit: Bakgrund, röd: Systemet vilar, Blå: 3DMark 06, Orange: Witcher 3, Grön: Prime95 stress)

Ljudnivå

Låg belastning		24.7 / 24.7 / 25.3 dB(A)
Hög belastning		33.2 / 37.8 dB(A)

	30 dB tyst 40 dB(A) hörbar 50 dB(A) högt ljud
min: , med: , max: Earthworks M23R, Arta (15 cm avstånd) environment noise: 22.8 dB(A)

	Beelink SEi11 Pro Iris Xe G7 96EUs, i5-11320H, Kingston NV1 SNVS/500GCN	Beelink GTR5 Vega 8, R9 5900HX, Kingston NV1 SNVS/500GCN	Beelink GTI 11 Iris Xe G7 80EUs, i5-1135G7, Kingston SA2000M8500G	Beelink SER4 Vega 8, R7 4800U, Intel SSD 660p SSDPEKNW512G8	Intel NUC11TNKi5 Iris Xe G7 80EUs, i5-1135G7, Transcend M.2 SSD 430S TS512GMTS430S
Noise		-26%	-31%	-20%	-26%
off / environment *	22.8	23.1 -1%	25.7 -13%	23.4 -3%	24.8 -9%
Idle Minimum *	24.7	34.2 -38%	28.4 -15%	33.2 -34%	35.6 -44%
Idle Average *	24.7	34.2 -38%	32 -30%	33.2 -34%	35.6 -44%
Idle Maximum *	25.3	34.2 -35%	37.7 -49%	33.2 -31%	35.6 -41%
Load Average *	33.2	44.6 -34%	44.2 -33%	38.6 -16%	36.2 -9%
Witcher 3 ultra *	34.5	41.4 -20%	44.5 -29%	39.2 -14%	38 -10%
Load Maximum *	37.8	45.1 -19%	56 -48%	40.8 -8%	47.6 -26%

* ... smaller is better

Temperatur

AC-adaptern kan nå över 60 C när du kör belastningar på spelnivå under längre perioder

Kall luft dras in genom enhetens ovansida medan avgaserna kommer ut bakifrån, vilket framgår av våra temperaturkartor nedan. Föremål som böcker och papper bör därför inte placeras ovanpå.

Observera att nätadaptern kan bli märkbart varmare än de flesta andra nätadaptrar som levereras med bärbara datorer.

Stresstest

Klockfrekvenserna och strömförbrukningen på kortet ökade till 2,9 GHz respektive 35 W när Prime95-stressen inleddes. Systemet kan bibehålla dessa värden på obestämd tid, om än vid en relativt hög kärntemperatur på 90 C. 35 W är det övre TDP-området för Core i5-11320H och SEi11 utnyttjar alltså processorn nära sin maximala potential.

GPU-klockfrekvens och temperatur vid körning Witcher 3 är relativt stabila på 1350 MHz respektive 83 C. Om man kör samma test på Intel NUC11 med Core i5-1135G7 skulle resultera i en mycket svalare kärntemperatur på 58 C i jämförelse.

	CPU-klocka (GHz)	GPU-klocka (MHz)	Genomsnittlig CPU-temperatur (°C)
Systemets tomgång	--	--	41
Prime95 Stress	2.9	--	89
Prime95 + FurMark Stress	~2,9	600	91
Witcher 3 Stress	~1,8	1350	83

Energiförvaltning

Effektförbrukning

Systemet är mer krävande än minidatorer som körs med CPU:er i den 11:e generationen av Core U-serien, t.ex. GTI 11 eller Intel NUC11. Om du värdesätter rå CPU-prestanda med flera trådar kan dock SER4 vara det bättre alternativet eftersom den erbjuder snabbare prestanda med flera trådar samtidigt som den förbrukar över 30 procent mindre ström än vår SEi11.

Vi kan registrera ett maximalt uttag på 59 W från den relativt lilla (~10 x 4,3 x 4,8 cm) 57 W (19 V, 3 A) AC-adaptern när vi kör Prime95.

Witcher 3 1080p Ultra-inställningar strömförbrukning

När Prime95 startas ökar förbrukningen till 58,6 W

Strömförbrukning

Av/Standby	1.14 / 1.23 Watt
Låg belastning	9.8 / 10.3 / 10.5 Watt
Hög belastning	54.2 / 59 Watt


Förklaring: min: , med: , max: Metrahit Energy

	Beelink SEi11 Pro i5-11320H, Iris Xe G7 96EUs, Kingston NV1 SNVS/500GCN, , x,	Beelink GTR5 R9 5900HX, Vega 8, Kingston NV1 SNVS/500GCN, , x,	Beelink GTI 11 i5-1135G7, Iris Xe G7 80EUs, Kingston SA2000M8500G, , x,	Beelink SER4 R7 4800U, Vega 8, Intel SSD 660p SSDPEKNW512G8, , x,	Intel NUC11TNKi5 i5-1135G7, Iris Xe G7 80EUs, Transcend M.2 SSD 430S TS512GMTS430S, , x,
Power Consumption		-2%	-38%	46%	-7%
Idle Minimum *	9.8	6.2 37%	15.2 -55%	4.1 58%	11.5 -17%
Idle Average *	10.3	8.9 14%	16 -55%	4.1 60%	12.4 -20%
Idle Maximum *	10.5	9 14%	16 -52%	4.6 56%	12.9 -23%
Load Average *	54.2	66.8 -23%	48.6 10%	35.6 34%	40.7 25%
Witcher 3 ultra *	53.1	62.6 -18%	53.8 -1%	35.6 33%	43.9 17%
Load Maximum *	59	81.6 -38%	104.3 -77%	39.9 32%	73.5 -25%

* ... smaller is better

Power Consumption Witcher 3 / Stresstest

Beelink SEi11 Pro i5-11320H, Iris Xe G7 96EUs; Witcher 3 ultra: Ø53.1 (41.1-54.5)

Beelink SER4 R7 4800U, Vega 8; Witcher 3 ultra: Ø35.6 (33.4-37)

Beelink SEi11 Pro i5-11320H, Iris Xe G7 96EUs; 1280x720 Prime95 28.10 and Furmark 1.25: Ø59 (57.8-59.6)

Beelink SER4 R7 4800U, Vega 8; 1280x720 Prime95 28.10 and Furmark 1.25: Ø38.5 (37.8-39.5)

Power Consumption external Monitor

Beelink SEi11 Pro i5-11320H, Iris Xe G7 96EUs; Prime95 V2810 Stress (external Monitor): Ø58.6 (57.2-59.1)

Beelink SER4 R7 4800U, Vega 8; Prime95 V2810 Stress (external Monitor): Ø38.6 (37.9-39.9)

Beelink SEi11 Pro i5-11320H, Iris Xe G7 96EUs; Cinebench R15 Multi (external Monitor): Ø52.4 (49.2-53.2)

Beelink SER4 R7 4800U, Vega 8; Cinebench R15 Multi (external Monitor): Ø34.8 (34-35.5)

Beelink SEi11 Pro i5-11320H, Iris Xe G7 96EUs; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø50.2 (31.6-53.6)

Beelink SER4 R7 4800U, Vega 8; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø35.7 (34.2-37)

Beelink SEi11 Pro i5-11320H, Iris Xe G7 96EUs; 1920x1080 The Witcher 3 ultra (external Monitor): Ø53.1 (41.1-54.5)

Beelink SER4 R7 4800U, Vega 8; 1920x1080 The Witcher 3 ultra (external Monitor): Ø35.6 (33.4-37)

För

+ enkel service; 2x SODIMM + 2x lagring

+ respektabel prestanda för Core H-serien

+ relativt billig

+ VESA-montering

Emot

- ingen USB-C DisplayPort, Power Delivery eller Thunderbolt

- den trådlösa prestandan kunde vara bättre

- har ej SD-kortläsare eller Kensington-lås

- mycket höga CPU-temperaturer

Slutsats - Välbalanserad HTPC Core i5

Recension av Beelink SEi11 Pro. Testenhet tillhandahållen av Beelink

Beelinks portfölj med minidatorer innehåller en handfull "Intel NUC-killare" som kan erbjuda de flesta av samma funktioner, men för hundratals dollar mindre. SEi11 är ännu en framgångshistoria för företaget som till stor del beror på att Core i5-11320H som vi har visat är jämförbar med Core i7-1165G7 som återfinns i NUC-modeller som kostar nästan dubbelt så mycket. Kort sagt behöver användarna inte nöja sig med långsammare prestanda på Core i3-, Ryzen 3-, Celeron- eller Atom-nivå bara för att NUC-alternativet är så mycket billigare. Det tillgängliga RAM-minnet, den dubbla lagringslösningen och det breda urvalet av portar bör tillfredsställa de flesta HTPC-ändamål eller små hemmakontorsuppsättningar

Beelink SEi11 presterar nästan exakt som en Intel NUC11 med Core i7-1165G7 samtidigt som den kostar betydligt mindre.

Det finns ett par snäva detaljer att vara försiktig med. Thunderbolt och DisplayPort i synnerhet stöds inte medan WLAN är svagare än väntat. Standardgarantin är också kortare än den 36 månader långa garantin för en Intel NUC. Fläktljudet är generellt sett tystare än de flesta andra minidatorer om än till priset av varmare kärntemperaturer. I övrigt är detta så nära en Intel NUC-upplevelse du kan få utan att betala de där NUC-priserna.

Pris och tillgänglighet

Amazon har Beelink SEi11 i lager komplett med Windows 11 Pro, 500 GB SSD och 16 GB RAM för 479 USD eller 419 USD efter tillämpning av kupongkoden i skrivande stund. Alternativt kan användare köpa direkt från tillverkaren för 429 USD.

Price comparison

Editor of the original article: Allen Ngo - Lead Editor U.S. - 5250 articles published on Notebookcheck since 2011

contact me via: @AllenNgoNBC

Translator: Ninh Ngoc Duy - Editorial Assistant - 470341 articles published on Notebookcheck since 2008

contact me via: Facebook

Please share our article, every link counts!

> Bärbara datorer, laptops - tester och nyheter > Tester > Recension av mini-PC:n Beelink SEi11 - Billigare än en Intel NUC 11 men lika snabb

Allen Ngo, 2022-09-13 (Update: 2022-09-13)

Potentiella konkurrenter i jämförelse

Hölje

Storleksjämförelse

Anslutningsmöjligheter

Kommunikation

Underhåll

Tillbehör och garanti

Prestanda

Provningsförhållanden

Processor

Cinebench R15 Multi Loop

Systemets prestanda

DPC-latenstid

Lagringsenheter

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

GPU-prestanda

Witcher 3 FPS Chart

Utsläpp

Systembrus

Temperatur

Stresstest

Energiförvaltning

Effektförbrukning

Power Consumption Witcher 3 / Stresstest

Power Consumption external Monitor

För

Emot

Slutsats - Välbalanserad HTPC Core i5

Pris och tillgänglighet

More articles related to this device

Price comparison
